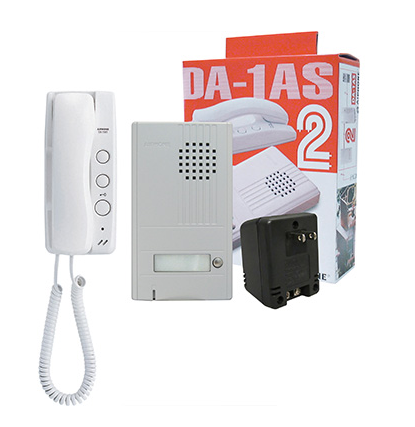

The Aiphone DA-1ASK DA Series Audio Intercom Kit is a practical 2-wire door entry and access communication solution featuring a silver 1-call entrance station, DA-1MD handset tenant station and PT-1211C power supply. Designed for straightforward visitor communication and controlled door release, the DA Series combines full-duplex handset communication, hands-free door-station audio, a backlit directory and simple 2-wire installation for residential and light commercial entry applications.
The system allows a visitor to call from the entrance station while the occupant answers privately using the DA-1MD handset. The tenant station provides door-release control, adjustable call-tone volume with a mute indicator, and an option button for controlling a compatible external device.
A key advantage of the DA Series is that a compatible electric door strike can be powered through the entrance station, eliminating the need for a separate transformer for the door-release function. The specified door-release requirement is 9.5–20V AC with 70Ω or higher resistance, with the Aiphone EL-12S specified for use.

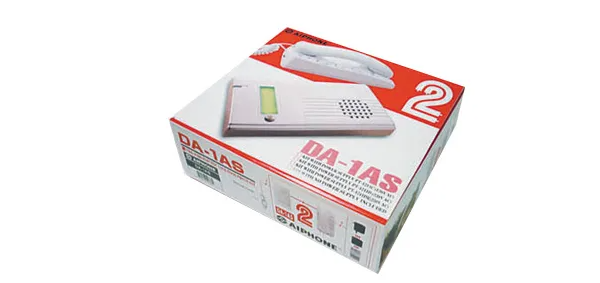

What's Included in the Box
Main Features
-
Complete single-entrance, single-tenant audio intercom kit
-
DA-1DS silver 1-call entrance station
-
DA-1MD handset tenant station
-
Full-duplex handset communication
-
Hands-free communication at the door station
-
Simple 2-wire system for quick and easy installation
-
Integrated electric door-release functionality
-
Door release powered through the entrance station without an additional transformer
-
Backlit directory
-
Option button on the tenant station for controlling an external device
-
Adjustable call-tone volume
-
Mute indicator
Detailed Specifications
| Specification |
Details |
| Product Code |
DA-1ASK |
| Brand |
Aiphone |
| Series |
DA Series |
| System Type |
Audio door entry intercom |
| Number of Calls |
1 |
| Tenant Communication |
Handset, full-duplex |
| Door Station Communication |
Hands-free |
| Door Release |
9.5–20V AC, 70Ω or higher resistance |
| Recommended Door Strike |
Aiphone EL-12S |
| Entrance Station to Tenant Station Wiring |
2-conductor overall shielded, Aiphone #822202, or 2-conductor low-capacitance PE-insulated solid non-shielded, Aiphone #871802 |
| Power Supply to Tenant Station Wiring |
2-conductor low-capacitance, PE-insulated, solid, non-shielded – Aiphone #871802 |
| Power Supply to Entrance Station / Door Strike Distance |
360 ft (22 AWG) / 1,020 ft (18 AWG), cumulative |
| Power Supply to Tenant Station Distance |
180 ft (22 AWG) / 510 ft (18 AWG) |
| DA-1MD Dimensions |
200 H × 89 W × 61 D mm |
| DA-1DS Dimensions |
175 H × 100 W × 22 D mm |
Practical Use Scenarios
The Aiphone DA-1ASK is suited to single-entry applications where occupants need reliable voice communication before granting access. Typical applications include houses, townhouses, individual apartment entrances, offices, reception areas, workshops, small commercial premises and other controlled-entry locations.
Its straightforward 2-wire configuration also makes the DA-1ASK suitable for installations where simple cabling and uncomplicated audio door communication are priorities.
Warranty Information
3 year Warranty
About Aiphone
Aiphone specialises in intercom, door-entry and access communication solutions for residential and commercial applications. The DA Series provides straightforward audio door communication with handset operation, visitor calling and door-release functionality.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Aiphone DA-1ASK provides a practical audio door-entry solution for residential and commercial installations in Australia and New Zealand. Its 2-wire architecture can simplify installation, while private handset communication, hands-free door-station audio and integrated door-release capability provide the essential functions required for controlled visitor entry.
Installation should be completed in accordance with applicable Australian or New Zealand electrical, cabling, building and access-control requirements. Specific Australian or New Zealand certifications, approvals and warranty arrangements should be confirmed with the authorised supplier or brand representative before making compliance claims.
FAQs
What is included with the Aiphone DA-1ASK audio intercom kit?
The Aiphone DA-1ASK includes a DA-1DS silver 1-call entrance station, DA-1MD handset tenant station and PT-1211C power supply.
Is the Aiphone DA-1ASK a 2-wire intercom system?
Yes. The Aiphone DA-1ASK is a 2-wire audio intercom system designed to provide straightforward installation between the system components.
Does the Aiphone DA-1ASK support electric door release?
Yes. The Aiphone DA-1ASK supports electric door release. The specified door-release requirement is 9.5–20V AC with 70Ω or higher resistance, with the Aiphone EL-12S specified for use.
Does the Aiphone DA-1ASK require a separate transformer for the door release?
The Aiphone DA-1ASK is designed so that the compatible door release can be powered through the entrance station without requiring an additional transformer specifically for the door-release function.
What type of communication does the Aiphone DA-1ASK provide?
The Aiphone DA-1ASK provides full-duplex handset communication at the tenant station and hands-free communication at the entrance door station.
Does the Aiphone DA-1ASK have a backlit directory?
Yes. The Aiphone DA-1ASK DA-1DS entrance station features a backlit directory for easier identification.
Can the Aiphone DA-1ASK control an external device?
The Aiphone DA-1ASK DA-1MD tenant station includes an option button that can be used to control a compatible external device when appropriately configured.
Can the call volume be adjusted on the Aiphone DA-1ASK?
Yes. The Aiphone DA-1ASK includes call-tone volume control as well as a mute indicator on the tenant station.
What are the dimensions of the Aiphone DA-1ASK DA-1MD handset?
The DA-1MD handset supplied with the Aiphone DA-1ASK measures approximately 200 mm high × 89 mm wide × 61 mm deep.
What are the dimensions of the Aiphone DA-1ASK DA-1DS door station?
The DA-1DS entrance station supplied with the Aiphone DA-1ASK measures approximately 175 mm high × 100 mm wide × 22 mm deep.
