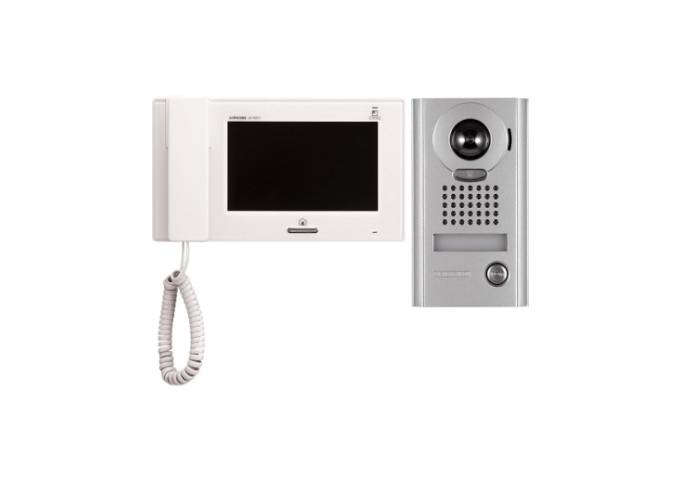

The AIPHONE JP Series Video Intercom Kit (JPS-4AEDV) is a high-capacity, premium video entry solution designed for properties requiring multi-point access and expanded indoor communication. This advanced system includes a JP-DV surface-mounted video door station, a JP-4MED 7" touchscreen master monitor, and a 24VDC power supply. With support for up to 4 door stations and 8 room stations (when paired with optional JP-4HD sub monitors), this kit is ideal for larger residences, offices, or multi-unit buildings.
The JP-4MED master monitor delivers hands-free communication or optional handset use and includes digital pan, tilt, and zoom (PTZ) control for a comprehensive field of view. Designed for easy installation with standard 2-conductor wiring, this robust and modern system ensures secure access and intuitive operation for all users.

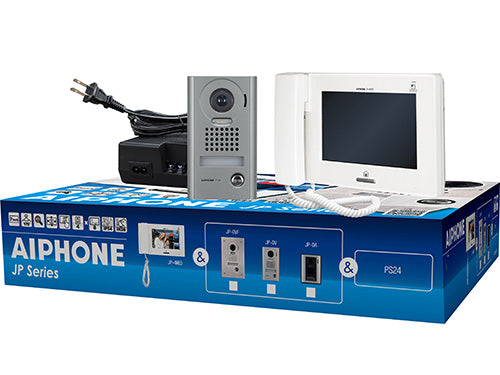

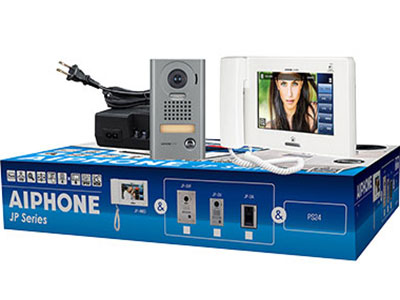

What’s Included in the Box
1 x JP-DV Surface Mount Video Door Station (Silver)
1 x JP-4MED 7" Touchscreen Master Monitor (White)
1 x 24VDC Power Supply
Main Features
7" color touchscreen monitor for intuitive control and video viewing
Digital PTZ (pan, tilt, zoom) camera with ultra-wide 170° horizontal viewing angle
Hands-free and handset communication modes
Expandable up to 4 doors and 8 indoor stations with JP-4HD units
Auto-voice actuation for seamless hands-free conversations
Surface-mounted video door station with high-quality camera
2-conductor wiring for straightforward installation
Elegant white indoor monitor design for modern interiors
Detailed Specifications

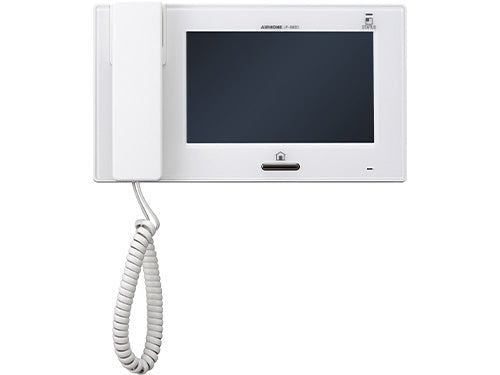

JP-4MED Master Monitor
Display: 7" touchscreen LCD
Communication: Hands-free with auto-voice actuation or handset-based
Expansion: Supports up to 4 door stations and 8 room stations with JP-4HD
Power Supply to Master Station: 16' (22AWG) / 33' (18AWG)
Door Station to Master Station: 165' (22AWG) / 330' (18AWG)

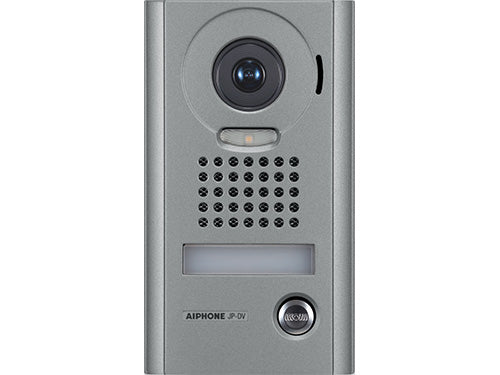

JP-DV Door Station
Camera: 1/4" CMOS sensor
Viewing Angle: Approx. 100° vertical x 170° horizontal
Features: Digital PTZ, built-in microphone and speaker for two-way communication
Mounting Type: Surface mount
Material/Finish: Durable silver housing for outdoor use
Wiring: 2-conductor Aiphone #871802 recommended
Warranty Information
36-month manufacturer warranty backed by AIPHONE
Brand Description
AIPHONE is a world-class manufacturer of intercom and entry security systems. Recognized for excellence in design and reliability, AIPHONE products are used across residential, commercial, and industrial sectors worldwide. With consistent innovation and rigorous quality control, AIPHONE delivers security solutions trusted by professionals and homeowners alike.
SKU
JPS-4AEDV
Practical Use Scenarios
Large Residential Homes: Easily monitor and communicate with visitors at multiple entrances
Commercial Buildings & Offices: Secure multiple access points and connect rooms for internal communication
Healthcare & Aged Care Facilities: Support staff coordination and access control with clear video and two-way audio
Educational Institutions: Control visitor entry at different gates or buildings while maintaining internal communication
Excellence for the Australian and New Zealand Market
The AIPHONE JP Series Video Intercom Kit (JPS-4AEDV) has been carefully selected and configured to suit the needs of the Australian and New Zealand markets. Sourced exclusively through authorized local distributors, it complies with regional quality, safety, and wiring standards, and includes full manufacturer support. Designed for seamless integration into local properties, it is optimized for climate durability and user interface expectations. All warranty and technical support are handled through local AIPHONE representatives, ensuring peace of mind for installers and end-users alike.
Frequently Asked Questions (FAQs)
Q1: How many door and room stations can the AIPHONE JPS-4AEDV system support? A1: The JPS-4AEDV kit supports up to 4 door stations and 8 room stations when expanded with JP-4HD units.
Q2: What wiring is recommended for the AIPHONE JPS-4AEDV kit installation? A2: AIPHONE recommends using 2-conductor Aiphone #871802 wire, mid-cap, solid, non-shielded, for both door and power supply connections.
Q3: Does the JP-4MED monitor support touchscreen functionality? A3: Yes, the JP-4MED features a 7-inch touchscreen for easy control and operation of system features.
Q4: Can the JPS-4AEDV system be used hands-free? A4: Absolutely. The system supports hands-free auto-voice actuation as well as handset-based simultaneous communication.
Q5: Is the JP-DV door station weatherproof? A5: The JP-DV is designed for outdoor use with surface mount installation and built with durable, weather-resistant materials.
