Product Description

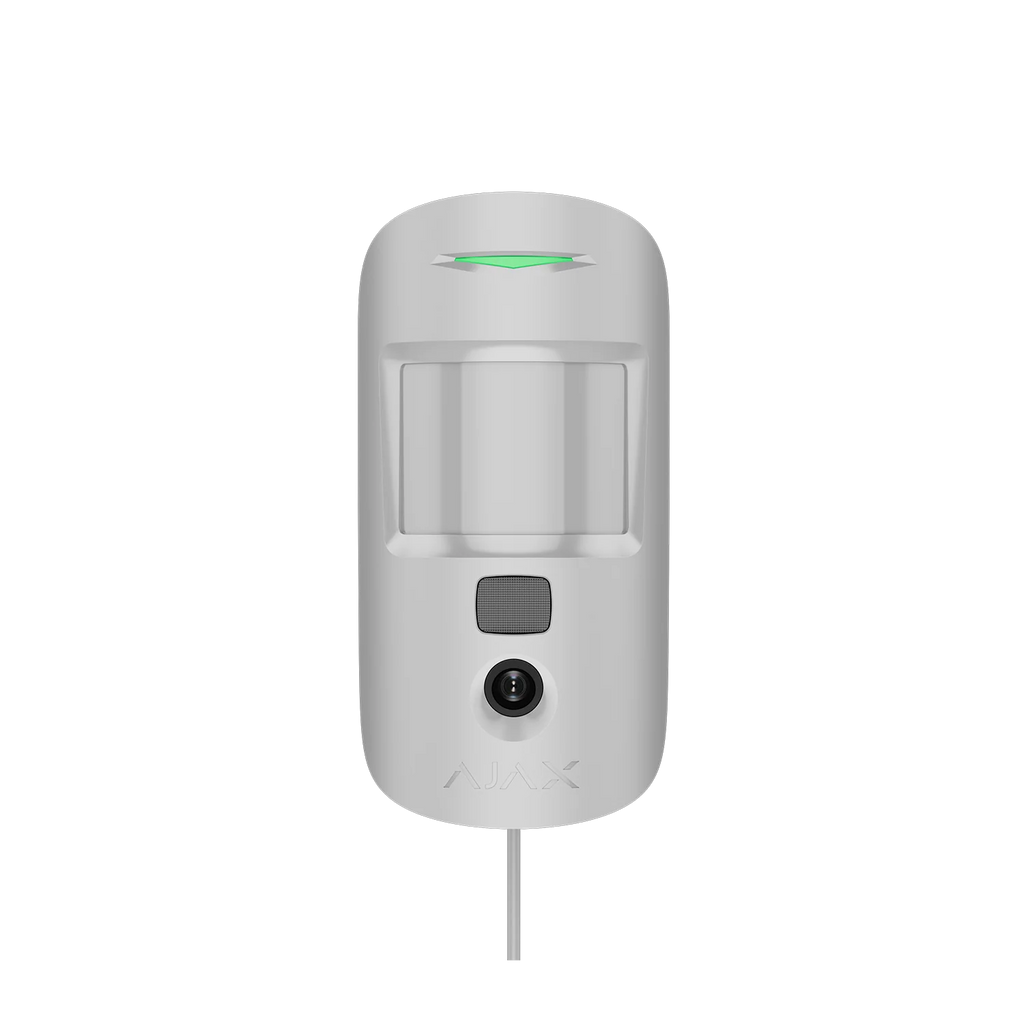

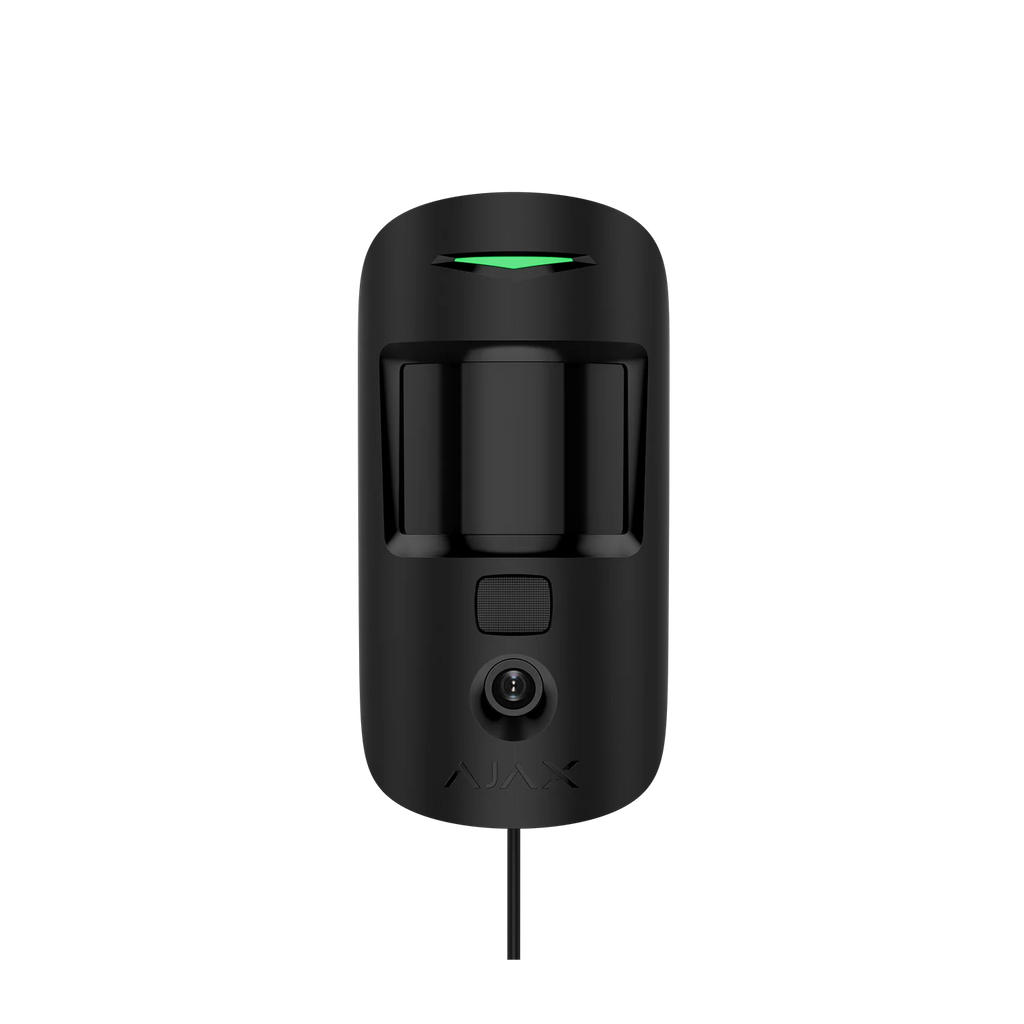

The AJAX#44403 Ajax Superior MotionCam Fibra is a professional wired PIR motion detector featuring Ajax’s advanced Photo by Alarm technology for instant visual verification of intrusion events. Designed for residential and commercial security applications, MotionCam Fibra combines highly accurate motion detection, pet immunity, encrypted Fibra communication, and built-in image capture to provide security professionals and end users with immediate confirmation of alarm events. With support for photo transmission in seconds, infrared illumination for night-time imaging, SmartDetect false alarm prevention, and remote configuration via Ajax apps, the MotionCam Fibra delivers superior intrusion detection and visual verification across Australian and New Zealand security installations.

What's Included in the Box

• Superior MotionCam Fibra Detector

• SmartBracket Mounting Panel

• Installation Kit

• Quick Start Guide

Main Features

Photo Verification of Alarms

Unlike traditional motion detectors, MotionCam Fibra captures and transmits images when an alarm is triggered.

Benefits include:

• Instant visual verification

• Reduced false alarm callouts

• Faster security response

• Improved monitoring efficiency

• Increased user confidence

Images are transmitted directly through the Ajax system for secure viewing.

Photo by Alarm Technology

When armed, the detector automatically captures photos when motion is detected.

Supported photo resolutions:

• 160 × 120 px

• 320 × 240 px (default)

• 640 × 480 px

Image settings can be adjusted by authorised users and installers through Ajax applications.

Fast Photo Delivery

Photo delivery times:

• Up to 7 seconds (160 × 120)

• Up to 9 seconds (320 × 240)

• Up to 20 seconds (640 × 480)

This enables rapid visual verification of alarm events.

Infrared Night Vision

Integrated IR illumination allows the detector to capture images in:

• Darkness

• Low-light conditions

• Night-time environments

Providing reliable visual verification 24 hours a day.

Accurate PIR Motion Detection

The detector uses a high-quality PIR sensor to provide:

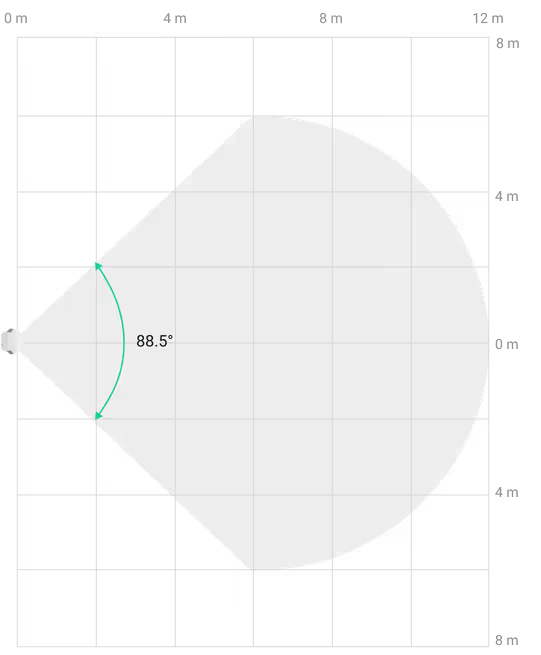

• Detection range up to 12 metres

• 88.5° horizontal detection angle

• Motion speed detection from 0.3 to 2.0 m/s

For maximum effectiveness, installation is recommended at 2.4 metres.

Ajax Fibra Communication Technology

Fibra combines wired reliability with advanced encrypted communication.

Features include:

• Two-way communication

• Dynamic encryption

• Instant event delivery

• Remote diagnostics

• Remote configuration

• Advanced anti-sabotage protection

Supports cable runs up to 2,000 metres using U/UTP Cat5 cabling.

SmartDetect False Alarm Prevention

Ajax SmartDetect software intelligently analyses detected movement to minimise nuisance alarms while maintaining reliable intrusion detection.

Suitable for:

• Homes

• Offices

• Retail premises

• Warehouses

• Commercial facilities

Adjustable Sensitivity

Four sensitivity levels allow installers to optimise detector performance based on environmental conditions and application requirements.

Pet Immunity

Designed to ignore common household pets while maintaining effective human detection.

Supports:

• Pets up to 20kg

• Animals up to 50cm in height

Perfect for homes and businesses with pets.

Temperature Compensation

Automatically adjusts detection performance to maintain reliable operation across varying temperatures.

Effective detection range:

• −10°C to +40°C

Sabotage Protection

Dual Tamper Protection

The detector incorporates two tamper buttons that monitor:

• Removal from mounting surface

• Removal from mounting bracket

• Physical tampering attempts

Users and monitoring stations receive immediate notifications.

Device Authentication

Built-in authentication prevents device substitution and unauthorised access to the security system.

Power Management

Main Power Supply

Powered directly from the Fibra line:

• Operating voltage: 7–30V DC

• Nominal voltage: 24V DC

• Maximum power consumption: 367mW

Auxiliary Backup Power

The built-in sealed LTO AA battery provides power for:

• Photo capture

• IR illumination

• Alarm image transmission

The battery automatically charges through the Fibra line.

Detailed Specifications

Warranty Information

24-Month Manufacturer Warranty

The Ajax Superior MotionCam Fibra is covered by a comprehensive 24-month manufacturer warranty.

About Ajax Systems

Ajax Systems is a globally recognised manufacturer of professional-grade security solutions. Ajax products combine intelligent detection technologies, encrypted communication, visual verification capabilities, and modern system management tools to deliver industry-leading security performance.

Practical Use Scenarios

Residential Security

Ideal for:

• Living rooms

• Hallways

• Entry points

• Bedrooms

• Internal security zones

Provides visual confirmation of alarm events before emergency response.

Commercial Premises

Suitable for:

• Offices

• Retail stores

• Warehouses

• Storage facilities

• Commercial buildings

Allows monitoring stations to verify intrusion events quickly.

High-Risk Installations

Perfect for:

• Jewellery stores

• Pharmacies

• Financial institutions

• Data centres

• Government facilities

Combines intrusion detection with visual evidence.

Remote Monitoring Applications

Photo verification helps:

• Reduce false alarm dispatches

• Improve incident assessment

• Verify genuine security breaches

• Enhance monitoring centre operations

Datasheets & Resources

Available documentation includes:

• Technical specifications

  User manual

  Demo & Tips for engineers and PRO users

  Technical data sheet



SKU

AJAX#44403

Excellence for the Australian and New Zealand Market

The AJAX#44403 Ajax Superior MotionCam Fibra delivers a premium intrusion detection solution enhanced by visual verification technology. Designed for professional installations throughout Australia and New Zealand, it provides immediate image confirmation of alarm events, helping property owners, security companies, and monitoring centres respond more effectively to genuine threats.

Key benefits include:

• PIR motion detection up to 12 metres

• Photo by Alarm technology

• Up to 5 alarm snapshots

• Infrared night-time photography

• Fast image delivery

• Pet immunity up to 20kg

• SmartDetect false alarm filtering

• Fibra encrypted communication

• Up to 2,000m communication distance

• Dual tamper protection

• Remote configuration and diagnostics

• Professional-grade commercial security

• Genuine Ajax Systems product

• 24-month manufacturer warranty

FAQs

What is AJAX#44403 used for?

The AJAX#44403 is a wired PIR motion detector with built-in photo verification designed to detect intrusion and capture images when alarms occur.

Does AJAX#44403 take pictures when motion is detected?

Yes. The AJAX#44403 uses Ajax Photo by Alarm technology to capture and transmit images whenever motion triggers an alarm.

How quickly does AJAX#44403 send photos?

The AJAX#44403 can deliver photos in as little as 7 seconds depending on the selected image resolution.

What photo resolutions does AJAX#44403 support?

The AJAX#44403 supports 160×120, 320×240, and 640×480 image resolutions.

Does AJAX#44403 work at night?

Yes. The AJAX#44403 includes built-in infrared illumination for photo capture in darkness and low-light conditions.

What is the detection range of AJAX#44403?

The AJAX#44403 detects motion at distances up to 12 metres.

Does AJAX#44403 support pet immunity?

Yes. The AJAX#44403 ignores pets weighing up to 20kg and up to 50cm in height.

What communication technology does AJAX#44403 use?

The AJAX#44403 uses Ajax Fibra encrypted wired communication technology.

Can AJAX#44403 be configured remotely?

Yes. The AJAX#44403 supports remote configuration and diagnostics through Ajax applications.

Does AJAX#44403 come with a warranty?

Yes. The AJAX#44403 includes a 24-month manufacturer warranty.
