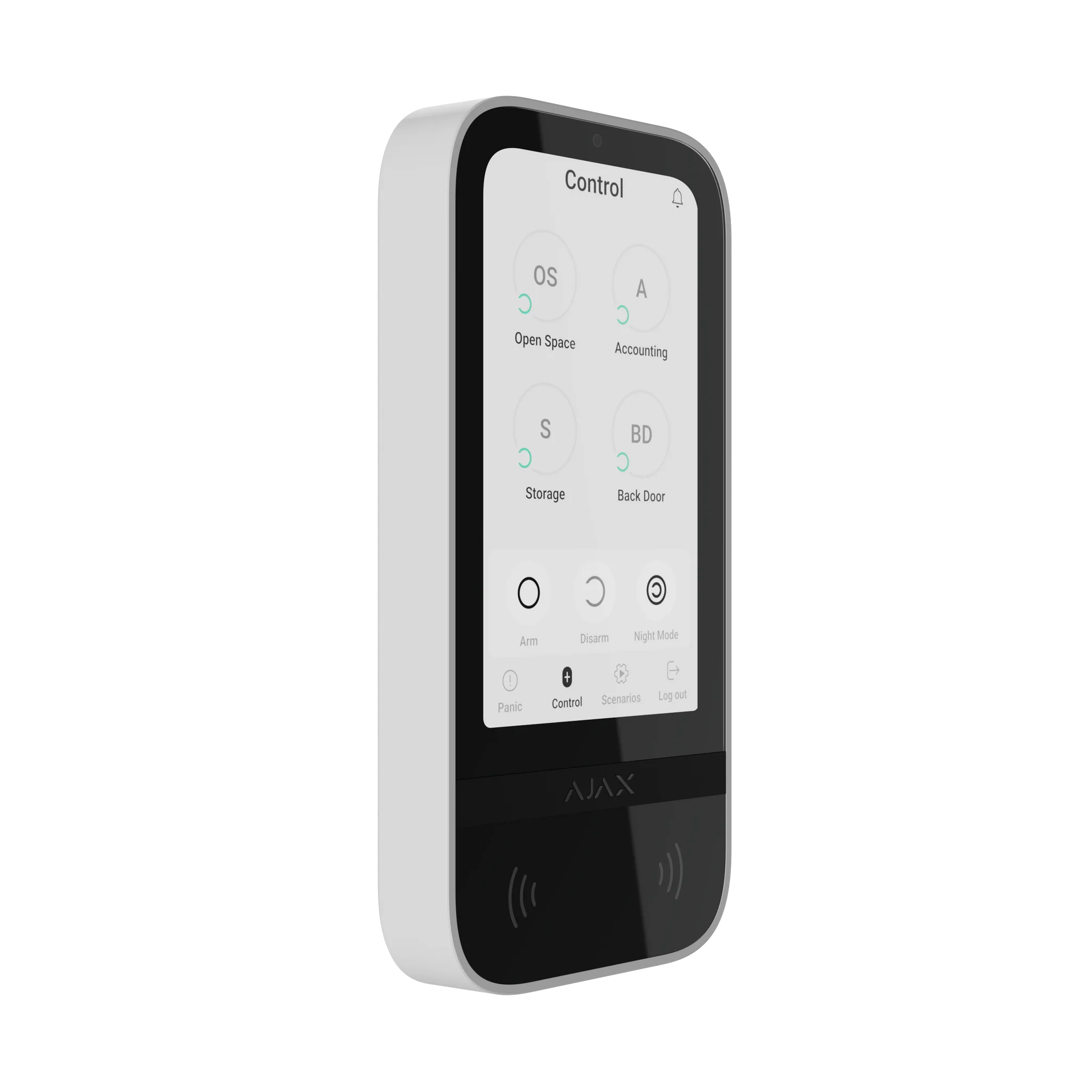

The Ajax KeyPad TouchScreen Jeweller Wireless Keypad (White) is a modern touchscreen control panel designed for seamless management of Ajax security systems. Featuring a 5-inch IPS capacitive display, multi-authentication support (codes, smartphone, Pass, and Tag), and encrypted wireless communication via Jeweller technology, this keypad provides secure and convenient control for residential and commercial security systems. With contactless access, smartphone authentication via Bluetooth, panic buttons, and advanced sabotage protection, the Ajax KeyPad TouchScreen delivers reliable, intuitive system control with a sleek and responsive interface.
What’s Included in the Box
-
Ajax KeyPad TouchScreen Jeweller (White)
-

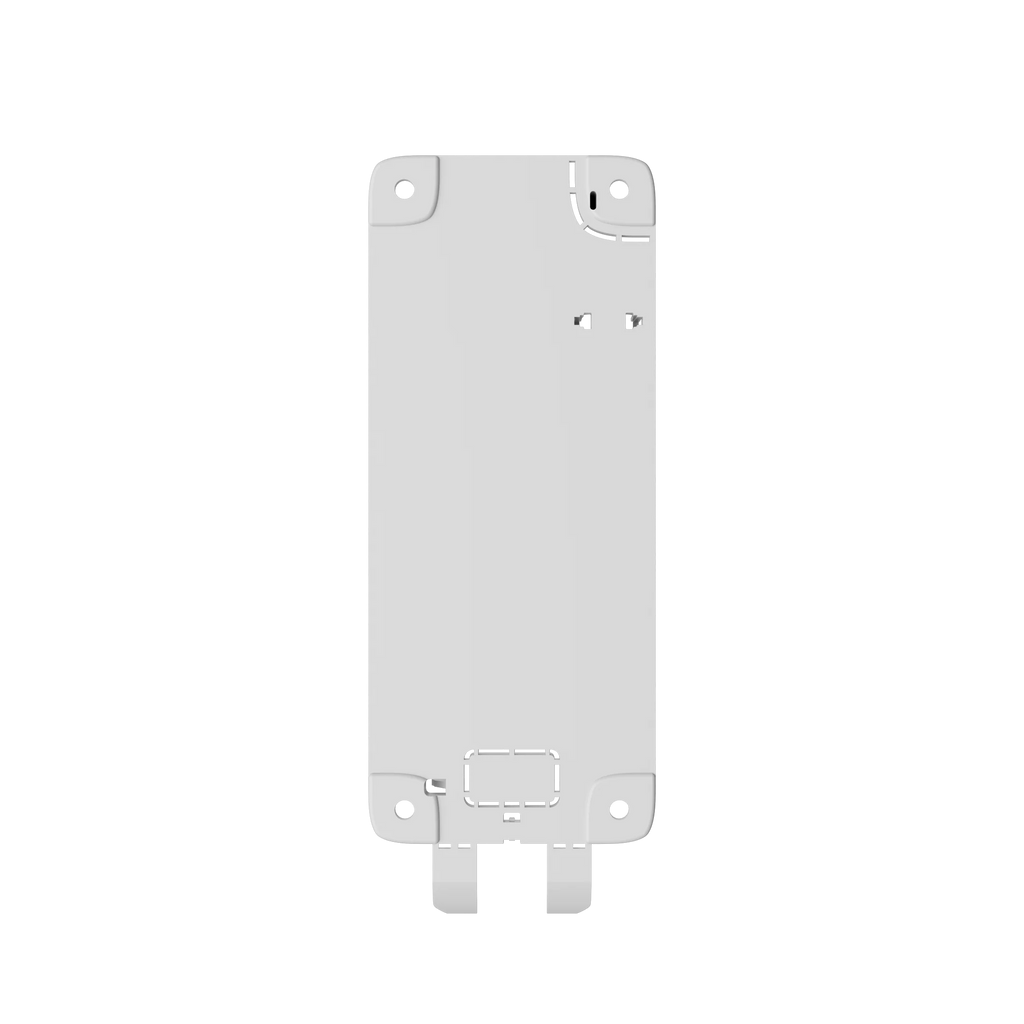

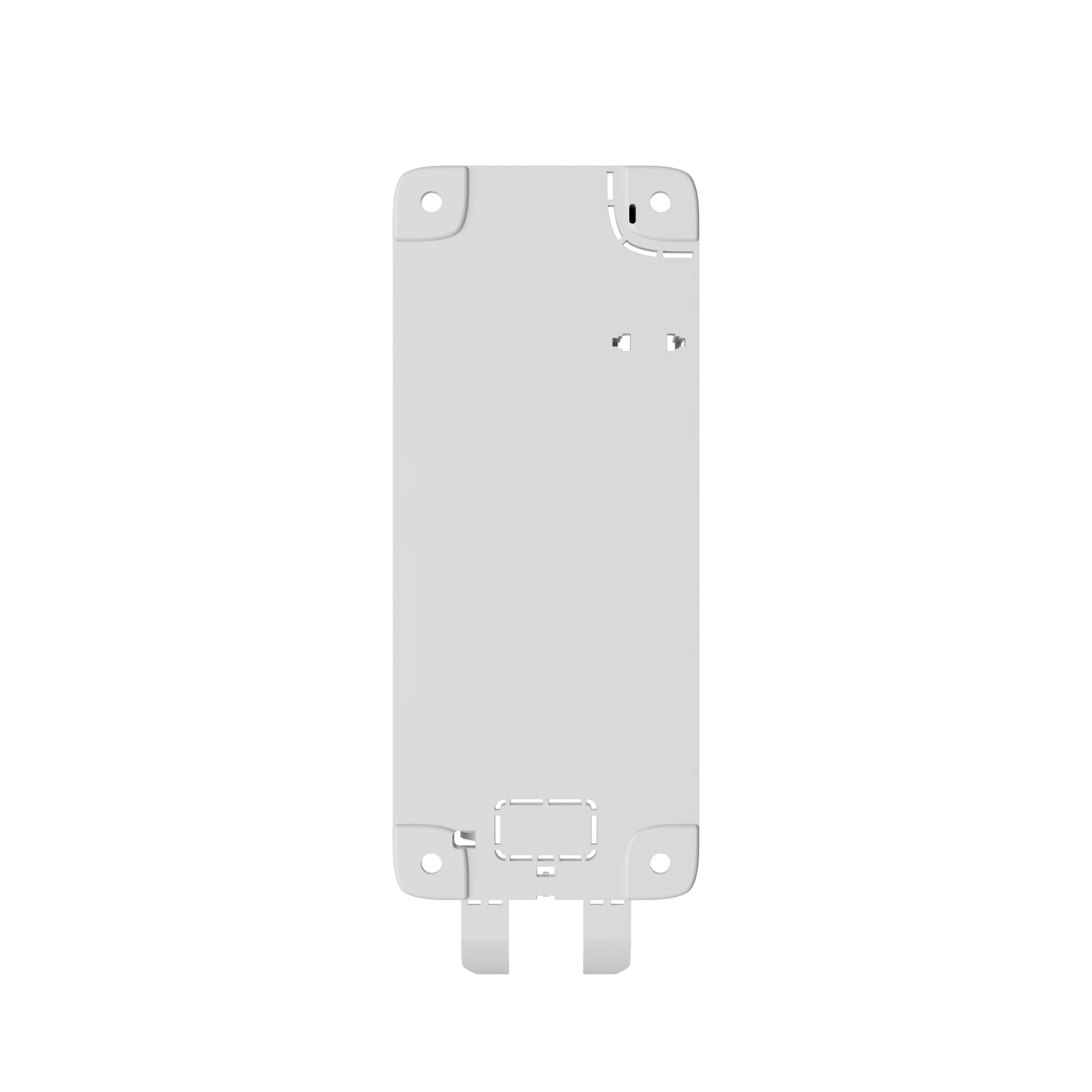

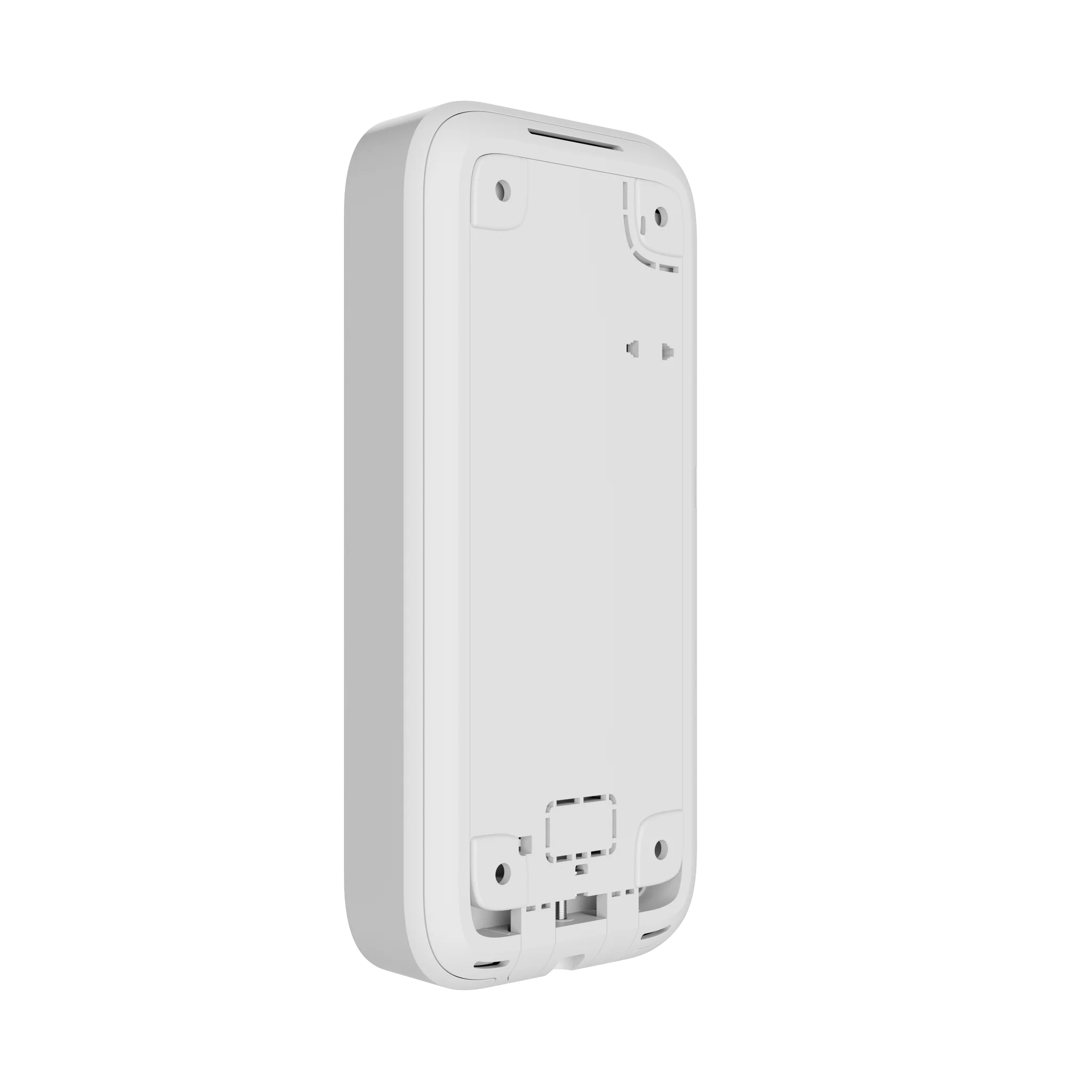

SmartBracket mounting panel
-
6 × AA batteries (pre-installed)
-
Installation kit
-
Quick start guide
Main Features
-
5-inch IPS Touchscreen Display – Clear and responsive interface with 480 × 854 resolution
-
Multiple Authentication Methods – Codes, Tag key fobs, Pass cards, and smartphone (Bluetooth)
-
Contactless Access Support – DESFire® EV1 / EV2 and ISO14443-A technology
-
Wireless Communication – Ajax Jeweller protocol with up to 1700 m range
-
Two-Way Communication – Secure interaction with Ajax hubs and range extenders
-
Advanced Encryption – Block encryption with dynamic key and frequency hopping
-
Panic Alarm Buttons – Dedicated panic, fire, and auxiliary help alarms
-
Smartphone Authorization – Bluetooth Low Energy (BLE) authentication
-
Event Log Display – Shows up to 100 latest system events
-
Automation Control – Up to 6 automation scenario buttons
-
Auto Screen Wake-Up – Activates when user approaches the device
-
Sabotage Protection – Tamper alarm and automatic lock after repeated incorrect codes
-
Remote Firmware Updates – Managed via Ajax apps
-
Backup Battery Support – Works with external power supply and battery backup
Detailed Specifications
Communication Technology
-
Jeweller wireless communication technology
-
Wings communication technology
Key features
-
Two-way communication
-
Advanced sabotage protection
-
Block encryption with dynamic key
-
Frequency hopping anti-jamming technology
Frequency Bands
-
866.0 – 866.5 MHz
-
868.0 – 868.6 MHz
-
868.7 – 869.2 MHz
-
905.0 – 926.5 MHz
-
915.85 – 926.5 MHz
-
921.0 – 922.0 MHz
(Varies depending on region)
Maximum Effective Radiated Power
-
Up to 20 mW
Radio Signal Range
-
Up to 1700 m (open space)
Radio Signal Modulation
-
GFSK
Display
-
Screen size: 5″ IPS
-
Resolution: 480 × 854 px
-
Sensor: Capacitive touchscreen
-
Brightness settings: Automatic and manual
-
Backlight lifetime: 30,000 hours
-
Interface modes: Dark / Light
Access & Control
-
Up to 200 personal access codes
-
Up to 200 personal duress codes
-
Up to 99 codes for unregistered users
-
Contactless authorization
-
Smartphone authorization via Bluetooth Low Energy (BLE)
-
Arming without entering code (optional)
-
Group security mode management
-
Automation scenario control (up to 6)
Security & Protection
-
Tamper alarm
-
Unauthorized access auto-lock
-
Device authentication
-
Spoofing protection
-
Communication loss detection: 36 seconds
Power Supply
-
6 × AA batteries (pre-installed)
-
Battery life: Up to 1.5 years
-
Nominal voltage: 12 V⎓
-
External operating voltage: 10.5 – 14 V⎓
-
Backup battery operation supported
Physical Specifications
-

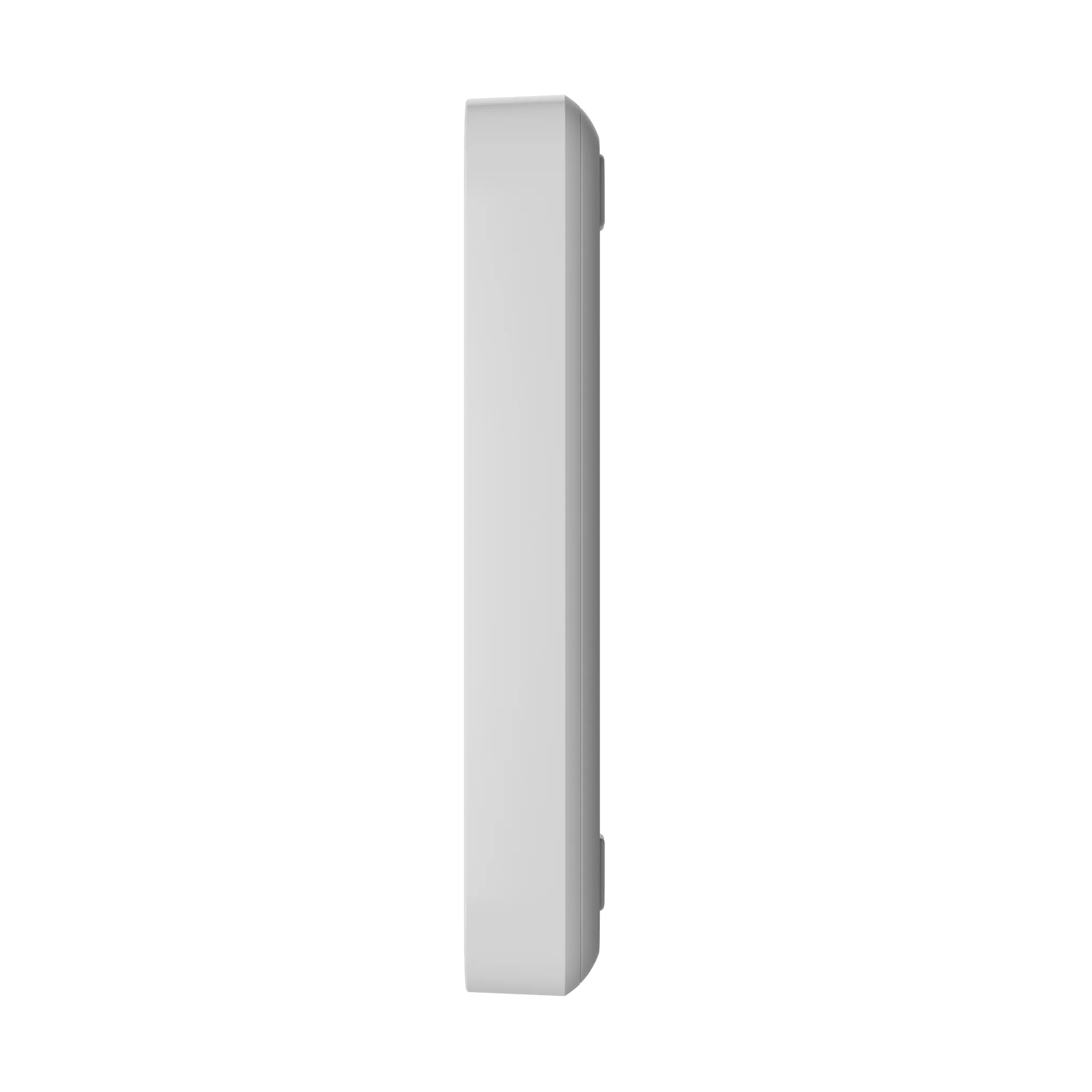

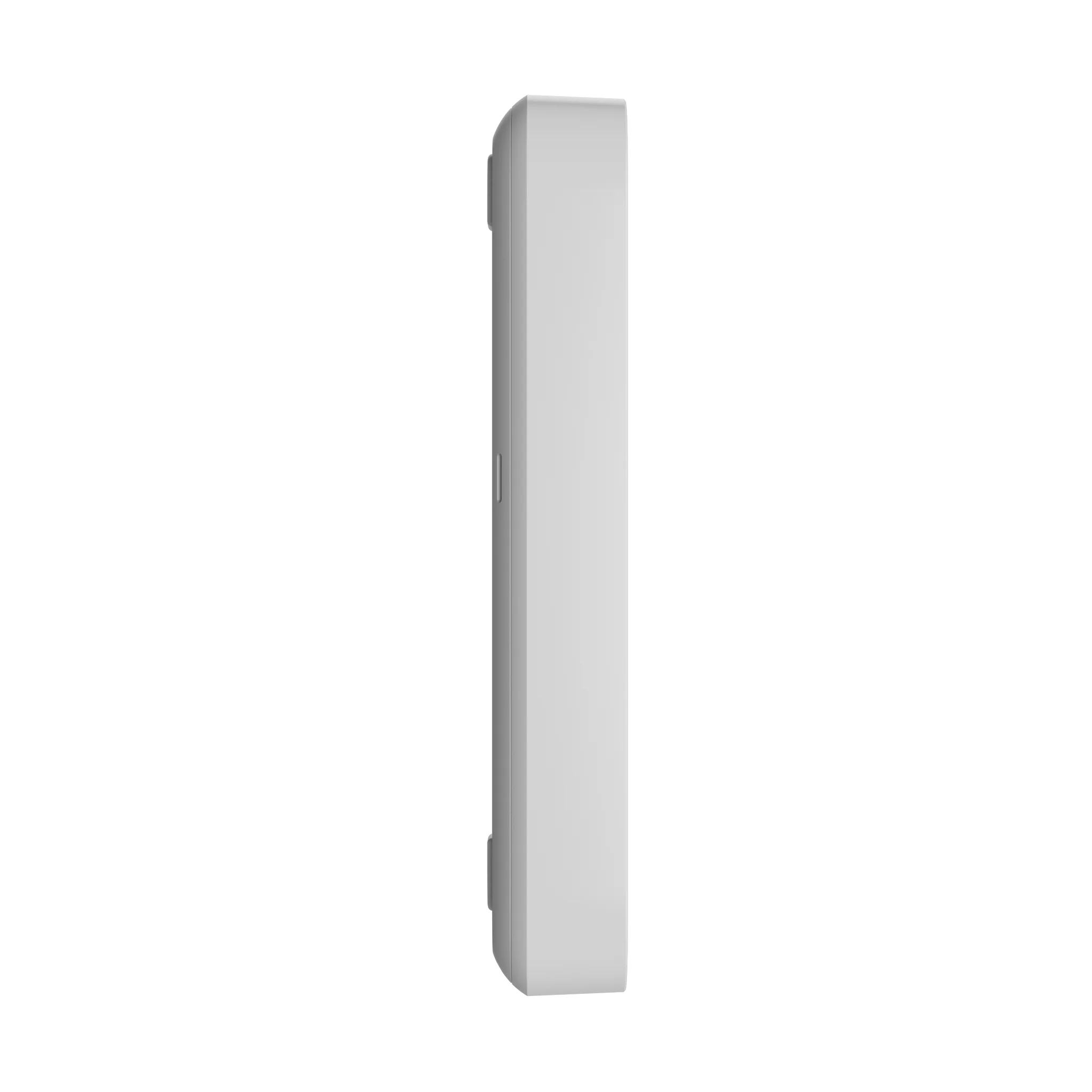

Dimensions: 172 × 82 × 26 mm
-
Weight: 327 g
-
Operating temperature: -10°C to +40°C
-
Humidity tolerance: Up to 75%
-
Colour: White
-
Indoor installation only
Warranty
This product includes a 24-month manufacturer warranty, ensuring reliability and long-term protection for your security system.
Brand – Ajax Systems
Ajax Systems is a globally recognized manufacturer of advanced wireless security solutions. Known for innovative technologies such as Jeweller encrypted communication and intelligent automation, Ajax provides professional-grade protection for homes, businesses, and industrial facilities worldwide.
SKU
AJAX#58469
Practical Use Scenarios
-
Residential Security Systems – Convenient home alarm control
-
Commercial Buildings – Secure staff access with personal codes or cards
-
Offices & Warehouses – Contactless authentication for employees
-
Retail Stores – Quick arming/disarming with smartphone authorization
-
Smart Building Automation – Control lighting or automation scenarios directly from the keypad
Datasheets / Resources
Excellence for the Australian and New Zealand Market
This product is supplied specifically for the Australian and New Zealand market, ensuring compatibility with regional frequency bands and security standards. All devices are sourced through authorized brand representatives, guaranteeing authentic products and full manufacturer support. Warranty and service are handled through direct communication with the brand, ensuring reliable after-sales assistance and compliance with regional quality expectations.
FAQs
What is the product code AJAX#58469 used for?
The AJAX#58469 KeyPad TouchScreen Jeweller is a wireless touchscreen keypad designed to control Ajax security systems, allowing users to arm, disarm, and manage security groups.
Does AJAX#58469 support smartphone authentication?
Yes. AJAX#58469 supports smartphone authentication using Bluetooth Low Energy (BLE) through the Ajax mobile app.
What access methods are supported by AJAX#58469?
The AJAX#58469 keypad supports authentication via personal codes, Tag key fobs, Pass cards, and smartphones.
What is the wireless communication range of AJAX#58469?
The AJAX#58469 KeyPad TouchScreen Jeweller can communicate with the Ajax hub at distances of up to 1700 meters in open space.
Can AJAX#58469 trigger emergency alarms?
Yes. AJAX#58469 includes dedicated panic, fire, and auxiliary help alarm buttons for emergency situations.
How many user codes can be stored in AJAX#58469?
The AJAX#58469 keypad supports up to 200 personal access codes and up to 200 duress codes, depending on the hub configuration.
Is AJAX#58469 suitable for outdoor installation?
No. AJAX#58469 is designed strictly for indoor installation.
What is the battery life of AJAX#58469?
The AJAX#58469 KeyPad TouchScreen Jeweller offers up to 1.5 years of battery life under standard usage conditions.
