The Ajax NVR H2D Series delivers professional 4K IP video surveillance with 8 or 16 recording channels, dual hot-swappable HDD bays, up to 32 TB of storage capacity and optional integrated PoE ports. Featuring ONVIF compatibility, Ajax JetSparrow technology and remote video management, this network video recorder is ideal for commercial security, offices, warehouses and residential CCTV installations across Australia and New Zealand.
Double the Storage. Double the Confidence.
Designed for dependable, continuous video surveillance, the Ajax NVR H2D Series combines Ajax security cameras and compatible third-party IP cameras into a unified video management ecosystem.
With two SATA III drive bays supporting up to 16 TB each, the recorder offers flexible video storage for applications requiring extended footage retention or additional recording protection.
Two selectable recording modes allow users to prioritise storage capacity or data redundancy.
Redundancy Mode duplicates recorded footage across both drives, helping preserve recordings if one drive fails.
Split Mode distributes recorded footage across both drives, balancing storage usage and providing greater effective recording capacity.
Unlike conventional recorders requiring a shutdown for drive replacement, the Ajax NVR H2D supports hot-swappable storage, allowing maintenance without switching off the recorder.
4K HDMI Output and Professional Local Monitoring
The integrated 4K HDMI output transforms the recorder into a professional on-site security monitoring station.
Connect a compatible display and USB peripherals to access Ajax's built-in video management system (VMS), including live camera monitoring, recorded footage playback and event investigation.
Its customisable video wall supports multiple viewing layouts, making it easy for security operators to manage different areas of a property from one interface.
Remote Surveillance Powered by Ajax JetSparrow
Ajax JetSparrow technology provides fast, encrypted video streaming and responsive archive navigation through supported Ajax applications.
Authorised users can remotely:
-
View live camera footage.
-
Access and navigate recorded video archives.
-
Review security events and associated footage.
-
Search recordings using event filters and timelines.
-
Export relevant video clips.
-
Manage cameras and recording configurations.
-
Monitor multiple camera streams using the video wall.
The system supports convenient security monitoring from compatible smartphones, computers and other supported devices.
Seamless Integration with Ajax and Third-Party Cameras
The Ajax NVR H2D Series supports Ajax video devices and compatible third-party IP cameras using ONVIF Profile S and RTSP.
This flexibility makes it suitable for new CCTV installations, existing surveillance system upgrades and integration projects that combine multiple camera technologies.
PoE-equipped versions can connect and power compatible IP cameras directly through built-in PoE ports, reducing the need for separate camera power connections.
Security-Focused Video Management
The Ajax NVR H2D combines surveillance performance with configurable privacy controls.
Device owners can manage user permissions for video streams, recorded events and recorder settings. This helps ensure surveillance information remains accessible only to authorised users.
Integration with Ajax security events also allows associated camera footage to be highlighted for faster visual alarm verification.
Main Features
-
8 or 16 IP camera channels: Choose the recorder configuration appropriate for your installation.
-
4K HDMI video output: High-resolution on-site monitoring at up to 3840 × 2160 pixels.
-
Dual hot-swappable HDD bays: Supports two SATA III HDDs or compatible SSDs.
-
Up to 32 TB raw storage: Two drives with a maximum capacity of 16 TB each.
-
Two recording modes: Redundancy Mode and Split Mode for different storage requirements.
-
Optional built-in PoE: Available with 8 or 16 PoE ports, depending on model.
-
ONVIF Profile S and RTSP: Integration with compatible third-party IP cameras.
-
Ajax JetSparrow technology: Fast encrypted video streaming and archive navigation.
-
Built-in VMS: Local surveillance monitoring and playback without requiring a separate computer.
-
Customisable video wall: Multiple layouts for monitoring numerous camera views.
-
H.265 and H.264: Supports widely used video compression formats.
-
Gigabit Ethernet: Up to 1000 Mbps network connection.
-
160 Mbps incoming and outgoing bandwidth: Suitable for multi-camera surveillance installations.
-
Three USB 2.0 ports: Connect compatible peripherals and USB storage.
-
Motion detection: Supports camera-based and recorder-based detection functions.
-
Visual alarm verification: Integrates relevant camera views with Ajax security events.
-
HDD health monitoring: Allows users to monitor installed storage devices.
-
Privacy management: Configurable access permissions and protected video transmission.
-
Rack-mount capability: Includes mounting brackets for appropriate rack installations.
-
Indoor installation: IP20-rated enclosure.
Available Models and Product Codes
| Model / Product Code |
Camera Channels |
Built-in PoE Ports |
HDD Bays |
| NVR H2DAC (8-ch) |
8 |
None |
2 |
| NVR H2DAC (16-ch) |
16 |
None |
2 |
| NVR H2D8PAC (8-ch) |
8 |
8 |
2 |
| NVR H2D8PAC (16-ch) |
16 |
8 |
2 |
| NVR H2D16PAC (16-ch) |
16 |
16 |
2 |
All listed versions support 4K HDMI output, dual hot-swappable storage, three USB 2.0 ports and Gigabit Ethernet.
Note: PoE support is model-dependent. Non-PoE variants require compatible external camera power arrangements or PoE network equipment.
Detailed Technical Specifications
Video and Recording
| Specification |
Details |
| Product series |
Ajax Baseline NVR H2D |
| Device type |
Network Video Recorder (NVR) |
| Video channels |
8 or 16, depending on model |
| Video compression |
H.265 / H.264 |
| Ajax video technology |
JetSparrow |
| Maximum listed recording resolution |
12 MP |
| Supported recording resolutions |
12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, UXGA, 720p, VGA, 4CIF, DCIF, 2CIF, CIF, QCIF |
| HDMI output |
1 × HDMI, up to 4K |
| HDMI output resolutions |
3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Incoming bandwidth |
Up to 160 Mbps |
| Outgoing bandwidth |
Up to 160 Mbps |
| Synchronous archive playback |
Up to 4 channels |
| Supported cameras |
Ajax video devices and compatible third-party IP cameras |
| ONVIF |
Profile S |
| Video streaming protocols |
RTSP, JetSparrow |
| Built-in VMS |
Yes |
| Motion detection |
Supported |
Storage and Data Management
| Specification |
Details |
| HDD/SSD connections |
2 × SATA III |
| Maximum capacity per drive |
16 TB |
| Maximum combined raw capacity |
32 TB |
| Supported drive form factors |
3.5-inch and 2.5-inch with appropriate secure mounting |
| Hot swapping |
Supported |
| Redundancy Mode |
Duplicate recordings across both drives |
| Split Mode |
Distribute recordings across both drives |
| HDD health monitoring |
Supported |
| HDD/SSD included |
No |
Usable recording capacity depends on the selected recording mode, installed drives and formatting. Split Mode does not provide the same full-copy protection as Redundancy Mode.

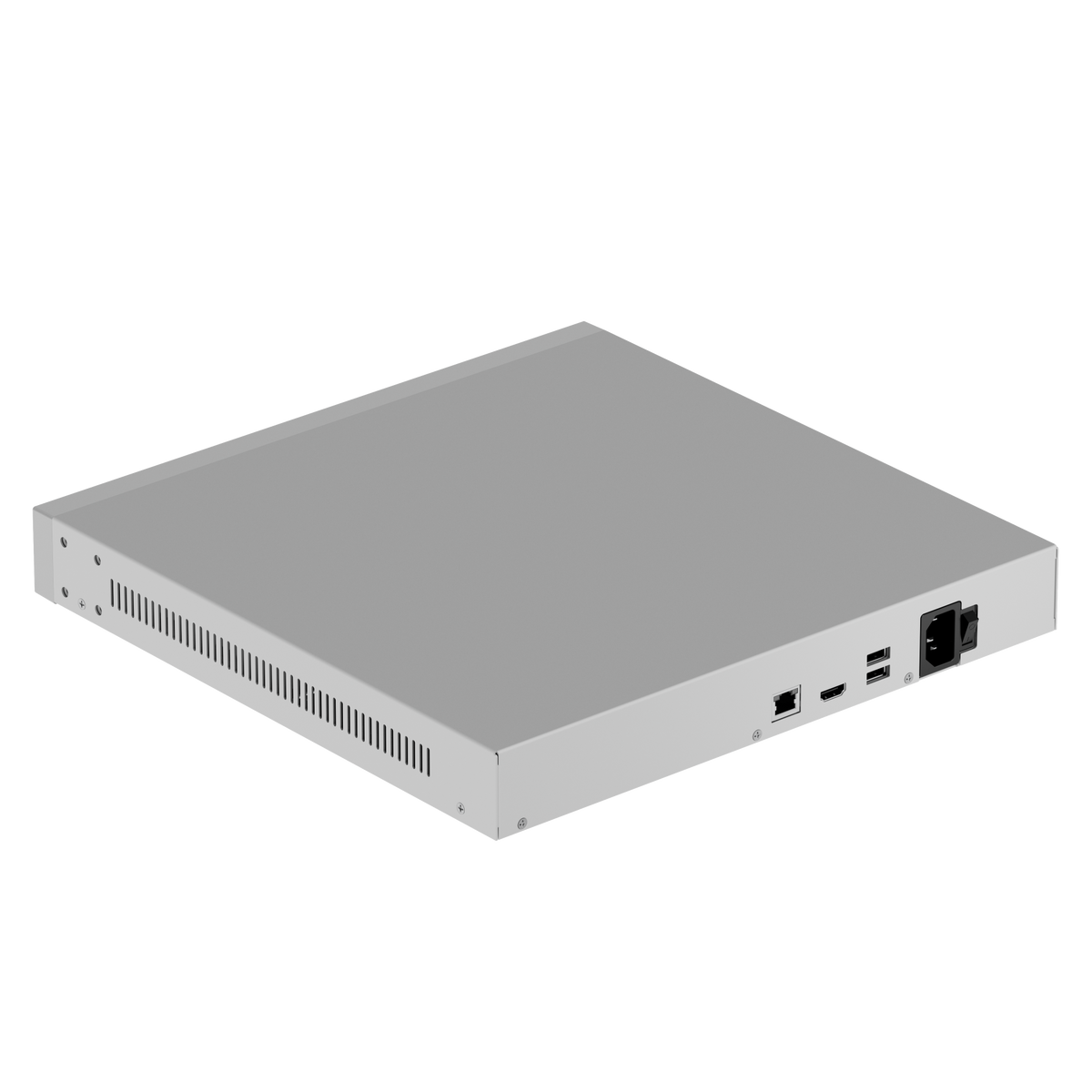

Connectivity and Interfaces
| Specification |
Details |
| Network connection |
1 × RJ45 Gigabit Ethernet |
| Ethernet speed |
10/100/1000 Mbps |
| USB ports |
3 × USB 2.0 Type-A |
| Front USB |
1 × USB 2.0 |
| Rear USB |
2 × USB 2.0 |
| HDMI |
1 × 4K HDMI output |
| Built-in PoE |
0, 8 or 16 ports depending on model |
| Supported network protocols |
HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
Power Supply
| Model |
Power Input |
Maximum Power Consumption |
| NVR H2DAC (8-ch / 16-ch) |
100–240 V AC, 50/60 Hz, 0.6 A |
Up to 85 W |
| NVR H2D8PAC (8-ch / 16-ch) |
100–240 V AC, 50/60 Hz, 5 A |
Up to 320 W |
| NVR H2D16PAC (16-ch) |
100–240 V AC, 50/60 Hz, 5 A |
Up to 320 W |
Physical and Environmental Specifications
| Specification |
Details |
| Dimensions |
330 × 330 × 44 mm |
| Weight |
3.3 kg without installed drives |
| Available colours |
Black and white |
| Operating temperature |
0°C to +50°C |
| Operating humidity |
Up to 75% |
| Protection rating |
IP20 |
| Installation |
Indoor installation only |
| Mounting |
Desktop or rack installation with supplied brackets |
| Movement detection |
Built-in accelerometer |
| Clock battery |
CR2032, 3 V |
Video Management and Privacy
Live view layouts
Available layouts include 1, 4, 9, 16, 25, 5+1, 7+1 and 12+1 views, with additional custom video wall configurations.
Archive management
-
Interactive recording timeline
-
Event and date filtering
-
Synchronised multi-camera playback
-
Recorded clip export
-
Local and remote archive access
-
Rapid playback navigation
Access and data security
-
Configurable user permissions
-
Encrypted video transmission
-
Access management for installers and monitoring personnel
-
Authentication and account security features
-
Owner-controlled access to surveillance content
What's Included in the Box?
Important: HDDs, SSDs, HDMI cables, cameras, display monitors and USB peripherals are not included.
Practical Applications and Use Scenarios

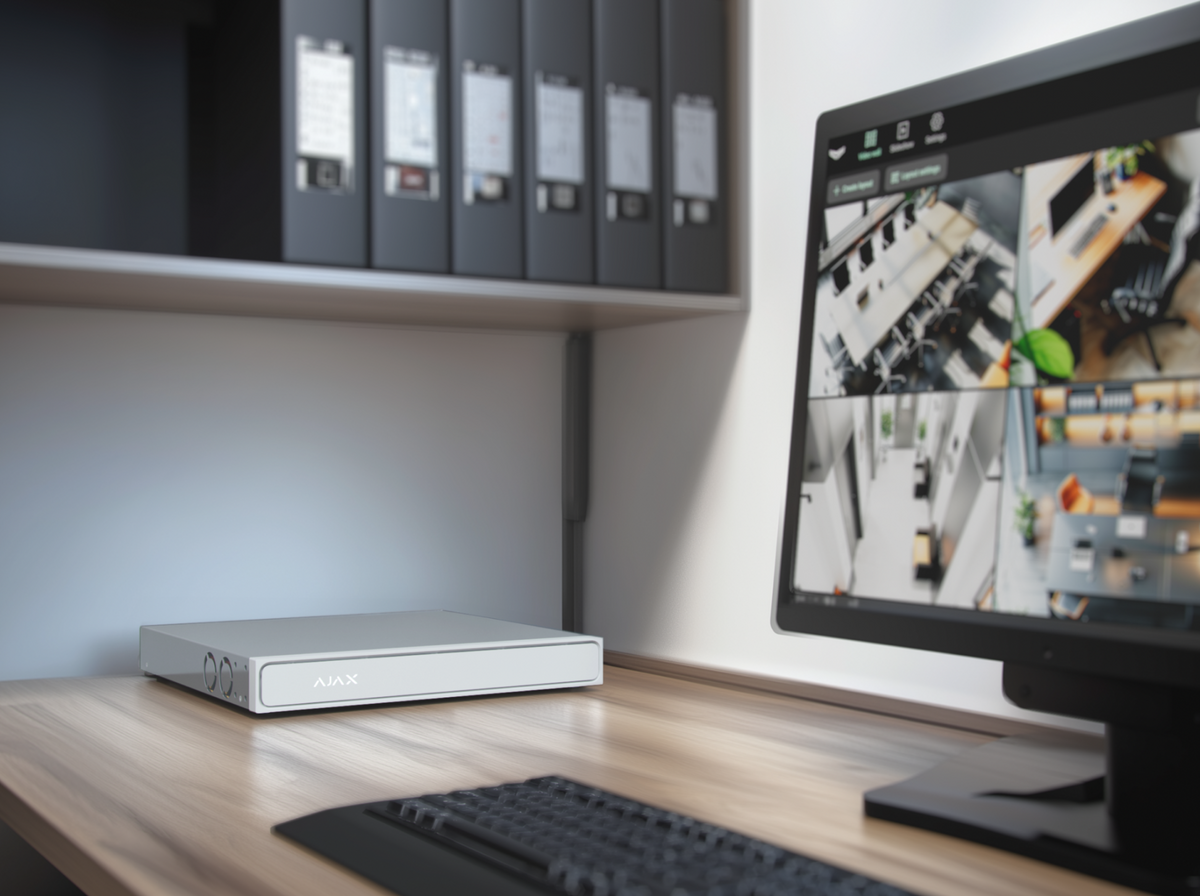

Commercial Offices and Corporate Buildings
Centralise security footage from reception areas, entrances, corridors and shared workspaces using one recorder with remote viewing and local 4K monitoring.
Warehouses and Distribution Centres
Monitor loading docks, access points and stock storage areas. Dual-drive recording provides flexible archive retention and redundancy options.
Retail Stores and Shopping Facilities
View multiple cameras simultaneously using the Ajax video wall. Quickly locate recorded incidents using timeline and event search tools.
Residential and Apartment Security
Integrate compatible indoor and outdoor cameras into a single managed surveillance system, with convenient mobile monitoring and recorded video access.
Schools and Educational Facilities
Manage camera views across entrances, corridors and shared facilities using centralised video recording and configurable operator permissions.
Industrial and Multi-Building Sites
Deploy 8- or 16-channel recording systems to consolidate surveillance footage from compatible cameras across different monitored areas.
Warranty Information
Manufacturer warranty: 2 years (24 months).
Ajax Systems provides a standard two-year manufacturer warranty covering eligible manufacturing defects, subject to the manufacturer's warranty conditions.
Warranty claims and technical issues can be assessed with Ajax technical support. Installation requirements, purchase documentation and applicable Australian or New Zealand consumer guarantees should be considered.
For technical assistance, visit Ajax Systems Support.
About Ajax Systems
Ajax Systems is an international security technology manufacturer specialising in smart security, intrusion detection, video surveillance and integrated security management.
The Ajax ecosystem combines professional security hardware with mobile and desktop applications, allowing users and security professionals to manage surveillance devices and connected security systems through a unified platform.
SKU / Product Identification
Brand: Ajax Systems
Product Series: NVR H2D
Product Category: Network Video Recorder / IP CCTV Recorder
Available Model Codes: H2DAC, H2D8PAC and H2D16PAC
Individual Retail SKU: Depends on channel configuration, colour and regional product version. Confirm the exact manufacturer's part number before assigning the Globlelink SKU.
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Ajax NVR H2D Series provides a versatile video surveillance solution for Australian and New Zealand residential, commercial and professional security installations.
Flexible CCTV system integration
Support for ONVIF Profile S and RTSP enables integration with compatible third-party IP cameras, making the recorder suitable for expanding and upgrading existing surveillance infrastructure.
High-resolution security monitoring
With 4K HDMI output, dual-drive recording and remote management, the NVR H2D Series supports professional security monitoring requirements across offices, warehouses, retail premises and residential properties.
International security and compliance features
The Ajax technical documentation identifies ONVIF Profile S conformity and NDAA compliance. Australian and New Zealand electrical, regulatory and installation requirements should be verified for the specific regional model supplied.
Manufacturer-backed technical support
Ajax provides manufacturer support resources, technical documentation and warranty assistance. Local supply-chain authorisation and Globlelink's specific warranty handling arrangements should be confirmed for the product version offered.
Designed for flexible installation
The universal 100–240 V AC input, optional PoE ports and rack-mount capability provide installation flexibility for suitably configured security systems across Australia and New Zealand.
Frequently Asked Questions (FAQs)
1. How many security cameras can the Ajax NVR H2D Series support?
The Ajax NVR H2D Series supports 8 or 16 IP camera channels, depending on the selected model. Compatible Ajax cameras and third-party ONVIF or RTSP cameras can be incorporated into the surveillance system.
2. Does the Ajax NVR H2D support two hard drives?
Yes. The Ajax NVR H2D has two SATA III bays supporting hot-swappable storage devices with capacities of up to 16 TB each, providing a maximum combined raw capacity of 32 TB.
3. What is the difference between Redundancy Mode and Split Mode on the Ajax NVR H2D?
Redundancy Mode duplicates recorded footage across both drives for additional protection against a single-drive failure. Split Mode distributes recordings across the two drives to optimise storage usage. Split Mode is not equivalent to keeping two complete copies of every recording.
4. Can hard drives be replaced without switching off the Ajax NVR H2D?
Yes. Ajax NVR H2D recorders support hot swapping, allowing an installed drive to be replaced without shutting down the recorder. Appropriate drive replacement procedures should be followed.
5. Does the Ajax NVR H2D have built-in PoE ports?
Selected models do. The NVR H2D8PAC models provide 8 PoE ports, while the NVR H2D16PAC (16-ch) provides 16 PoE ports. The NVR H2DAC versions do not include PoE ports.
6. Does the Ajax NVR H2D support 4K HDMI output?
Yes. All listed Ajax NVR H2D variants support HDMI output at up to 3840 × 2160 pixels, enabling high-resolution local monitoring using a compatible display.
7. Can the Ajax NVR H2D work with third-party IP cameras?
Yes. The Ajax NVR H2D supports compatible third-party IP cameras using ONVIF Profile S and RTSP. Individual camera compatibility and available features depend on the camera and its supported protocols.
8. Can I remotely monitor the Ajax NVR H2D from my smartphone?
Yes. Authorised users can access compatible live video streams, recorded footage and surveillance controls through Ajax applications, provided the necessary connectivity and permissions are
