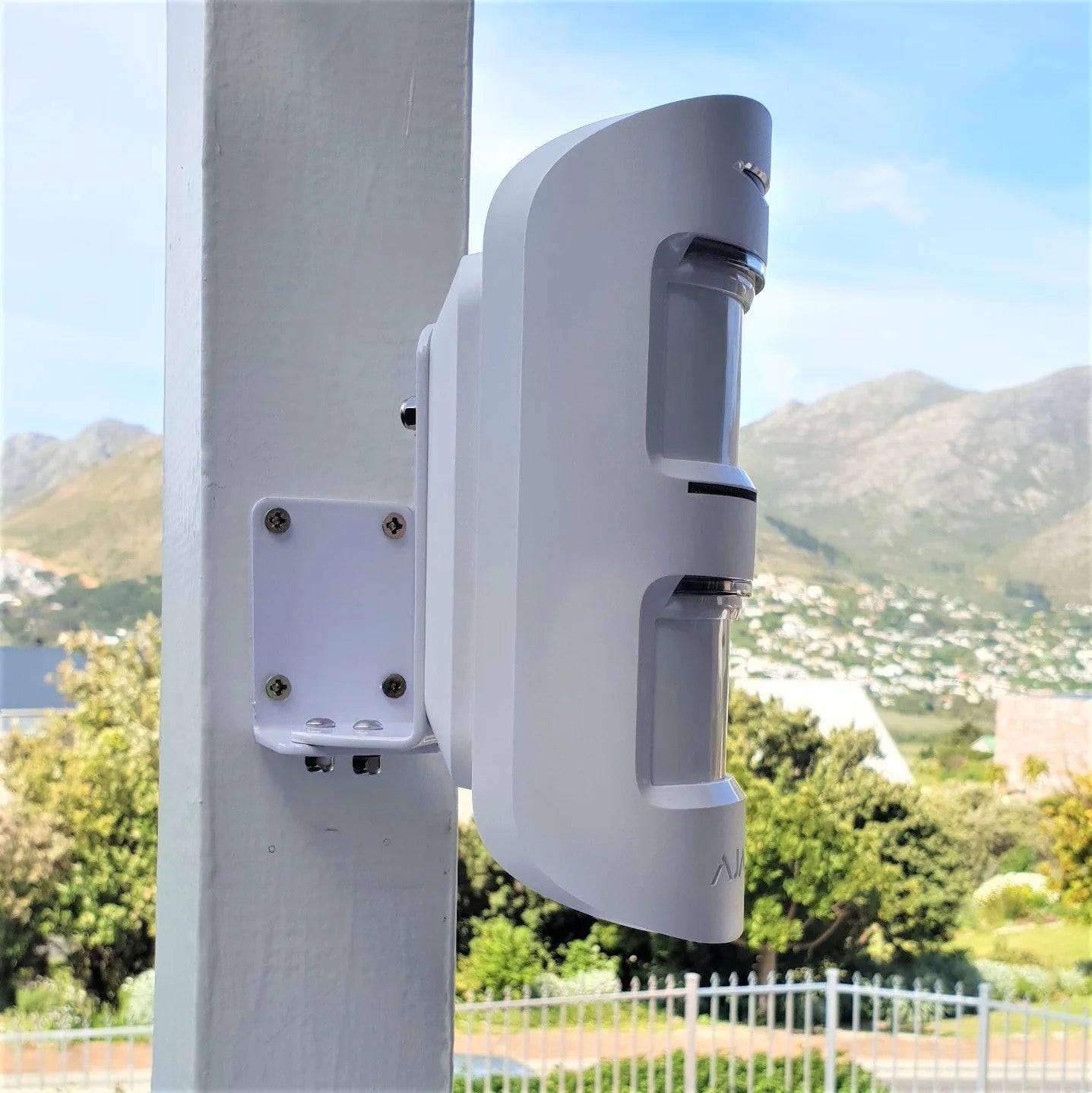

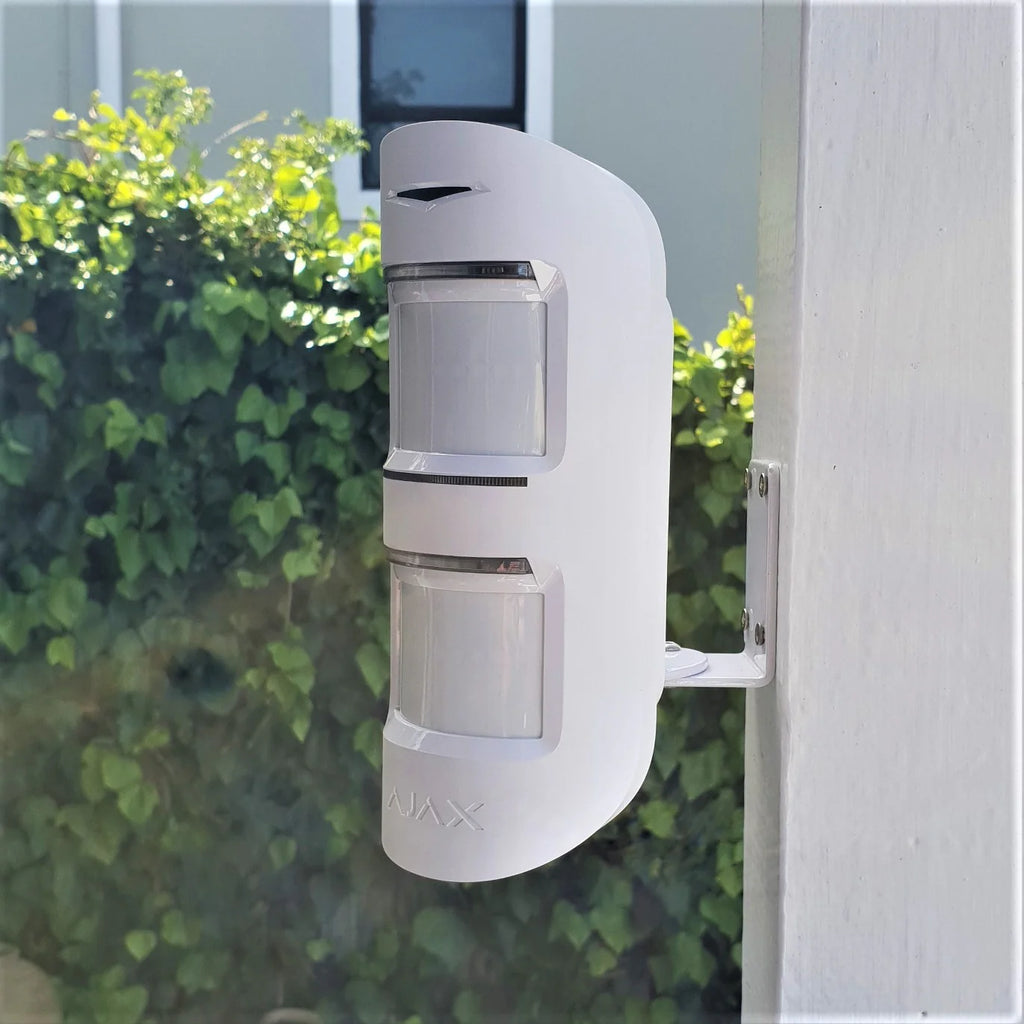

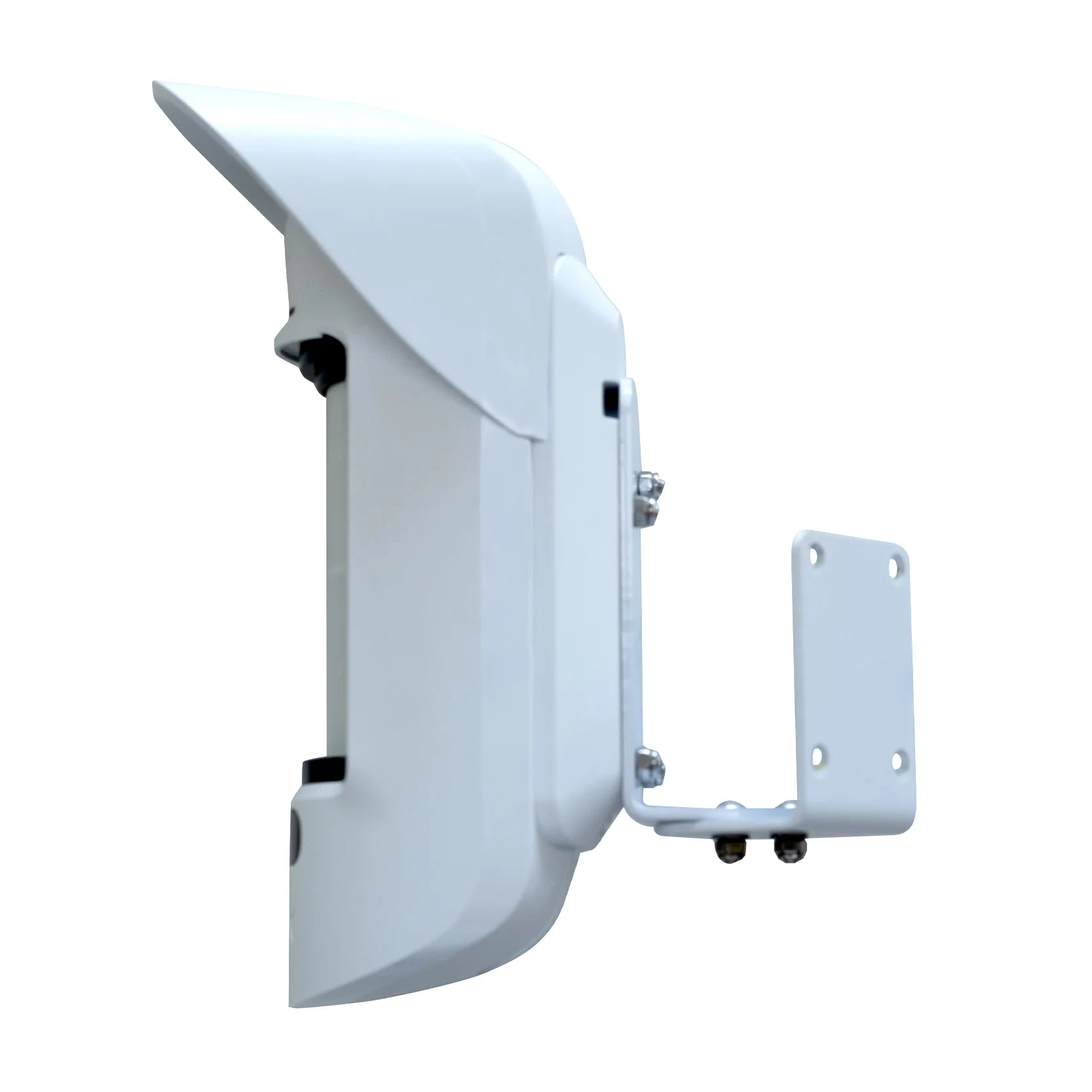

The Ambrac Universal Outdoor Bracket (UOB-002) is a premium stainless steel mounting solution designed to provide flexible positioning and improved detection performance for Ajax motion sensors. Engineered for durability and precision, this bracket features a 180-degree adjustable swivel, allowing installers to accurately align detection zones and minimise false alarms. Constructed from powder-coated stainless steel, it delivers exceptional strength and weather resistance, making it ideal for demanding outdoor environments across residential and commercial security installations.
What’s Included in the Box

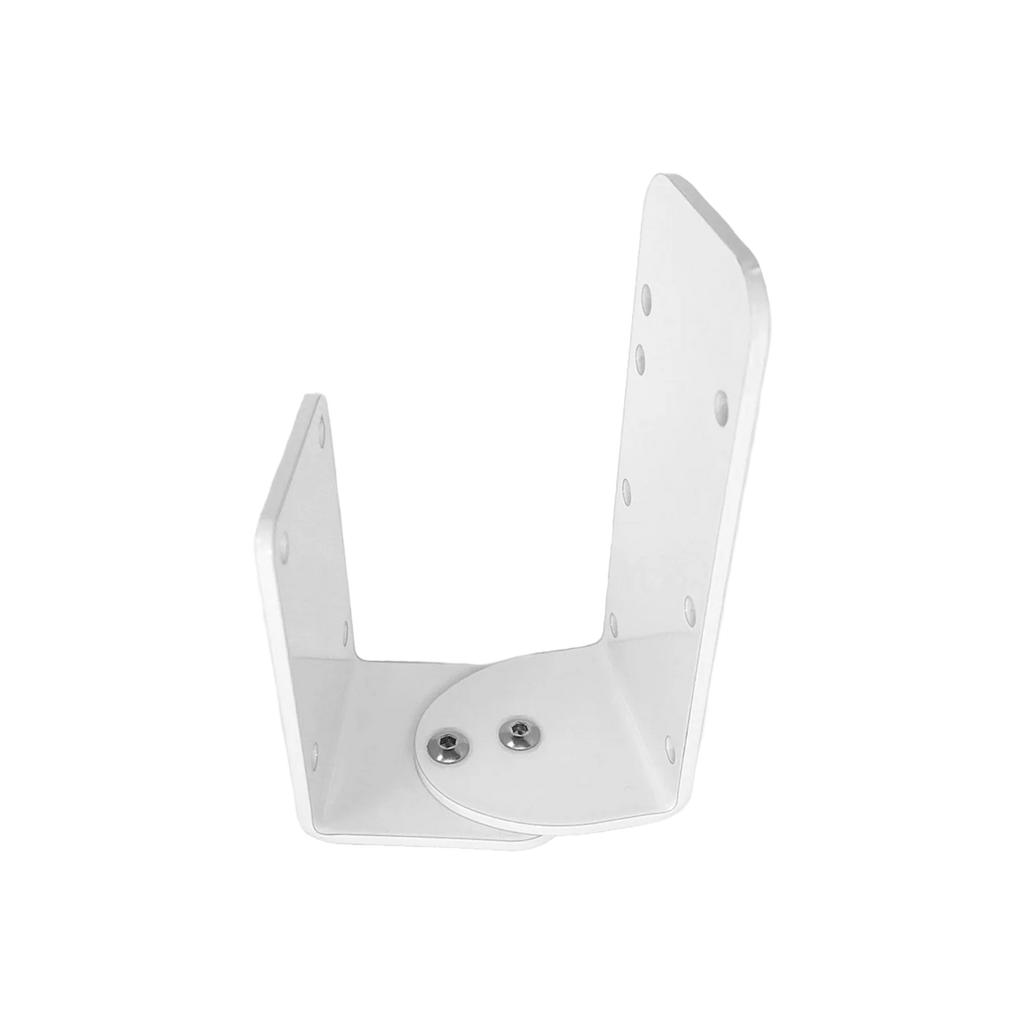

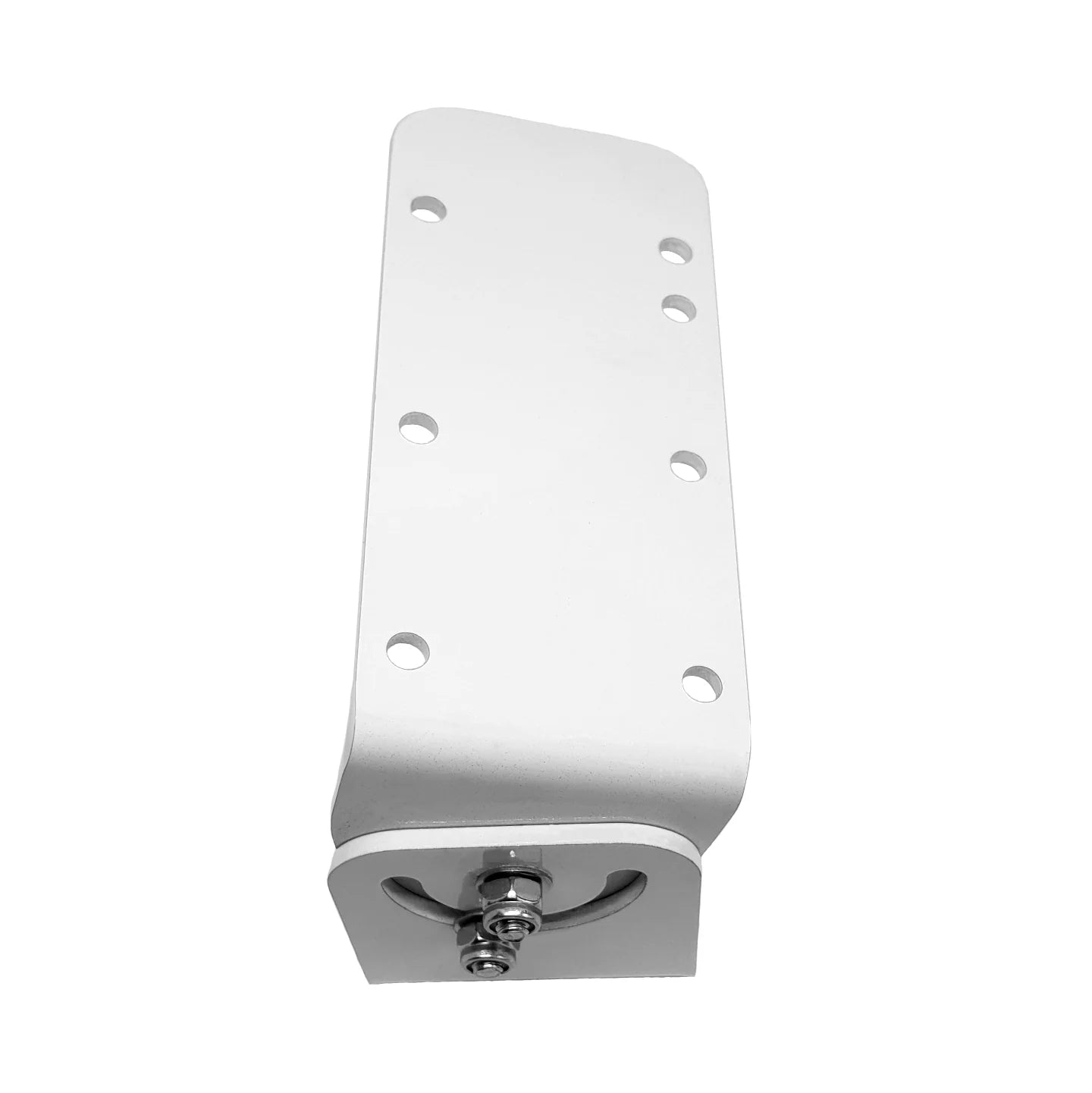

- 1 × Front plate (attaches to sensor lid)
- 1 × Back plate (attaches to wall or mounting surface)
- Stainless steel nuts, bolts, washers, and screws
- Instruction leaflet
Main Features
Universal Compatibility
Compatible with:
- Ajax MotionProtect Outdoor
- Ajax MotionCam Outdoor
- Ajax MotionCam (indoor sensor)
Designed to work seamlessly with multiple Ajax motion detectors for versatile installations.
180° Adjustable Swivel Mount
- Full 180-degree adjustment from mounting surface
- Allows precise positioning of detection zones
- Helps avoid:
- Vegetation interference
- False alarms from unwanted movement
Heavy-Duty Stainless Steel Construction
- Made from 2.5 mm stainless steel
- Powder-coated white finish
- Provides:
- Superior strength
- Corrosion resistance
- Long-term durability in outdoor conditions
Lightweight & Compact Design
- Total weight: 22g
- Compact two-plate design for easy installation
- Minimal visual impact once installed
Professional Installation Solution
- Includes all required mounting hardware
- Secure attachment to both sensor and mounting surface
- Suitable for professional installers and integrators
Detailed Specifications
| Specification |
Details |
| Product Code |
UOB-002 |
| Product Name |
Ambrac Universal Outdoor Bracket |
| Compatibility |
MotionProtect Outdoor / MotionCam Outdoor / MotionCam |
| Adjustment Range |
180° swivel |
| Material |
Stainless steel |
| Thickness |
2.5 mm |
| Finish |
White powder coated |
| Weight |
22 g |
| Front Plate Dimensions |
135 × 43 mm |
| Back Plate Dimensions |
104 × 43 mm |
Warranty
1 Year Manufacturer Warranty
Brand – Ambrac
Ambrac is known for producing high-quality mounting solutions for professional security installations, offering durable, installer-friendly accessories designed to enhance system performance and reliability.
SKU
UOB-002
Practical Use Scenarios
The Ambrac Universal Outdoor Bracket (UOB-002) is ideal for:
- Outdoor perimeter security installations
- Commercial and industrial sites
- Residential properties with complex layouts
- Areas requiring precise sensor alignment
- Installations with obstacles or vegetation
- Reducing false alarms through optimal positioning
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The Ambrac Universal Outdoor Bracket (UOB-002) is well suited to the Australian and New Zealand security market, where durable outdoor hardware and flexible installation options are essential.
Key advantages include:
- Built for harsh outdoor environments (UV, rain, corrosion resistance)
- Ideal for professional installers across AU/NZ
- Supports accurate detector positioning in diverse conditions
- High-quality stainless steel construction for long-term reliability
- Suitable for residential, commercial, and industrial applications
FAQs – UOB-002
What is the UOB-002 Ambrac Universal Outdoor Bracket used for?
The UOB-002 is used to mount and adjust Ajax motion detectors, allowing precise positioning for optimal detection coverage.
Which devices are compatible with the UOB-002?
The UOB-002 is compatible with Ajax MotionProtect Outdoor, MotionCam Outdoor, and MotionCam (indoor) sensors.
What adjustment range does the UOB-002 provide?
The UOB-002 offers a 180-degree swivel adjustment, allowing flexible positioning.
What material is the UOB-002 made from?
The UOB-002 is made from 2.5 mm stainless steel with a white powder-coated finish.
Does the UOB-002 include mounting hardware?
Yes, the UOB-002 includes all required stainless steel nuts, bolts, washers, and screws.
Is the UOB-002 suitable for outdoor use?
Yes, the UOB-002 is designed for outdoor use with corrosion-resistant stainless steel construction.
What are the dimensions of the UOB-002 bracket?
The UOB-002 includes a front plate (135 × 43 mm) and a back plate (104 × 43 mm).
How much does the UOB-002 weigh?
The UOB-002 weighs 22 grams, making it lightweight and easy to install.
