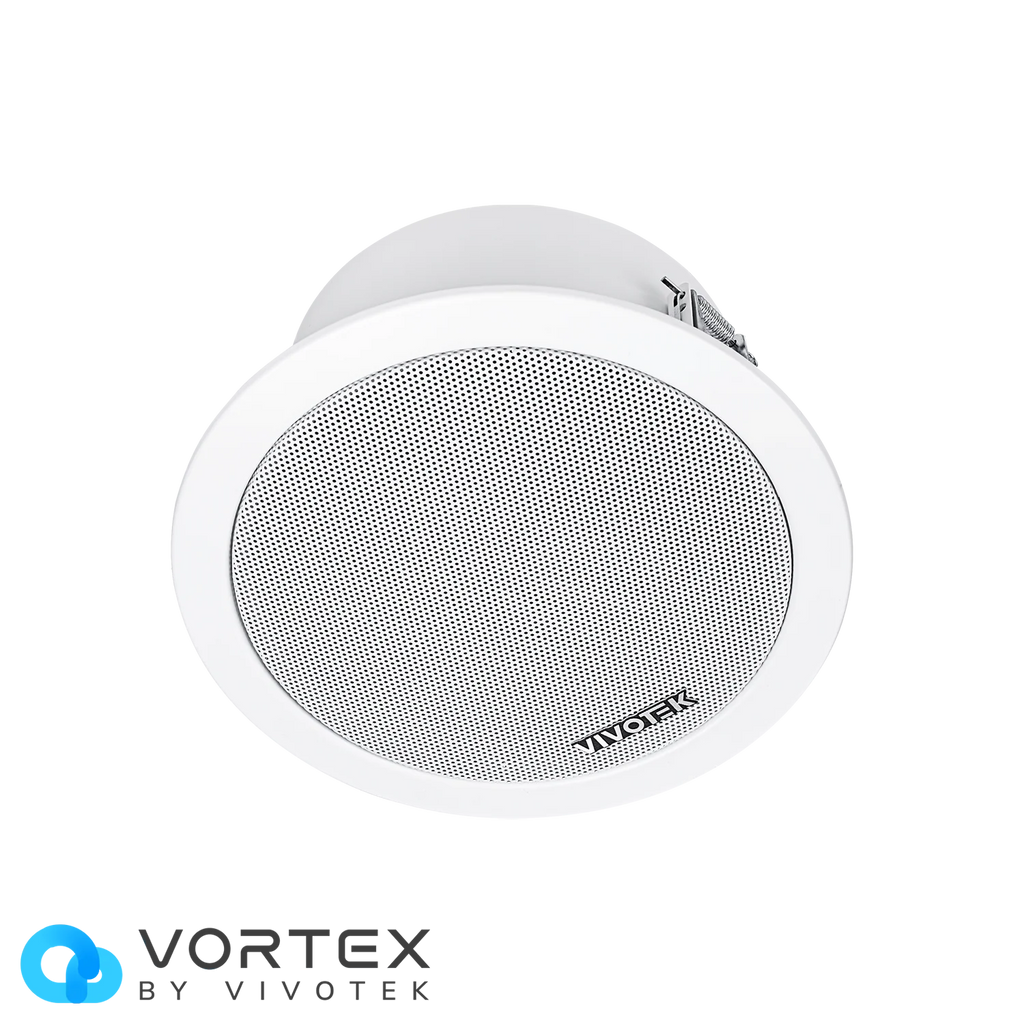

The AU-004 IP Network Audio Speaker is a compact yet powerful PoE-powered communication speaker ideal for applications requiring clear voice output and intelligent network integration. Featuring a 96dB sound pressure level, robust metal enclosure, and compatibility with SIP, ONVIF, and VORTEX, this speaker is built to deliver reliable performance in both indoor and semi-outdoor environments.
Equipped with SIP RFC 3261 compliance, two-way audio capabilities via the integrated microphone, and full event-triggered broadcasting support, the AU-004 is ideal for security, public address, intercom, or emergency alert systems. With support for automatic audio playback and VORTEX platform integration, it allows seamless coordination with IP surveillance and access control systems.
Whether you need intelligent voice warnings, pre-recorded message playback, or real-time two-way voice interaction, the AU-004 delivers a powerful, secure, and manageable audio solution.
What's Included in the Box
-
AU-004 IP Network Audio Speaker
-
Mounting Bracket and Screws
-
Quick Start Guide
-
Power Connection Guide (PoE & DC)
-
Compliance Certifications
Main Features
✅ High-Performance Audio Output
✅ Built-In Microphone for 2-Way Audio
✅ Network Integration via SIP & ONVIF
✅ VORTEX Platform Support
✅ Advanced Security Protocols
✅ Durable Metal Casing & Wall-Mountable
✅ Flexible Power Options
Detailed Specifications
| Specification |
Details |
| Model |
AU-004 |
| Rated Impedance |
8 Ohms |
| Power Supply |
PoE IEEE 802.3af / DC 12–24V |
| Max Power Consumption |
15W |
| Sound Pressure Level |
96 dB SPL Max |
| Frequency Range |
500–2kHz ±10 dB / 400–12kHz ±20 dB |
| Microphone |
50Hz–20kHz @ 1Pa, 50cm (115 dB SPL @ 1kHz) |
| Audio Codecs |
OPUS, MP3, G.722, G.711 PCMU/PCMA |
| Supported Protocols |
SIP, ONVIF, HTTP, IPv4, DHCP, RTSP, RTP, RTCP, TCP, UDP, ARP, FTP, TFTP, NFS, NTP |
| Security Features |
Password protection, IP filtering, Digest Authentication, Firewall |
| Interface |
1× RJ-45 10/100 Mbps Ethernet (WAN) |
| Broadcasting |
Supports pre-recorded audio and trigger-based playback |
| VORTEX Integration |
Full support for VORTEX event and broadcast control |
| Material |
Metal Casing |
| Dimensions |
200 × 90 mm |
| Weight |
1 kg |
| Operating Temperature |
-35°C to 60°C (-31°F to 140°F) |
| Certifications |
CE, FCC, VCCI, BSMI |
Warranty Information
MANUFACTURES WARRANTY APPLIED
About the Brand
The AU-004 is part of a professional-grade family of IP-based audio solutions widely used in intelligent security and automation systems. This unit is trusted by integrators and security professionals for its reliability, compatibility, and ease of deployment across enterprise and government facilities.
SKU
AU-004
Practical Use Scenarios
-
Retail Entrances & Lobbies – Use for announcements, alerts, or intercom functionality.
-
Elevator & Access Control Zones – Combine with IP cameras to trigger warnings or voice messages.
-
Public Transit Stations – Push live or scheduled messages in waiting areas or corridors.
-
Corporate or School Campuses – Integrate with fire alarm or lockdown systems for voice evacuation.
-
Industrial Facilities – Use with motion sensors or alarms for automated safety announcements.
Datasheets or Downloadable Resources
Excellence for the Australian and New Zealand Market
The AU-004 IP speaker is designed to meet CE, FCC, VCCI, and BSMI standards, making it compliant for use in both Australia and New Zealand. Sourced directly through authorized regional distributors, it meets the quality and regulatory standards expected in commercial and public sector deployments. Full warranty support is managed locally through official brand channels, ensuring peace of mind for your project deployments.
FAQs (AU-004)
Q1: Can the AU-004 be powered over Ethernet?
A1: Yes, the AU-004 supports IEEE 802.3af PoE and can alternatively be powered via DC 12–24V. (AU-004)
Q2: Does the AU-004 support SIP communication?
A2: Yes, it's SIP RFC 3261 compliant, making it suitable for integration with VoIP or SIP-based intercom systems. (AU-004)
Q3: What’s the maximum volume output?
A3: The AU-004 can produce up to 96dB SPL, making it ideal for voice announcements in enclosed or semi-open areas. (AU-004)
Q4: Can the AU-004 speaker be triggered automatically by events?
A4: Yes, through VORTEX or VSS integration, the speaker supports automatic audio trigger playback. (AU-004)
Q5: Is the speaker outdoor-rated?
A5: The metal enclosure is weather-resistant, and the speaker is suitable for semi-outdoor or sheltered outdoor areas. (AU-004)
