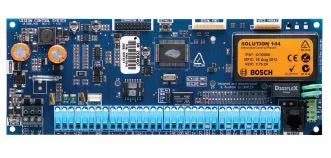

The BOSCH CC610PB Solution 6000 Control Panel (PCB only) is a premium, modular intrusion and access control system, offering reliable and scalable protection for residential, commercial, and industrial settings. With 16 onboard zones and expansion capabilities up to 144 wired or wireless zones, this panel provides comprehensive and flexible security coverage.

Supporting up to 990 users and accommodating up to 16 keypads or readers, it’s ideal for facilities that require detailed access control across multiple areas. Eight fully partitionable areas enable efficient, independent zone management—perfect for multi-tenant environments.

This model's focus on modular expansion, sophisticated access integration, and remote communication options ensures a future-proof investment in high-performance security infrastructure.

What’s Included in the Box

• 1x BOSCH CC610PB Solution 6000 Control Panel PCB

• 1x Quick Start Guide

• 1x User Manual

• 1x Standard 610 Telephone Cable with Adaptor

• 1x Battery Lead Set

• 10x 3k3 Resistors

• 10x 6k8 Resistors

• 1x Installer Cheat Sheet

Main Features

• 16 Onboard Zones – Expandable to 144 (wired or wireless)

• 8 Independent Areas – Partitioned for flexible security management

• 990 User Capacity – PIN, key fob, proximity token, or fingerprint credentials

• Integrated Access Control – For up to 16 doors with smart card technology

• 5 Onboard Outputs – Expandable to 37 programmable outputs

• Expandable RS485 LAN – Secure communication over long distances

• Advanced Reporting – CID, SIA, Email, Voice, GSM-SMS, and IP protocols

• Time Zone Automation – Up to 16 time zones for event-based control

• Sensor Watch and Chime Mode – Enhanced monitoring and activity alerts

• Walk Test Mode – Efficient zone testing during installation or maintenance

Technical Specifications

• Model: CC610PB

• Voltage Input: 16–18V AC, 24VA

• Continuous Power Output: 1 Amp max

• Alarm Power: 4 Amp (combined)

• Backup Battery: 12V DC, 7.2Ah sealed rechargeable

• Min Operating Voltage: 10.2V DC

• Charger Type: Pulse by pulse (battery required for reading voltage)

• RS485 LAN Length: Up to 1200m with shielded cable

• Operating Temperature: 0°C to 55°C

• Relative Humidity: 5% to 85% (non-condensing)

• Telephone Ports: RJ-12 Socket or 4-way terminal

• Communications: CID, SIA, Email, Voice, GSM-SMS, IP formats

Warranty Information

The BOSCH CC610PB Solution 6000 Control Panel comes with a 3-year manufacturer's warranty, covering material and workmanship under normal use.

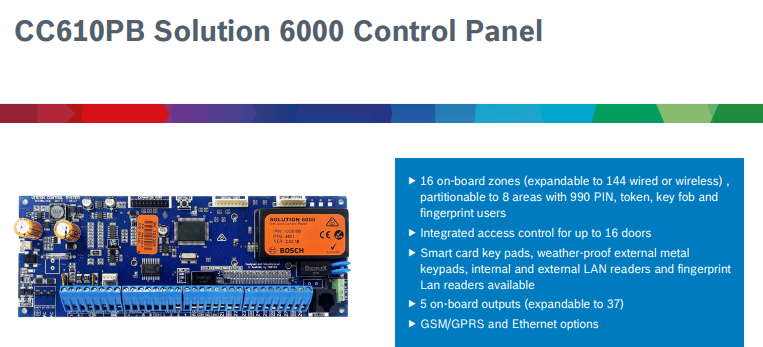

Data sheet

Brand Information

Bosch Security Systems is a globally recognized leader in advanced security and communications technology. Known for precision engineering, Bosch delivers comprehensive solutions for intrusion detection, access control, video surveillance, and system integration—backed by decades of innovation and reliability.

SKU

CC610PB

Practical Use Scenarios

• Residential Homes – Secure entry points, garages, and outdoor areas with zone-specific monitoring

• Retail Stores – Manage customer and staff access, while protecting inventory zones

• Office Buildings – Partition departments or tenant spaces with separate control and logging

• Warehouses – Monitor large perimeters and high-value storage areas

• Schools & Educational Institutions – Control access to administrative, academic, and utility spaces

Excellence for the Australian and New Zealand Market

• Built for Compliance – Meets Australian C-Tick standards and European CE compliance

• Optimized for ANZ Use – Designed and sourced specifically for Australian and New Zealand conditions

• Authorized Distribution – Supplied through official Bosch Security Systems representatives

• Warranty Handled Locally – Service and warranty claims are processed directly with Bosch for peace of mind

• Approved Security Infrastructure – Suitable for government, commercial, and residential applications across ANZ

Frequently Asked Questions (FAQs)

Q1: Can the CC610PB control panel be expanded beyond 16 zones?
A1 (CC610PB): Yes, the panel supports up to 144 wired or wireless zones using Bosch expansion modules.

Q2: How many users can the CC610PB accommodate?
A2 (CC610PB): It supports up to 990 users with flexible credentials including PINs, key fobs, and fingerprint readers.

Q3: Is the CC610PB compatible with wireless devices?
A3 (CC610PB): Yes, wireless integration is available using Bosch DSRF receivers and compatible sensors.

Q4: What communication protocols are supported by the CC610PB?
A4 (CC610PB): The panel supports CID, SIA, GSM-SMS, IP, Email, and Voice formats for comprehensive alarm reporting.

Q5: Can I integrate access control with the CC610PB?
A5 (CC610PB): Yes, it includes built-in access control for up to 16 doors, supporting smart cards and key fobs.

Q6: What is the warranty coverage for the CC610PB?
A6 (CC610PB): Bosch offers a 3-year manufacturer’s warranty for the CC610PB model.

Q7: Is the CC610PB certified for use in Australia and New Zealand?
A7 (CC610PB): Yes, it meets C-Tick and CE certifications, ensuring it complies with regional regulatory standards.
