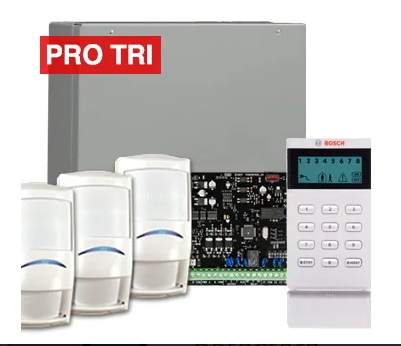

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3PROTRI-ICON) is a professional-grade intrusion detection system designed for environments demanding high-security performance and minimal false alarms. Featuring the advanced ICP-SOL4-P control panel, this kit includes a rugged IUI-SOL-ICON LCD icon keypad, three ISC-PDL1-W18G Tri-Tech motion detectors, and a full siren kit, delivering a robust and scalable solution ideal for commercial and high-end residential properties.

Equipped to handle up to 32 intrusion zones and 64 users, the Solution 4000 offers flexibility, remote access, and enhanced detection performance through Tri-Tech sensor technology.

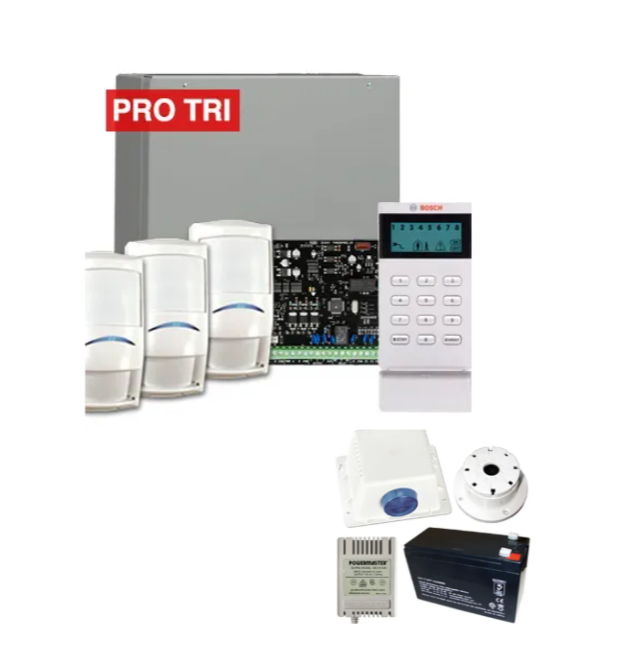

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-ICON 16-Zone LCD Icon Keypad

• 3x ISC-PDL1-W18G Tri-Tech Motion Detectors

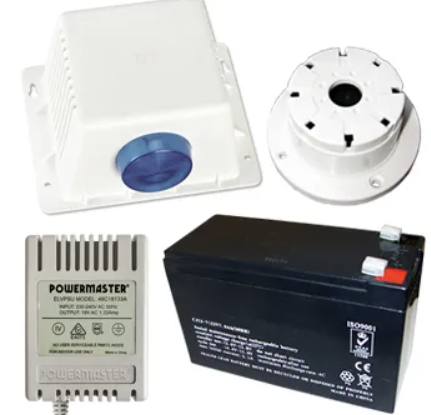

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Support: 16 onboard zones, expandable to 32

• Partitions: 2 independent areas

• User Access: 64 users (32 key fobs / 32 PIN codes)

• Keypad Support: Compatible with up to 4 keypads

• Advanced Detection: Includes Tri-Tech motion sensors for reduced false alarms

• Wireless Ready: Compatible with B810 RADION (devices and fobs) and WE800EV2 (fobs only)

• Door Control: Supports up to 4 access-controlled doors

• Remote App Integration: Works with the Bosch RSC+ mobile app

• Communication Options: Expandable with Ethernet (B426-M) or LTE (B450-M) modules

• Simple Operation: Icon-based LCD keypad ideal for intuitive navigation

Detailed Specifications

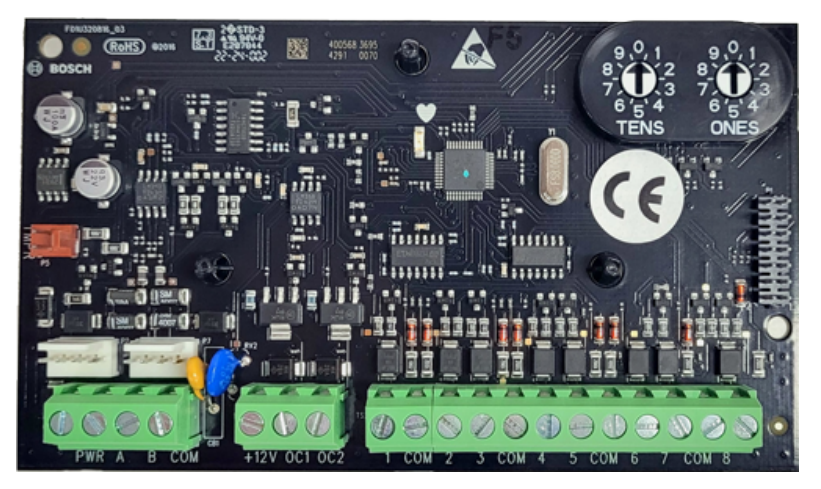

ICP-SOL4-P Control Panel:

• Zones: 32 (16 onboard + 16 expansion)

• Door Zones: 4

• Outputs: 4 onboard, expandable to 28

• User Codes: 64 + 1 installer

• Power Supply: 12 VDC backup battery support, TF008 Plug Pack

• Size: 103 x 183 x 28 mm

• Operating Temp: 0 °C to 45 °C

• Humidity: 10–95% (non-condensing)

• Communications: CID, SIA, CSV-IP, Push Notifications (via expansion modules)

IUI-SOL-ICON Keypad:

• Display: LCD with icon-based navigation

• Zone Display: 8 zones shown per screen

• Features: Flip-down cover, compact interface

• Use Case: Entry-level, easy-to-use security control

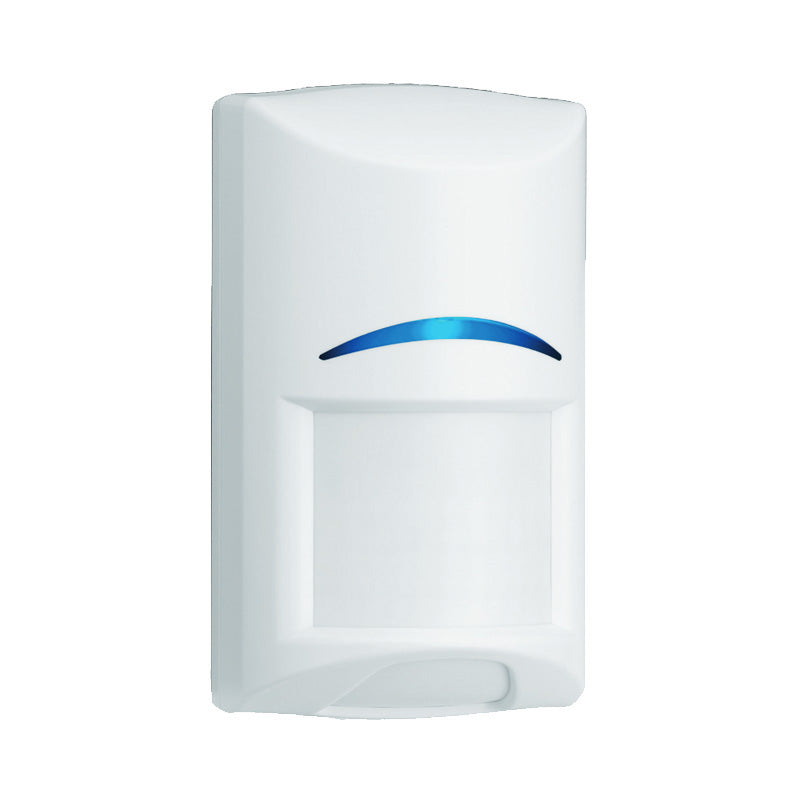

ISC-PDL1-W18G Tri-Tech Detectors:

• Detection Method: Passive infrared and microwave (Tri-Tech)

• Range: Up to 18 meters

• Pet Immunity: Optional models available

• False Alarm Reduction: Superior immunity to environmental triggers

Warranty Information

The Bosch K4000-3PROTRI-ICON Alarm Kit includes a 3-year limited warranty covering all components against manufacturer defects under standard operating conditions.

Brand Description

Bosch Security Systems delivers industry-leading technology and reliability. Known for precision engineering and global support infrastructure, Bosch offers scalable, integrated solutions to meet the safety needs of homes, businesses, and industrial facilities.

SKU

K4000-3PROTRI-ICON

Practical Use Scenarios

• Warehouses & Factories: Tri-Tech detectors offer enhanced accuracy in temperature-variable environments

• Corporate Offices: Intuitive user control with visual feedback from the icon keypad

• Luxury Homes: False alarm reduction and scalable security coverage

• Multi-zone Retail: Two partitions provide discreet control over staff and customer areas

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Regulatory Approval: Compliant with RCM (Australia) and Telepermit (NZ)

• Tested Standards: EN61000-3:2007/A1:2011 and EN50130-4:2011

• Network Ready: Optimized for NBN and Fiber communication systems

• Sourced Authentically: Supplied exclusively through authorized Bosch partners

• Direct Support: Warranty and service directly managed by Bosch AU/NZ

FAQs

Q1: What motion detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON)?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON) includes three ISC-PDL1-W18G Tri-Tech detectors, combining passive infrared and microwave technologies for superior false alarm immunity.

Q2: Can the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON) be used in environments with temperature fluctuations?
A2: Yes, the K4000-3PROTRI-ICON’s Tri-Tech detectors are ideal for temperature-variable environments like warehouses, reducing false alarms caused by rapid changes.

Q3: What type of keypad is included in the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON)?
A3: The kit includes the IUI-SOL-ICON keypad, a user-friendly LCD interface with zone icon display and protective cover, suitable for everyday users.

Q4: Does the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON) support remote control via mobile app?
A4: Yes, the K4000-3PROTRI-ICON works with the Bosch RSC+ app, allowing users to arm/disarm and receive system notifications from mobile devices.

Q5: How many zones and users does the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-ICON) support?
A5: The Bosch K4000-3PROTRI-ICON supports up to 32 zones (16 onboard, 16 expandable) and up to 64 users (32 key fobs and 32 PINs).
