The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3QUAD-TEXT) is a feature-rich, wired security system tailored for both residential and commercial installations. This all-in-one kit includes the trusted ICP-SOL4-P 32-zone control panel, a functional IUI-SOL-TEXT LCD alphanumeric keypad, and three ISC-BPQ2-W12 quad motion detectors, complemented by a complete siren kit for immediate intrusion alerts.

With intuitive alphanumeric interface control, high-reliability quad-zone motion detection, and support for advanced wireless, communication, and access control integration, this package provides scalable protection and user-friendly management — ideal for installers and end-users a like.

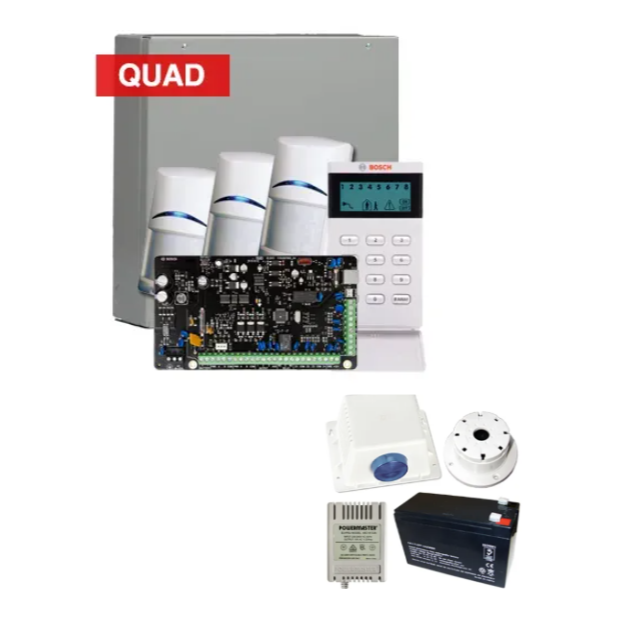

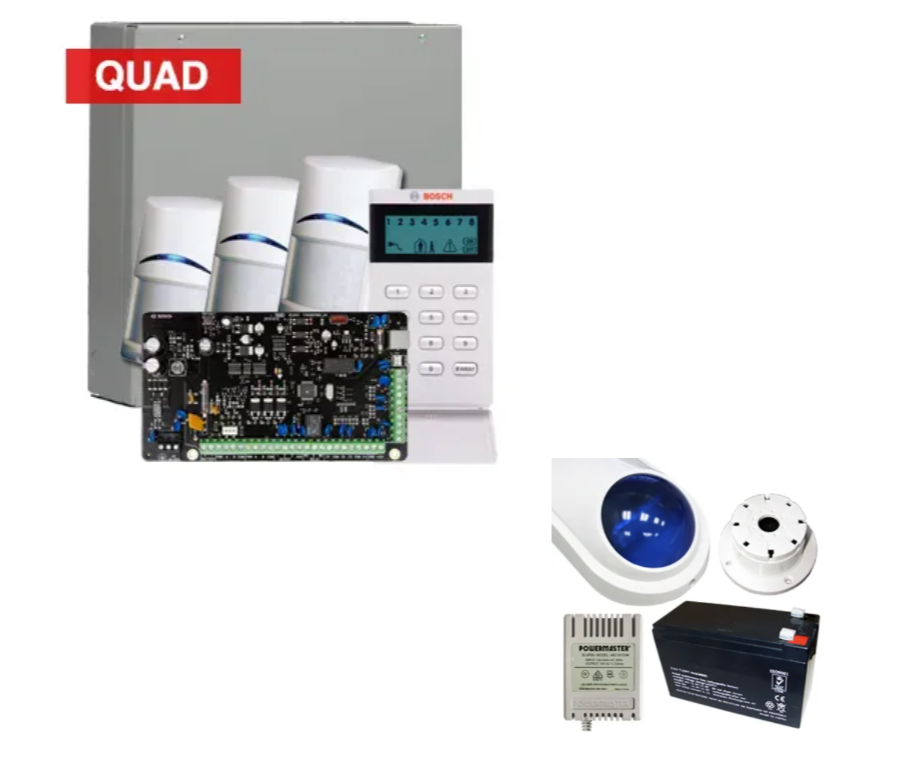

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TEXT Alphanumeric LCD Keypad

• 3x ISC-BPQ2-W12 Quad PIR Motion Detectors

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Support: 16 onboard zones, expandable to 32

• Dual Partitioning: Supports 2 independent areas

• User Access: Accommodates up to 64 users (32 PINs + 32 key fobs)

• Keypad Interface: LCD text keypad with clear two-line display for full system interaction

• Motion Detection: Reliable quad PIR detectors for standard and residential use

• Door Integration: Control up to 4 doors using optional B901 door controller

• Wireless Options: Suits B810 (RADION devices) and WE800EV2 (key fobs)

• App Integration: Remotely arm, disarm and monitor via the Bosch RSC+ app

• Expandable Outputs: 4 onboard outputs, expandable to 28 with B308 module

• Compatible Communications: Optional IP and LTE reporting via B426-M or B450-M modules

Detailed Specifications

ICP-SOL4-P Control Panel:

• Zones: 32 total (16 onboard, 16 expandable)

• Outputs: 4 onboard, expandable to 28

• Door Zones: 4

• User Codes: 64 user + 1 installer code

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Weight: 165 g

• Operating Temperature: 0 °C – 45 °C

• Humidity: 10–95% (non-condensing)

• Power: TF008 Plug Pack (sold separately), backup 12 VDC SLA battery

IUI-SOL-TEXT Keypad:

• Display: 2-line LCD with 18 characters each

• Feedback: Text-based prompts for clear user instructions

• Use Case: Ideal for installations requiring advanced user interface at low cost

ISC-BPQ2-W12 Quad PIR Detectors:

• Technology: Quad zone logic for enhanced detection reliability

• Detection Range: Up to 12 meters

• False Alarm Resistance: Excellent for homes and small offices

• Mounting: Wall or corner mount options

Warranty Information

Bosch provides a 3-year manufacturer’s warranty on all components in the K4000-3QUAD-TEXT alarm kit, ensuring peace of mind and reliable long-term performance.

Brand Description

Bosch Security Systems is an internationally trusted provider of cutting-edge security and safety solutions. With deep roots in innovation and quality, Bosch products are deployed in mission-critical applications across the globe — including residential, commercial, and industrial environments in Australia and New Zealand.

SKU

K4000-3QUAD-TEXT

Practical Use Scenarios

• Rental Properties: Easy-to-read alphanumeric keypad ideal for short-term tenants and low-training installations

• Medical Practices: Quad detectors ensure minimal false triggers in climate-controlled environments

• Retail Units: Multiple area support separates staff-only and customer-access areas

• Homeowners: Scalable system that balances cost, function, and performance

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet


Excellence for the Australian and New Zealand Market

• Regulatory Compliance: Fully certified to RCM (Australia) and Telepermit (New Zealand) standards

• Certifications: Meets EN61000-3:2007/A1:2011 and EN50130-4:2011 requirements

• Network Optimization: NBN and fiber-ready via Bosch CSV-IP communication modules

• Authorized Distribution: Exclusively sold through Bosch-approved Australian and NZ resellers

• Local Warranty Support: All claims handled by Bosch or its authorized representatives in-region

 FAQs

Q1: What detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT)?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT) includes three ISC-BPQ2-W12 quad PIR detectors designed for reliable motion detection in standard indoor environments.

Q2: What kind of keypad is used in the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT)?
A2: The K4000-3QUAD-TEXT comes with the IUI-SOL-ICON keypad, an alphanumeric LCD interface offering two lines of 18 characters for advanced ICON-based interaction.

Q3: Can I access and control the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT) remotely?
A3: Yes, the K4000-3QUAD-TEXT supports the Bosch RSC+ app, which allows users to remotely arm/disarm and receive notifications via smartphone.

Q4: Is the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT) compatible with wireless accessories?
A4: Yes, it supports B810 RADION receivers for wireless sensors and WE800EV2 receivers for wireless key fobs.

Q5: Does the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TEXT) meet Australian and New Zealand standards?
A5: Absolutely. The K4000-3QUAD-TEXT is fully compliant with all required Australian and New Zealand standards and regulations for professional alarm systems.
