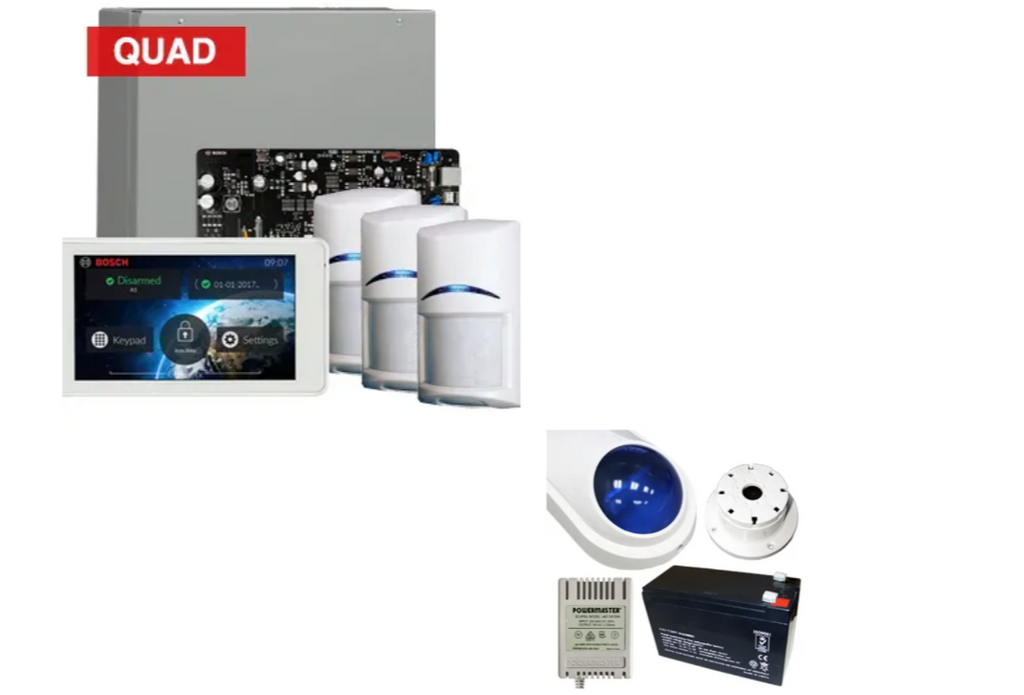

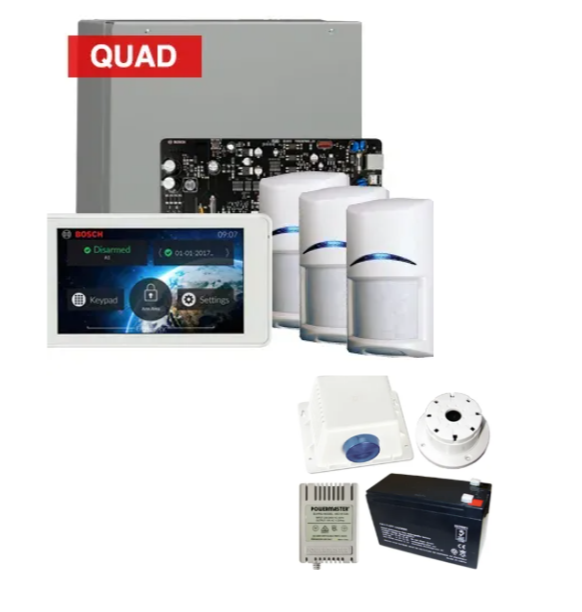

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3QUAD-TS5) is an ideal all-in-one security solution for homes, small businesses, and commercial spaces requiring robust intrusion detection and intuitive user control. The kit includes the flexible ICP-SOL4-P 32-zone control panel, a compact yet powerful IUI-SOL-TS5 5" touchscreen keypad, three ISC-BPQ2-W12 quad PIR motion detectors, and a fully integrated siren kit for loud audible deterrence.

Designed with future scalability in mind, this system supports multiple zones, partitions, and user types. With advanced compatibility for wireless devices and mobile control via the Bosch RSC+ app, the K4000-3QUAD-TS5 delivers the professional-grade performance trusted by installers throughout Australia and New Zealand.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS5 5" Touchscreen Keypad

• 3x ISC-BPQ2-W12 Quad PIR Motion Detectors

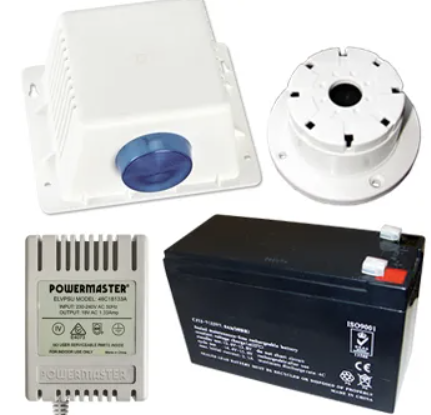

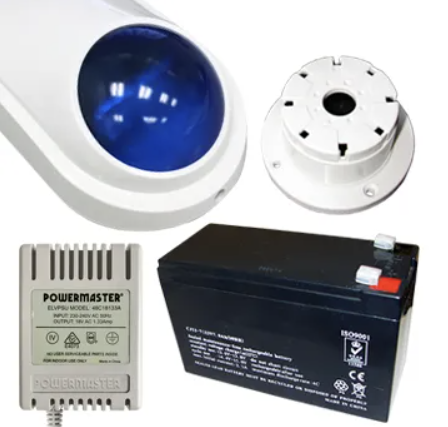

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start User Guide

Main Features

• 32-Zone Capability: 16 onboard zones, expandable to 32 with expansion modules

• Dual Partitioning: Allows system split into two independently controlled areas

• User Support: Up to 64 users (32 PINs + 32 key fobs)

• Touchscreen Interface: IUI-SOL-TS5 keypad provides intuitive, graphical 5" user interface

• Advanced Detection: Quad PIR sensors deliver reliable motion detection with minimal false alarms

• Wireless Ready: Compatible with B810 (RADION key fobs/devices) and WE800EV2 (fobs only)

• Remote App Control: Manage your system via Bosch RSC+ on smartphone or tablet

• Door Control: Supports up to 4 door zones with B901 door controller

• Expandable Outputs: 4 onboard outputs expandable to 28 (via B308 module)

Detailed Specifications

ICP-SOL4-P Control Panel:

• Total Zones: 32 (16 onboard + 16 via B228 or RADION)

• Outputs: 4 onboard (expandable to 28)

• User Codes: 64 + 1 installer code

• Communications: CID, SIA, CSV-IP, Push Notification (via B426-M or B450-M)

• Power: TF008 Plug Pack (sold in AU only), backup via 12 VDC SLA battery

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Operating Temp: 0 °C to 45 °C

• Humidity: 10% to 95%, non-condensing

IUI-SOL-TS5 Touchscreen Keypad:

• Display: 5" full-color capacitive touchscreen

• Interface: Graphical and icon-based for simplified navigation

• Features: Arming/disarming, event review, and full zone interaction

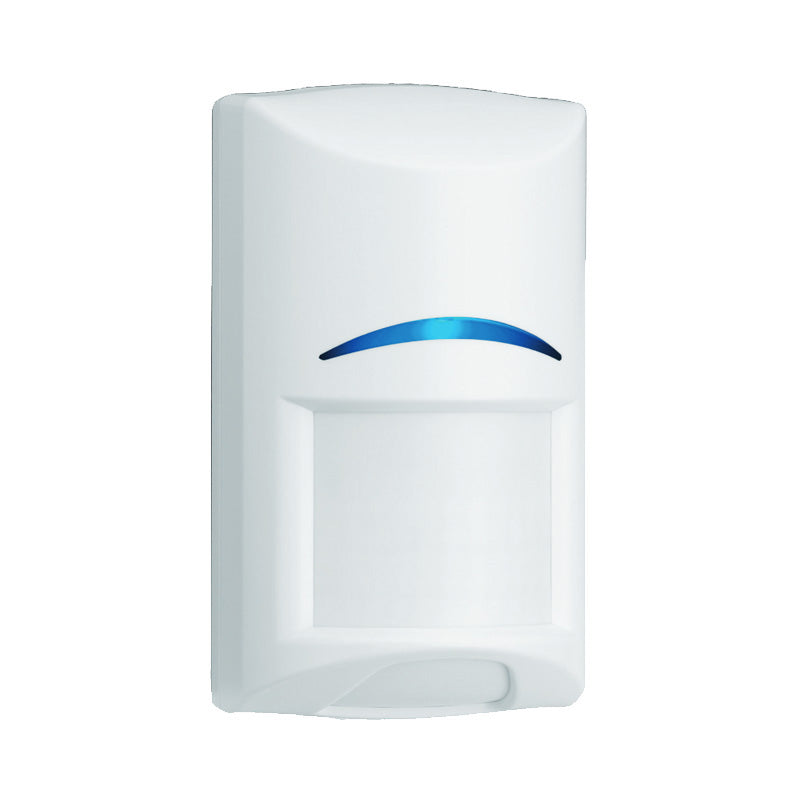

ISC-BPQ2-W12 Quad PIR Detectors:

• Detection Range: Up to 12 meters

• Technology: Quad PIR logic for enhanced accuracy

• Mounting: Wall or corner installation

• Ideal For: Standard indoor environments with minimal environmental interference

Warranty Information

All components in the K4000-3QUAD-TS5 kit are backed by a 3-year Bosch manufacturer warranty, offering long-term reliability and professional-grade support.

Brand Description

Bosch Security Systems is globally recognized for delivering world-class intrusion detection and alarm solutions. With decades of innovation and local market knowledge, Bosch ensures every product is designed for high performance, durability, and ease of use — trusted by security professionals across Australia and New Zealand.

SKU

K4000-3QUAD-TS5

Practical Use Scenarios

• Small Business Premises: Easy touchscreen control for managing staff-access zones

• Modern Homes: Stylish touchscreen interface blends into contemporary interiors

• Boutiques & Clinics: Dual-area partitioning for public and private space separation

• Tech-Enabled Spaces: Fully compatible with remote management via Bosch RSC+ mobile app

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet


Excellence for the Australian and New Zealand Market

• Compliance: Certified under RCM (Australia) and Telepermit (New Zealand)

• Standards Tested: EN61000-3:2007/A1:2011 and EN50130-4:2011

• NBN Ready: IP reporting and mobile connectivity fully compatible with AU/NZ monitoring infrastructure

• Local Sourcing: Products supplied exclusively through Bosch-authorized resellers

• Warranty Handling: Supported directly by Bosch’s regional service network

 FAQs

Q1: What detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5)?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5) includes three ISC-BPQ2-W12 quad PIR detectors designed for accurate motion detection in indoor environments.

Q2: What kind of user interface does the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5) provide?
A2: The K4000-3QUAD-TS5 includes the IUI-SOL-TS5 keypad, which features a 5" full-color touchscreen for intuitive, icon-based control.

Q3: Can the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5) be accessed remotely?
A3: Yes, the K4000-3QUAD-TS5 is compatible with the Bosch RSC+ app, allowing users to manage the system remotely via smartphone or tablet.

Q4: How many zones does the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5) support?
A4: The system supports up to 32 fully programmable zones — 16 onboard and 16 expandable via modules or RADION wireless devices.

Q5: Is the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS5) suitable for Australian and New Zealand installations?
A5: Absolutely. The K4000-3QUAD-TS5 is compliant with all AU/NZ regulatory standards and fully optimized for local network infrastructure and monitoring systems.
