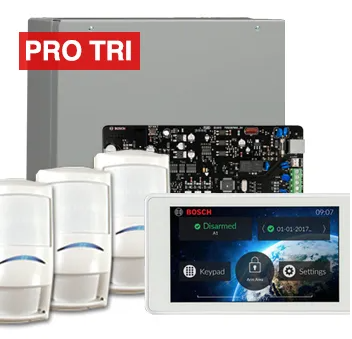

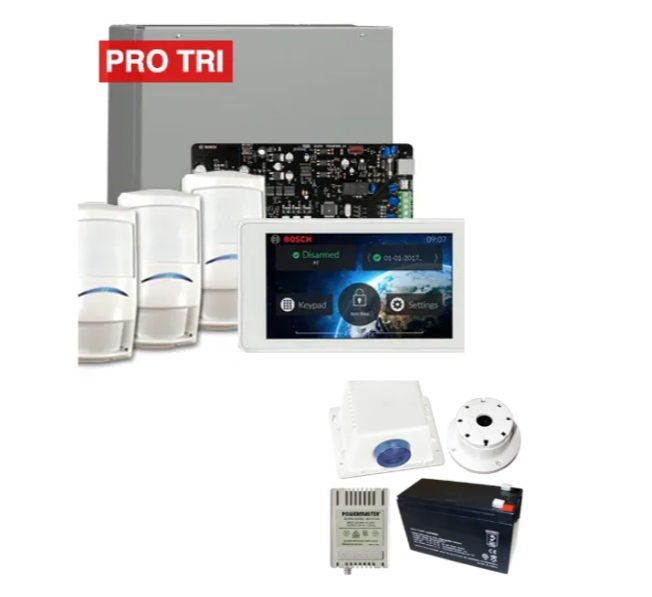

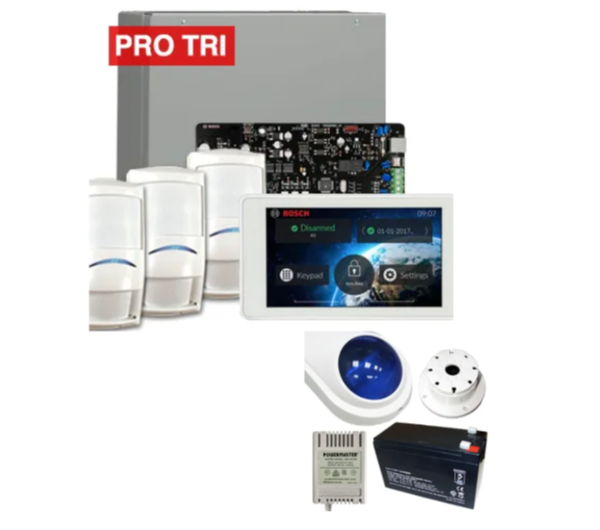

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3PROTRI-TS5) is engineered for professional-grade security in residential, retail, and commercial environments. Featuring Bosch’s trusted ICP-SOL4-P 32-zone control panel, this kit includes an intuitive IUI-SOL-TS5 5" touchscreen keypad, three ISC-PDL1-W18G Tri-Tech detectors for superior motion detection, and a full siren kit to complete your high-performance alarm system.

Designed with scalability, remote control capability, and robust detection in mind, this package ensures efficient and user-friendly intrusion protection with industry-leading Bosch reliability.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS5 5" Touchscreen Keypad

• 3x ISC-PDL1-W18G Tri-Tech Motion Detectors

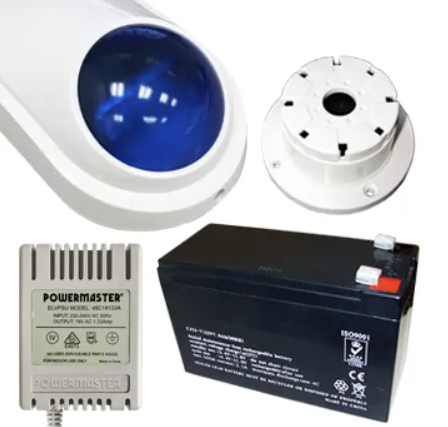

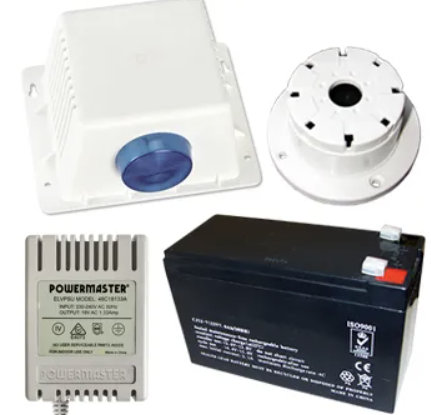

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Zone Flexibility: 16 onboard zones, expandable to 32

• Partitioning: Up to 2 independent areas

• User Management: Up to 64 users (32 PINs / 32 key fobs)

• Detection Technology: Tri-Tech detectors combining PIR and microwave for minimal false alarms

• Door Access: Supports control of up to 4 doors (via B901 controller)

• Keypad Compatibility: Supports up to 4 keypads, including LCD and touchscreen options

• Wireless Ready: Compatible with B810 RADION (for fobs/devices) and WE800EV2 (fobs only)

• Remote Access: Integrated with Bosch RSC+ app for mobile system control

• Comms Expansion: Add-on support for IP (B426-M) or cellular (B450-M) communication

• Touch Interface: IUI-SOL-TS5 delivers intuitive system control with visual clarity

Detailed Specifications

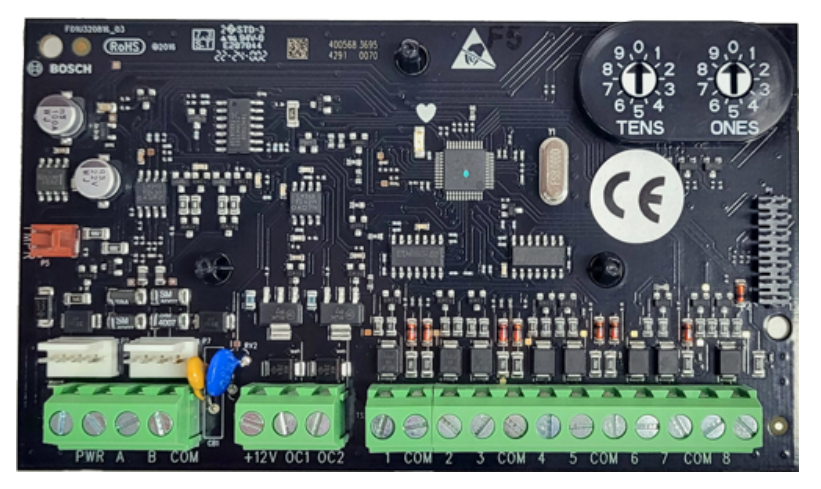

ICP-SOL4-P Control Panel:

• Total Zones: 32 (16 onboard + 16 via expansion)

• Door Zones: 4

• User Capacity: 64 users + 1 installer code

• Outputs: 4 onboard, expandable to 28

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Operating Temp: 0 °C to 45 °C

• Humidity: 10–95% RH (non-condensing)

• Communications: CID, SIA, CSV-IP, push notifications (with communication modules)

IUI-SOL-TS5 Touchscreen Keypad:

• Screen Size: 5" high-resolution color display

• Interface: Graphical touch UI

• Ease of Use: Simple menu navigation for users of all levels

• Installation: Surface mount, compact design

ISC-PDL1-W18G Tri-Tech Detectors:

• Detection Range: Up to 18 meters

• Technology: PIR + microwave motion detection

• Enhanced Reliability: Intelligent signal processing to reduce false alarms

• Application: High-traffic and temperature-variable environments

Warranty Information

The Bosch K4000-3PROTRI-TS5 alarm system is backed by a 3-year manufacturer’s warranty, ensuring long-term support and product performance under standard usage conditions.

Brand Description

Bosch Security Systems is a global leader in advanced intrusion detection technologies. Known for precision engineering, Bosch products are trusted by security professionals worldwide to deliver high-quality, scalable protection for homes, businesses, and government infrastructure.

SKU

K4000-3PROTRI-TS5

Practical Use Scenarios

• Residential Properties: Enhanced false alarm immunity with Tri-Tech sensors and touchscreen control

• Pharmacies or Clinics: Monitor multiple zones and staff-only access areas with remote management

• Retail Chains: Split system control for front-of-house and storage areas

• Warehouse Facilities: High-detection reliability for dynamic environments prone to temperature changes

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Certified Compliance: Fully compliant with RCM (Australia) and Telepermit (NZ) standards

• Standards Approved: EN50130-4:2011 and EN61000-3:2007/A1:2011 tested

• NBN & Fiber Compatible: IP modules allow seamless operation across AU/NZ monitoring centers

• Authorized Distribution: Components are sourced directly from Bosch-approved representatives

• Regional Support: Warranty and servicing handled directly by Bosch in Australia and New Zealand

FAQs

Q1: What detectors are included in the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5)?
A1: The K4000-3PROTRI-TS5 includes three ISC-PDL1-W18G Tri-Tech motion detectors, which combine passive infrared and microwave sensing for improved accuracy and reduced false alarms.

Q2: Can I remotely control the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5)?
A2: Yes, the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5) is fully compatible with the Bosch RSC+ mobile app, enabling remote arming, disarming, and system management.

Q3: Is the touchscreen in the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5) easy to use?
A3: Absolutely. The IUI-SOL-TS5 touchscreen keypad in the K4000-3PROTRI-TS5 offers a 5" graphical interface, making operation intuitive and user-friendly for all users.

Q4: How many zones can the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5) support?
A4: The Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5) supports up to 32 fully programmable zones—16 onboard and 16 through expansion modules.

Q5: Does the Bosch Solution 4000 Alarm Kit (K4000-3PROTRI-TS5) meet Australian and New Zealand standards?
A5: Yes, the K4000-3PROTRI-TS5 is certified to meet both Australian RCM and New Zealand Telepermit standards, making it ideal for local deployment.
