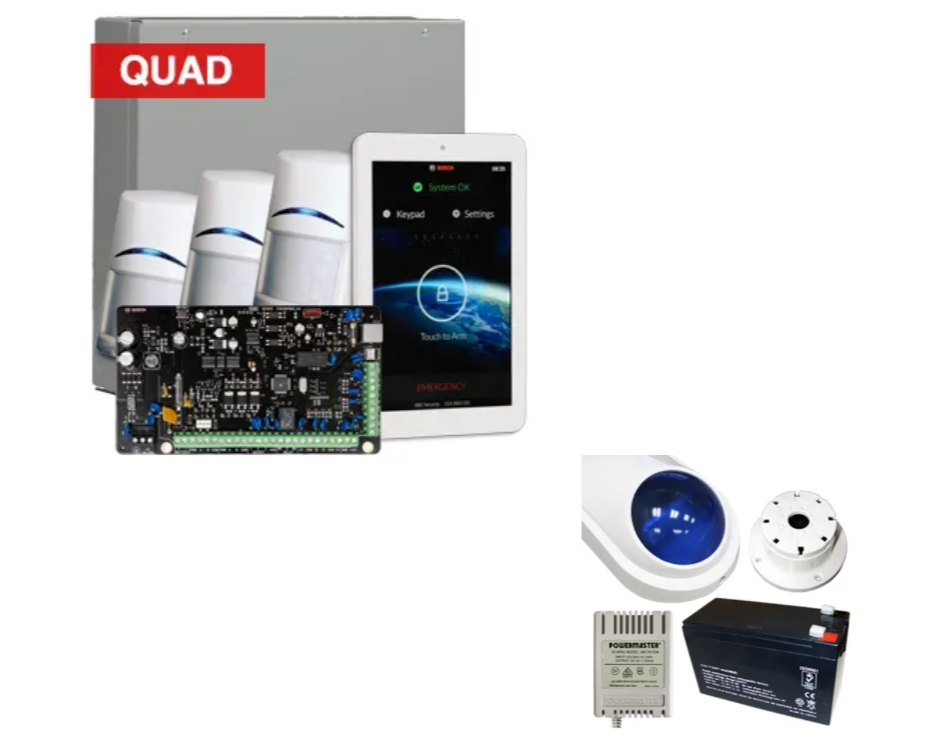

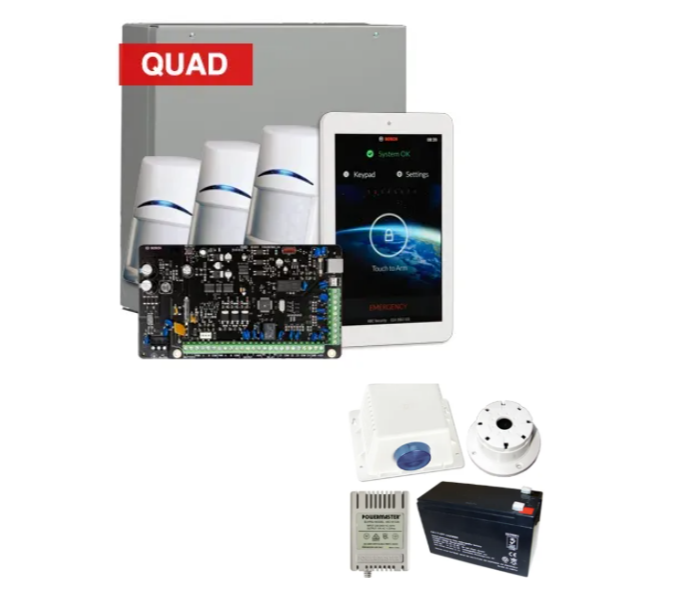

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3QUAD-TS7) is a comprehensive, high-performance security system designed for demanding residential and commercial environments. This kit includes the powerful ICP-SOL4-P 32-zone control panel, a large-format IUI-SOL-TS7 7" touchscreen keypad, and three ISC-BPQ2-W12 quad PIR motion detectors, providing exceptional motion sensing accuracy and ease of control. A complete siren kit is included to ensure audible alerting in the event of an intrusion.

Combining advanced detection capabilities, intuitive touchscreen navigation, and expandable system architecture, this kit supports up to 32 zones, multiple user profiles, remote management via the Bosch RSC+ app, and compatibility with both wired and wireless peripherals.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS7 7" Touchscreen Keypad

• 3x ISC-BPQ2-W12 Quad PIR Motion Detectors

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick Start Guide

Main Features

• Zone Capacity: 16 onboard zones, expandable to 32

• Partitions: Dual-area configuration for separate zone management

• User Access: Supports up to 64 users (32 PINs and 32 key fobs)

• Touchscreen Interface: 7" high-resolution display with intuitive graphical control

• Advanced Motion Detection: Quad PIR sensors for increased sensitivity and accuracy

• Wireless Compatibility: Works with B810 (RADION devices) and WE800EV2 (fobs only)

• Remote App Support: Compatible with Bosch RSC+ mobile app for remote access

• Expandable Outputs: 4 onboard outputs, expandable to 28 via B308 module

• Door Control: Supports up to 4 doors when integrated with the B901 door controller

Detailed Specifications

ICP-SOL4-P Control Panel:

• Total Zones: 32 (16 onboard, 16 via expansion)

• Outputs: 4 onboard, expandable to 28

• User Codes: 64 users + 1 installer code

• Operating Temperature: 0 °C – 45 °C

• Humidity: 10% – 95% RH, non-condensing

• Power Supply: 12 VDC (TF008 plug pack), 6.5Ah SLA backup battery

• Communications: CID, SIA, CSV-IP, push notifications via optional B426-M or B450-M

IUI-SOL-TS7 Touchscreen Keypad:

• Display: 7" capacitive full-color touchscreen

• Interface: Graphical, icon-based for intuitive use

• Capabilities: Full control of zones, arming/disarming, status display, and events

ISC-BPQ2-W12 Quad PIR Detectors:

• Detection Range: Up to 12 meters

• Sensor Type: Quad PIR for enhanced motion verification

• Installation: Suitable for wall or corner mount

• Use Case: Ideal for indoor areas with stable environments

Warranty Information

The K4000-3QUAD-TS7 alarm system kit includes a 3-year Bosch manufacturer warranty, ensuring dependable operation and local support across Australia and New Zealand.

Brand Description

Bosch Security Systems is a leading global provider of innovative and reliable electronic security solutions. Bosch products are built with precision engineering and designed to meet the performance demands of professional installers in both residential and commercial settings throughout ANZ.

SKU

K4000-3QUAD-TS7

Practical Use Scenarios

• Smart Homes: Modern touchscreen interface blends with high-end home automation systems

• Medical Clinics & Offices: Clear touchscreen controls and reliable detection in sensitive environments

• Multi-Zone Commercial Spaces: Efficient management of separate office and storage areas via partitions

• Retail & Hospitality: Stylish control interface and motion detection ideal for front and back-of-house zones

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet


Excellence for the Australian and New Zealand Market

• Certified for Local Standards: RCM (Australia) and Telepermit (New Zealand) approved

• Tested & Trusted: Conforms to EN50130-4:2011 and EN61000-3:2007/A1:2011 standards

• NBN & Fiber Ready: IP communication modules ensure compatibility with modern monitoring networks

• Regionally Sourced: All products distributed through authorized Bosch channels in AU/NZ

• Support & Warranty Handling: Backed by Bosch-authorized support centers throughout ANZ

 FAQs

Q1: What keypad is included in the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS7)?
A1: The K4000-3QUAD-TS7 kit includes the IUI-SOL-TS7, a 7" touchscreen keypad designed for intuitive and full-system interaction.

Q2: What detectors are used in the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS7)?
A2: The kit features three ISC-BPQ2-W12 quad PIR detectors offering enhanced false alarm immunity and reliable detection up to 12 meters.

Q3: Can I control the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS7) remotely?
A3: Yes, remote access and control are available via the Bosch RSC+ mobile app, when paired with the B426-M or B450-M communication module.

Q4: How many zones can the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS7) support?
A4: The system supports up to 32 zones — 16 built-in and 16 additional via wired or wireless expansion modules.

Q5: Is the Bosch Solution 4000 Alarm Kit (K4000-3QUAD-TS7) compliant with Australian and New Zealand regulations?
A5: Yes, the K4000-3QUAD-TS7 is fully compliant with AU RCM and NZ Telepermit standards and is optimized for use in both countries.
