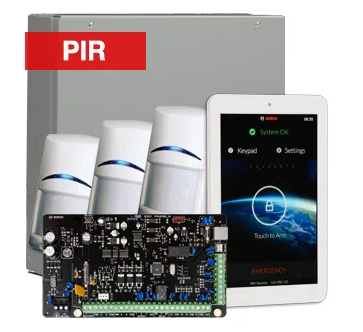

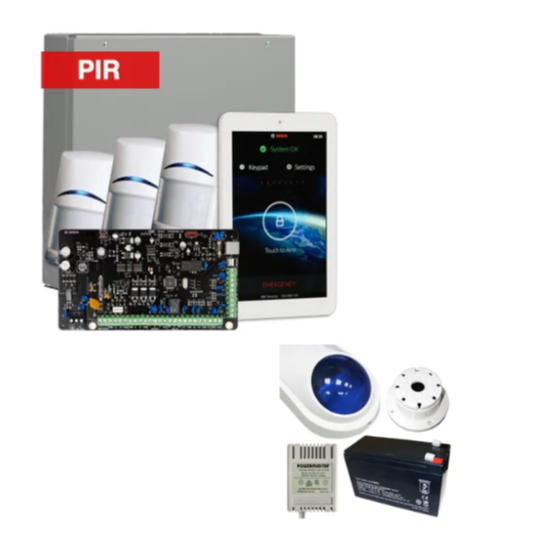

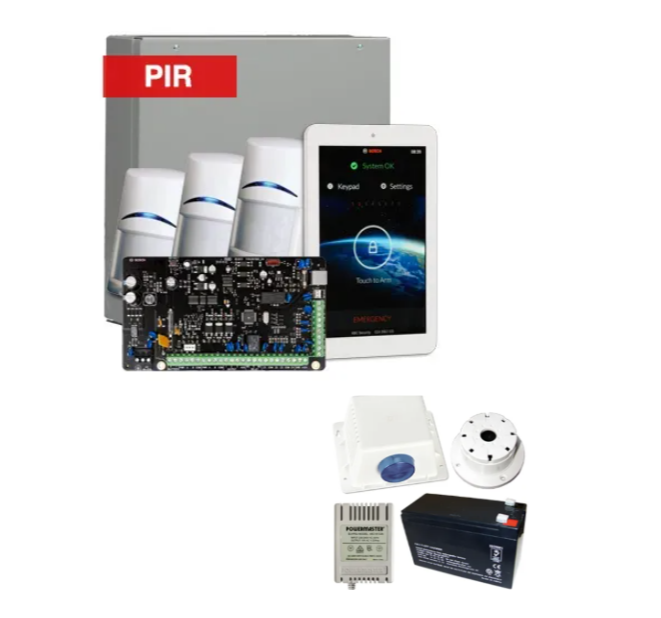

The Bosch Solution 4000 Alarm Kit (Part Number: K4000-3PIR-TS7) delivers a high-performance security solution tailored for small to medium commercial and residential premises. This professional-grade system features the advanced ICP-SOL4-P control panel, a premium IUI-SOL-TS7 7" touchscreen keypad, three ISC-BPR2-W12 PIR motion detectors, and a full siren kit for complete intrusion protection. With flexible installation, robust user management, and remote access capabilities, it ensures peace of mind for home and business owners.

Ideal for applications where comprehensive zone coverage, intuitive user interface, and remote monitoring are essential, the K4000-3PIR-TS7 kit offers a modern, scalable, and easy-to-use alarm platform.

What's Included in the Box

• 1x ICP-SOL4-P Control Panel

• 1x IUI-SOL-TS7 7" Touchscreen Keypad

• 3x ISC-BPR2-W12 PIR Motion Detectors

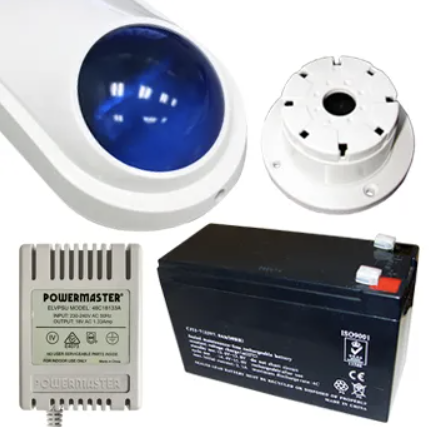

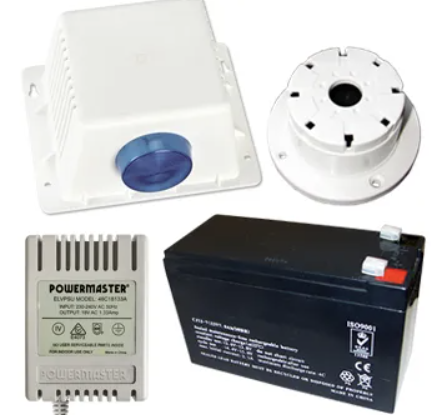

• 1x Siren Kit

• 1x Hardware Pack

• 1x Quick User Guide

Main Features

• Expandable Intrusion Zones: 16 onboard zones, expandable to 32 using B228 or RADION receiver

• Dual-Area Support: Split into 2 partitions for tailored area control

• User Management: 64 user slots (32 PIN codes + 32 key fobs)

• Access Control: Supports up to 4 doors with the B901 door controller

• Keypad Support: Operates with up to 4 keypads, including graphical and alphanumeric types

• Wireless Ready: Compatible with B810 (RADION wireless) and WE800EV2 (key fob only)

• Remote App Control: Use the Bosch RSC+ app for mobile system operation

• Multiple Communication Options: CID, SIA, CSV-IP, push notifications, and more with add-on modules

• NBN-Ready: Supports IP modules for seamless integration with Australian and NZ monitoring centers

Detailed Specifications

ICP-SOL4-P Control Panel:

• Zones: 32 (16 onboard + 16 via expansion)

• Door Zones: 4

• User Codes: 64 + 1 Installer Code

• Outputs: 4 onboard, expandable to 28

• Dimensions: 103 mm (H) x 183 mm (W) x 28 mm (D)

• Weight: 165 g

• Operating Temp: 0 °C to 45 °C

• Humidity: 10%–95% non-condensing

• Communication: Requires B426-M or B450-M for IP/cellular connectivity

IUI-SOL-TS7 7" Touchscreen Keypad:

• Interface: High-resolution 7" full-color screen

• Features: Graphical display, intuitive menu, SDI2 protocol

• Design: Sleek, modern layout ideal for premium installs

ISC-BPR2-W12 PIR Detectors:

• Detection Range: 12 meters

• Technology: Blue Line Gen2, advanced signal processing

• Application: Versatile indoor motion sensing

Warranty Information

Bosch offers a 3-year limited warranty for the Solution 4000 Alarm Kit (K4000-3PIR-TS7), covering all components against manufacturing defects under normal usage conditions.

Brand Description

Bosch Security Systems is globally respected for its innovation, quality, and reliability in security and safety technologies. With decades of expertise, Bosch continues to provide cutting-edge solutions designed to meet the highest industry standards and customer expectations.

SKU

K4000-3PIR-TS7

Practical Use Scenarios

• Homeowners: Secure your residence with mobile app access and tailored arming modes.

• Retail Outlets: Partitioned zones allow separate control for storefront and stockroom.

• Warehouses: Expandable sensors and door controllers support large physical spaces.

• Office Buildings: Multi-user management and keypad flexibility cater to varying staff access needs.

Datasheets / Downloadable Resources

• Bosch ICP-SOL4-P Solution 4000 Control Panel Datasheet

Excellence for the Australian and New Zealand Market

• Regulatory Compliance: Certified under Australia RCM (AS/CA S002:2010) and New Zealand Telepermit standards

• Approved Standards: EN61000-3:2007/A1:2011 and EN50130-4:2011

• Local Optimization: Fully compatible with Australian NBN and New Zealand fiber infrastructure

• Authorized Sourcing: All components sourced through official Bosch distribution in AU/NZ

• Warranty Support: Full service and support managed directly by Bosch within the region

FAQs

Q1: How many zones does the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) support?
A1: The Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) supports up to 32 programmable zones, including 16 onboard and 16 via expansion.

Q2: Can I use the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) with wireless devices?
A2: Yes, the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) is compatible with RADION wireless devices (via B810) and WE800EV2 for key fobs.

Q3: What’s the benefit of the IUI-SOL-TS7 keypad in the K4000-3PIR-TS7 kit?
A3: The IUI-SOL-TS7 7" touchscreen keypad offers a sleek interface with intuitive controls, enhancing usability and system interaction for the K4000-3PIR-TS7.

Q4: Is the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) suitable for business environments?
A4: Absolutely, the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) is ideal for commercial use, offering partitioning, door control, and flexible user access.

Q5: What mobile app works with the Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7)?
A5: The Bosch Solution 4000 Alarm Kit (K4000-3PIR-TS7) works with the Remote Security Control Plus (RSC+) app, enabling remote arming, disarming, and system monitoring.
