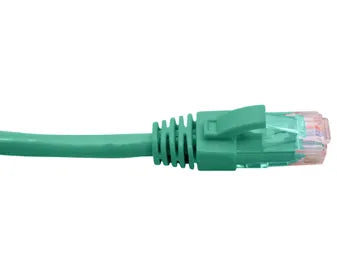

The CABPLC6GN2 is a 2-metre green CAT6 patch lead ideal for dependable high-speed network connections in both commercial and residential environments. Built with 24AWG stranded bare copper conductors and a central crossweb separator, it ensures minimal crosstalk and reliable signal transmission.
Featuring a snagless molded boot, the cable is protected from accidental disconnection during use or installation. It supports Ethernet, Fast Ethernet, and Gigabit Ethernet networks, meeting stringent ANSI/TIA-568-C.2 and AS/CA S008 standards, ensuring performance and compliance across Australia and New Zealand.
What’s Included in the Box
Main Features
-
Molded snagless boot for enhanced durability and secure connections
-
24AWG stranded copper conductors for flexible and stable performance
-
Crossweb separator minimizes internal interference
-
RCM-compliant and meets AS/CA S008 Australian standards
-
Suitable for 10BASE-T, 100BASE-TX, and 1000BASE-T networking
-
Compatible with IEEE 802.3 specifications
-
Broad operating temperature range of -20°C to +75°C
Detailed Specifications
| Feature |
Specification |
| Cable Type |
CAT6 Patch Lead |
| Length |
2 Metres |
| Colour |
Green |
| Conductor Material |
Bare Copper, 24AWG (7/0.20) |
| Jacket Material |
PVC |
| Outer Diameter |
6.0 mm ± 0.2 mm |
| Connector Type |
RJ45 Plug (8P8C) |
| Wiring Scheme |
568A |
| Compliance Standards |
ANSI/TIA-568-C.2, AS/CA S008 |
| Operating Temperature |
-20°C to +75°C |
Warranty Information
Backed by a 12-month warranty, offering peace of mind with manufacturer support for defects in materials or workmanship.
Brand Description
Cabac is a recognized leader in cabling infrastructure and network accessories, delivering high-quality, standards-compliant solutions for professional and DIY installers in the Australian and New Zealand regions.
Practical Use Scenarios
-
Office and home LAN setups
-
Patch panels and server rack interconnections
-
VoIP phone and device connectivity
-
Reliable link for Ethernet switches, routers, and PCs
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
The CABPLC6GN2 is meticulously engineered to meet the requirements of the Australian and New Zealand markets, including full RCM compliance and conformity to AS/CA S008 standards. This ensures safe, legal installation and operation across all types of networking environments. The product is exclusively distributed through authorized local channels, offering direct support and warranty servicing in-region.
Frequently Asked Questions (FAQs)
Q1: Is the CABPLC6GN2 compatible with Gigabit Ethernet?
A: Yes, it fully supports 1000BASE-T and is backward compatible with 10/100BASE-TX.
Q2: Does CABPLC6GN2 meet Australian compliance standards?
A: Absolutely. It is certified to AS/CA S008 and RCM requirements.
Q3: What kind of conductors are used in CABPLC6GN2?
A: It uses 24AWG stranded bare copper conductors for flexibility and durability.
Q4: What is the operating temperature range of CABPLC6GN2?
A: It operates efficiently in environments ranging from -20°C to +75°C.
Q5: Can CABPLC6GN2 be used in structured cabling systems?
A: Yes, it is suitable for structured cabling in both residential and commercial installations.
