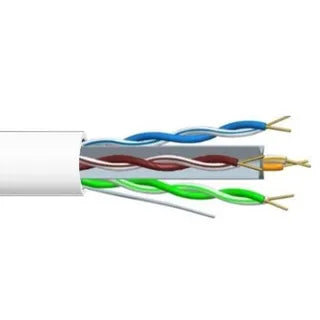

The Madison Cat6A UTP 4 Pair 23AWG LSZH Cable in white is engineered for high-performance networking applications, delivering reliable 10 Gigabit Ethernet over a 100-meter channel. Constructed with solid 23AWG plain annealed copper wires and insulated with foam and solid polyethylene, this cable ensures optimal signal integrity. The inclusion of a cross-web separator and a low smoke zero halogen (LSZH) sheath enhances both performance and safety, making it suitable for installations where fire safety and reduced smoke emissions are critical.

What's Included in the Box

• 1 x 305-meter reel of Cat6A UTP 4 Pair 23AWG LSZH Cable (White)

Main Features

• High-Speed Performance: Supports 10GBASE-T Ethernet applications up to 500 MHz.

• Enhanced Safety: LSZH sheath minimizes toxic smoke and halogen emissions during combustion.

• Structural Integrity: Cross-web separator maintains pair geometry, reducing crosstalk.

• Durability: Solid 23AWG conductors provide robust mechanical strength.

• Compliance: Meets international standards including IEC 61156-5 and ISO/IEC 11801-2.

Detailed Specifications

Conductor:

• Material: Plain Annealed Copper Wire (PACW)

• Size: 23 AWG (0.56 mm nominal diameter)

• Construction: Solid

Insulation:

• Material: Foam and Solid Polyethylene

• Nominal Diameter: 1.02 mm

• Nominal Thickness: 0.23 mm

Pairing:

• Twinning Direction: Left-hand (S) direction

• Maximum Twinning Lay: < 25 mm

Cabling:

• Cabling Direction: Left-hand (S) direction

• Cabling Lay: < 300 mm

• Separator: Cross-web separator to maintain pair separation

Sheath:

• Material: LSZH (Low Smoke Zero Halogen)

• Colour: White

• Nominal Overall Diameter: 7.2 mm

• Average Wall Thickness: 0.5 – 1.0 mm

Electrical Properties:

• Max. DC Resistance @ 20°C: ≤ 7.32 Ω/100m

• DC Resistance Unbalance: < 5% (ASTM D-4566) or < 2.5% (IEC 61156-1)

• Nominal Velocity of Propagation: 65%

• Characteristic Impedance: 100 ± 15Ω (1–250 MHz), 100 ± 22Ω (250–500 MHz)

Transmission Performance:

• Frequency Range: Up to 500 MHz

• NEXT (Near-End Crosstalk): ≥ 74.3 dB @ 1 MHz to ≥ 34.8 dB @ 500 MHz

• PSNEXT (Power Sum NEXT): ≥ 72.3 dB @ 1 MHz to ≥ 31.8 dB @ 500 MHz

• ELFEXT (Equal Level Far-End Crosstalk): ≥ 68.0 dB @ 1 MHz to ≥ 14.0 dB @ 500 MHz

• PSELFEXT (Power Sum ELFEXT): ≥ 65.0 dB @ 1 MHz to ≥ 11.0 dB @ 500 MHz

Mechanical Properties:

• Operating Temperature Range: -15°C to 75°C

• Max. Recommended Pulling Tension: 126 N

• Minimum Bend Radius (Installation): 65 mm

• Approximate Mass: 5.6 kg/100m

Warranty Information

Madison offers a comprehensive warranty for the Cat6A UTP 4 Pair 23AWG LSZH Cable, ensuring it is free from defects in material and workmanship under normal use and service. For detailed warranty terms and conditions, please refer to the manufacturer's warranty documentation.

Brand Overview: Madison

Madison is a reputable brand known for its high-quality cabling solutions, catering to various networking and communication needs. With a commitment to innovation and excellence, Madison products are designed to meet and exceed industry standards, ensuring reliable performance in diverse applications.

Practical Use Scenarios

• Enterprise Networks: Ideal for backbone cabling in corporate environments requiring high-speed data transmission.

• Data Centers: Suitable for high-density installations where performance and space efficiency are paramount.

• Educational Institutions: Supports robust network infrastructure for schools and universities.

• Healthcare Facilities: Ensures reliable connectivity for critical medical applications.

• Government Buildings: Meets stringent safety and performance standards for public sector installations.

Datasheets & Downloadable Resources

• UTPL6AHF-190429 Specification Sheet

Excellence for the Australian and New Zealand Market

• Compliance with Regional Standards: Adheres to AS/CA S-008 and AS 1049, ensuring suitability for installations in Australia and New Zealand.

• Certified Quality: Meets IEC 61156-5 and ISO/IEC 11801-2 standards, aligning with international best practices.

• Authorized Distribution: Sourced exclusively through authorized Madison representatives, guaranteeing product authenticity.

• Local Warranty Support: Warranty claims and support are managed directly through Madison's regional channels, providing prompt and reliable service.

Frequently Asked Questions (FAQs)

Q1: What is the maximum data transmission speed supported by the TC500202 cable?

A1: The TC500202 Cat6A UTP cable supports data transmission speeds up to 10 Gbps over a 100-meter channel, making it suitable for high-speed networking applications.

Q2: Is the TC500202 cable compliant with Australian and New Zealand standards?

A2: Yes, the TC500202 cable complies with AS/CA S-008 and AS 1049 standards, ensuring its suitability for installations within Australia and New Zealand.

Q3: What type of sheath does the TC500202 cable have, and why is it important?

A3: The TC500202 cable features a Low Smoke Zero Halogen (LSZH) sheath, which minimizes toxic smoke and halogen emissions during combustion, enhancing safety in enclosed or poorly ventilated areas.

Q4: Can the TC500202 cable be used in data center environments?

A4: Absolutely. The TC500202 cable's high-performance specifications and LSZH sheath make it ideal for data center applications where high-speed data transmission and fire safety are critical.

Q5: What is the minimum bend radius for the TC500202 cable during installation?
