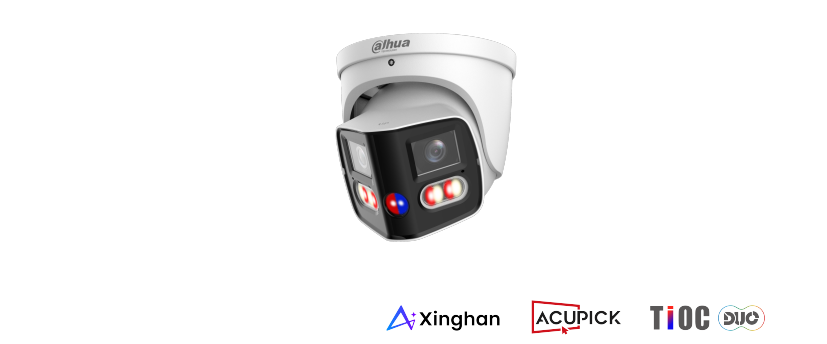

The Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 8MP (2×4MP) TiOC Duo Splicing WizSense IP Security Camera delivers ultra-wide 180° panoramic surveillance, intelligent AI human and vehicle detection, Smart Dual Light night vision, red and blue warning lights, a built-in siren and two-way audio. Featuring SMD 4.0, AcuPick, 30m infrared and warm-light illumination, PoE+ connectivity and IP67 weather protection, this advanced Dahua security camera is ideal for residential, commercial and outdoor CCTV installations across Australia and New Zealand.
Designed to provide broad security coverage with fewer cameras, the DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 combines two 4MP imaging channels into a seamless panoramic video image with a maximum resolution of 4320 × 1944. Its fixed 2.8mm lens configuration delivers a horizontal field of view of 180°, making it particularly useful for monitoring wide entrances, building frontages, driveways, car parks, retail premises and open outdoor areas.
Powered by Dahua's advanced WizSense deep-learning algorithms and Xinghan Large-Scale AI Models-Vision technology, the camera provides intelligent event detection, including intrusion detection, tripwire monitoring, loitering detection, stay detection and human and vehicle classification. SMD 4.0 further improves motion detection accuracy by helping distinguish relevant targets from environmental movement and animals.
Main Features and Benefits
180° Ultra-Wide Panoramic Coverage
Combines dual 4MP imaging channels into a panoramic image with a horizontal field of view of 180°, providing extensive scene coverage and reducing the need for multiple conventional cameras.
8MP High-Resolution Panoramic Imaging
Records at up to 4320 × 1944 resolution at 20fps, delivering detailed panoramic video for security monitoring and incident review.
TiOC Active Deterrence with Red and Blue Warning Lights
Built-in warning lights and audio alarms can activate when configured perimeter events occur, helping discourage unauthorised activity.
Smart Dual Light Night Vision
Combines infrared and warm white illumination with a range of up to 30m for each mode, automatically activating white illumination for colour capture of relevant events.
Advanced Xinghan AI and SMD 4.0
Uses intelligent algorithms for human and vehicle classification, helping reduce irrelevant motion alarms and improve security event detection.
AcuPick Intelligent Video Search
Works with compatible back-end Dahua devices to rapidly identify and retrieve relevant targets from surveillance recordings.
Two-Way Audio Communication
Integrated dual microphones and speakers enable audio monitoring and two-way communication using compatible recording and management systems.
Starlight Low-Light Performance
A large F1.4 aperture and sensitive 1/2.7-inch CMOS sensor support clear imaging in challenging lighting conditions, supplemented by intelligent illumination.
IP67 Weather-Resistant Metal Housing
Designed to withstand dust, rain and demanding outdoor environments, with an operating temperature range of –40°C to +60°C.
PoE+ and Local microSD Recording
Supports IEEE 802.3at PoE+ or 12V DC power and microSD cards up to 512GB, providing flexible installation and storage options.
Detailed Technical Specifications
Camera and Imaging
|
Specification
|
Details
|
|
Model
|
DH-IPC-PDW3859-A180-AS-PV-ANZ-S2
|
|
Camera Type
|
TiOC Duo Splicing Fixed-Focal Eyeball Network Camera
|
|
Product Series
|
WizSense 3 Series
|
|
Image Sensor
|
1/2.7" CMOS
|
|
Imaging Configuration
|
2 × 4MP, panoramic splicing
|
|
Maximum Resolution
|
4320 × 1944
|
|
Maximum Frame Rate
|
20fps at maximum resolution
|
|
Scanning System
|
Progressive
|
|
ROM
|
256MB
|
|
RAM
|
1GB
|
|
Signal-to-Noise Ratio
|
Greater than 56dB
|
|
Minimum Illumination (Colour)
|
0.003 lux @ F1.4
|
|
Minimum Illumination (B/W)
|
0.0003 lux @ F1.4
|
|
Minimum Illumination with Light
|
0 lux
|
|
Wide Dynamic Range
|
120dB
|
|
Noise Reduction
|
3D NR
|
|
Backlight Compensation
|
BLC
|
|
Highlight Compensation
|
HLC
|
|
AI Scene Self-Adaptation
|
Supported
|
|
Electronic Shutter
|
1/3s–1/100,000s
|
Lens and Field of View
|
Specification
|
Details
|
|
Lens Type
|
Fixed-focal
|
|
Focal Length
|
2.8mm
|
|
Maximum Aperture
|
F1.4
|
|
Lens Mount
|
M12
|
|
Horizontal Field of View
|
180°
|
|
Vertical Field of View
|
72°
|
|
Close Focus Distance
|
0.8m
|
|
Pan Adjustment
|
0°–355°
|
|
Tilt Adjustment
|
0°–77°
|
|
Rotation Adjustment
|
0°–355°
|
DORI Distances
|
Detection Level
|
Distance
|
|
Detect
|
50.6m
|
|
Observe
|
20.2m
|
|
Recognise
|
10.1m
|
|
Identify
|
5.1m
|
DORI distances describe visual observation criteria under EN 62676-4 and do not represent guaranteed AI detection distances.
Night Vision and Illumination
|
Specification
|
Details
|
|
Illumination Technology
|
Smart Dual Light
|
|
Infrared Distance
|
Up to 30m
|
|
Warm Light Distance
|
Up to 30m
|
|
Illuminator Configuration
|
4 multi-core IR and warm-light illuminators
|
|
Day/Night Modes
|
Auto ICR, Colour, Black and White
|
|
Smart Illumination
|
Supported
|
|
Illuminator Control
|
Automatic or Manual
|
|
Active Deterrence Lights
|
Red and Blue
|
|
Light Warning Duration
|
5–30 seconds
|
|
Light Warning Modes
|
Flashing or Solid
|
|
Flash Frequencies
|
High, Medium, Low
|
Intelligent AI and Security Functions
|
Specification
|
Details
|
|
AI Technology
|
Xinghan Large-Scale AI Models-Vision
|
|
Smart Motion Detection
|
SMD 4.0
|
|
AcuPick
|
Supported with compatible back-end devices
|
|
Perimeter Protection
|
Intrusion, Tripwire
|
|
Human and Vehicle Classification
|
Supported
|
|
Loitering Detection
|
Supported
|
|
Stay Detection
|
Supported
|
|
Face Detection
|
Full-image face detection
|
|
Face Snapshot Optimisation
|
Supported
|
|
AI Scene Self-Adaptation
|
Supported
|
|
Electronic Pan/Tilt/Zoom
|
EPTZ
|
|
Smart Search
|
Supported with compatible Smart NVR
|
|
One-Tap Arming/Disarming
|
Supported
|
|
Privacy Masking
|
8 areas
|
|
Motion Detection
|
4 configurable rectangular areas
|
Video and Encoding
|
Specification
|
Details
|
|
Video Compression
|
H.265, H.264, H.264H, H.264B, MJPEG (sub-stream only)
|
|
Smart Compression
|
Smart H.265+, Smart H.264+
|
|
AI Coding
|
AI H.265, AI H.264
|
|
Maximum Main Stream
|
4320 × 1944 @ 20fps
|
|
Sub Stream
|
1200 × 536 @ 20fps
|
|
Third Stream
|
1920 × 860 @ 20fps
|
|
Streaming Capability
|
3 streams
|
|
Bit Rate Control
|
VBR, CBR, ABR
|
|
Video Bit Rate
|
6–16384Kbps
|
|
Region of Interest
|
4 areas
|
|
Digital Defog
|
Supported
|
|
Digital Watermarking
|
Supported
|
Maximum frame rates for concurrent streams depend on the camera's total encoding capacity.
Audio and Active Deterrence
|
Specification
|
Details
|
|
Built-in Microphones
|
Dual microphones
|
|
Built-in Speakers
|
Dual speakers
|
|
Two-Way Talk
|
Supported
|
|
Maximum Speaker Sound Level
|
110dB at 10cm (laboratory measurement)
|
|
Speaker Maximum Power
|
2W
|
|
Audio Input
|
1 × RCA
|
|
Audio Output
|
1 × RCA
|
|
Preloaded Sound Alarms
|
11
|
|
Custom Audio Alarm Import
|
Supported
|
|
Alarm Volume Adjustment
|
0–100
|
|
Alarm Playback Repetitions
|
1–10
|
|
Alarm Input
|
1 channel
|
|
Alarm Output
|
1 channel
|
Network, Storage and Connectivity
|
Specification
|
Details
|
|
Network Interface
|
RJ-45 Gigabit Ethernet
|
|
Power Supply
|
12V DC ±30% or PoE+
|
|
PoE Standard
|
IEEE 802.3at
|
|
Local Storage
|
microSD card up to 512GB
|
|
Network Storage
|
FTP, SFTP, NAS
|
|
ONVIF
|
Profiles S, G, T, M
|
|
Interoperability
|
CGI, SDK
|
|
Supported Software
|
Smart PSS Lite, DSS, DMSS, DoLynk Care
|
|
Mobile Client
|
iOS, Android
|
|
Maximum Users
|
20
|
|
Total User Bandwidth
|
64Mbps
|
|
Security Features
|
HTTPS, 802.1X, trusted boot, account lockout, security logs, certificate support
|
Physical and Environmental
|
Specification
|
Details
|
|
Housing Material
|
Metal
|
|

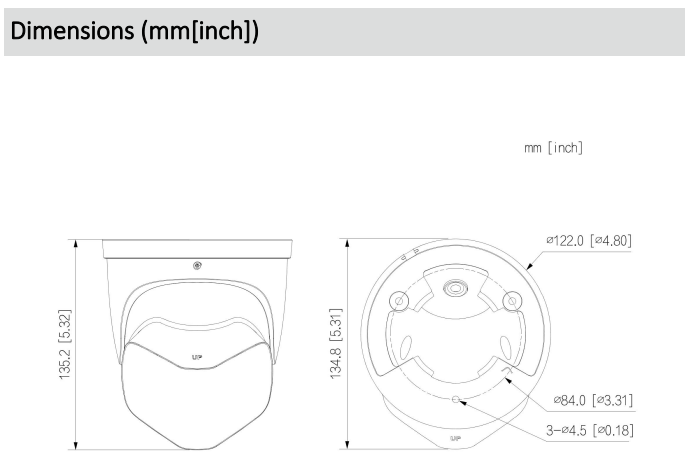

Dimensions
|
135.2mm × Ø122mm
|
|
Net Weight
|
0.99kg
|
|
Gross Weight
|
1.15kg
|
|
Weather Protection
|
IP67
|
|
Operating Temperature
|
–40°C to +60°C
|
|
Storage Temperature
|
–40°C to +60°C
|
|
Operating Humidity
|
Up to 95% RH, non-condensing
|
|
Basic Power Consumption
|
4.1W at 12V DC / 5.6W PoE
|
|
Maximum Power Consumption
|
12.2W at 12V DC / 14.8W PoE
|
|
Product Warranty
|
3 Years
|
What's Included in the Box?
- 1 × Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 TiOC Duo Splicing IP Security Camera
Important: This listing is for the camera only. Network cables, separate power adaptors, microSD cards, NVR recorders, optional mounting brackets, junction boxes and other installation accessories are not included and must be purchased separately.
Practical Applications and Use Scenarios
Residential Homes and Driveways
Monitor wide driveways, front yards and property entrances with 180° panoramic coverage. Intelligent human and vehicle detection, warning lights and audio alarms can support proactive residential security.
Retail Shops and Commercial Entrances
Cover wide shopfronts, customer entrances and commercial access points with fewer cameras. The camera's panoramic imaging helps reduce blind spots in suitable mounting positions.
Warehouses and Industrial Properties
Monitor loading bays, warehouse entrances and open operational areas. Perimeter protection and active deterrence can help identify and respond to unauthorised movement.
Car Parks and Vehicle Access Areas
Capture wide parking areas and vehicle movement zones. Human and vehicle classification can help identify relevant movement events.
Schools and Educational Facilities
Provide wide-area surveillance across outdoor walkways, entrances and common areas with intelligent detection and event-based recording.
Building Perimeters and Outdoor Security
Use IP67 protection, Smart Dual Light and integrated deterrence functions to monitor external boundaries in varying weather and lighting conditions.

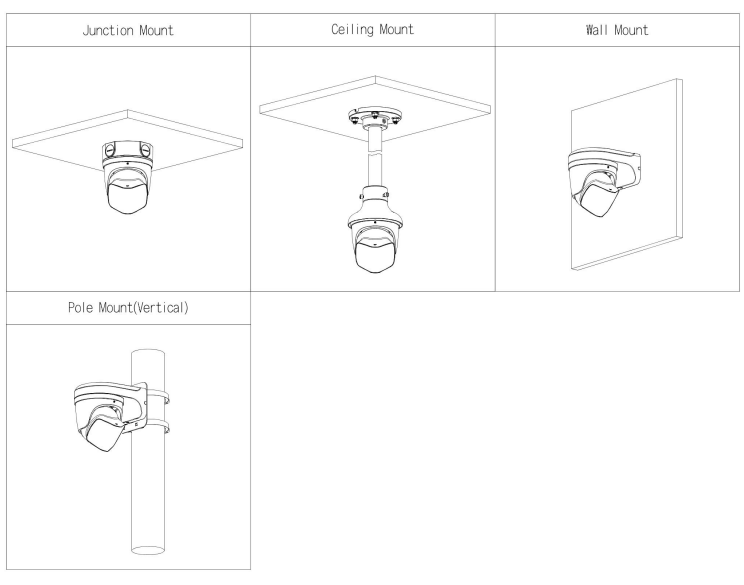

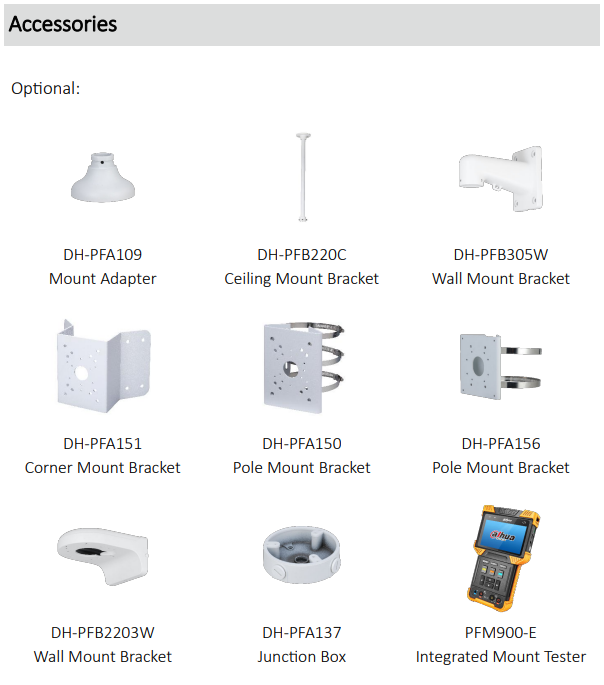

Compatible Optional Accessories
|
Product Code
|
Description
|
|
DH-PFA109
|
Mount Adapter
|
|
DH-PFB220C
|
Ceiling Mount Bracket
|
|
DH-PFB305W
|
Wall Mount Bracket
|
|
DH-PFA151
|
Corner Mount Bracket
|
|
DH-PFA150
|
Pole Mount Bracket
|
|
DH-PFA156
|
Pole Mount Bracket
|
|
DH-PFB2203W
|
Wall Mount Bracket
|
|
DH-PFA137
|
Junction Box
|
|
PFM900-E
|
Integrated Mount Tester
|
These accessories are optional and are not included with the camera.
Warranty Information
3-Year Warranty
The Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 is supplied with a 3-year warranty, providing assurance for professional CCTV installations across Australia and New Zealand.
Warranty claims and support are managed according to the applicable supplier and manufacturer warranty terms.
Customers also retain any applicable statutory rights under Australian Consumer Law or relevant New Zealand consumer protection legislation.
About Dahua Technology
Dahua Technology is an international provider of intelligent video surveillance, AIoT security products and professional monitoring solutions.
Its camera portfolio includes advanced network cameras, panoramic surveillance systems, intelligent deterrence cameras and sophisticated AI-powered security technologies.
The Dahua WizSense series uses dedicated AI processors and deep-learning algorithms to improve human and vehicle detection, optimise video surveillance performance and simplify security management.
Excellence for the Australian and New Zealand Market
The Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 is an ANZ-designated panoramic IP security camera suitable for professional CCTV installations across Australia and New Zealand. It combines intelligent surveillance, active deterrence and weather-resistant construction for residential, commercial and industrial security applications.
Australian and New Zealand Security Applications: Its 180° panoramic viewing angle, intelligent detection, PoE+ connectivity and 30m night illumination make it suitable for a wide range of local security applications.
Quality Standards and Certifications: The manufacturer's documentation lists EN 62368-1 electrical safety and CE electromagnetic compatibility certifications. Australian and New Zealand regulatory compliance, including any applicable RCM requirements, should be verified separately before making specific compliance claims.
Professional Product Sourcing: Globlelink focuses on supplying professional security solutions for Australian and New Zealand customers. Claims of exclusive sourcing through authorised Dahua representatives should be supported by confirmed supplier arrangements.
3-Year Warranty: Supplied with a 3-year warranty, with warranty assistance handled under applicable supplier and manufacturer arrangements.
Reliable Outdoor Security: IP67 weather protection, metal construction, Smart Dual Light illumination and intelligent active deterrence make this camera a practical choice for professional outdoor surveillance.
Frequently Asked Questions (FAQs)
1. What resolution does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 provide?
The Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 features dual 4MP imaging channels combined into an 8MP panoramic image with a maximum resolution of 4320 × 1944 at 20fps.
2. Does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 provide a 180-degree field of view?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 features a 180° horizontal and 72° vertical field of view, making it suitable for monitoring wide areas such as driveways, shopfronts, car parks and property entrances.
3. What is TiOC active deterrence on the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2?
TiOC active deterrence combines intelligent event detection with integrated red and blue warning lights and audible alarms. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 can activate configured warning functions when relevant security events occur.
4. Does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 support colour night vision?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 uses Smart Dual Light technology, combining infrared illumination and warm white light to support colour recording during detected events. Both illumination types have a specified maximum distance of 30m.
5. What is SMD 4.0 on the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2?
SMD 4.0 is Dahua's intelligent motion detection technology. On the DH-IPC-PDW3859-A180-AS-PV-ANZ-S2, it uses AI algorithms to classify relevant targets and reduce unnecessary alarms from animals and other irrelevant movement.
6. Does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 support two-way audio?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 features built-in dual microphones and speakers, supporting two-way communication through compatible monitoring and management software.
7. Can the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 be installed outdoors?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 has an IP67-rated metal enclosure and is specified to operate between –40°C and +60°C, making it suitable for properly installed outdoor surveillance applications.
8. Does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 support PoE?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 supports IEEE 802.3at PoE+, enabling both power and network data through a compatible Ethernet connection. It also supports 12V DC power.
9. Can the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 record to a microSD card?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 supports microSD storage up to 512GB. The microSD card is not included and must be purchased separately.
10. What is AcuPick on the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2?
AcuPick is Dahua's intelligent video search technology. When paired with compatible back-end recording equipment, the DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 supports AI-assisted target matching and efficient searching of live or recorded surveillance footage.
11. Does the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 support face detection?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 supports full-image face detection, optimised face snapshots and related configuration functions. Face detection does not necessarily mean standalone facial identity recognition.
12. Are network cables, mounting accessories or recording devices included with the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2?
No. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 is sold as a standalone camera. Network cables, separate power adaptors, NVR recorders, microSD cards and optional mounting accessories are not included.
13. Is the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 compatible with NVR systems?
Yes. The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 supports ONVIF Profiles S, G, T and M and can be integrated with compatible network video recording systems. Advanced AI functions may require a compatible Dahua NVR.
14. Is the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 suitable for Australian and New Zealand security installations?
The DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 is an ANZ-designated model designed for consideration in local security applications. Its outdoor protection, 180° coverage and intelligent deterrence features make it suitable for a wide range of professional CCTV projects, subject to relevant installation and regulatory requirements.
15. What warranty is included with the Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2?
The Dahua DH-IPC-PDW3859-A180-AS-PV-ANZ-S2 comes with a 3-year warranty, subject to the applicable supplier warranty terms and conditions.
