The Dahua EZ-IP EZ-N416PRO 16 Channel Network Video Recorder (NVR) is a professional 1U 16-channel PoE NVR featuring 16 integrated PoE ports, 4K HDMI output, up to 12MP IP camera support, Smart H.265+ compression, AI by Camera and dual SATA HDD storage. With up to 160 Mbps incoming/recording bandwidth, 16-channel playback and a total PoE budget of 130 W, the EZ-N416PRO provides a scalable recording solution for commercial, educational, transportation, financial and multi-camera IP CCTV installations.
Designed as part of the Dahua EZ-IP Series, the EZ-N416PRO combines a 16-channel network video recorder with an integrated 16-port PoE interface. The built-in IEEE 802.3af/at PoE ports simplify compatible IP camera installations by providing both network connectivity and electrical power through Ethernet cabling.
The recorder supports IP cameras with resolutions up to 12MP and provides HDMI output at up to 3840 × 2160 (4K) in simultaneous-output mode. Its Smart H.265+, H.265, Smart H.264+ and H.264 video compression options provide flexibility for balancing video quality, bandwidth and storage utilisation.
When compatible intelligent cameras are connected, the EZ-N416PRO supports AI by Camera, including face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map. Up to six channels are supported for specified AI functions including SMD Plus, face detection, face recognition and perimeter protection.
What's Included in the Box
1 × Dahua EZ-N416PRO 16CH 1U 16PoE 2HDD Network Video Recorder
Main Features
-
16-channel Network Video Recorder
-
16 × integrated 10/100 Mbps PoE ports
-
IEEE 802.3af/at PoE support
-
Supports IP cameras up to 12MP
-
Up to 160 Mbps incoming bandwidth with AI disabled
-
Up to 160 Mbps recording bandwidth with AI disabled
-
Up to 80 Mbps outgoing bandwidth with AI disabled
-
Up to 8 × 1080p@30fps decoding with AI disabled
-
HDMI output up to 3840 × 2160 4K
-
VGA video output
-
Smart H.265+, H.265, Smart H.264+ and H.264 video compression
-
AI by Camera functionality
-
Up to 6-channel SMD Plus by compatible cameras
-
Up to 6-channel perimeter protection by compatible cameras
-
Up to 6-channel face detection by compatible cameras
-
Up to 6-channel face recognition by compatible cameras
-
People counting support by compatible cameras
-
Stereo analysis support by compatible cameras
-
Heat map support by compatible cameras
-
One-click arming and disarming
-
Up to 16-channel playback
-
2 × SATA HDD interfaces
-
Up to 20TB per HDD according to the supplied specification
-
Disk Group support
-
4-channel alarm input
-
2-channel alarm output
-
RS-232 interface
-
Gigabit Ethernet network port
-
ONVIF interoperability
-
iOS and Android mobile access
-
USB and network backup
-
130 W total PoE power budget
-
Rack or desktop installation
AI & Intelligent Surveillance Features
SMD Plus by Camera
The EZ-N416PRO supports Dahua Smart Motion Detection Plus from compatible cameras on up to six channels. SMD Plus uses intelligent algorithms to categorise targets that trigger motion detection and filter alarms caused by non-concerned targets, helping improve the relevance and accuracy of motion alerts.
Face Detection by Camera
Compatible cameras can use deep-learning algorithms to detect, track, optimise and capture faces appearing within video.
Supported face attributes listed for the system include gender, age group, glasses, expressions, face mask and beard.
The EZ-N416PRO supports face detection by camera on up to 6 channels.
Face Recognition by Camera
Face recognition technology extracts characteristics from captured faces and compares them against information stored in a configured face database.
The EZ-N416PRO supports face recognition by compatible cameras on up to 6 channels.
Perimeter Protection by Camera
Perimeter protection from compatible cameras is designed to improve alarm accuracy by filtering false alarms caused by irrelevant activity such as animals, rustling leaves and bright lights.
The EZ-N416PRO supports perimeter protection by camera on up to 6 channels.
Stereo Analysis by Camera
With compatible cameras, stereo analysis combines deep-learning algorithms with three-dimensional scene information to identify specified behaviours and events. Supported examples include fall detection, violence detection, stay detection and space exceptions, with configured alarm signals and linkage actions generated when relevant.
Heat Map by Camera
Heat-map functionality can display crowd density and appearance probability using different colours, providing a visual representation of activity across spatial and time dimensions when used with compatible cameras.
Detailed Specifications
| Specification |
Details |
| Product Code / Model |
EZ-N416PRO |
| Series |
Dahua EZ-IP Series |
| Product Type |
16CH 1U 16PoE 2HDD Network Video Recorder |
| Main Processor |
Industrial-grade processor |
| Operating System |
Embedded Linux |
| Operating Interface |
Web, Local GUI |
| Access Channels |
16 |
| PoE Ports |
16 × 10/100 Mbps |
| PoE Standard |
IEEE 802.3af/at |
| Maximum Camera Resolution |
12MP |
| AI by Camera |
Face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis, heat map |
| Perimeter Protection by Camera |
Up to 6 channels |
| Face Detection by Camera |
Up to 6 channels |
| Face Recognition by Camera |
Up to 6 channels |
| SMD Plus by Camera |
Up to 6 channels |
| Face Attributes |
Gender, age group, glasses, expressions, face mask, beard |
| AI Disabled Bandwidth |
160 Mbps incoming / 160 Mbps recording / 80 Mbps outgoing |
| AI Enabled Bandwidth |
80 Mbps incoming / 80 Mbps recording / 60 Mbps outgoing |
| Supported Resolutions |
12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 960p, 720p, D1, CIF, QCIF |
| Video Compression |
Smart H.265+, H.265, Smart H.264+, H.264 |
| Audio Compression |
G.711a, G.711u, PCM, G726 |
| HDMI Output |
1 |
| VGA Output |
1 |
| Maximum HDMI Output |
3840 × 2160 in simultaneous mode |
| Main Screen Display |
1/4/8/9/16 |
| Sub Screen Display |
1/4/8/9/16 |
| Third-Party Camera Access |
ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon, Hanwha |
| Interoperability |
ONVIF 22.12 Profile T/S/G, CGI, SDK |
| Multi-Channel Playback |
Up to 16 channels |
| Record Modes |
General, motion detection, intelligent, alarm |
| Playback Modes |
Instant, general, event, tag and smart playback |
| Backup Methods |
USB device and network |
| Disk Group |
Yes |
| SATA Interfaces |
2 |
| Maximum HDD Capacity |
Up to 20TB per disk; limit may vary according to environmental temperature |
| Audio Input |
1-channel RCA |
| Audio Output |
1-channel RCA |
| Alarm Inputs |
4 channels |
| Alarm Outputs |
2 channels, including 1-channel 12V/1A output |
| RS-232 |
1 |
| USB |
2 × USB 2.0 – 1 front, 1 rear |
| Network Port |
1 × 10/100/1000 Mbps Ethernet RJ-45 |
| Mobile Access |
iOS, Android |
| Browsers |
Chrome, IE, Safari, Edge, Firefox |
| Power Supply |
100–240 VAC, 50/60 Hz |
| NVR Power Consumption |
<10 W without HDD |
| Total PoE Output |
130 W |
| Maximum Single PoE Port Output |
25.5 W |
| Net Weight |
2.60 kg |
| Gross Weight |
3.80 kg |

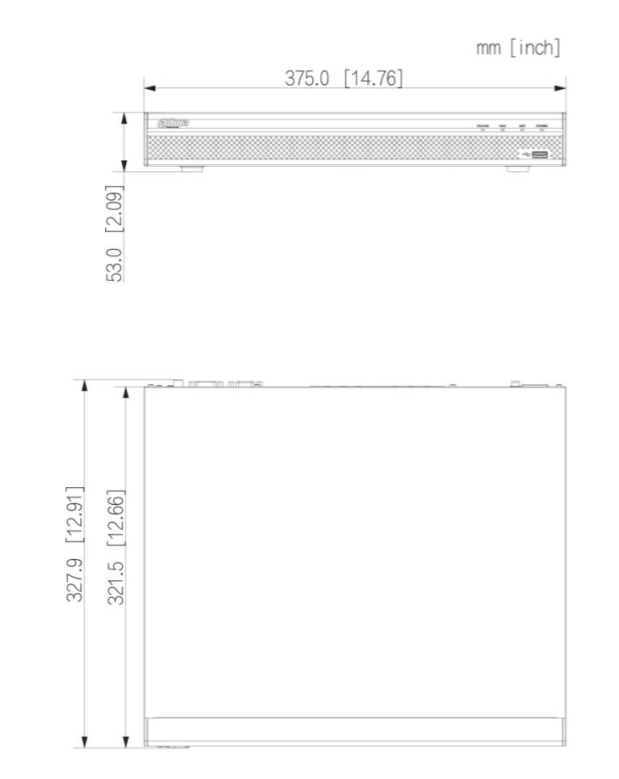

| Dimensions (W × D × H) |
375.0 × 327.9 × 53.0 mm |
| Packaging Dimensions (W × D × H) |
451.0 × 147.0 × 425.0 mm |
| Operating Temperature |
–10°C to +55°C |
| Storage Temperature |
–20°C to +60°C |
| Operating Humidity |
10%–93% RH, non-condensing |
| Installation |
Rack or desktop |
Decoding Capability
AI Disabled
-
1-channel 12MP @ 30fps
-
2-channel 8MP @ 30fps
-
3-channel 5MP @ 30fps
-
4-channel 4MP @ 30fps
-
8-channel 1080p @ 30fps
AI Enabled
-
1-channel 12MP @ 30fps
-
1-channel 8MP @ 30fps
-
2-channel 5MP @ 30fps
-
3-channel 4MP @ 30fps
-
7-channel 1080p @ 30fps
Video Outputs
The EZ-N416PRO provides 1 × HDMI and 1 × VGA output.
In simultaneous-output mode, HDMI supports 3840 × 2160, 1920 × 1080, 1280 × 1024 and 1280 × 720, while VGA supports 1920 × 1080, 1280 × 1024 and 1280 × 720.
In heterogeneous-output mode, both HDMI and VGA support resolutions up to 1920 × 1080.
Storage
A major advantage of the EZ-N416PRO over smaller EZ-IP NVR configurations is its dual-drive architecture.
The recorder provides 2 SATA ports, with the supplied specification stating that each disk can contain up to 20TB. This provides a theoretical maximum of 40TB across two 20TB drives, subject to the manufacturer's stated environmental limitations and compatible drive configuration.
The NVR also supports Disk Group functionality.
Hard drives should not be assumed to be included unless explicitly specified in the product bundle.
Network & Connectivity
The EZ-N416PRO provides a 10/100/1000 Mbps Gigabit Ethernet RJ-45 network interface.
Supported network protocols include HTTP, HTTPS, TCP/IP, IPv4, IPv6, UDP, NTP, DHCP, DNS, SMTP, UPnP, IP Filter, FTP, DDNS, SNMP, Alarm Server, P2P, Auto Registration and IP Search.
Mobile access is supported for iOS and Android.
Third-Party Camera Compatibility
The EZ-N416PRO supports ONVIF interoperability and lists third-party camera access for:
ONVIF, Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha.
The recorder supports ONVIF 22.12 Profile T, Profile S and Profile G, along with CGI and SDK interoperability.
Actual functions available with third-party cameras can vary according to camera model, firmware, protocol implementation and supported features.
Recording, Playback & Backup
The EZ-N416PRO supports general, motion detection, intelligent and alarm recording modes.
Playback modes include instant playback, general playback, event playback, tag playback and smart playback.
The recorder supports multi-channel playback of up to 16 channels, while recorded footage can be backed up through a USB device or over the network.
Alarm & Event Management
General alarms include motion detection, privacy masking, video loss, scene changing, PIR alarm and IPC external alarm.
Anomaly alarms include camera disconnection, storage errors, disk-full conditions, IP conflicts, MAC conflicts, login lock and cybersecurity exceptions.
Intelligent alarms can include face detection, face recognition, perimeter protection, SMD Plus, people counting, stereo analysis and heat map when supported by compatible cameras.
Alarm linkage options include recording, snapshots, IPC external alarm output, audio, buzzer, log, preset and email.
The EZ-N416PRO additionally provides 4 alarm inputs and 2 alarm outputs, making it suitable for installations requiring integration with compatible external alarm devices.
Practical Use Scenarios
The Dahua EZ-N416PRO is designed for surveillance systems requiring up to 16 IP cameras and is particularly useful where centralised PoE connectivity and expanded local storage are required.
Typical applications include medium-sized offices and commercial premises, retail stores and supermarkets, warehouses, educational facilities, transport-related facilities, financial and professional premises, multi-level residential properties, workshops and industrial environments.
Its 16 PoE ports make it particularly practical for sites where compatible cameras are being cabled directly back to the recorder. Dual SATA storage also provides greater recording capacity than single-drive NVR configurations.
For intelligent surveillance installations, compatible cameras can add functionality such as SMD Plus, perimeter protection, face detection, face recognition, people counting, stereo analysis and heat maps.
Warranty Information
2 year warrenty
About Dahua Technology
Dahua Technology develops video-centric AIoT products and security solutions, including network cameras, network video recorders, access control, intercom, alarm and associated surveillance technologies.
The EZ-IP range is designed to provide practical IP surveillance functionality while supporting features such as high-resolution video, PoE connectivity and intelligent camera integration.
SKU
EZ-N416PRO
Datasheets & Downloadable Resources
Datasheet
Excellence for the Australian and New Zealand Market
The Dahua EZ-N416PRO offers specifications suitable for a variety of Australian and New Zealand IP surveillance projects, particularly where a 16-camera system, integrated PoE connectivity, 4K display output and dual-HDD recording architecture are required.
Its 100–240 VAC, 50/60 Hz power specification, broad –10°C to +55°C operating temperature range, rack or desktop installation options and Gigabit network interface provide flexibility for different installation environments.
For Australian and New Zealand deployments, the exact regional product version should be sourced through an appropriate authorised supply channel. Installers and purchasers should verify applicable local regulatory requirements, certifications, warranty arrangements and firmware for the specific unit supplied.
FAQs
What is the Dahua EZ-N416PRO Network Video Recorder?
The Dahua EZ-N416PRO is a 16-channel 1U Network Video Recorder featuring 16 integrated PoE ports, 4K HDMI output, support for IP cameras up to 12MP, AI by Camera functionality and two SATA HDD interfaces.
How many cameras can the Dahua EZ-N416PRO support?
The Dahua EZ-N416PRO supports up to 16 IP camera channels, making it suitable for medium-sized multi-camera IP surveillance installations.
Does the Dahua EZ-N416PRO have 16 PoE ports?
Yes. The Dahua EZ-N416PRO has 16 integrated 10/100 Mbps PoE ports supporting IEEE 802.3af/at for compatible IP cameras.
What is the PoE power budget of the Dahua EZ-N416PRO?
The Dahua EZ-N416PRO has a total PoE output power of 130 W, with a maximum output of 25.5 W on a single PoE port.
Does the Dahua EZ-N416PRO support 4K output?
Yes. The Dahua EZ-N416PRO supports HDMI output at up to 3840 × 2160 4K resolution in its specified simultaneous-output configuration.
What is the maximum IP camera resolution supported by the Dahua EZ-N416PRO?
The Dahua EZ-N416PRO supports IP cameras with resolutions up to 12MP, as well as 8MP, 6MP, 5MP, 4MP, 3MP, 1080p and lower resolutions.
What bandwidth does the Dahua EZ-N416PRO support?
With AI disabled, the Dahua EZ-N416PRO supports up to 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing bandwidth. With AI enabled, the specification lists 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing bandwidth.
Does the Dahua EZ-N416PRO support SMD Plus?
Yes. The Dahua EZ-N416PRO supports SMD Plus by Camera on up to 6 channels when compatible intelligent cameras are connected.
Does the Dahua EZ-N416PRO support face detection?
Yes. The Dahua EZ-N416PRO supports face detection by compatible cameras on up to 6 channels, including specified face attributes such as age group, glasses, expressions, face mask and beard.
Does the Dahua EZ-N416PRO support face recognition?
Yes. The Dahua EZ-N416PRO supports face recognition by compatible cameras on up to 6 channels. Actual operation depends on the cameras and system configuration.
Does the Dahua EZ-N416PRO support perimeter protection?
Yes. The Dahua EZ-N416PRO supports perimeter protection by compatible cameras on up to 6 channels, designed to help reduce false alarms from non-relevant targets.
Does the Dahua EZ-N416PRO support people counting and heat maps?
Yes. The Dahua EZ-N416PRO supports people counting, stereo analysis and heat-map functions supplied by compatible AI cameras.
What compression formats does the Dahua EZ-N416PRO support?
The Dahua EZ-N416PRO supports Smart H.265+, H.265, Smart H.264+ and H.264 video compression.
How many hard drives can the Dahua EZ-N416PRO support?
The Dahua EZ-N416PRO provides 2 SATA HDD interfaces, allowing up to two compatible storage drives to be installed.
What is the maximum HDD capacity of the Dahua EZ-N416PRO?
The supplied specification states that each SATA disk in the Dahua EZ-N416PRO can contain up to 20TB, with the limit varying according to environmental temperature. With two 20TB drives, this corresponds to up to 40TB of raw installed capacity, subject to compatible drives and operating conditions.
Does the Dahua EZ-N416PRO come with hard drives?
The Dahua EZ-N416PRO is specified as a 2HDD Network Video Recorder, meaning it provides two HDD interfaces. The supplied information does not state that hard drives are included, so HDD inclusion should be confirmed for the specific product bundle.
Can the Dahua EZ-N416PRO play back all 16 cameras?
Yes. The Dahua EZ-N416PRO supports multi-channel playback of up to 16 channels, subject to the applicable stream, resolution and system configuration.
Can the Dahua EZ-N416PRO decode 8MP cameras?
Yes. With AI disabled, the Dahua EZ-N416PRO has a specified decoding capability of up to 2 × 8MP streams at 30fps. With AI enabled, the listed capability is up to 1 × 8MP stream at 30fps.
Does the Dahua EZ-N416PRO work with third-party IP cameras?
The Dahua EZ-N416PRO supports ONVIF and lists third-party camera access for Panasonic, Sony, Axis, Arecont, Pelco, Canon and Hanwha. Compatibility and available features can vary according to the individual camera and firmware.
Does the Dahua EZ-N416PRO have Gigabit Ethernet?
Yes. The Dahua EZ-N416PRO has one 10/100/1000 Mbps Gigabit Ethernet RJ-45 network port.
Does the Dahua EZ-N416PRO have alarm inputs and outputs?
Yes. The Dahua EZ-N416PRO provides 4 alarm input channels and 2 alarm output channels, including a specified 1-channel 12V/1A output.
Can I remotely access the Dahua EZ-N416PRO from a phone?
Yes. The Dahua EZ-N416PRO specification includes mobile access support for iOS and Android.
What are the dimensions of the Dahua EZ-N416PRO?
The Dahua EZ-N416PRO measures 375.0 × 327.9 × 53.0 mm (W × D × H) and has a net weight of approximately 2.60 kg.
Is the Dahua EZ-N416PRO suitable for Australian and New Zealand CCTV installations?
The Dahua EZ-N416PRO has specifications suitable for a range of Australian and New Zealand IP surveillance applications, including 16-channel systems requiring integrated PoE and dual-HDD storage. The exact regional model, regulatory requirements, certifications, warranty and installation requirements should be verified with the applicable authorised supplier before deployment.
