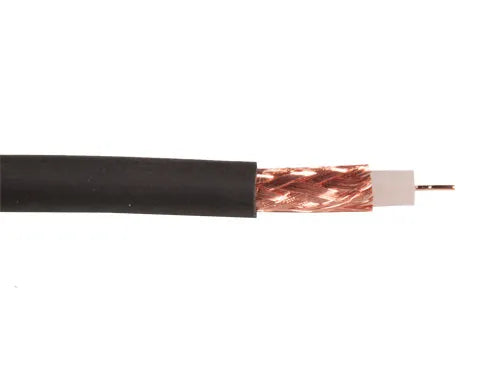

The Garland CC59 RG59B/U is a high-performance 75-ohm coaxial cable designed for precision signal transmission in communication and control systems. Featuring a solid 23 AWG plain annealed copper wire (PACW) conductor, solid polyethylene dielectric, and an 84% PACW braided shield, this cable ensures minimal signal loss and excellent electromagnetic interference (EMI) protection. Encased in a durable black PVC sheath, the CC59 is suitable for various indoor applications, including CCTV, broadcast, and data communication systems.

What's Included in the Box

• 1 x 100m roll of Garland CC59 RG59B/U 75 Ohm Coaxial Cable

Main Features

• 75 Ohm Characteristic Impedance: Ideal for video and RF signal transmission.

• Solid 23 AWG PACW Conductor: Ensures consistent signal integrity.

• 84% PACW Braided Shield: Provides superior EMI protection.

• Solid Polyethylene Dielectric: Maintains signal quality over long distances.

• Durable PVC Sheath: Offers flexibility and resistance to environmental factors.

• Compliance: Meets UL 758 standards for safety and performance.

Detailed Specifications

• Conductor:

  • Size: 23 AWG (1/0.6mm)

  • Material: Plain Annealed Copper Wire (PACW)

• Insulation:

  • Material: Solid Polyethylene

  • Nominal Thickness: 1.5 mm

  • Nominal Outer Diameter: 3.7 mm

• Shielding:

  • Material: PACW Braiding

  • Coverage: 84%

• Sheath:

  • Material: PVC

  • Colour: Black (RAL 9004)

  • Nominal Thickness: 0.9 mm

  • Nominal Outer Diameter: 6.2 mm

• Electrical Properties:

  • Characteristic Impedance: 75 ± 3 Ω

  • Max. Conductor DC Resistance @ 20°C: 62 Ω/km

  • Nominal Capacitance Conductor to Shield @ 1 KHz: 67 ± 2 pF/m

  • Min. Insulation Resistance: 1,000 MΩ·km

  • Voltage Test:

    • Conductor to Shield: 500V AC for 1 minute

    • Core to Sheath: 3.0 kV AC for 1 minute

    • Shield to Sheath: 3.0 kV AC for 1 minute

• Attenuation (Max. dB/100m):

  • 1 MHz: 2.0

  • 10 MHz: 3.7

  • 50 MHz: 8.3

  • 100 MHz: 11.5

  • 200 MHz: 16.5

  • 400 MHz: 23.7

  • 700 MHz: 32.5

  • 900 MHz: 37.2

  • 1000 MHz: 40.2

• Mechanical Properties:

  • Operating Temperature Range: -15°C to 70°C

  • Max. Recommended Pulling Tension: 107 N

  • Min. Bend Radius (Installation): 62 mm

  • Approximate Mass: 5.5 kg/100m

Warranty Information

Garland provides a manufacturer's warranty ensuring the CC59 RG59B/U cable is free from defects in materials and workmanship under normal use. For warranty claims, please contact Garland's customer service with proof of purchase.

Brand Description

Garland is a reputable manufacturer of high-quality cables, specializing in solutions tailored for the Australian and New Zealand markets. With a commitment to excellence and compliance with international standards, Garland delivers reliable and durable cabling products for various applications.

SKU

• Product Code: CC59

Practical Use Scenarios

• CCTV Installations: Ensures clear video signal transmission for surveillance systems.

• Broadcast Systems: Ideal for transmitting RF signals in television and radio setups.

• Data Communication: Suitable for low-loss signal transmission in data networks.

• Control Systems: Reliable performance in industrial control and automation systems.

Datasheets / Downloadable Resources

• Garland CC59 RG59B/U Coaxial Cable Datasheet (PDF)

Excellence for the Australian and New Zealand Market

The Garland CC59 RG59B/U coaxial cable is engineered to meet the stringent requirements of the Australian and New Zealand markets. Complying with UL 758 standards, it ensures safety and reliability in various applications. Sourced exclusively from authorized brand representatives, this cable guarantees authenticity and quality. Warranty handling is streamlined through direct communication with Garland, providing peace of mind to customers.

FAQs – Garland CC59 RG59B/U 75 Ohm Coaxial Cable (Product Code: CC59)

Q1: What is the conductor material used in the Garland CC59 cable (Product Code: CC59)?
A1: The Garland CC59 cable features a solid 23 AWG plain annealed copper wire (PACW) conductor, ensuring excellent conductivity and signal integrity.

Q2: Is the Garland CC59 cable (Product Code: CC59) suitable for outdoor installations?
A2: The CC59 cable has a durable PVC sheath; however, for direct outdoor installations, additional protection or a cable specifically designed for outdoor use is recommended.

Q3: Can the Garland CC59 cable (Product Code: CC59) be used for high-frequency signal transmission?
A3: Yes, the CC59 cable supports frequencies up to 1000 MHz with specified attenuation levels, making it suitable for various high-frequency applications.

Q4: What is the characteristic impedance of the Garland CC59 cable (Product Code: CC59)?
A4: The CC59 cable has a characteristic impedance of 75 ± 3 ohms, ideal for video and RF signal transmission.

Q5: Does the Garland CC59 cable (Product Code: CC59) comply with Australian standards?
A5: Yes, it complies with UL 758 standards, ensuring suitability for use in Australia and New Zealand.
