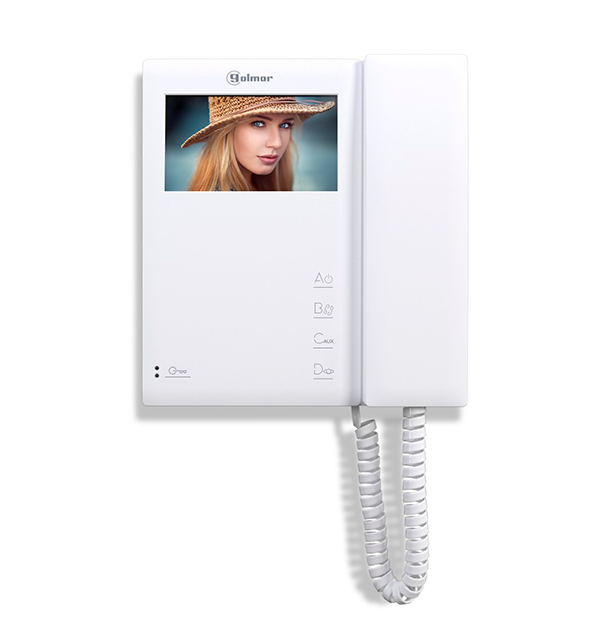

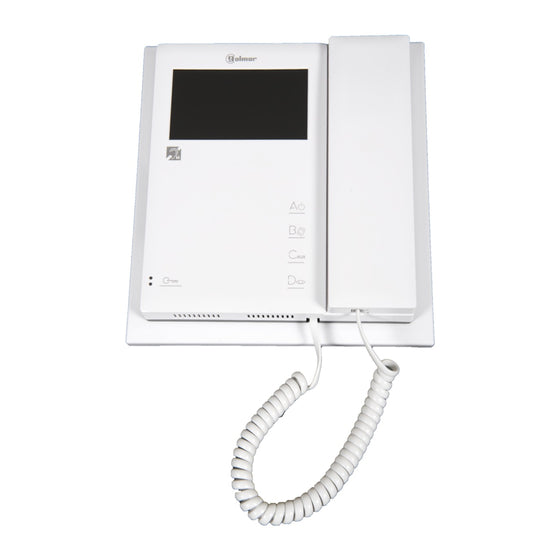

The Golmar GL‑Tekna‑S Plus is a sleek, compact 4.3″ hands‑free video intercom monitor designed for “Plus” digital installations via CAT5 or 3‑wire + coax cable systems. Featuring an ABS RAL9003 white casing and intuitive interface, the Tekna‑S Plus delivers advanced access control for residential, commercial, and gated communities.
What’s Included in the Box
-
Tekna‑S Plus Monitor unit
-
Surface‑mount wall connector
-
Detachable telephone handset & cord
-
Installation & accessory guide
-
Quick‑start datasheet (digital)
Key Features
-
🖥 4.3″ TFT LCD colour display with brightness & colour tuning
-
Hands‑free or handset mode with detachable handset supporting T‑mode (hearing‑aid compatible)
-
Supports CAT5 or 3‑wire + coaxial installation, with backup video input via EL562S
-
Privacy controls for audio, video, and door‑release functions
-
Video‑spy & auto switch‑on for instant monitoring
-
Inter‑unit intercom, up to five monitors per apartment (three without extra power)
-
Concierge & panic call functions, even via lock‑release button
-
Programmable auxiliary buttons for lighting, cameras via SAR‑12/24 relay
-
Three‑position call volume dial including night‑mode “silent”
-
DIP‑switches & micro‑switch programming for master/slave settings, addresses, and call codes
-
Outputs for SAV‑90 repeater or relay units during calls
-
Dimensions: 180 × 198 × 39 mm; ABS white casing
Detailed Specifications
| Specification |
Details |
| Display |
4.3″ TFT colour LCD |
| Install Options |
3‑wire + coaxial, 4‑wire twisted‑pair, UTP (CAT5 via RJ‑45) |
| Audio |
Hands‑free + detachable handset with T‑mode hearing‑aid support |
| Volume Control |
3‑position dial (max, medium, silent) + night mode LED |
| Cabling Inputs |
EL562S option; DIP‑switch programmable |
| Intercom Capabilities |
Up to 5 monitors (3 without external PSU), master/slave configurable |
| Auxiliary Outputs |
2 buttons for cameras/lights (50 mA), SAV‑90 relay (250 mA) |
| Call Types & Tones |
Door panel, concierge, intercom, panic—with distinct ringtones |
| Dimensions & Materials |
180×198×39 mm; ABS plastic RAL9003 |
| Mounting |
Surface via metal wall connector; optional desktop stand |
Warranty Information
Backed by a standard 2‑year manufacturer warranty from Golmar, this monitor covers defects in materials and workmanship under normal use.
Brand Description
Golmar Sistemas de Comunicación S.A., an ISO‑9001 certified European leader in video intercom and access control systems, is renowned for robust, user‑centric solutions with a global distribution network.
Practical Use Scenarios
-
Enhances residential block entry systems with secure audio/video communication
-
Ideal for gated community entrances requiring panic/concierge call functions
-
Enables multi-room intercom within homes or apartments
-
Controls auxiliary devices like security lights or external cameras
-
Perfect for retrofitting legacy Golmar systems with digital “Plus” upgrades
Datasheets & Resources
-
| Manual |
 |
| Data Sheet |
|
Excellence for the Australian and New Zealand Market
The GL‑Tekna‑S Plus is tailored for ANZ installations with familiar wiring standards, surface‑mount suitability for new or retrofit projects. Supplied by authorised Golmar partners, it includes local support, compliance with Australian electrical safety standards, and manufacturer‑handled warranty service. Perfect for Aussie and Kiwi installers and property owners seeking reliability and peace of mind.
SKU
GL‑Tekna‑S Plus
FAQs
Q1 (Product Code GL‑Tekna‑S Plus): What wiring options does the GL‑Tekna‑S Plus support?
A1: This monitor supports CAT5 UTP via RJ‑45, 4‑wire twisted pair with EL562S, or traditional 3‑wire + coaxial installations.
Q2 (Product Code GL‑Tekna‑S Plus): Can multiple GL‑Tekna‑S Plus units communicate?
A2: Yes—up to five can intercom in the same apartment (up to three without extra power) with selectable master/slave settings.
Q3 (Product Code GL‑Tekna‑S Plus): Does this model support concierge or panic call?
A3: Yes—built‑in concierge and panic call functions allow direct connection to a guard station via lock‑release or panic button.
Q4 (Product Code GL‑Tekna‑S Plus): How do the auxiliary control buttons function?
A4: Two programmable buttons can activate external relays (like lights or cameras) through SAR‑12/24 outputs.
Q5 (Product Code GL‑Tekna‑S Plus): Are there volume options for calls and night mode?
A5: Yes—a three‑position volume dial includes maximum, medium, and silent “night” mode with LED indicator.
