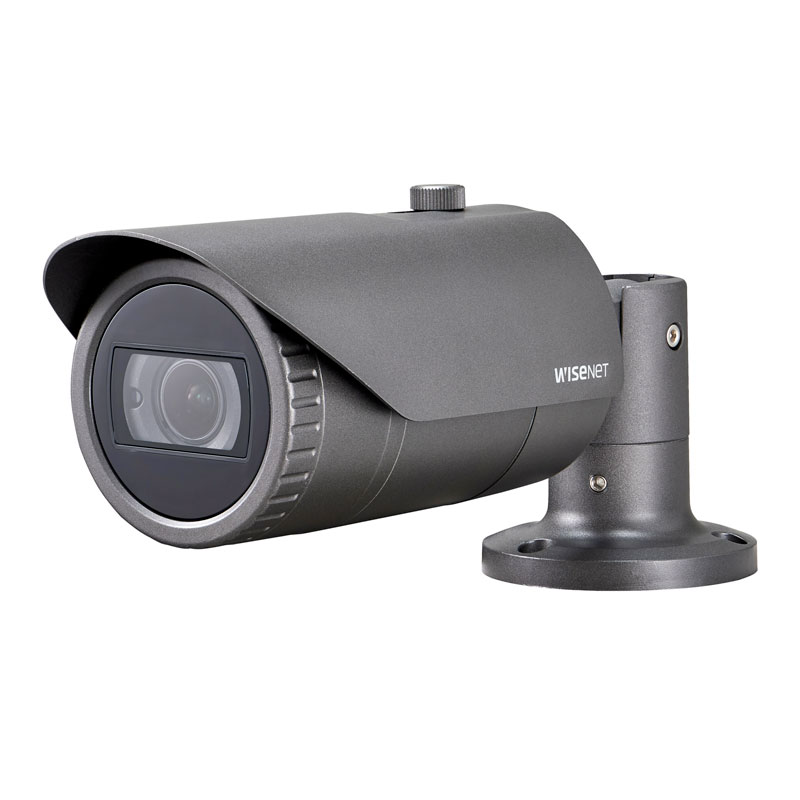

The Hanwha HCO-6080RN / HCO-6080RP is a professional-grade 1080p Analog HD IR bullet camera, ideal for upgrading legacy coaxial-based CCTV systems with enhanced clarity and functionality. Featuring a 2MP CMOS sensor, motorised 3.2–10mm varifocal lens, and True WDR (120dB), this camera delivers exceptional image performance in both bright and challenging lighting conditions.
With support for multiple video output formats (AHD, TVI, CVI, CVBS) and up to 30m IR illumination, the HCO-6080R series provides installation flexibility and reliable night-time performance. Housed in a durable IP66 / IK10-rated enclosure, this camera is suitable for demanding outdoor surveillance applications.
What’s Included in the Box
Main Features
-
Full HD 1080p (1920 x 1080) resolution via coaxial transmission
-
3.2–10mm motorised varifocal lens with 3.1x optical zoom
-
Excellent low-light performance: 0.11 Lux (colour), 0 Lux (B/W with IR)
-
True WDR (120dB) for backlight compensation in high-contrast scenes
-
SSNR IV digital noise reduction for enhanced clarity
-
30m IR viewable range for effective night surveillance
-
Multi-format video output: AHD / TVI / CVI / CVBS selectable
-
Motion detection, privacy masking, and defog features
-
Dual power support (12V DC & 24V AC)
-
Durable IP66 weather-resistant and IK10 vandal-resistant housing
-
Up to 500m video transmission distance over coaxial cable
Detailed Specifications
Category |
Specification |
Imaging Device |
1/2.8" 2MP CMOS |
Effective Pixels |
1945(H) × 1097(V) |
Resolution |
1920 x 1080 (1080p) |
Frame Rate |
30fps @ 1080p (NTSC) / 25fps @ 1080p (PAL) |
Lens |
3.2–10mm motorised varifocal, F1.6 |
Field of View |
H: 110.2°–32°, V: 55.4°–18°, D: 128.4°–36.6° |
Minimum Illumination |
0.11 Lux (Color), 0 Lux with IR on |
IR Range |
30 meters |
WDR |
120dB |
Noise Reduction |
SSNR IV (2D + 3D) |
Privacy Masking |
8 zones (rectangle) |
Motion Detection |
4 zones |
Defog |
Off / Auto / Manual |
Backlight Compensation |
BLC / HLC / WDR / Off |
Video Output |
AHD / TVI / CVI / CVBS (BNC) |
Remote Control |
Coaxial (ACP, Pelco-C, CCP, TCP) |
Power Input |
12V DC ±10%, 24V AC ±10% |
Power Consumption |
Max. 5.8W |
Operating Temperature |
–30°C to +55°C (Startup above –10°C) |
Ingress Protection |
IP66 |
Vandal Resistance |
IK10 |
Dimensions |
Ø78 x 259.8mm (without sunshield) |
Weight |
948g (2.09 lbs) |
Housing Material |
Aluminum |
Colour |
Dark Grey |
Warranty Information
The HCO-6080R series comes with a 3-year limited manufacturer's warranty, covering defects in materials and workmanship under normal use. Support and RMA services are available via certified Hanwha Vision distributors.
Brand Description
Hanwha Vision (formerly Hanwha Techwin) is a globally trusted provider of advanced video surveillance technologies. With decades of innovation, Hanwha’s product line includes IP and analog cameras, storage systems, and accessories, delivering intelligent security solutions for modern applications.
SKU / Product Codes
-
HCO-6080RN (NTSC)
-
HCO-6080RP (PAL)
Practical Use Scenarios
-
Upgrade of legacy coaxial-based surveillance systems to Full HD
-
Outdoor perimeter monitoring in industrial parks, retail outlets, and schools
-
Driveway and parking lot coverage with 30m IR visibility
-
Public infrastructure monitoring with IK10 vandal resistance
-
Deployment in dusty or wet environments thanks to IP66-rated weatherproof housing
-
Ideal for installers seeking plug-and-play coax-based camera solutions with enhanced features
Datasheets / Downloadable Resources
Available from authorized distributors and Hanwha documentation platforms:
Excellence for the Australian and New Zealand Market
-
Compliant with Australian and New Zealand electrical and safety standards
-
Supports PAL format (HCO-6080RP) for ANZ compatibility
-
Supplied exclusively through certified ANZ distributors, ensuring full product traceability and warranty support
-
Built to withstand harsh outdoor conditions common in ANZ with wide temperature tolerance and IP66/IK10 protection
-
A practical choice for coaxial-based CCTV upgrades across retail, transport, and local government sectors
Frequently Asked Questions (FAQs)
Q: What output formats are supported by the HCO-6080RN / HCO-6080RP (SKU: HCO-6080RN / HCO-6080RP)?
A: The camera supports AHD, TVI, CVI, and CVBS video outputs via BNC.
Q: What is the IR range for night surveillance on the HCO-6080RN / HCO-6080RP (SKU: HCO-6080RN / HCO-6080RP)?
A: It features infrared illumination up to 30 meters, ideal for outdoor monitoring in complete darkness.
Q: Can the HCO-6080RN / HCO-6080RP (SKU: HCO-6080RN / HCO-6080RP) be used outdoors?
A: Yes, it features IP66 weatherproofing and IK10 vandal resistance, making it well-suited for outdoor applications.
Q: What lens does the HCO-6080RN / HCO-6080RP (SKU: HCO-6080RN / HCO-6080RP) use?
A: It includes a 3.2–10mm motorised varifocal lens with simple focus and DC auto iris.
Q: Is the HCO-6080RN / HCO-6080RP (SKU: HCO-6080RN / HCO-6080RP) compatible with existing coaxial infrastructure?
A: Yes, it's designed to transmit full HD video up to 500 meters over coaxial cable, making it ideal for upgrading older analog systems.
