The Hanwha Vision A-Series HV-ANE-L8082R represents an exceptional balance between affordability and advanced security features, making it ideal for small to medium-sized installations such as retail stores, banking institutions, and commercial premises.
Equipped with a high-resolution 5MP CMOS sensor and delivering crisp, detailed images even under challenging lighting, the HV-ANE-L8082R ensures critical coverage of sensitive areas. Its motorized varifocal lens (3.3~10.3mm) allows flexible field-of-view adjustment without manual intervention, enhancing installation efficiency.
With support for H.265, H.264, and MJPEG compression, combined with WiseStream II technology, this camera ensures efficient bandwidth usage without sacrificing video quality. The camera’s IR LEDs offer visibility up to 30 meters in total darkness, while the robust IP66, IP67, and IK10 certifications guarantee reliable performance in demanding environmental conditions.
Perfect for both indoor and outdoor deployments, the HV-ANE-L8082R delivers advanced analytics such as motion detection, tampering, virtual line, and intrusion detection. Its compact FlatEye form factor ensures discreet surveillance while maintaining superior durability.
What's Included in the Box

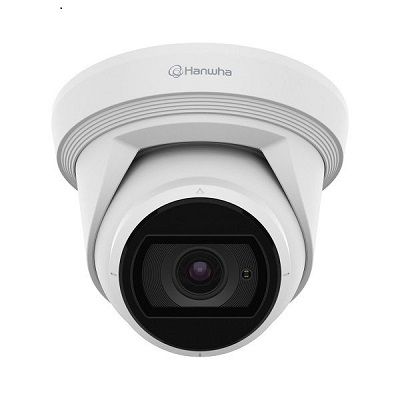

Hanwha Vision HV-ANE-L8082R 5MP IR Flateye Camera
Mounting accessories
Quick installation guide
Warranty documentation
(Mounting brackets sold separately depending on installation requirements.)
Main Features
Max. 5MP (2592 x 1944) resolution
3.3~10.3mm (3.1x) motorized varifocal lens
Superb low-light performance: 0.04 Lux (Color), 0 Lux with IR LED
IR range up to 30m (98.42ft)
True WDR (120dB) for challenging lighting
Video analytics: motion detection, tampering, defocus, virtual line and area detection
Color: 0.04Lux (F1.6), B/W: 0.004Lux, 0Lux with IR
Lens
3.3~10.3mm motorized varifocal
Field of View
H: 97°~29°, V: 70°~21°, D: 130°~36°
IR Illumination
Up to 30m (98.42ft)
Analytics
Motion, tampering, defocus, virtual area and line detection
WDR
120dB
Noise Reduction
SSNR
Privacy Masking
6 zones
Edge Storage
microSD/SDHC/SDXC up to 128GB
Network Interface
RJ-45 (10/100BASE-T)
Protocols Supported
IPv4, IPv6, HTTP(S), SNMP, RTSP, ONVIF Profiles S/G/T, and more
Secure Features
Firmware encryption, HTTPS, SRTP, IP filtering, 802.1X
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Certifications
IP66/IP67, IK10, RCM AS/NZS CISPR 32 Class A, NDAA compliant
Power Consumption
PoE max 10.4W, typical 5.2W
Dimensions
Ø160.0 x 124.1mm (Ø6.3 x 4.89")
Weight
1060g (2.34 lb)
Color / Material
White / Aluminum (RAL9003)
Warranty Information
The Hanwha Vision HV-ANE-L8082R comes with a 3-year manufacturer’s warranty, ensuring peace of mind and reliable service support.
Brand Description
Hanwha Vision, formerly Hanwha Techwin, is a global leader in advanced video surveillance solutions. Known for innovative technology, high quality, and stringent security standards, Hanwha Vision products are trusted in critical infrastructure, commercial, and public safety applications worldwide. The brand’s commitment to cybersecurity, reliability, and cutting-edge analytics makes it a preferred choice for security professionals.
SKU
HV-ANE-L8082R
Practical Use Scenarios
Retail Security: Monitor aisles and entrances to deter theft and analyze foot traffic.
Banking & Finance: Secure ATMs and teller areas with detailed video evidence.
Commercial Buildings: Cover lobbies, corridors, and perimeter zones with flexible angle adjustment.
Parking Facilities: Achieve clear day/night surveillance in low-light conditions.
Excellence for the Australian and New Zealand Market
The Hanwha Vision HV-ANE-L8082R is fully compliant with RCM AS/NZS CISPR 32 Class A standards, ensuring electromagnetic compatibility suitable for the Australian and New Zealand market. Certified under stringent IP66/IP67 and IK10 standards, it withstands harsh weather and potential vandalism, crucial for local conditions.
All Hanwha Vision products supplied for Australia and New Zealand are sourced exclusively through authorized representatives, guaranteeing genuine products and warranty coverage. Warranty services and technical support are handled directly with Hanwha Vision’s trusted channels, ensuring seamless assistance for local customers.
The HV-ANE-L8082R’s features are perfectly aligned with security demands across retail, commercial, and critical infrastructure projects in ANZ, delivering advanced surveillance performance while maintaining compliance with local regulations and expectations.
FAQs
Q1: What is the maximum IR range of the Hanwha Vision HV-ANE-L8082R? (SKU: HV-ANE-L8082R) The HV-ANE-L8082R provides infrared illumination up to 30 meters (98.42 feet), ensuring clear video in total darkness.
Q2: Does the Hanwha Vision HV-ANE-L8082R support NDAA compliance? (SKU: HV-ANE-L8082R) Yes, the HV-ANE-L8082R is NDAA compliant, making it suitable for government and critical infrastructure projects.
Q3: Can the Hanwha Vision HV-ANE-L8082R operate in extreme temperatures? (SKU: HV-ANE-L8082R) Absolutely. It operates reliably between -30°C and +60°C, ideal for varied Australian and New Zealand climates.
Q4: What types of video analytics are available on the Hanwha Vision HV-ANE-L8082R? (SKU: HV-ANE-L8082R) This model includes motion detection, tampering detection, defocus detection, virtual area (intrusion, enter, exit), and virtual line (crossing, direction) analytics.
Q5: Does the Hanwha Vision HV-ANE-L8082R have edge storage capabilities? (SKU: HV-ANE-L8082R) Yes, it supports microSD/SDHC/SDXC cards up to 128GB for edge recording and event storage.
