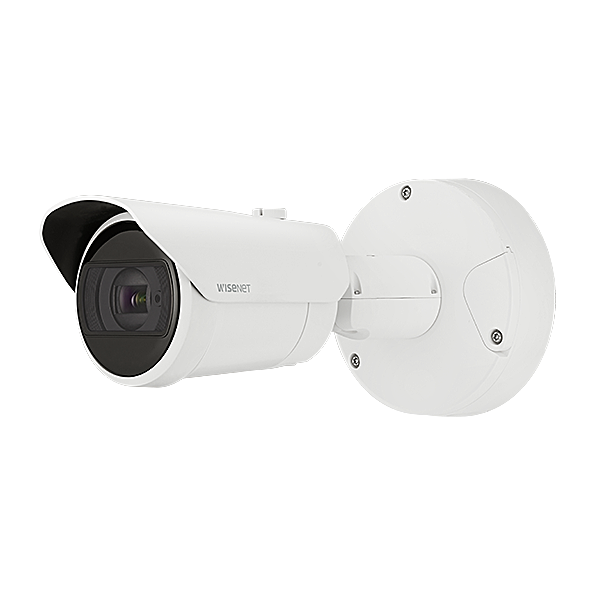

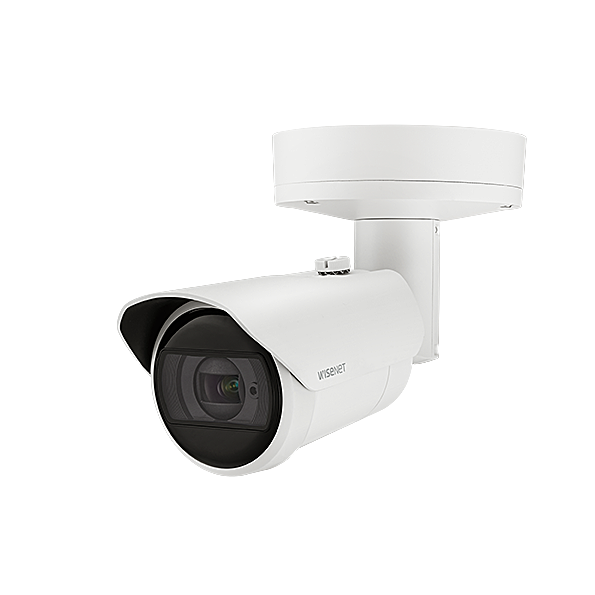

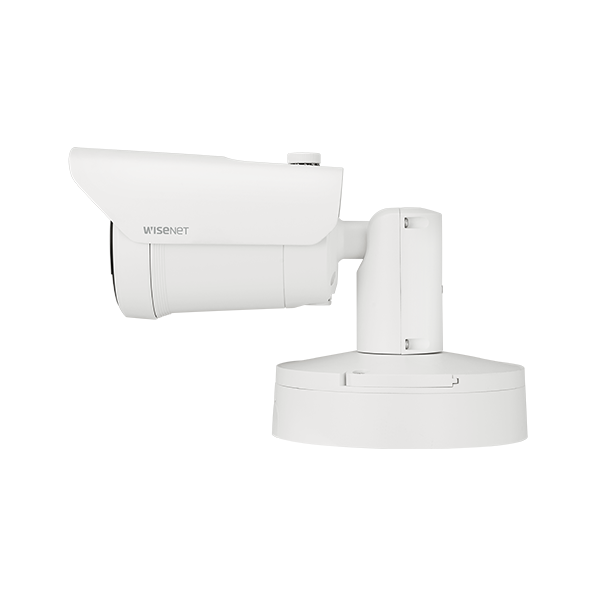

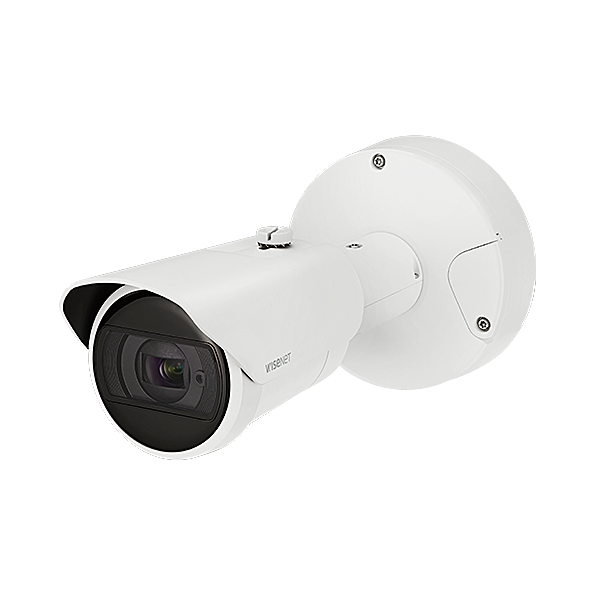

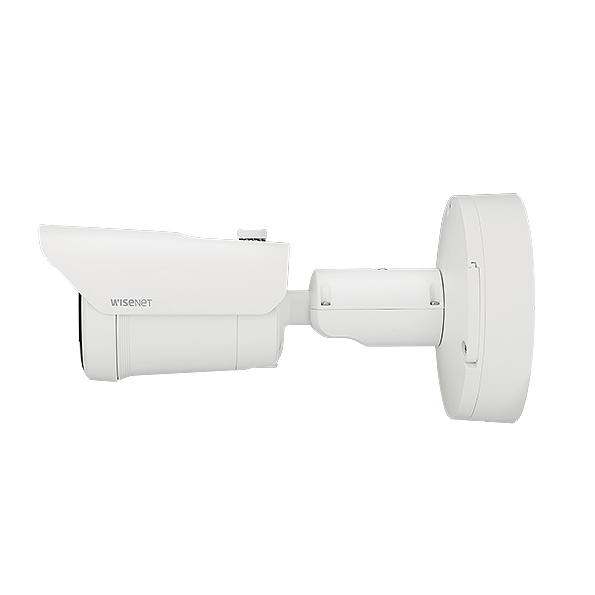

Take perimeter security and advanced surveillance to the next level with the Hanwha Vision HV-XNO-C9083R, a state-of-the-art 4K AI IR bullet camera. Powered by Wisenet’s AI engine and featuring high-performance image processing, this camera delivers exceptional clarity, intelligent detection, and impressive low-light capabilities.

The HV-XNO-C9083R provides a crisp 8MP resolution with a 4.4–9.3mm motorized varifocal lens, ensuring flexible field-of-view coverage from wide areas to narrow focal points. Thanks to its WiseIR technology, it achieves a maximum IR viewing distance of 40 meters, enabling reliable monitoring even in total darkness.

The integrated AI engine brings powerful object analytics including human, face, vehicle, and license plate detection, dramatically reducing false alarms and enhancing search efficiency in forensic investigations. With extremeWDR (120dB), the camera ensures balanced images in high-contrast scenes, while robust cybersecurity features—including TPM with secure boot—help safeguard your network infrastructure.

Engineered for durability, the HV-XNO-C9083R boasts an IP66/IP67, NEMA4X, and IK10-rated housing, making it ideal for demanding outdoor environments. It's your trusted solution for protecting critical infrastructure, retail facilities, urban areas, and more.

What's Included in the Box:

• Hanwha Vision HV-XNO-C9083R Camera Unit

• Backbox for mounting

• Mounting hardware

• Installation guide/documentation

Main Features:

• Ultra-clear 4K (8MP) resolution

• Motorized varifocal lens: 4.4 ~ 9.3mm (2.1x optical zoom)

• Wide angle of view: H: 112.1°–47.5°, V: 58.0°–26.6°, D: 137.5°–54.6°

• Exceptional low-light performance: 0.04 Lux (Color), 0 Lux (IR on)

• WiseIR technology with 40m IR range

• extremeWDR (120dB) for excellent performance in challenging lighting

• Intelligent analytics based on AI engine (NPU):

  • Person/Face/Vehicle/License plate detection

  • Virtual line crossing, intrusion detection, loitering, enter/exit monitoring

  • Audio/sound classification

  • Motion and tampering detection

• Business intelligence: People counting, heatmaps, queue management

• Multiple codec support: H.265, H.264, MJPEG, WiseStream II/III

• Digital Image Stabilization with built-in gyro sensor

• Cybersecurity features: TPM, secure boot, pre-installed device certificates

• Built-in microSD slot (up to 512GB)

• PoE or 12VDC power options

Detailed Specifications:

• Imaging Sensor: 1/1.8" progressive CMOS

• Resolutions Supported: 3840×2160 down to 320×240

• Max. Framerate:

  • H.265/H.264: up to 30fps @ 4K

  • MJPEG: up to 15fps

• IR Viewable Length: 40m (WiseIR)

• Digital Noise Reduction: WiseNRⅡ (AI-based)

• Privacy Masking: 32 zones, multiple colors or mosaic

• Audio: Mic in/Line in, Line out

• Edge Storage: microSD/microSDHC/microSDXC (up to 512GB)

• Certifications: IP66, IP67, NEMA4X, IK10

• Operating Temperature: -40°C to +55°C (max +60°C intermittent)

• Power Supply: PoE (IEEE 802.3af, Class 3), 12VDC

• Power Consumption: PoE max 12.95W, 12VDC max 13.2W

• Dimensions: Ø93.4 x 276.6mm

• Weight: 1.64kg

Warranty:

Hanwha Vision offers a standard 3-year warranty on the HV-XNO-C9083R, covering defects in materials and workmanship under normal use conditions. Extended warranty options may be available through authorized distributors.

Brand Description:

Hanwha Vision, formerly Hanwha Techwin, is a world leader in innovative video surveillance solutions. Their advanced cameras and AI technologies deliver exceptional reliability, security, and performance for enterprise, government, and commercial applications.

SKU: HV-XNO-C9083R

Practical Use Scenarios:

• Critical infrastructure perimeter protection

• Urban and city surveillance applications

• Retail sites with high foot traffic for business analytics

• Parking lot and vehicle access monitoring

• Industrial sites needing robust outdoor surveillance

Datasheets & Resources:

• Download Datasheet - PDF

Excellence for the Australian and New Zealand Market:

The HV-XNO-C9083R is fully optimized for the Australian and New Zealand market, complying with rigorous regional standards such as RCM certification and NEMA environmental ratings. It’s distributed exclusively through authorized Hanwha Vision partners, ensuring local support and warranty service. With durability proven under harsh conditions and advanced AI capabilities, this camera is an outstanding fit for ANZ businesses, government facilities, and critical infrastructure projects.

FAQs (SKU: HV-XNO-C9083R):

Q1: What is the IR range of the HV-XNO-C9083R?
A1: The HV-XNO-C9083R provides up to 40 meters of infrared illumination using WiseIR technology, ensuring clear visibility even in complete darkness.

Q2: Does the HV-XNO-C9083R support AI analytics for vehicles and license plates?
A2: Yes, it offers advanced AI-powered analytics for detecting and classifying vehicles, license plates, and people, greatly enhancing surveillance accuracy.

Q3: Can the HV-XNO-C9083R withstand harsh outdoor environments?
A3: Absolutely. It has an IP66/IP67, NEMA4X, and IK10-rated housing for extreme weather resistance and physical impact protection.

Q4: What power options does the HV-XNO-C9083R support?
A4: It can be powered via standard PoE (IEEE 802.3af, Class 3) or 12VDC, offering flexible installation.

Q5: Is the HV-XNO-C9083R compatible with third-party VMS systems?
A5: Yes, it supports ONVIF Profiles S/G/T and Hanwha’s Wisenet open platform, ensuring broad integration with leading VMS solutions.
