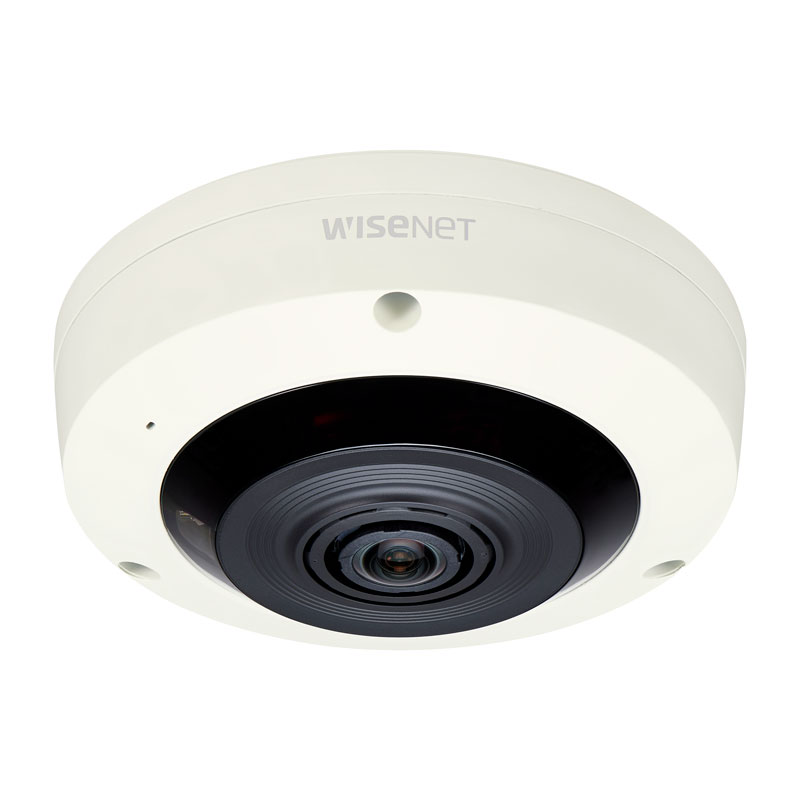

The Hanwha XNF-8010R series represents the latest in panoramic surveillance technology. These 6MP fisheye dome cameras—available in models XNF-8010R, XNF-8010RV, and XNF-8010RVM—offer high-resolution 360° monitoring with advanced dewarping, onboard analytics, and exceptional versatility for indoor and outdoor environments. Whether it’s a compact retail store or a high-security transportation hub, these cameras are engineered to deliver immersive coverage with minimal blind spots.
With multiple viewing modes (fisheye, panorama, quad view, and digital PTZ), built-in IR (15m), powerful video analytics (including people counting, loitering, heatmap, and queue management), and IP66/IK10 protection on select models, this range is ideal for applications demanding maximum situational awareness.
What’s Included in the Box
Main Features
-
6MP CMOS sensor with 2048 x 2048 resolution
-
Full fisheye panoramic coverage (192° H/V/D field of view)
-
Onboard dewarping with multiple view modes: single/double panorama, quad view, fisheye + PTZ
-
True WDR (120dB) for high dynamic range imaging
-
Digital PTZ with 8x zoom, privacy masking, and motion detection
-
Advanced analytics: People counting, loitering, directional detection, audio detection, queue management, heatmaps
-
IR LED illumination up to 15 meters for low-light environments
-
Supports H.265, H.264, MJPEG with WiseStream II smart codec
-
Edge storage: Dual microSD slots, up to 512GB
-
Built-in and external audio input/output (bi-directional audio)
-
Durable IK10 vandal-proof and IP66 weather-resistant housing (XNF-8010RV/RVM)
-
M12 connector on XNF-8010RVM for transport-specific installations
-
Power via 12V DC or PoE (IEEE802.3af, Class 3)
Detailed Specifications
| Category |
Specification |
| Sensor |
1/1.8" 6MP CMOS |
| Effective Resolution |
2048 × 2048 |
| Lens |
1.6mm Fixed, F1.6 |
| Field of View |
192° H/V/D |
| Min. Illumination |
0.1 Lux (Color), 0 Lux (B/W, IR on) |
| IR Range |
15 meters |
| Digital PTZ |
Yes, 8x Zoom |
| Audio |
Bi-directional, Built-in Mic, Line In/Out |
| Dewarping |
Onboard, Multiple Modes (Fisheye, Panoramic, Quad) |
| WDR |
120dB True WDR |
| Compression |
H.265, H.264, MJPEG |
| Smart Codec |
WiseStream II |
| Max Frame Rate |
30fps @ 2048 × 2048 |
| Storage |
Dual microSD/SDHC/SDXC (up to 512GB total) |
| Analytics |
People Counting, Loitering, Queue Management, Heatmap, Motion, Tampering, Sound Classification |
| Operating Temp |
–10°C to +55°C (XNF-8010R), –40°C to +55°C (RV/RVM) |
| IP / IK Ratings |
IP66 / IK10 (XNF-8010RV, XNF-8010RVM) |
| Power |
12V DC ±10%, PoE (IEEE802.3af, Class 3) |
| Power Consumption |
Max. 11–12.95W depending on model |
| Dimensions |
Ø146 x 54.8mm (XNF-8010R), Ø146 x 65.8mm (XNF-8010RV/RVM) |
| Weight |
730g (R), 785g (RV), 790g (RVM) |
| Supported Software |
SmartViewer, SSM, Wisenet Open Platform |
| API |
ONVIF Profile S/G, SUNAPI |
| Supported OS & Browsers |
Windows 7–10, Mac OS X 10.10–10.12, Chrome, Edge, Firefox, Safari |
Warranty Information
The Hanwha XNF-8010R series is backed by a 3-year manufacturer’s warranty, covering parts and performance. Extended warranty options may be available through authorized Hanwha distributors.
Brand Description
Hanwha Vision, formerly Hanwha Techwin, is a globally recognized leader in professional surveillance solutions. Renowned for engineering excellence, cybersecurity, and AI-based analytics, Hanwha continues to redefine intelligent video with cutting-edge cameras and robust VMS integrations under its Wisenet platform.
SKU / Product Codes
Practical Use Scenarios
-
360° overhead monitoring in retail, banking, and commercial lobbies
-
Corridor and hallway coverage using panoramic dewarping
-
Passenger terminal surveillance (rail, airport, bus)
-
Queue and footfall analytics in quick-service restaurants and shopping malls
-
Public transportation systems requiring rugged M12 connectors (XNF-8010RVM)
-
Education campuses and open-plan areas requiring wide-area coverage with minimal cameras
Datasheets / Downloadable Resources
Please refer to official product documentation for:
Excellence for the Australian and New Zealand Market
-
All models conform to ANZ electrical and ICT compliance standards
-
Supplied exclusively through certified Hanwha distributors in Australia and New Zealand
-
Ideal for indoor and outdoor use in ANZ commercial, transport, and educational sectors
-
ONVIF compatibility ensures seamless integration with NDSS-compliant and popular local VMS/NVR platforms
-
Local warranty support available through authorized Hanwha service networks within the ANZ region
Frequently Asked Questions (FAQs)
Q: What is the resolution of the XNF-8010R series (SKU: XNF-8010R / XNF-8010RV / XNF-8010RVM)?
A: These cameras offer a maximum resolution of 2048 x 2048 pixels, delivering ultra-wide panoramic coverage.
Q: What is the IR range on the XNF-8010R series (SKU: XNF-8010R / XNF-8010RV / XNF-8010RVM)?
A: The built-in IR LEDs provide visibility up to 15 meters in total darkness.
Q: Which model includes the M12 connector (SKU: XNF-8010R / XNF-8010RV / XNF-8010RVM)?
A: The XNF-8010RVM features an M12 connector, ideal for transportation or rugged industrial use.
Q: Can the XNF-8010R series (SKU: XNF-8010R / XNF-8010RV / XNF-8010RVM) store footage locally?
A: Yes, each model includes dual SD card slots, supporting up to 512GB for edge storage.
Q: What analytics are available in the XNF-8010R series (SKU: XNF-8010R / XNF-8010RV / XNF-8010RVM)?
A: These cameras support tampering, people counting, loitering detection, directional and audio detection, heat mapping, and more.
Q: Are the XNF-8010RV and XNF-8010RVM models weatherproof and vandal-resistant (SKU: XNF-8010RV / XNF-8010RVM)?
A: Yes, both are IP66-rated for water/dust resistance and IK10-rated for impact protection.
