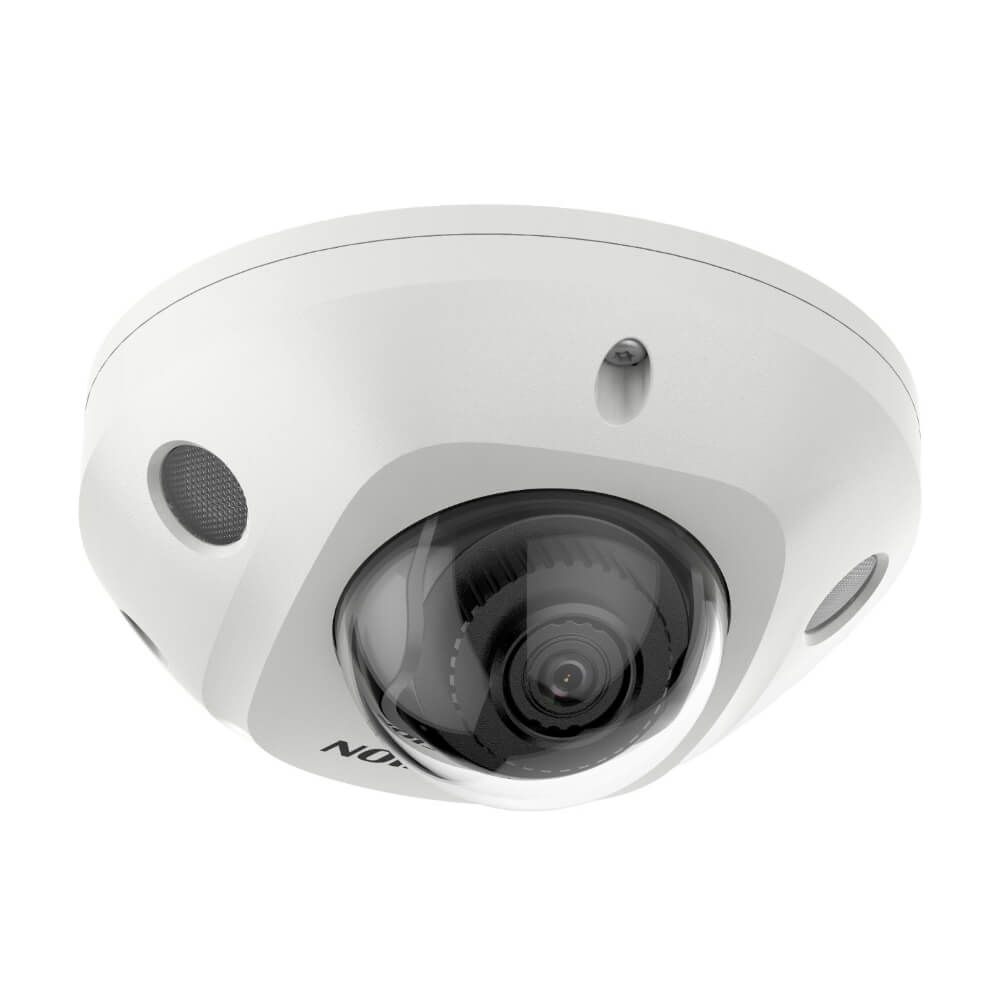

The Hikvision DS‑2CD2566G2-I(S) is a compact yet powerful 6 MP AcuSense fixed mini dome IP camera, designed for smart security environments that demand clarity, intelligence, and reliability. Engineered with Powered-by-DarkFighter low-light technology, 120 dB WDR, and deep learning-based human and vehicle classification, it excels at detecting real threats while reducing false alarms.
With built-in EXIR IR illumination up to 30 metres, H.265+ compression, and AcuSense analytics, this model is perfect for entrances, hallways, and discrete surveillance zones. The -IS variant offers audio and alarm interfaces for enhanced real-time monitoring and event response. Its IK08 and IP67-rated housing makes it ideal for both indoor and semi-outdoor applications where compact design meets rugged performance.
What’s Included in the Box
-
1 × Hikvision DS‑2CD2566G2-I(S) Mini Dome Camera
-
Mounting template and hardware kit
-
Waterproof grommet and sealing accessories
-
Quick start guide
-
Warranty documentation
Optional mounting accessories are sold separately.
Key Features
-
6 MP resolution (3200 × 1800) for high-definition imaging
-
AcuSense deep learning technology for accurate human and vehicle classification
-
Powered-by-DarkFighter for excellent low-light performance (0.003 Lux @ F1.6)
-
120 dB WDR for clear imaging in high-contrast environments
-
Built-in EXIR IR with up to 30 m range for reliable night surveillance
-
Audio and alarm interfaces included in -IS model
-
H.265+ compression for efficient bandwidth and storage usage
-
Supports up to 256 GB microSD storage onboard
-
Discreet mini dome form factor, ideal for ceiling and wall installations
-
IP67 weatherproof and IK08 vandal-resistant housing
-
Power via 12 VDC or PoE (IEEE 802.3af, Class 3)
Technical Specifications
| Specification |
Detail |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3200 × 1800 (6 MP) |
| Min. Illumination |
Colour: 0.003 Lux @ F1.6, B/W: 0 Lux with IR |
| Lens Options |
Fixed lens: 2.8 mm or 4 mm (M12 mount) |
| Field of View |
2.8 mm: H 105.2°, V 51.9°, D 122°
4 mm: H 83.9°, V 44.5°, D 98° |
| IR Range |
Up to 30 m (850 nm) |
| Compression |
H.265+, H.264+, MJPEG |
| Frame Rate |
Up to 30 fps @ 6 MP |
| Smart Features |
Face capture, AcuSense (human & vehicle classification), line crossing, intrusion, scene change detection |
| WDR |
120 dB True WDR |
| Audio Interface |
1 input / 1 output (line-level, mono) on -IS |
| Alarm Interface |
1 input, 1 output on -IS |
| Onboard Storage |
microSD/SDHC/SDXC card, up to 256 GB |
| Power Supply |
12 VDC ±25%, or PoE (802.3af, Class 3) |
| Power Consumption |
6 W (DC), 7 W (PoE) |
| Operating Conditions |
–30 °C to +60 °C, ≤ 95% RH (non-condensing) |
| Housing Material |
Base: Aluminium, Cover: Plastic |
| Ingress Protection |
IP67 weatherproof, IK08 impact resistance |

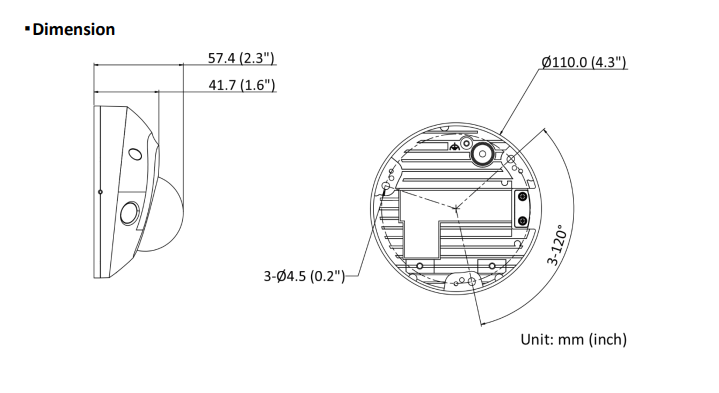

| Dimensions |
Ø110 mm × 57.4 mm |
| Weight |
Approx. 375 g (camera only) |
| Certifications |
RCM, CE, FCC, RoHS, WEEE, IK08, IP67 |
Brand Description
Hikvision is one of the world's leading providers of security products and solutions. Known for innovation, reliability, and high-performance surveillance systems, Hikvision integrates AI-powered analytics into robust camera hardware trusted by security professionals across commercial, government, and residential sectors.
Warranty Information
This product comes with a 3-year manufacturer’s warranty when sourced through authorized Hikvision channels. Warranty includes repair or replacement of defective hardware under normal operating conditions. Proof of purchase and serial number required for claims.
Practical Use Scenarios
-
Retail Shops & Boutiques – Monitor entrances or aisles with discreet, compact form factor
-
Office Corridors – Enhance indoor security with smart analytics and audio recording
-
Building Entrances – Audio and alarm interfaces allow real-time threat detection and event response
-
Schools & Campuses – Non-intrusive security in classrooms, labs, or common areas
-
Apartment Complexes – Cover shared spaces with smart alerts and IR illumination
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
-
RCM certified: Fully compliant with AS/NZS CISPR 32:2015 for electromagnetic compatibility
-
Designed with localized firmware for Australian/NZ network environments
-
Sold via authorized Hikvision ANZ distributors, ensuring local support and full warranty coverage
-
Ruggedized with IP67 waterproofing and IK08 impact protection, suitable for varied ANZ climate conditions
-
Fully compatible with Australian/NZ power standards and PoE switch solutions
-
Backed by local support teams for firmware upgrades, troubleshooting, and integration consulting
FAQs for DS-2CD2566G2-I(S)
Q: What resolution does the DS-2CD2566G2-I(S) camera provide?
A: The DS-2CD2566G2-I(S) delivers 6 MP resolution (3200 × 1800) for detailed and clear surveillance footage.
Q: Does the DS-2CD2566G2-I(S) support onboard storage?
A: Yes, it supports a microSD card up to 256 GB for local recording.
Q: Can the DS-2CD2566G2-I(S) detect people and vehicles separately?
A: Absolutely. With AcuSense technology, it classifies human and vehicle movements for smarter alerts.
Q: Is the DS-2CD2566G2-I(S) suitable for outdoor use?
A: Yes, it is IP67 weatherproof and IK08 vandal-resistant, ideal for indoor and semi-outdoor installations.
Q: What are the lens options for the DS-2CD2566G2-I(S)?
A: It comes with either a 2.8 mm or 4 mm fixed lens to suit various field-of-view needs.
Q: Does the DS-2CD2566G2-I(S) include audio input/output?
A: The -IS variant includes both audio input and output interfaces, along with a built-in microphone.
Q: What is the IR range of the DS-2CD2566G2-I(S)?
A: It supports up to 30 metres of infrared night vision with EXIR technology.
Q: How is the DS-2CD2566G2-I(S) powered?
A: It can be powered using 12 VDC or Power over Ethernet (PoE, IEEE 802.3af, Class 3).
Q: Is the DS-2CD2566G2-I(S) certified for Australian and New Zealand use?
A: Yes, it carries RCM certification and meets all local compliance and performance standards.
Q: What accessories are compatible with the DS-2CD2566G2-I(S)?
A: Compatible accessories include wall mounts (DS-1272ZJ-120), junction boxes (DS-1280ZJ-DM46), corner mounts (DS-1276ZJ-SUS), and pendant mounts (DS-1271ZJ-120), available in standard and black finishes.
