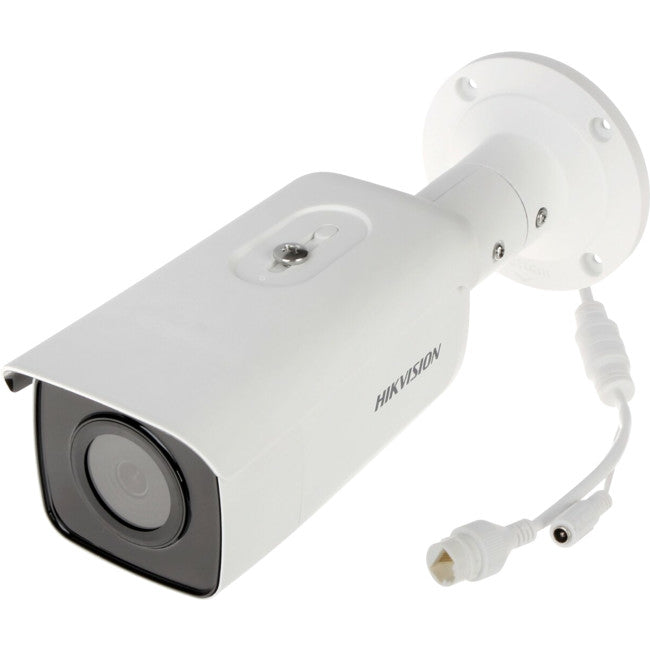

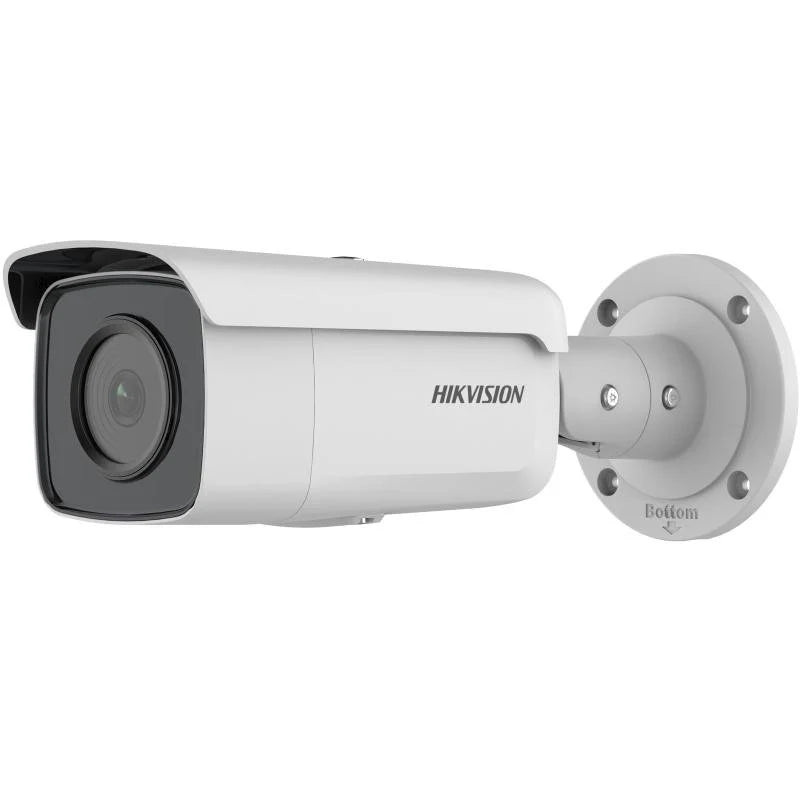

The Hikvision DS‑2CD2T66G2‑2I/4I is a premium fixed bullet network camera combining 6 MP resolution with AcuSense deep‑learning analytics and DarkFighter low‑light performance. Engineered for smart human/vehicle detection with precise alarm accuracy and superior detail retention across challenging lighting scenarios, this IP67-rated camera ensures granular security monitoring. Ideal for both residential and commercial applications, it offers efficient H.265+ compression, robust ingress protection, and seamless PoE or 12 VDC operation.
What’s Included in the Box
-
Hikvision DS‑2CD2T66G2‑2I/4I Fixed Bullet Camera
-
Mounting screws & anchors
-
Quick Start Guide
-
Power adapter (for 12 VDC variant)
-
RJ45 dust cap
Main Features
-
6 MP High‑Resolution Imaging — Crisp 3200 × 1800 video ensures clear identification.
-
Powered‑by‑DarkFighter Technology — Exceptional low‑light performance (Color: 0.003 Lux, B/W: 0 Lux with IR).
-
AcuSense Deep‑Learning Analytics — Human and vehicle classification reduces false alarms.
-
Smart IR & WDR 120 dB — Backlight clarity and intelligent IR up to 60 m/80 m.
-
Efficient H.265+ Compression — Reduces bandwidth and storage usage.
-
Durable & Weather‑Resistant — IP67-rated for reliable outdoor use.
-
Flexible Lens Options — 2.8 mm, 4 mm, or 6 mm fixed focal lengths.
-
Intelligent Event Detection — Perimeter crossing, intrusion, face capture.
-
Edge Storage with ANR — Supports up to 256 GB microSD and network auto-replenishment.
Detailed Specifications
| Category |
Specification |
| Image Sensor |
1/2.4″ Progressive Scan CMOS |
| Resolution |
3200×1800 @ 25fps (50 Hz) / 30fps (60 Hz) |
| Lens Options |
Fixed: 2.8 mm (105.1° HFOV), 4 mm (83.9°), 6 mm (47.5°) |
| Min. Illumination |
0.003 Lux (F1.6, AGC ON); 0 Lux B/W with IR |
| Wide Dynamic Range |
120 dB True WDR |
| IR Range |
DS‑2CD2T66G2‑2I: 60 m / DS‑2CD2T66G2‑4I: 80 m |
| Compression |
H.265/H.265+, H.264/MJPEG |
| Streams |
Multiple customizable streams |
| Audio & Storage |
microSD up to 256 GB, ANR enabled |
| Network Protocols |
TCP/IP, HTTP/S, RTSP, ONVIF, TLS 1.2, SNMP, 802.1X |
| Power Options |
12 VDC ±25% / PoE 802.3af |
| Power Consumption |
7.5 W (2I) or 10.5 W (4I) on 12 VDC |
| Ingress Protection |
IP67 rated |
| Operating Conditions |
-30 °C to 60 °C, <95% RH |

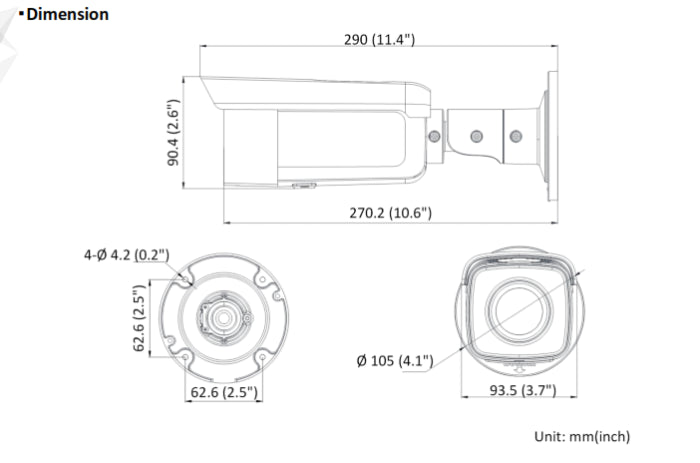

| Dimensions |
Ø105 × 290 mm; 1085 g |
| Warranty |
3‑year Hikvision standard warranty |
Warranty Information
Comes with a 3‑year Hikvision warranty, backed by local-authorised support. Warranty covers manufacturing defects and firmware updates. MicroSD cards are not covered.
Brand Description
Hikvision is a world-leading provider of innovative video surveillance products and solutions. Recognised globally for its high-tech developments, Hikvision delivers entry-level to advanced IP/analog cameras that offer reliability, long-term innovation, and award-winning integration.
SKU
DS-2CD2T66G2-2I/4I
Practical Use Scenarios
-
Perimeter Security — Accurate intruder and vehicle detection in outdoor gated premises
-
Parking Lots — Long-range IR and vehicle classification enhance incident monitoring
-
Commercial Facades — 120 dB WDR delivers clean imaging against backlit storefronts
-
Rural/Remote Sites — PoE connectivity with edge storage minimizes infrastructure needs
Datasheets & Downloads
Excellence for the Australian and New Zealand Market
-
Fully compliant with AS/NZS EMC & environmental standards, including RCM, CE-EMC, CE-LVD, RoHS.
-
Meets NDSS security and encryption protocols.
-
Exclusive supply through authorised Hikvision distributors in Australia and NZ.
-
Warranty, service, and support provided directly in-region, ensuring fast response and genuine parts only.
FAQs
Q: Can DS‑2CD2T66G2‑2I/4I operate in low-light without external lighting? (Product Code: DS‑2CD2T66G2‑2I/4I)
A: Yes. With DarkFighter technology, it performs in color at 0.003 Lux and switches to clear B/W with IR illumination in complete darkness.
Q: Does the DS‑2CD2T66G2‑2I/4I comply with Australian standards? (DS‑2CD2T66G2‑2I/4I)
A: Absolutely. It’s RCM-approved, CE‑EMC and CE‑LVD certified, meets RoHS, and aligns with AS/NZS CISPR 32 standards.
Q: What’s the warranty on the DS‑2CD2T66G2‑2I/4I in Australia? (DS‑2CD2T66G2‑2I/4I)
A: The camera carries a 3‑year manufacturer’s warranty, supported directly by authorised Hikvision service centres in Australia and NZ.
Q: Can I use PoE with DS‑2CD2T66G2‑2I/4I to avoid using a power cable? (DS‑2CD2T66G2‑2I/4I)
A: Yes. The model supports 802.3af PoE (Class 3), streamlining installation by using a single network cable.
Q: Is the DS‑2CD2T66G2‑2I/4I microSD slot safe for local recording? (DS‑2CD2T66G2‑2I/4I)
A: Yes, it supports up to 256 GB microSD with encryption and includes ANR (Auto Network Replenishment) to prevent footage loss.
