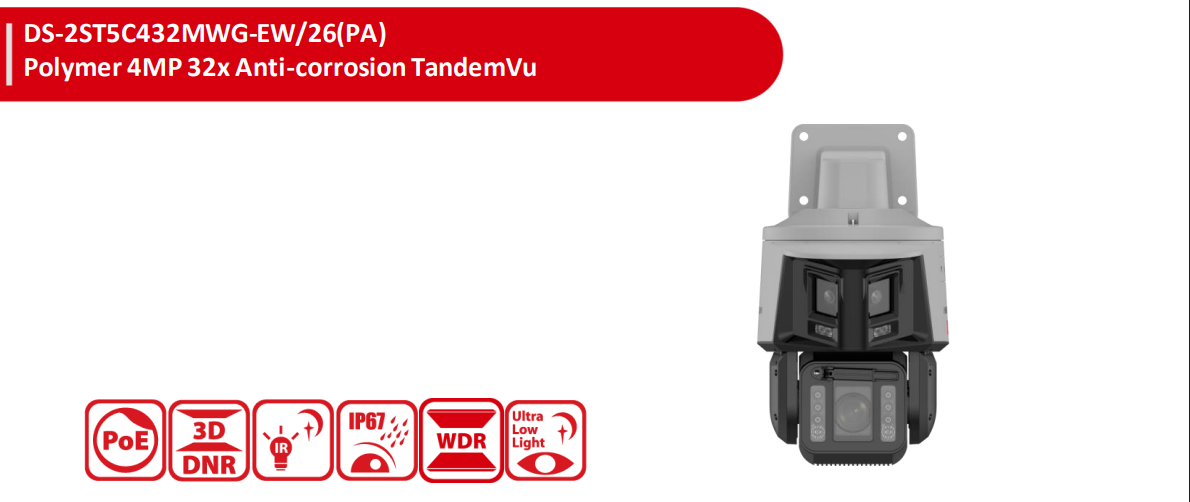

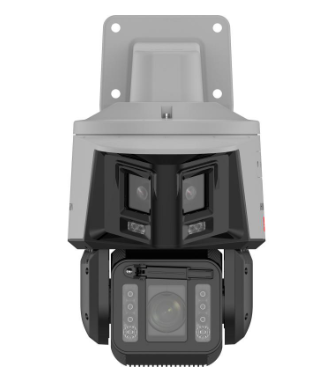

The Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) Polymer 4MP 32× Anti-Corrosion TandemVu Camera is a professional panoramic and PTZ surveillance solution engineered for demanding outdoor and corrosive environments. Combining a 6MP 180° panoramic channel with a 4MP PTZ channel, 32× optical zoom, DarkFighter low-light technology, AcuSense human and vehicle classification, license plate recognition, 150m IR, 30m white light, IP67 protection, NEMA 4X and C5M anti-corrosion protection, it provides simultaneous wide-area awareness and detailed long-range surveillance.
TandemVu technology combines two complementary views within one surveillance device. The panoramic channel delivers a stitched 6MP 180° overview, while the PTZ channel can independently pan, tilt and zoom onto distant targets. This allows security operators to retain an overview of an area while investigating specific people, vehicles or events in greater detail.
Both channels use 1/2.5" Progressive Scan CMOS sensors. The panoramic channel provides up to 3680 × 1656 resolution and an approximately 190° horizontal field of view, while the PTZ channel delivers up to 2688 × 1520 resolution and uses a 5.5–176mm lens with 32× optical and 16× digital zoom.
Advanced low-light performance includes DarkFighter technology and hybrid supplementary lighting. The panoramic channel provides white-light illumination up to 30 metres, while the PTZ channel delivers infrared illumination up to 150 metres.
Deep-learning capabilities significantly extend the camera beyond conventional video monitoring. Supported functionality includes AcuSense human and vehicle classification, face capture, vehicle detection, license plate recognition, perimeter protection, people-density detection, Auto-Tracking 3.0 and smart linkage between panoramic and PTZ channels.
What's Included in the Box
-
1 × Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) TandemVu Camera
-
Built-in wall bracket
-
Standard manufacturer-supplied installation components, as applicable
Main Features
-
TandemVu panoramic + PTZ surveillance
-
6MP 180° stitched panoramic imaging
-
4MP PTZ detail imaging
-
32× optical zoom
-
16× digital zoom
-
5.5–176mm PTZ lens
-
DarkFighter low-light technology
-
24/7 colour panoramic imaging
-
AcuSense human and vehicle classification
-
Face capture
-
License plate recognition
-
Vehicle attribute detection
-
Auto-Tracking 3.0
-
Smart linkage and tracking
-
Up to 150m IR illumination
-
Up to 30m white-light illumination
-
Audio and visual alarm functionality
-
360° endless pan
-
300 PTZ presets
-
Built-in gyroscope for enhanced EIS
-
140 dB WDR on PTZ channel
-
120 dB WDR on panoramic channel
-
Built-in microphone and speaker
-
MicroSD storage up to 512GB
-
H.265+ and H.264+ compression
-
PoE 802.3bt Type 3 Class 6
-
12V DC power option
-
Built-in wiper
-
IP67 weather protection
-
NEMA 4X protection
-
C5M anti-corrosion protection
-
6000V lightning protection
-
RCM listed in supplied approval specifications
Camera Specifications
| Specification |
Details |
| Product Code |
DS-2ST5C432MWG-EW/26(PA)(F0) |
| Panoramic Image Sensor |
1/2.5" Progressive Scan CMOS |
| PTZ Image Sensor |
1/2.5" Progressive Scan CMOS |
| Panoramic Resolution |
Up to 3680 × 1656 |
| PTZ Resolution |
Up to 2688 × 1520 |
| Shutter Speed |
1s to 1/30,000s |
| Slow Shutter |
Yes |
| Panoramic Day/Night |
Colour |
| PTZ Day/Night |
IR Cut Filter |
| PTZ Optical Zoom |
32× |
| Digital Zoom |
16× |
Minimum Illumination
Panoramic Channel
-
Colour: 0.0005 Lux @ F1.0, AGC ON
-
B/W: 0.0001 Lux @ F1.0, AGC ON
-
0 Lux with supplementary light
PTZ Channel
-
Colour: 0.005 Lux @ F1.6, AGC ON
-
B/W: 0.001 Lux @ F1.6, AGC ON
-
0 Lux with supplementary light
Lens Specifications
| Specification |
Panoramic Channel |
PTZ Channel |
| Focal Length |
2.8mm |
5.5–176mm |
| Aperture |
F1.0 |
F1.6 |
| Horizontal FOV |
190° ±5° |
60.7° to 2.3° |
| Vertical FOV |
80° ±5° |
35.9° to 1.3° |
| Diagonal FOV |
— |
68.4° to 2.7° |
| Focus |
Auto / Semi-Auto / Manual |
Auto / Semi-Auto / Manual |
| Zoom Speed |
— |
Approx. 3.6 seconds |
Supplementary Lighting
| Specification |
Details |
| Light Type |
Hybrid IR + White Light |
| Panoramic White Light |
Up to 30m |
| PTZ Infrared |
Up to 150m |
| Smart Supplement Light |
Yes |
PTZ Specifications
| Specification |
Details |
| Pan Range |
360° endless |
| Panoramic Tilt Adjustment |
12° to 24° |
| PTZ Tilt Range |
–10° to 90° |
| PTZ Pan Speed |
0.1° to 80°/s |
| PTZ Tilt Speed |
0.1° to 80°/s |
| Preset Speed |
80°/s |
| Presets |
300 |
| Patrols |
8 |
| Presets per Patrol |
Up to 32 |
| Pattern Scans |
4 |
| Pattern Recording |
More than 10 minutes each |
| Power-Off Memory |
Yes |
| 3D Positioning |
Yes |
| Preset Freezing |
Yes |
| PTZ Status Display |
Yes |
Supported park and scheduled actions include presets, pattern scans, patrol scans, auto scans, tilt scans, random scans, frame scans and panorama scans.
Video Specifications
| Specification |
Details |
| Main Stream Compression |
H.265+, H.265, H.264+, H.264 |
| Sub-Stream Compression |
H.265, H.264, MJPEG |
| Third Stream Compression |
H.265, H.264, MJPEG |
| Video Bit Rate |
32 Kbps–16 Mbps |
| H.264 Profiles |
Baseline, Main, High |
| H.265 Profile |
Main |
| SVC |
H.264 and H.265 |
| ROI |
8 fixed regions per stream |
| Panoramic Main Stream |
Up to 3680 × 1656 at 25/30 fps |
| PTZ Main Stream |
Up to 2688 × 1520 at 25/30 fps |
Advanced Imaging
| Specification |
Details |
| Panoramic WDR |
120 dB |
| PTZ WDR |
140 dB |
| Image Stabilisation |
EIS with built-in gyroscope |
| Digital Defog |
Yes |
| 3D DNR |
Yes |
| HLC |
Yes |
| Regional Exposure |
Yes |
| PTZ Regional Focus |
Yes |
| SNR |
≥52 dB |
| Day/Night Switching |
Day / Night / Auto / Schedule |
The panoramic channel supports eight programmable polygon privacy masks, while the PTZ channel supports 24 programmable polygon privacy masks with configurable mask colour or mosaic.
Deep Learning & Intelligent Analytics
The DS-2ST5C432MWG-EW/26(PA)(F0) includes an extensive range of deep-learning and smart-surveillance capabilities.
AcuSense & Perimeter Protection
Multi-Target Detection
The PTZ channel supports simultaneous detection and capture of:
-
Human bodies
-
Faces
-
Vehicles
Smart Tracking
-
Manual tracking
-
Auto-Tracking 3.0
-
Tracking takeover
-
Linked tracking capture
Additional Smart Events
-
Unattended baggage detection
-
Object removal detection
-
Loitering detection
-
People gathering detection
-
Fast-moving detection
-
Parking detection
-
Audio exception detection
-
Motion detection
-
Video tampering alarm
License Plate Recognition & Vehicle Analytics
The PTZ channel of the DS-2ST5C432MWG-EW/26(PA)(F0) supports license plate recognition for vehicles and motorcycles in checkpoint scenarios.
Supported functionality includes:
-
Vehicle license plate recognition
-
Motorcycle plate recognition in supported checkpoint scenarios
-
Vehicle type detection
-
Vehicle colour detection
-
Vehicle brand detection
-
Driving direction detection
-
Vehicle and non-vehicle counting
-
Blocklist and allowlist with up to 10,000 records
-
License Plate and Vehicle capture mode
-
Vehicle Priority capture mode
The supplied specification states LPR support across four regions—Europe, Middle East, Asia-Pacific and Africa—covering more than 124 countries and regions.
Under recommended installation and lighting conditions, the manufacturer specifies:
| LPR Performance |
Manufacturer Specification |
| License Plate Recognition Rate |
≥98% |
| Capture Rate |
≥99% |
| Driving Direction Accuracy |
≥98% |
| Front Checkpoint Capture Speed |
Up to 120 km/h |
| Side Installation Capture Speed |
Up to 80 km/h |
Actual recognition performance depends on installation geometry, lighting, vehicle speed, plate visibility, configuration and environmental conditions.
People Density Detection
The panoramic channel supports people-density detection, allowing the camera to determine the level of people density within a configured monitoring area.
Audio & Visual Alarm
The camera supports event-triggered white flashing light and audible warning functionality.
The panoramic channel can trigger actions including:
Audio
| Specification |
Details |
| Built-in Microphone |
1 |
| Built-in Speaker |
1 |
| Audio Input |
1 |
| Audio Output |
1 |
| Audio Compression |
G.711, G.722.1, G.726, MP2L2, PCM, AAC-LC, MP3 |
| Sampling Rates |
8, 16, 32 and 48 kHz |
| Environment Noise Filtering |
Yes |
Network & Integration
| Specification |
Details |
| Ethernet |
RJ45 10/100 Mbps |
| ONVIF |
Profile S, G, T and M |
| APIs |
ONVIF, ISUP, ISAPI, SDK, OTAP |
| Network Storage |
NAS – NFS, SMB/CIFS |
| ANR |
Yes |
| Simultaneous Live View |
Up to 20 channels |
| Users |
Up to 32 |
| Client Software |
iVMS-4200, HikCentral Pro, Hik-Connect |
Supported protocols include IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour and FTP.
Cybersecurity Features
The DS-2ST5C432MWG-EW/26(PA)(F0) includes:
Storage & Interfaces
| Specification |
Details |
| Memory Card |
MicroSD / MicroSDHC / MicroSDXC |
| Maximum Capacity |
512GB |
| Ethernet |
1 × RJ45 10/100 Mbps |
| Alarm Inputs |
2 |
| Alarm Outputs |
1 |
| Audio Input |
1 |
| Audio Output |
1 |
| RS-485 |
1, half duplex |
| Reset |
Yes |
| Built-in Microphone |
Yes |
| Built-in Speaker |
Yes |
Power & General Specifications
| Specification |
Details |
| DC Power |
12V DC ±15% |
| PoE |
IEEE 802.3bt Type 3 Class 6 |
| Maximum Power Input |
60W |
| Specified Max. Operating Consumption |
40W including light and heater allowances |
| Housing Material |
PA + 50% Glass Fibre |
| Wiper |
Yes |
| Demist |
Yes |
| Operating Temperature |
–30°C to +65°C |
| Speaker Operating Range |
–30°C to +55°C |
| Operating Humidity |
≤95% RH, non-condensing |

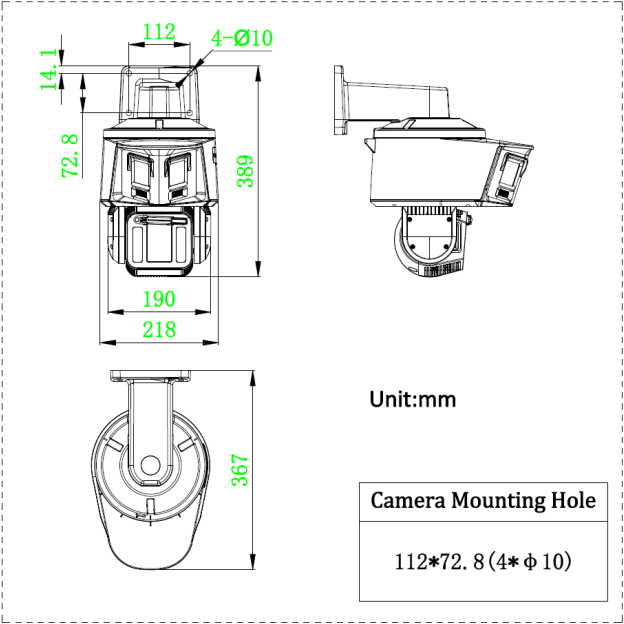

| Dimensions |
Ø218 × 389mm |
| Weight |
Approx. 5.4kg |
Environmental & Anti-Corrosion Protection
One of the key advantages of the DS-2ST5C432MWG-EW/26(PA)(F0) is its environmental protection.
-
IP67 according to IEC 60529
-
NEMA 4X anti-corrosion protection
-
C5M anti-corrosion classification
-
6000V TVS lightning protection
-
Surge protection
-
Voltage transient protection
-
Polymer PA + 50% glass-fibre construction
-
Built-in wiper
-
Demisting functionality
These specifications make the camera particularly relevant to installations where corrosion resistance and harsh-weather protection are important considerations.
Certifications & Approvals
The supplied manufacturer specifications list:
Project-specific compliance requirements should still be verified for the intended installation.
DORI Distances
DORI figures provide a general indication of the ability to distinguish targets based on specified pixel-density criteria.
Panoramic Channel
| DORI |
Distance |
| Detect |
44.7m |
| Observe |
17.7m |
| Recognise |
8.9m |
| Identify |
4.5m |
PTZ Channel – Telephoto
| DORI |
Distance |
| Detect |
3523.5m |
| Observe |
1398.2m |
| Recognise |
704.7m |
| Identify |
352.4m |
DORI distances are calculated reference values and do not guarantee identification or recognition performance under every real-world condition.
Optional Accessories
The supplied product information lists the following optional accessories:
-
DS-4630ZJ(B)-GSY
-
DS-4616ZJ-428CPY
-
DS-4680ZJ-GP
The camera incorporates a wall bracket by default. The appropriate accessory should be selected when another mounting method is required.
Practical Use Scenarios
Coastal & Marine Environments: NEMA 4X, C5M anti-corrosion protection and polymer construction make the camera particularly relevant to harsh environments where corrosion resistance is required.
Ports & Industrial Facilities: The combination of a panoramic overview, long-range 32× PTZ and vehicle analytics supports monitoring of large operational areas.
Road & Vehicle Monitoring: Integrated LPR, vehicle attribute analysis and checkpoint functionality support applications requiring vehicle identification and monitoring.
Large Perimeters: AcuSense classification, perimeter analytics and Auto-Tracking 3.0 can assist with detecting and following human and vehicle targets.
Public Spaces: The 180° panoramic channel provides broad situational awareness, while the independent PTZ channel can investigate targets in greater detail.
Critical Infrastructure: Long-range imaging, smart analytics, IP67 protection, anti-corrosion construction and multiple cybersecurity features support demanding professional surveillance deployments.
Warranty Information
3 year Warranty
Brand Description
Hikvision develops professional video security and AIoT solutions, including IP cameras, PTZ cameras, network video recorders, access control, intercom, alarm and video-management technologies for commercial, industrial and infrastructure applications.
SKU / Product Code
SKU: DS-2ST5C432MWG-EW/26(PA)(F0)
Manufacturer Product Code: DS-2ST5C432MWG-EW/26(PA)(F0)
Brand: Hikvision
Series: TandemVu
Product Type: Polymer Anti-Corrosion TandemVu PTZ Camera
Panoramic Resolution: 6MP
PTZ Resolution: 4MP
Optical Zoom: 32×
IR Distance: Up to 150m
Protection: IP67 / NEMA 4X / C5M
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) has several specifications relevant to professional Australian and New Zealand outdoor surveillance projects. Most notably, the supplied technical documentation lists RCM compliance to AS/NZS CISPR 32:2015, alongside IP67 environmental protection, NEMA 4X and C5M anti-corrosion protection.
Its –30°C to +65°C operating range, polymer construction, lightning and surge protection, built-in wiper and anti-corrosion design can be particularly useful for exposed outdoor installations, including coastal and industrial environments.
FAQs
What is the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0)?
The DS-2ST5C432MWG-EW/26(PA)(F0) is a Hikvision anti-corrosion TandemVu surveillance camera combining a 6MP panoramic channel with a 4MP PTZ channel and 32× optical zoom.
What resolution does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) provide?
The DS-2ST5C432MWG-EW/26(PA)(F0) panoramic channel provides up to 3680 × 1656 resolution, while the PTZ channel provides up to 2688 × 1520 resolution.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) have 32× optical zoom?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) features a 5.5–176mm PTZ lens providing 32× optical zoom, plus 16× digital zoom.
How far can the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) see at night?
The DS-2ST5C432MWG-EW/26(PA)(F0) provides PTZ infrared illumination up to 150 metres and panoramic white-light illumination up to 30 metres.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support license plate recognition?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) PTZ channel supports license plate recognition for vehicles and motorcycles in supported checkpoint scenarios, together with vehicle attribute detection and vehicle counting.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support AcuSense?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) supports AcuSense deep-learning functionality including human and vehicle target classification.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support automatic tracking?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) supports Auto-Tracking 3.0, manual tracking, tracking takeover and linked tracking capture.
Is the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) suitable for coastal environments?
The DS-2ST5C432MWG-EW/26(PA)(F0) is specified with NEMA 4X and C5M anti-corrosion protection, along with an IP67 enclosure and polymer construction. Suitability should still be assessed against the conditions and requirements of the specific installation.
Is the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) IP67 rated?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) is specified with an IP67 protection rating according to IEC 60529.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) have a built-in wiper?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) includes a built-in wiper and demisting functionality for demanding outdoor installations.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support PoE?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) supports IEEE 802.3bt Type 3 Class 6 PoE as well as 12V DC power.
How much MicroSD storage does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support?
The DS-2ST5C432MWG-EW/26(PA)(F0) supports MicroSD, MicroSDHC and MicroSDXC cards with capacities up to 512GB.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) have built-in audio?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) includes a built-in microphone and speaker, along with separate line-level audio input and output interfaces.
Does the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) support ONVIF?
Yes. The DS-2ST5C432MWG-EW/26(PA)(F0) supports ONVIF Profiles S, G, T and M, along with ISUP, ISAPI, SDK and OTAP interfaces.
Is the Hikvision DS-2ST5C432MWG-EW/26(PA)(F0) RCM compliant?
The supplied specification for the DS-2ST5C432MWG-EW/26(PA)(F0) lists RCM (AS/NZS CISPR 32:2015) under its EMC approvals. Project-specific compliance requirements should still be confirmed for the intended Australian or New Zealand application.
