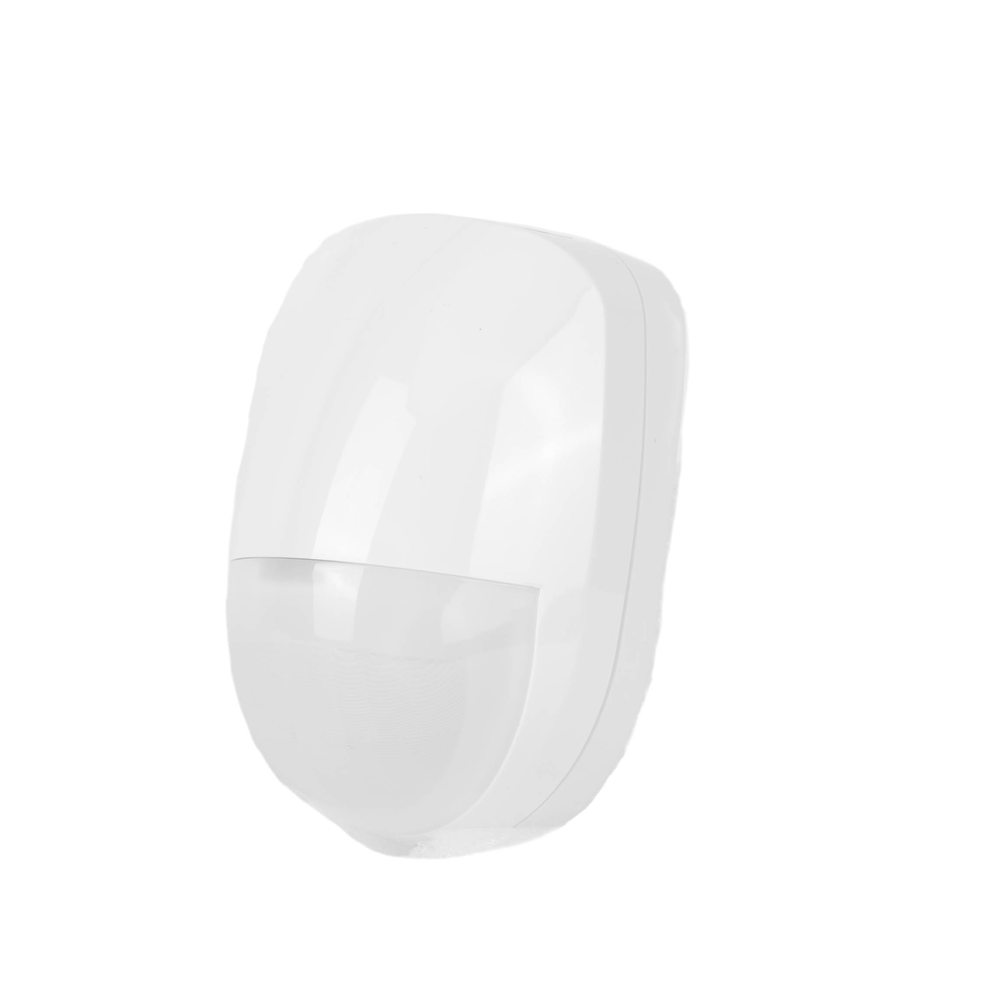

The Hikvision DS‑PDP18‑EG2 is a sleek, high‑performance wired passive infrared (PIR) detector offering up to 18 m volumetric detection coverage—ideal for residential and commercial indoor applications. Designed for minimal visual impact, it integrates advanced optics and intelligent electronics for consistent intruder detection. With features like digital temperature compensation, IFT interference filtering, 3D optics, and creep‑zone protection, it delivers high reliability and low false alarms even in challenging conditions.
What’s Included in the Box
-
Hikvision DS‑PDP18‑EG2 PIR Detector
-
Quick start guide/installation leaflet
-
(Brackets sold separately; see Accessories section)
Main Features
-
Modern slim design—compact and unobtrusive in any interior
-
Volumetric detection up to 18 m, 85.9° coverage
-
3D optics with 52 detection zones, enhanced target recognition and precision
-
Creep‑zone protection—detects intruders directly beneath the unit
-
Digital temperature compensation—maintains performance near ambient body temperatures
-
Automatic/adaptive sensitivity—self‑calibrates to changing conditions
-
Selectable EOL resistors—supports alarm (1 kΩ, 2.2 kΩ, 4.7 kΩ, 5.6 kΩ, 8.2 kΩ) and tamper circuits (1 kΩ to 5.6 kΩ), compatible with most panels
-
Anti‑insect sealed optics—prevents false alarms from insects or airflow
-
Wide voltage tolerance (9–16 VDC) with reverse‑polarity protection
-
IFT (Interference Filter Technology) adjusts trip thresholds to prevent electromagnetic/electrical false alarms
Detailed Specifications
| Specification |
Details |
| Detection Range |
18 m |
| Detection Angle |
85.9° |
| Velocity Range |
0.3 – 2 m/s |
| Sensitivity Modes |
High / Auto / Low |
| Pet Immunity |
Up to 10 kg with optional pet mask |
| White Light Filter |
Max 6,500 lux |
| Indicator |
Blue LED on alarm |
| Power Supply |
9 – 16 VDC (nominal 12 VDC) |
| Current Draw |
11 mA (quiescent), ~8 mA (alarm) |
| Operating Temp |
–10 °C to +55 °C (certified –10 °C to +40 °C) |
| Operating Humidity |
10% – 90% RH |
| Storage Temp |
–20 °C to +60 °C |
| Dimensions (W×H×D) |
65.4 × 86.8 × 45.5 mm |
| Weight |
~68 g |
| Mounting Height |
1.8 – 2.4 m |
| Mounting Options |
Wall or ceiling (optional brackets) |
| Brackets Available |
DS‑PDB‑IN‑Universal / Wall / Ceiling |
Warranty Information
Standard manufacturer warranty. Warranty is supported by Hikvision or its authorised Australian/New Zealand distributors. Firmware updates and technical support are available as part of ongoing product maintenance.
Brand Description
Hikvision is a global leader in security and surveillance solutions, trusted across residential, commercial, and industrial sectors for delivering innovative, high-quality, and reliable products.
SKU
DS‑PDP18‑EG2
Practical Use Scenarios
-
Indoor areas such as shops, offices, hallways, warehouses, lobbies, and residential rooms
-
Environments where discrete aesthetics are essential
-
Pet-friendly settings (with optional pet mask accessory)
-
Supplement to CCTV systems, offering motion-based intrusion alerts
Downloadable Resources
Excellence for the Australian and New Zealand Market
This product is specifically suited for the Australian and New Zealand market. It meets key regional quality and safety standards and is fully supported by authorised local distributors. All warranty, service, and product support are handled directly by certified local channels. Hikvision DS‑PDP18‑EG2 units sold in this region are genuine, NDSS-compliant (where applicable), and include locally approved power and installation compatibility.
FAQs
Q: Does the DS‑PDP18‑EG2 support pet immunity?
A: Yes. DS‑PDP18‑EG2 offers pet immunity up to 10 kg when used with the optional pet mask.
Q: What is the detection range of DS‑PDP18‑EG2?
A: DS‑PDP18‑EG2 provides up to 18 metres of volumetric PIR motion detection coverage.
Q: What voltage range does the DS‑PDP18‑EG2 support?
A: DS‑PDP18‑EG2 operates on a voltage range of 9–16 VDC and includes reverse‑polarity protection.
Q: Can DS‑PDP18‑EG2 adapt to temperature changes?
A: Yes. DS‑PDP18‑EG2 features digital temperature compensation for consistent performance in variable environments.
Q: Is the DS‑PDP18‑EG2 suitable for ceiling installation?
A: Yes. DS‑PDP18‑EG2 can be mounted on walls or ceilings, with optional mounting brackets available.
Q: Does DS‑PDP18‑EG2 prevent false alarms from electrical interference?
A: Yes. DS‑PDP18‑EG2 features IFT technology to reduce false alarms caused by electromagnetic interference.
Q: What EOL resistor options are available with DS‑PDP18‑EG2?
A: DS‑PDP18‑EG2 includes selectable alarm and tamper resistor values compatible with most control panels.
