Upgrade your security with the HA‑ALARM‑KIT1, HiLook’s Hybrid Pro alarm system that delivers professional‑grade protection for residential or commercial spaces. With an 8‑on‑board zone panel, multiple outputs, smart control options, and expandable capacity, this kit is designed for reliability, flexibility, and simplicity. It includes essential components to get your system up and running—and includes the accessories like power supply, sirens, and backup battery.

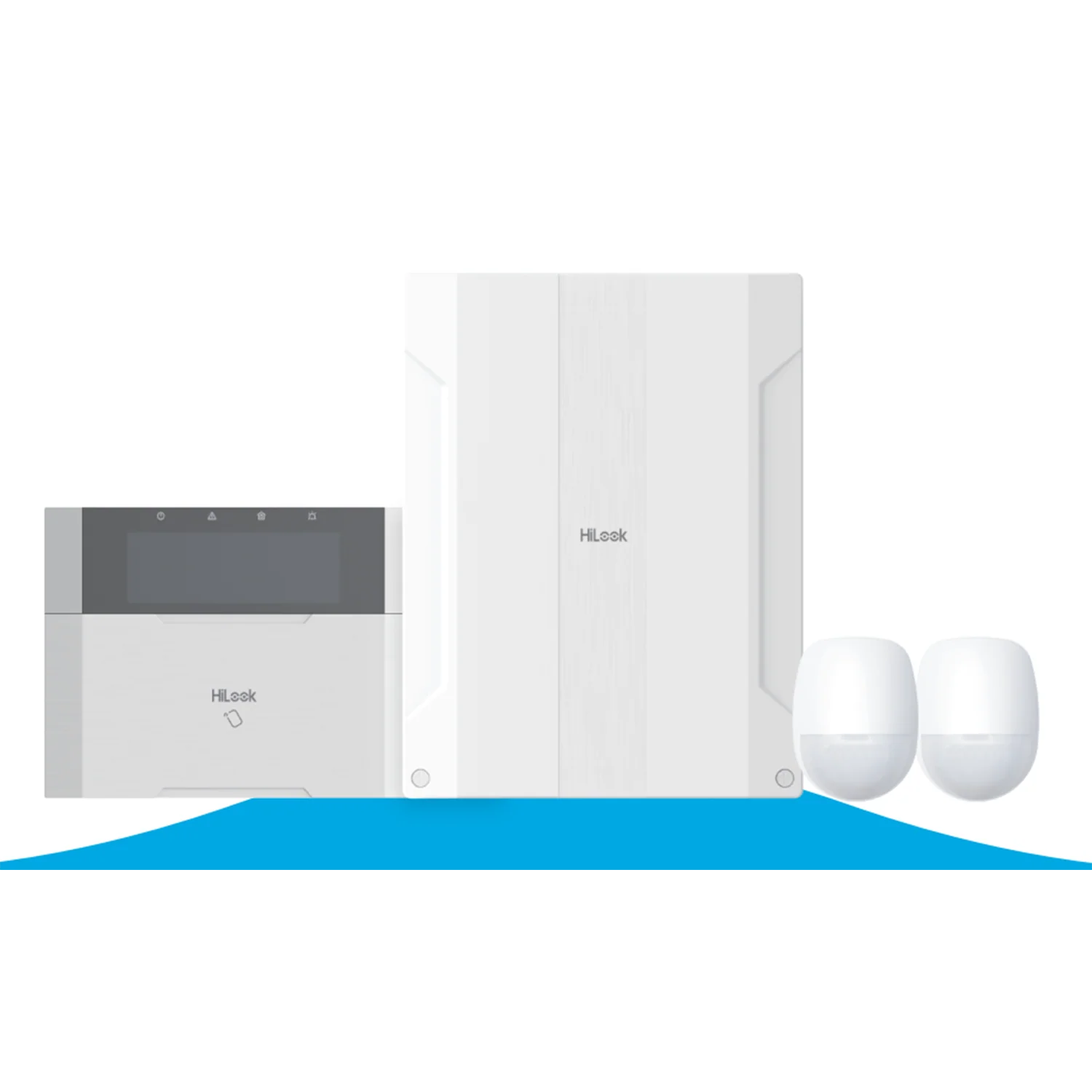

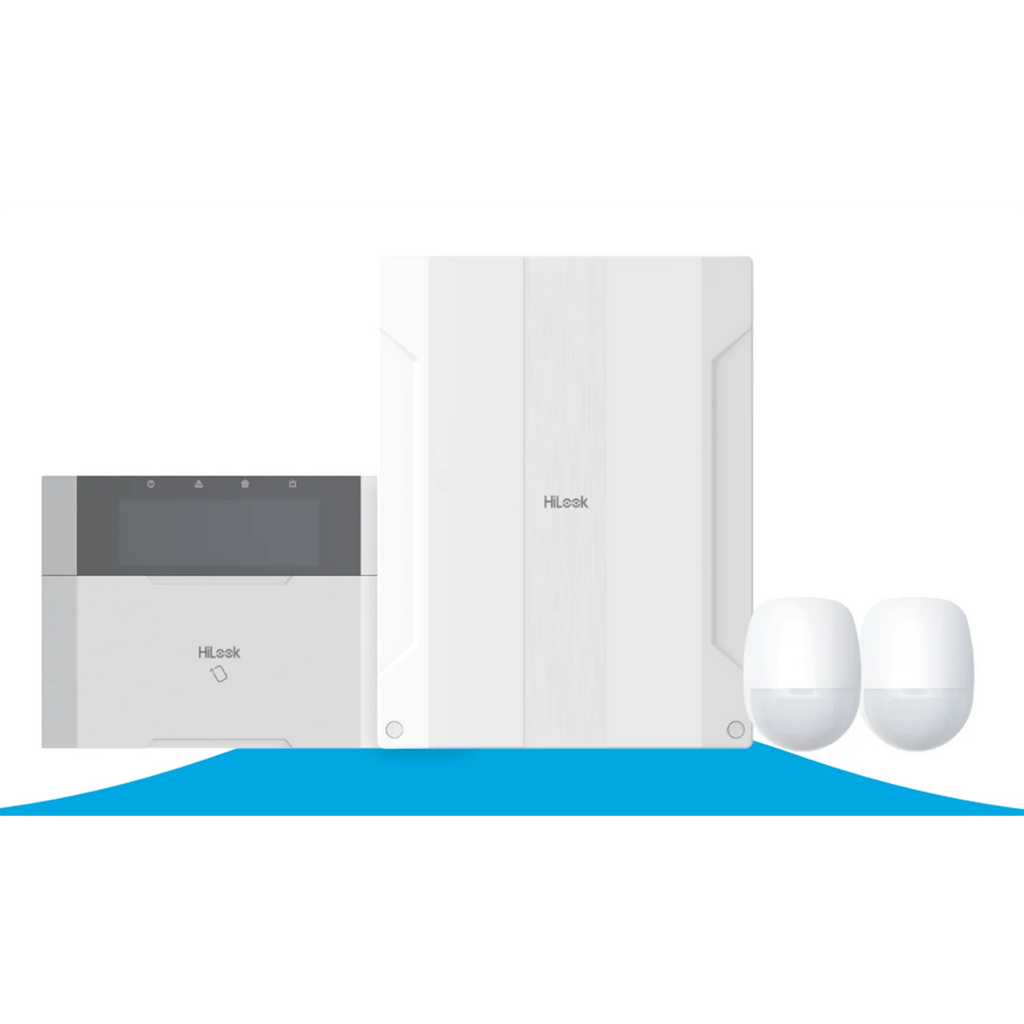

What’s Included in the Box
-

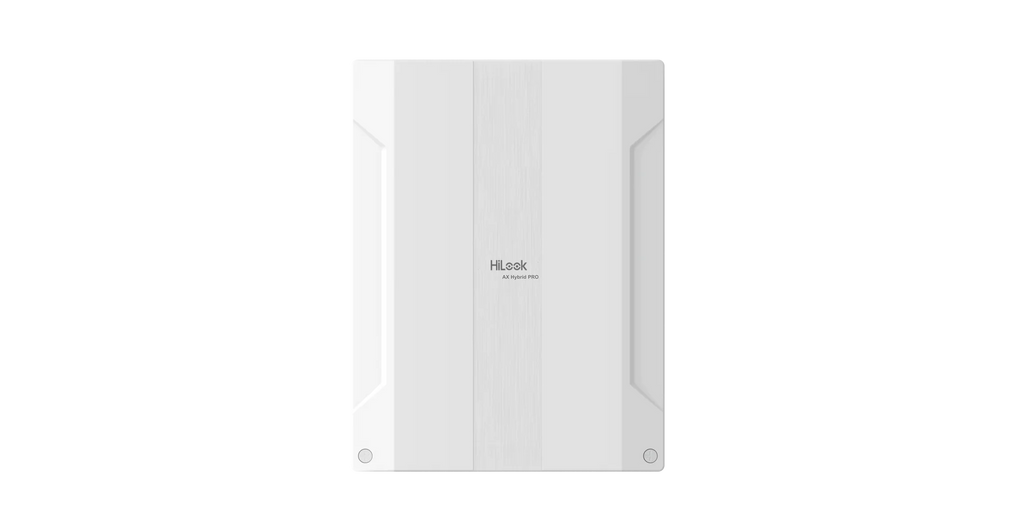

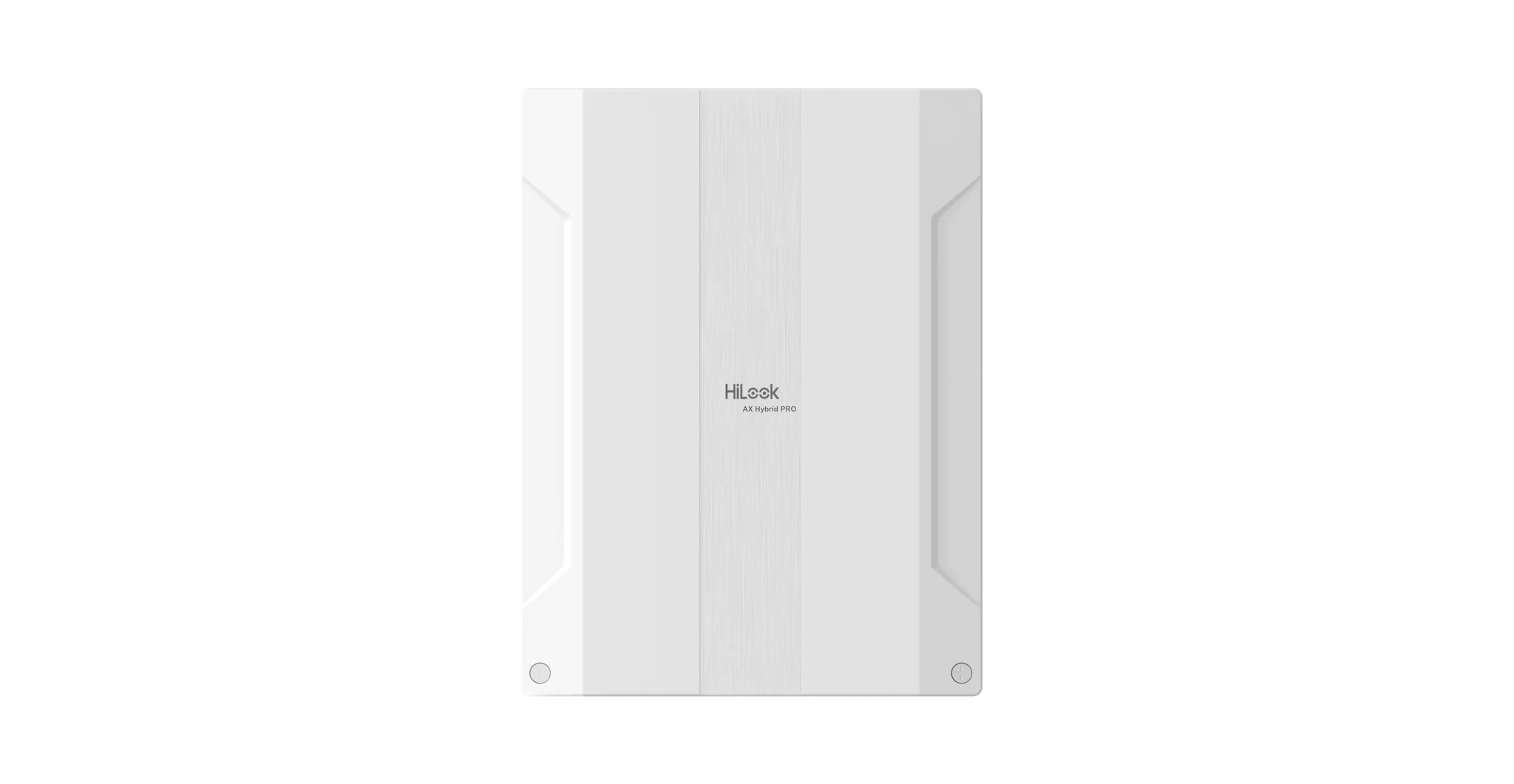

1 × Alarm Control Panel (HA‑ALARM‑P48) with 8 on‑board zones, 4 outputs (2 relay + 2 I/O)
-

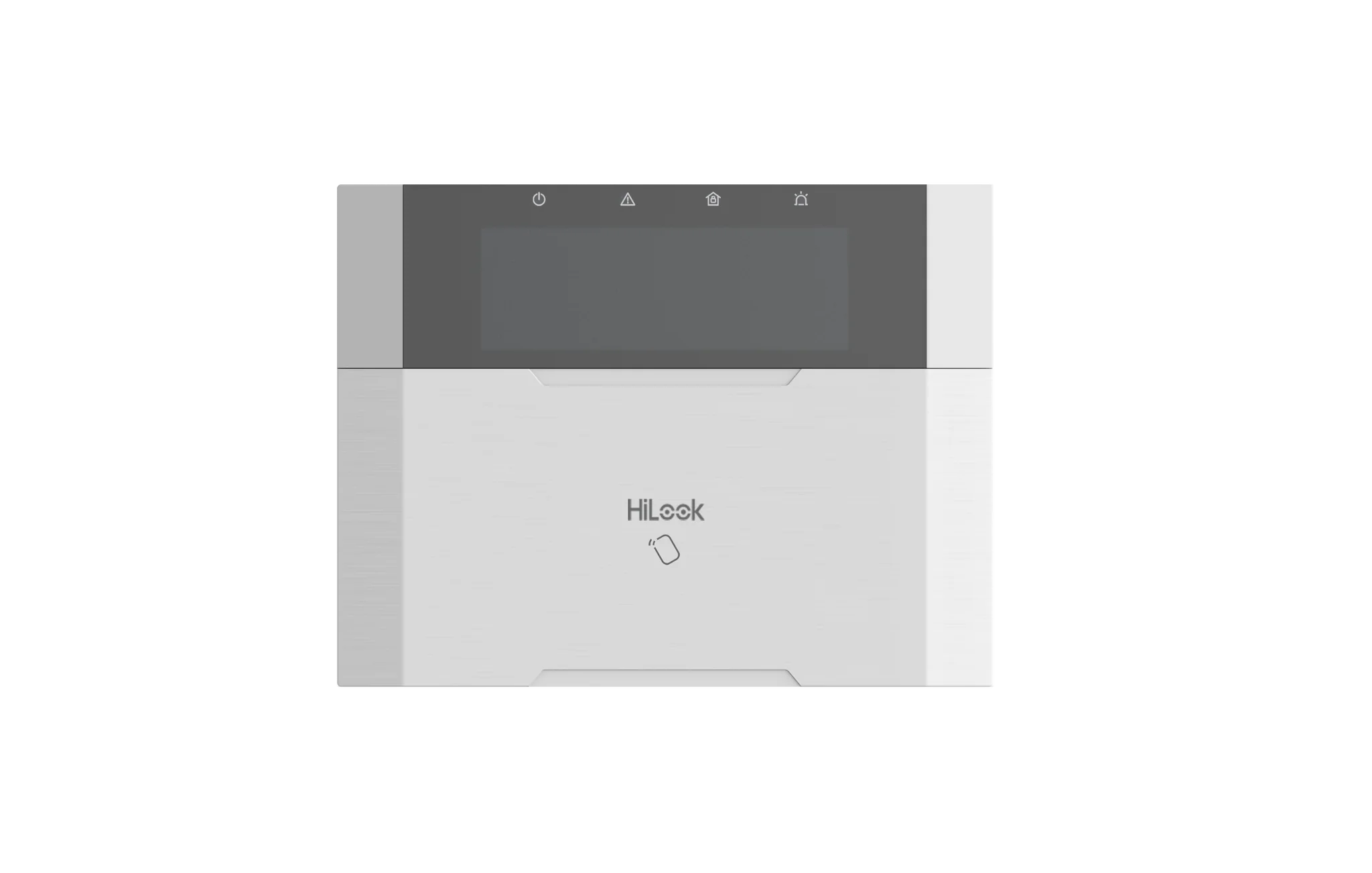

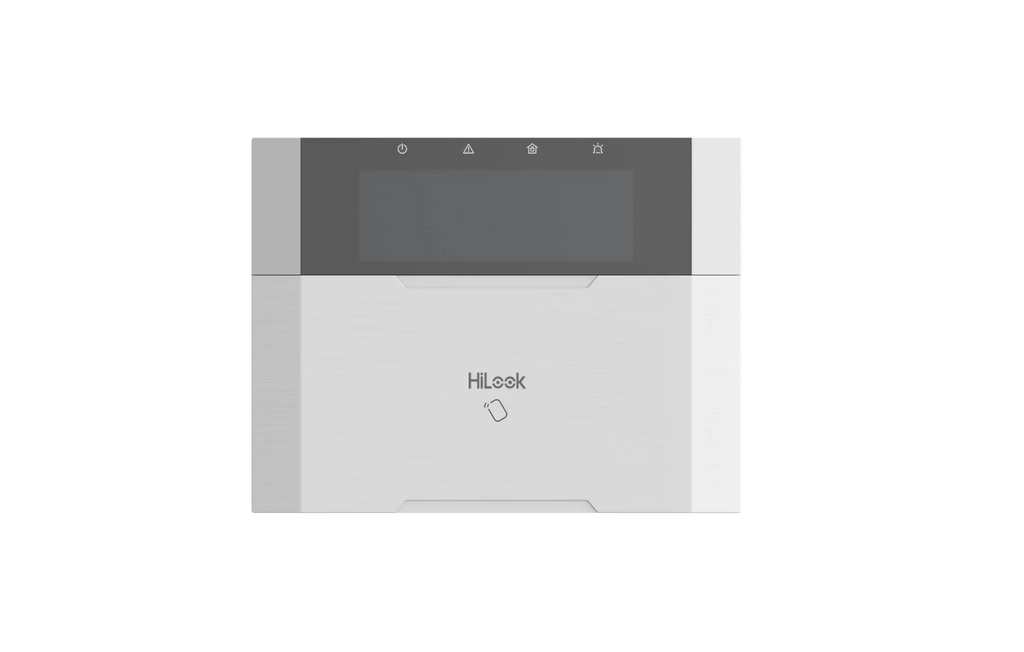

1 × Wired LCD Keypad (HA‑ALARM‑KP) with built‑in RF receiver, display, and emergency keys (fire / panic / medical)
-
2 × PIR Motion Detectors (wired)
-
3 × Tags (RFID / wireless tags for arming / disarming)
- siren kit (1x Power pack, 1x backup battery, 1x indoor sounder, 1x outdoor slimline Siren)
Main Features
Feature |
Benefit |
Hybrid System (wired zones + optional wireless/power expansions) |
Allows scalable expansion and flexible installation options |
8 on‑board zones, expandable to 48 |
Gives broad coverage and future capacity |
4 on‑board outputs (2 relay, 2 I/O) |
Enables connection to external devices (sirens, automation, etc.) |
Multiple control methods: keypad, tags, app via IP module; optional PSTN / GPRS / 4G |
Flexibility in how you arm/disarm or get alerts |
Tamper protection & diagnostics |
Front cover & mounting tamper switches, LED indicators |
End‑of‑Line resistor support |
For reliable wired zone integrity & detection of wire tampering |
Detailed Specifications
Specification |
Detail |
Zones |
8 on‑board, up to 48 (with wired expansions) |
Areas |
Up to 16 separate areas / partitions |
Power Output |
• Bell: up to 12V, 1.2A • AUX: 12V, 1.5A • Combined Bell + AUX: up to 2.1A |
Power Input |
15 V DC, 2.5A |
Battery Backup |
12V 7Ah lead‑acid (battery not included by default) |
Indicators |
On‑board LEDs for AC power, system status, communication / PSTN / mobile status |
Operating Temperature |
‑10°C to +40°C |
Relative Humidity |
10% to 90% non‑condensing |
Dimensions (W × H × D) |
261 mm × 199 mm × 86.4 mm |
Weight |
~997 g |
Warranty Information
Brand Description
HiLook by Hikvision is a trusted provider of professional‑grade, affordable security systems. Backed by the global leadership of Hikvision, HiLook offers scalable alarm and surveillance solutions tailored for installers and end-users who need dependable performance with simple setup.
Practical Use Scenarios
-
Homes & Residences: Secure doors, windows, and key living areas with the included PIRs and keypad-based arming.
-
Shops / Small Businesses: Set up partitions to monitor areas like storerooms, counters, and customer zones.
-
Warehouses / Remote Facilities: Add 4G communication modules and external sirens for real-time alerts.
-
Integrated Security Networks: Expand with Hikvision-compatible cameras, PIRCAMs, and relay modules for full automation.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Optimized for the AU/NZ climate: Operating range ‑10°C to +40°C
-
Supports region-relevant alarm monitoring methods: IP, PSTN, GPRS, and 4G
-
Distributed and warranted through authorized local partners
-
Fully compliant with local safety standards and regulations
-
Product registration and technical support available through authorized HiLook channels
SKU
SKU: HA‑ALARM‑KIT1
FAQs
Q1: What is the difference between the panels in HA‑ALARM‑KIT1 and a basic alarm panel?
A1: The HA‑ALARM‑KIT1 includes a hybrid panel with 8 on‑board wired zones and expansion to 48 zones. It also features 4 outputs, a built-in IP module, and optional communication modules (PSTN, GPRS, 4G)—making it more flexible than a basic panel.
(Product Code: HA‑ALARM‑KIT1)
Q2: Does the HA‑ALARM‑KIT1 kit include a power supply, battery backup, and sirens?
A2: No. The standard HA‑ALARM‑KIT1 includes the panel, keypad, PIRs, and tags. The power supply (15V), 12V 7Ah battery, and sirens are sold separately.
(Product Code: HA‑ALARM‑KIT1)
Q3: Is the HA‑ALARM‑KIT1 suitable for outdoor use or harsh climates?
A3: While the control panel and included PIRs are intended for indoor use, the system is designed to perform reliably in standard Australian and New Zealand indoor conditions. Outdoor protection requires compatible external detectors and sirens.
(Product Code: HA‑ALARM‑KIT1)
Q4: Can the HA‑ALARM‑KIT1 be controlled remotely via smartphone?
A4: Yes. The built-in IP module supports remote control via the Hik-Connect or Hik-Partner Pro app once enrolled.
(Product Code: HA‑ALARM‑KIT1)
