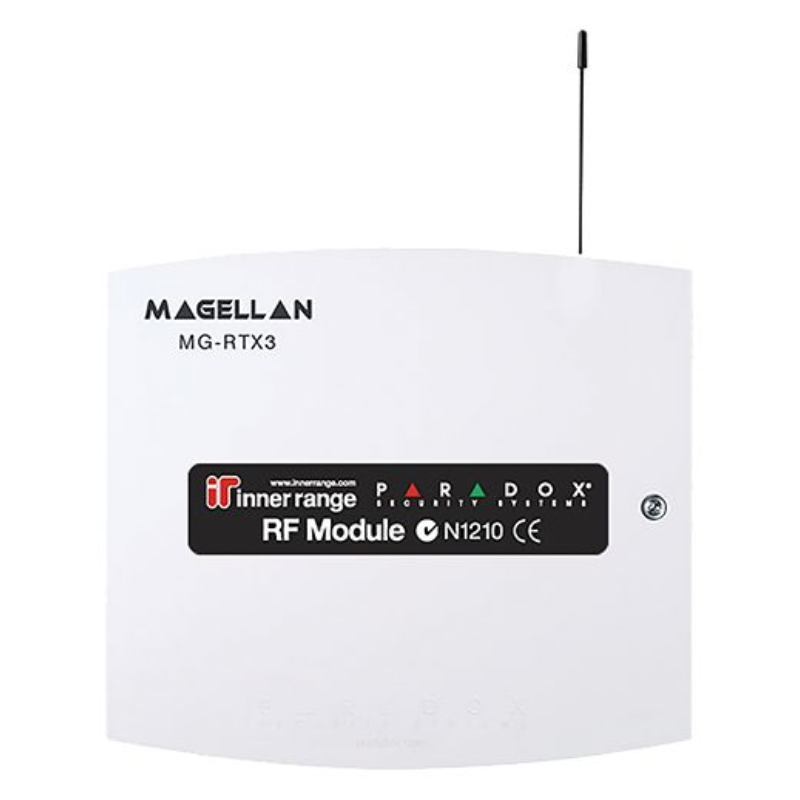

The Inner Range IR-995025 Paradox RF LAN Module is a wireless security expansion solution designed for Integriti, Inception and Concept 4000 access control and alarm systems. Supporting up to 32 wireless detection zones, this RF expander integrates compatible Paradox Magellan motion detectors, door contacts, smoke detectors and remote control fobs into existing security installations.
Designed to extend wireless security capabilities without extensive additional detector cabling, the IR-995025 connects directly to the Inner Range RS-485 LAN, providing an interface between the security controller and compatible Paradox Magellan wireless devices.
The module supports wireless alarm inputs, programmable remote control functions, low-battery supervision and selected two-way RF fobs. Compatible REM2 and REM3 fobs provide audible and visual confirmation when arming or disarming security areas and controlling configured outputs.
Its wireless device supervision capabilities help security operators identify low-battery conditions and RF communication issues, supporting reliable system monitoring and maintenance.
Suitable for residential, commercial and multi-area security installations, the IR-995025 offers a practical way to extend existing Inner Range security systems with wireless detection and remote-control functionality.
Main Features and Benefits
-
Up to 32 wireless detection zones: Connect compatible Paradox Magellan wireless detectors, door contacts and smoke detectors.
-
Inner Range system integration: Compatible with Integriti, Inception and supported Concept 4000 security controllers.
-
RS-485 LAN connectivity: Connects directly to the controller's RS-485 communication network.
-
Paradox Magellan compatibility: Supports selected wireless PIR motion detectors, magnetic door contacts, smoke detectors and RF key fobs.
-
Bi-directional RF communication: Compatible REM2 and REM3 remote fobs provide audible and visual confirmation of selected security operations.
-
Wireless arming and disarming: Enables authorised users to control configured security areas using compatible wireless remote controls.
-
Programmable remote functions: Supported fobs can perform configured system and output control functions.
-
Wireless PIN verification: Supports compatible REM3 remote controls with PIN verification functionality.
-
Wireless panic functionality: Supports panic input capabilities using compatible wireless devices.
-
Low-battery supervision: Provides battery-condition reporting for registered wireless devices.
-
RF fault monitoring: Supports reporting of transmitter communication failures and RF interference conditions.
-
Flexible system expansion: Helps integrate wireless detection devices into existing wired security infrastructure.
Detailed Technical Specifications
| Specification |
Details |
| Brand |
Inner Range |
| Product Code |
IR-995025 |
| Manufacturer Part Number |
995025 |
| Product Type |
Paradox RF LAN Expander Module |
| Supported Systems |
Integriti, Inception, Concept 4000 |
| Wireless Compatibility |
Selected Paradox Magellan devices |
| Communication Interface |
RS-485 LAN |
| RF Frequency |
433.92 MHz (manufacturer datasheet) |
| Wireless Detection Capacity |
Up to 32 zones |
| PCB Input Voltage |
11–14V DC |
| Operational Current |
65mA |
| Enclosure Length |
150mm |
| Enclosure Width |
166mm |
| Enclosure Depth |
32mm |
| Dimensions Exclude |
Antennae |
| Operating Temperature |
0°C to +50°C (2016 datasheet) |
| Relative Humidity |
15%–85%, non-condensing |
| Wireless Battery Reporting |
Supported |
| RF Communication Fault Monitoring |
Supported |
| Remote Control Feedback |
Bi-directional on selected fobs |
| Wireless Panic Input |
Supported |
| Mounting |
Enclosed module for fixed installation |
Compatible Paradox Magellan Devices
The manufacturer's product datasheet identifies the following compatible device models:
| Device Category |
Compatible Models |
| Wireless PIR Detectors |
PMD1P, PMD75, PMD85 |
| Wireless Door Contacts |
DCT10, DCTXP2, DCT2 |
| RF Remote Control Fobs |
REM1, REM15, REM2, REM3 |
| Asset Protection Sensor |
GS250 |
| Panic Pendant |
REM101 |
| Smoke Detector |
SD738 |
Compatibility may depend on device availability, RF frequency, firmware and system configuration. Confirm compatibility before purchasing additional wireless peripherals.
What's Included in the Box?
Practical Applications and Use Scenarios
1. Wireless security expansion
Extend an existing Integriti or Inception installation with compatible wireless motion detectors, door contacts and other detection devices without running individual detector cables to every location.
2. Commercial building security
Add wireless detection to offices, retail premises, warehouses and commercial facilities using supported Inner Range alarm and access control infrastructure.
3. Security retrofits
Integrate wireless security devices into existing buildings where installing additional detector cabling is difficult, disruptive or impractical.
4. Remote arming and disarming
Allow authorised personnel to arm or disarm configured security areas using compatible Paradox Magellan RF remote control fobs.
5. Multi-area security management
Support wireless detection and remote control functionality across configured security areas within a compatible Inner Range system.
6. Wireless device monitoring
Use low-battery reporting and RF supervision information to assist with preventive maintenance and troubleshooting of registered wireless devices.
Installation and System Integration
The IR-995025 connects to the Inner Range controller through the RS-485 LAN. Once installed, compatible wireless detection devices and remote fobs must be registered and configured within the security system.
For Concept 4000 installations, verify controller firmware and memory configuration before commissioning. The manufacturer's installation documentation specifies firmware requirements for older Concept controllers.
Installation and commissioning should be performed by appropriately qualified security technicians using the relevant Inner Range documentation.
Warranty Information
The Inner Range IR-995025 is subject to the applicable manufacturer warranty terms and conditions.
1 year warranty
Australian customers also retain any applicable rights under Australian Consumer Law.
Manufacturer warranty reference: Inner Range Warranty Statement
About Inner Range
Inner Range is an Australian-founded manufacturer of integrated electronic security, access control and video security solutions. Established in Melbourne, the company develops security technologies for residential, commercial and enterprise environments.
Its product portfolio includes Integriti, Inception and associated security controllers, expansion modules, user interfaces and management solutions. Inner Range security platforms are deployed internationally across a wide range of industries.
Excellence for the Australian and New Zealand Market
The Inner Range IR-995025 Paradox RF LAN Module provides a wireless expansion option for supported security systems installed throughout Australia and New Zealand.
Australian security technology: Inner Range was founded in Melbourne and develops integrated security and access control solutions used across residential, commercial and enterprise environments.
Local system compatibility: The module supports Inner Range Integriti, Inception and compatible Concept 4000 platforms used in Australian and New Zealand security installations.
Quality and regulatory considerations: Installers should verify compliance with applicable Australian and New Zealand electrical, radiofrequency and security installation requirements. Specific product certifications and approvals should be confirmed through manufacturer documentation rather than assumed.
Genuine product sourcing: Purchasing through authorised Inner Range distribution channels helps ensure product authenticity, appropriate technical advice and access to manufacturer support.
Manufacturer-coordinated warranty support: Warranty enquiries can be referred through the supplying channel to Inner Range for assessment under the applicable manufacturer terms. Confirm the seller's warranty handling process when ordering.
Frequently Asked Questions (FAQs)
1. What is the Inner Range IR-995025 Paradox RF LAN Module used for?
The IR-995025 is a wireless RF expansion module that allows compatible Inner Range security controllers to communicate with selected Paradox Magellan wireless detectors, door contacts, smoke detectors and remote control fobs.
2. Is the Inner Range IR-995025 compatible with Integriti and Inception security systems?
Yes. The IR-995025 supports integration with Inner Range Integriti and Inception security controllers, subject to the applicable controller configuration and supported wireless devices.
3. Can the IR-995025 Paradox RF LAN Module work with Concept 4000 systems?
Yes. The IR-995025 supports compatible Concept 4000 systems. Older controllers may require specific firmware versions and suitable memory configurations. Confirm the applicable installation requirements before commissioning.
4. How many wireless zones does the Inner Range IR-995025 support?
Each IR-995025 module supports up to 32 wireless detection zones, allowing compatible wireless detectors to be integrated into the security system.
5. What wireless devices are compatible with the IR-995025 RF Expander?
The IR-995025 supports selected Paradox Magellan PIR motion detectors, door contacts, smoke detectors and remote fobs. Refer to the manufacturer compatibility list and confirm device and frequency suitability before purchasing.
6. Does the IR-995025 support wireless remote arming and disarming?
Yes. With compatible and correctly programmed RF fobs, the IR-995025 supports remote arming and disarming of configured security areas. Selected fobs also provide audible and visual status feedback.
7. Does the Inner Range IR-995025 provide low-battery warnings?
Yes. The IR-995025 supports low-battery supervision and reporting for registered compatible wireless devices, helping installers and security operators identify devices requiring attention.
8. What power supply does the IR-995025 Paradox RF LAN Module require?
The Inner Range manufacturer's datasheet specifies an 11–14V DC input to the PCB with an operational current of approximately 65mA. Always follow the manufacturer's installation documentation when connecting power.
9. What are the dimensions of the Inner Range IR-995025 module?
The IR-995025 has enclosure dimensions of 150mm long, 166mm wide and 32mm deep, excluding the external antennas.
10. Is the Inner Range IR-995025 suitable for commercial security installations in Australia and New Zealand?
Yes. The IR-995025 is suitable for consideration in residential and commercial installations using compatible Inner Range security systems. Installers must verify site requirements, wireless compatibility and applicable local regulatory requirements before installation.
