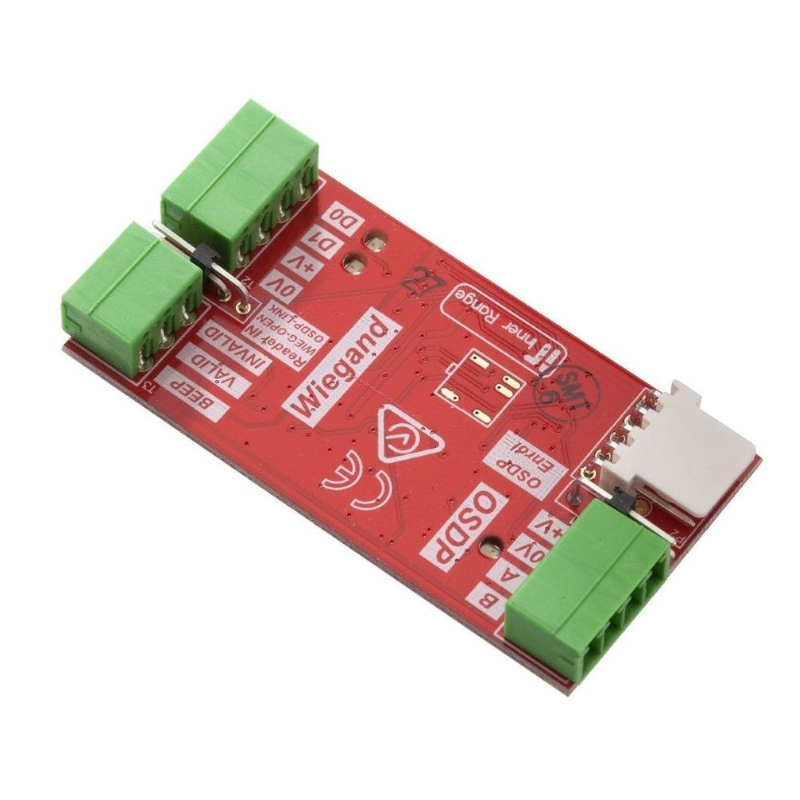

The Inner Range OSDP to Wiegand Converter IR-994200 is a compact, bidirectional access control interface designed to convert OSDP reader data to Wiegand format and Wiegand reader data to OSDP-compatible communication. Featuring support for Inner Range SIFER readers, RS-485 communication, 128-bit AES encryption on supported OSDP links and configurable reader settings, this versatile converter enables integration between legacy Wiegand access control hardware and modern Inner Range Integriti and Inception security systems across Australia and New Zealand.
Manufactured by Inner Range, the IR-994200 is designed to simplify access control upgrades and improve compatibility between different reader communication formats without requiring the immediate replacement of all existing access control hardware.
The converter operates in two principal modes. It can connect traditional Wiegand readers to compatible Inner Range OSDP reader ports, or connect supported OSDP readers, including Inner Range SIFER readers, to existing Wiegand reader inputs.
When connecting Wiegand readers through the supported Inner Range OSDP interface, installers can benefit from longer supported RS-485 cable runs, flexible reader-bus configurations and encrypted communication between the converter and controller. Existing Wiegand readers can also retain control of their beepers and valid or invalid LED indicators.
For security system upgrades, the converter allows compatible SIFER and selected third-party OSDP readers to interface with Wiegand reader inputs, providing a practical migration path for installations incorporating older access control equipment.
The device also offers automatic reader enrolment in OSDP-to-Wiegand mode and configurable communication and reader settings through a compatible Port 0 programming cable.
User Interface| Inner Range
+1
Main Features
-
Bidirectional Protocol Conversion: Converts Wiegand reader communication to supported OSDP interfaces and OSDP reader data to Wiegand.
-
Inner Range SIFER Compatibility: Supports connection of compatible SIFER readers to existing Wiegand reader ports.
-
Legacy Wiegand Reader Integration: Allows existing Wiegand readers to connect to compatible Integriti and Inception serial reader ports.
-
128-Bit AES Encrypted OSDP Communication: Supports encrypted communication over the appropriate OSDP reader bus.
-
Flexible RS-485 Cabling: Supports compatible four-core reader-bus wiring and more flexible cable layouts.
-
Daisy-Chain Reader Configurations: Enables supported Wiegand readers to connect through converters along an Inner Range serial reader bus.
-
Up to 16 Wiegand Readers: Supports configurations with up to 16 converted readers on compatible Inner Range access modules, subject to module limits.
-
Four Readers on SLAM: Supports up to four converted reader connections on a compatible Integriti Standard LAN Access Module.
-
Automatic OSDP Reader Enrolment: Simplifies configuration in supported OSDP-to-Wiegand installations.
-
Reader LED and Beeper Control: Supports valid, invalid and audible feedback functions for compatible readers.
-
Configurable Wiegand Bit Length: Provides flexibility for supported card data formats.
-
Adjustable OSDP Baud Rate: Allows communication settings to match the installed equipment.
-
SIFER LED and Speaker Configuration: Supports adjustment of compatible reader LED brightness and speaker volume.
-
Compact Inline PCB: Suitable for installation within a secure equipment location.
-
Suitable for Security System Upgrades: Helps retain compatible legacy reader hardware during Integriti modernisation projects.
Technical Specifications
|
Specification
|
Details
|
|
Brand
|
Inner Range
|
|
Product name
|
OSDP to Wiegand Converter
|
|
Manufacturer designation
|
OSDP ↔ Wiegand Converter
|
|
SKU
|
IR-994200
|
|
Manufacturer part number
|
994200
|
|
Product type
|
Bidirectional access control protocol converter
|
|
Protocols
|
OSDP, SIFER and Wiegand
|
|
Conversion direction
|
OSDP to Wiegand / Wiegand to OSDP
|
|
OSDP communication
|
RS-485
|
|
OSDP bus encryption
|
128-bit AES, on supported encrypted links
|
|
OSDP connection
|
4-pin: +V, 0V, A, B
|
|
Wiegand reader connection
|
4-pin: D0, D1, +V, 0V
|
|
Reader LED and beeper connection
|
3-pin: Invalid LED, Valid LED, Beeper
|
|
Configuration interface
|
5-pin Port 0 connector
|
|
Configuration method
|
HyperTerminal via compatible Port 0 USB cable
|
|
Auto reader enrolment
|
Supported in OSDP-to-Wiegand mode
|
|
Configurable baud rate
|
Supported
|
|
Configurable Wiegand bit length
|
Supported
|
|
Reader LED configuration
|
Supported
|
|
SIFER brightness and speaker settings
|
Supported
|
|
Power input
|
11–14 V DC
|
|
Idle current
|
20 mA
|
|
Peak current
|
35 mA
|
|
PCB dimensions
|
85 × 35 × 15 mm, including connectors
|
|
Listed shipping weight
|
Approx. 42 g, PCB and accessories
|
|
Operating temperature
|
0°C to +65°C
|
|
Relative humidity
|
15–85%, non-condensing
|
|
Installation location
|
Protected, secure equipment location
|
|
Compatible system families
|
Supported Inner Range Integriti and Inception configurations
|
Specifications are based on Inner Range technical documentation. Current consumption excludes connected readers, indicators and beepers. Third-party OSDP compatibility and the use of 5V Wiegand readers require specific verification.
What's Included in the Box
-
1 × Inner Range OSDP to Wiegand Converter – IR-994200.
-
Standard connection accessories, where supplied with the manufacturer package.
Access control readers, controllers, power supplies, cabling and the Port 0 USB programming cable are not assumed to be included. Confirm the exact packaging with the supplier.
Bidirectional Conversion and Integration
The IR-994200 provides two useful deployment configurations.
Mode 1 – Wiegand Reader to OSDP Interface
Connect existing Wiegand readers to compatible Inner Range RS-485 reader buses and retain supported LED and beeper control functionality.
Mode 2 – OSDP Reader to Wiegand Interface
Use compatible modern OSDP readers with suitable Wiegand-input access modules during phased system upgrades.
Conceptual signal flow only. The converter is designed for supported Inner Range configurations and is not a universal third-party OSDP bus adapter.
Practical Use Scenarios
Legacy access control system upgrades
Retain existing compatible Wiegand readers while migrating an installation to supported Inner Range Integriti equipment.
SIFER reader retrofits
Connect supported Inner Range SIFER readers to existing Wiegand inputs where the controller and converter configuration permit.
Commercial office buildings
Upgrade access control reader connectivity across office entrances and restricted areas without unnecessarily replacing functional reader hardware.
Industrial and warehouse facilities
Integrate supported older reader installations with newer security infrastructure, reducing the amount of hardware that needs replacing during system improvements.
Multi-door access installations
Expand reader connection flexibility using supported RS-485 configurations, particularly where multiple Wiegand readers must connect to an Inner Range access module.
Educational and institutional facilities
Support staged access control modernisation while maintaining compatible legacy reader installations during the transition.
Integriti expansion projects
Connect compatible Wiegand or OSDP readers to Integriti SLAM, ILAM or IAC modules according to the supported reader-port architecture.
Compatibility and Installation Requirements
The Inner Range IR-994200 OSDP to Wiegand Converter is intended for professional access control installations using compatible Inner Range reader and controller configurations.
In Wiegand-to-OSDP mode, it is designed to interface with supported Inner Range serial reader ports, including those on compatible Integriti SLAM, ILAM, IAC and Inception controllers.
In OSDP-to-Wiegand mode, it supports Inner Range SIFER readers and selected third-party OSDP readers. Compatibility with third-party reader models, firmware and operating modes must be confirmed before installation.
Important security consideration: Although the supported OSDP communication segment can use AES-128 encryption, the conventional Wiegand segment remains unencrypted. The converter does not make the entire communication path end-to-end encrypted.
Installation also requires the appropriate power supply, reader wiring and configuration. Some 5V Wiegand readers require additional installation considerations, covered in the manufacturer's dedicated manual.
Warranty Information
The IR-994200 is subject to applicable Inner Range manufacturer warranty conditions and statutory consumer guarantees.
A specific manufacturer warranty duration has not been independently verified and should be confirmed with the authorised supplier.
Warranty assessment and technical support may be coordinated with Inner Range through the appropriate distribution arrangement, subject to applicable manufacturer conditions.
About Inner Range
Inner Range is an Australian security technology manufacturer specialising in electronic access control, intrusion detection and integrated security management.
Its product range includes Integriti, Inception, SIFER readers, security keypads, access modules and specialised interface devices designed to support professional security installations.
SKU and Product Identification
|
Field
|
Details
|
|
SKU
|
IR-994200
|
|
Manufacturer part number
|
994200
|
|
Brand
|
Inner Range
|
|
Product
|
OSDP to Wiegand Converter
|
|
Device type
|
Bidirectional Reader Protocol Converter
|
|
Supported interfaces
|
OSDP, SIFER, Wiegand
|
Datasheets and Downloadable Resources
Excellence for the Australian and New Zealand Market
The Inner Range OSDP to Wiegand Converter IR-994200 offers a practical access control integration solution for Australian and New Zealand organisations upgrading existing electronic security infrastructure.
Australian security technology: Developed by Inner Range, an Australian manufacturer of electronic security and integrated access control systems.
Improved integration flexibility: Enables supported legacy Wiegand readers and modern OSDP/SIFER readers to operate with compatible access control hardware.
Security-focused design: Supports encrypted OSDP bus communication, configurable reader functions and professional security system integration.
Standards and compliance: Manufacturer documentation identifies electrical and environmental compliance markings. Specific current Australian and New Zealand certification requirements should be verified for the product and the complete installation.
Authorised product sourcing: Genuine Inner Range equipment should be obtained from authorised brand representatives and recognised distributors. Supplier authorisation should be confirmed before publishing exclusive-sourcing claims.
Manufacturer warranty coordination: Warranty queries may be referred to Inner Range through the authorised supply chain, subject to the manufacturer's applicable procedures.
Suitable for local security projects: Supports commercial, industrial, institutional and multi-building security upgrades throughout Australia and New Zealand.
FAQs
1. What is the Inner Range OSDP to Wiegand Converter IR-994200 used for?
The IR-994200 is a bidirectional reader protocol converter that allows supported OSDP readers to connect to Wiegand inputs and compatible Wiegand readers to connect to Inner Range serial reader ports.
2. Can the Inner Range IR-994200 convert both OSDP to Wiegand and Wiegand to OSDP?
Yes. The IR-994200 supports both conversion directions, making it useful for upgrading and integrating different access control reader technologies.
3. Is the Inner Range OSDP to Wiegand Converter IR-994200 compatible with SIFER readers?
Yes. The IR-994200 supports compatible Inner Range SIFER readers and can convert their data for supported Wiegand reader inputs.
4. Does the IR-994200 OSDP to Wiegand Converter support AES encryption?
Yes. The IR-994200 supports 128-bit AES encrypted communication on the appropriate OSDP bus. Standard Wiegand wiring does not receive the same encryption protection.
5. Can the Inner Range IR-994200 be used with Integriti SLAM access modules?
Yes. The IR-994200 supports compatible Integriti SLAM reader interfaces, with up to four converted Wiegand reader connections in supported configurations.
6. Does the Inner Range IR-994200 work with Inception access control systems?
Yes. The IR-994200 can be used with compatible Inception serial reader interfaces, subject to controller and configuration requirements.
7. What power supply does the OSDP to Wiegand Converter IR-994200 require?
The IR-994200 requires an 11–14 V DC supply. Published converter current consumption is approximately 20 mA idle and 35 mA peak, excluding external readers and indicators.
8. Can the Inner Range IR-994200 connect third-party OSDP readers?
The IR-994200 supports selected third-party OSDP readers. Compatibility is model- and firmware-dependent and should be checked with Inner Range before installation.
9. Does the IR-994200 support automatic OSDP reader enrolment?
Yes. The IR-994200 includes an automatic reader enrolment function in OSDP-to-Wiegand operating mode.
10. Can the Inner Range IR-994200 control reader LEDs and beepers?
Yes. The IR-994200 supports configurable LED and beeper functions for compatible readers, including valid and invalid credential indication.
11. How is the Inner Range OSDP to Wiegand Converter IR-994200 configured?
The IR-994200 can be configured through a compatible Port 0 programming cable using terminal software such as HyperTerminal.
12. What are the dimensions of the Inner Range IR-994200 converter?
The IR-994200 has published PCB dimensions of approximately 85 × 35 × 15 mm, including connectors, making it suitable for installation within secure equipment locations.
13. Can the IR-994200 help upgrade an older Concept access control installation?
Yes. The IR-994200 can support selected upgrade arrangements involving older Concept access modules and compatible newer Inner Range controllers and readers.
14. Does the Inner Range IR-994200 support longer reader cable runs?
The IR-994200 enables compatible RS-485 OSDP bus wiring, which can support longer cable runs than conventional Wiegand arrangements under suitable installation conditions. Exact distances depend on the installation design.
15. Can the IR-994200 connect multiple Wiegand readers to one access module?
Yes. Supported Inner Range access modules can accommodate multiple converted Wiegand readers, with configurations supporting up to 16 readers on certain modules and up to four on a SLAM.
16. Is the Inner Range IR-994200 a universal OSDP converter for every access control system?
No. The IR-994200 is intended for supported Inner Range interfaces and specified third-party reader configurations. Its OSDP interface should not be assumed compatible with arbitrary third-party OSDP buses.
17. Does the Inner Range OSDP to Wiegand Converter IR-994200 require an external enclosure?
The IR-994200 is a compact PCB interface intended to be installed in a secure, protected location. An appropriate enclosure or mounting arrangement should be selected for the project.
18. Is the Inner Range IR-994200 suitable for security installations in Australia and New Zealand?
Yes. The IR-994200 is suitable for professionally designed access control installations in Australia and New Zealand using compatible Inner Range equipment, subject to applicable standards and installation requirements.
