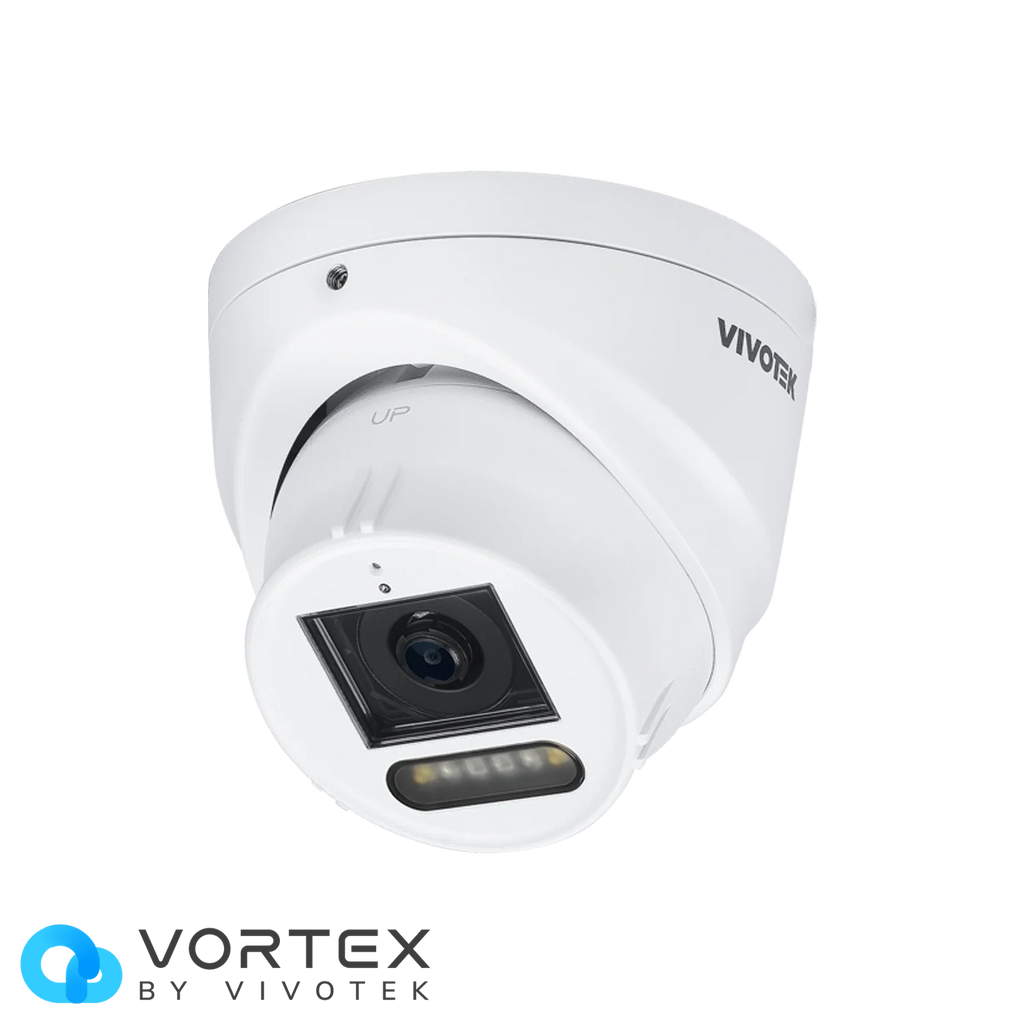

The VIVOTEK IT833-HVW is a rugged, AI-enhanced 5MP outdoor turret camera engineered for superior performance in harsh environments. Equipped with hybrid IR and warm light illumination, this compact yet powerful device delivers 2560 x 1920 resolution, Smart IR, and WDR Pro to capture crystal-clear images in diverse lighting conditions. Its built-in 256GB industrial-grade storage, 10-year warranty, and support for advanced AI analytics make it ideal for perimeter protection, city surveillance, schools, and retail environments. Compliant with IP66 and IK10, the IT833-HVW ensures uninterrupted monitoring under Australia and New Zealand's challenging environmental conditions.

What’s in the Box

• 1x IT833-HVW 5MP Outdoor Turret Camera

• 1x Quick Installation Guide

• 1x Alignment Sticker

• 1x Screw Pack

• 1x Cable Gland

Main Features

• 5MP CMOS sensor delivering 2560 x 1920 resolution at 15fps

• Hybrid Infrared and Warm Light Illumination with up to 30m range

• Built-in 256GB industrial-grade SD card for local edge recording

• Wide Dynamic Range Pro (WDR Pro) for enhanced low-light visibility

• AI-Based Video Analytics: Intrusion, Line Crossing, Object Detection, Attribute Search

• One-way Audio with Built-in Microphone (5-meter effective range)

• PoE (IEEE 802.3af, Class 3) with maximum power consumption of 10.7W

• Robust environmental protection: IP66-rated for dust/water resistance, IK10-rated for vandal resistance

• Tampering Detection, Secure Boot, TLS Encryption, HTTPS & Signed Firmware for cybersecurity

• Up to 6 simultaneous live-view clients

• Wide Field of View: 135.2° diagonal, 103.4° horizontal

Detailed Specifications

Model: IT833-HVW
Image Sensor: 1/2.8” Progressive CMOS
Lens: Fixed-focal, f = 2.8mm, F2.0
Day/Night: Yes, with IR-cut filter
IR Range: Up to 30m (Smart IR & Warm Light)
WDR Technology: WDR Pro
Min. Illumination:

• Color: 0.055 lux @ F2.0

• B/W: 0.005 lux @ F2.0

• 0 lux with IR on
  Shutter Speed: 1/5 sec. to 1/32,000 sec
  Pan/Tilt/Rotate: Pan 350°, Tilt 70°, Rotate ±175°
  Frame Rate:

• HD: 2560x1920 @ 15fps (1.2Mbps upload)

• SD: 1280x960 @ 15fps (300Kbps upload)
  Audio: Built-in microphone, one-way audio, 5m range
  Video Compression: H.265, H.264, MJPEG
  Network Interface: 10/100 Mbps RJ-45 Ethernet
  Onboard Storage: 256GB industrial-grade SD card (SD/SDHC/SDXC slot)
  Power Input: IEEE 802.3af PoE, Max 10.7W
  Dimensions: Ø120 x 95 mm
  Weight: 730 g
  Body Material: Metal
  Operating Temperature:

• Start: -10°C to 50°C

• Working: -30°C to 50°C (IR off), -30°C to 45°C (IR on)
  Humidity: 90% RH (non-condensing)
  Certifications: CE, FCC, RCM, UL, CB, IK10, IP66

Warranty Information

• Manufacturer’s Warranty Applied

Brand Information

VIVOTEK Inc. is a global leader in intelligent video surveillance solutions, offering cutting-edge IP cameras, NVRs, and AI-powered analytics. With a focus on cybersecurity, reliability, and innovation, VIVOTEK serves industries ranging from smart cities to retail and critical infrastructure worldwide.

SKU: IT833-HVW

Practical Use Scenarios

• Retail & Storefront Security: Deter loiterers and identify faces or vehicles with high clarity in low-light entrances.

• Educational Institutions: Protect school perimeters with accurate AI-based intrusion and line-crossing detection.

• Urban Surveillance: Monitor sidewalks, intersections, and pathways in any weather condition with smart object tracking.

• Warehouses & Industrial Sites: Detect missing/unattended objects and unauthorized access even at night.

• Residential & Commercial Buildings: Record around-the-clock with built-in storage and warm light support.

Datasheets / Downloadable Resources

• IT833-HVW Datasheet (PDF)

Excellence for the Australian and New Zealand Market

• Fully certified with RCM, CE, FCC, and C-Tick for Australian and New Zealand compliance

• Tailored to withstand ANZ environmental extremes with IK10 and IP66 durability

• Sold through authorized VIVOTEK ANZ distribution partners only

• Warranty claims and technical support handled locally, with direct access to VIVOTEK representatives

• Seamless integration with NDSS-compliant surveillance systems

FAQs – IT833-HVW

Q1: What is the IR and warm light range on the IT833-HVW?
The hybrid IR and warm light provide effective illumination up to 30 meters.

Q2: Does the IT833-HVW support edge recording?
Yes, it includes a built-in 256GB industrial-grade SD card for edge storage.

Q3: Can this camera detect intrusions or objects using AI?
Absolutely. The IT833-HVW supports intrusion detection, line crossing, loitering, object loss/detection, and more via AI analytics.

Q4: What power standard does the camera use?
It supports IEEE 802.3af PoE (Class 3) with a max power consumption of 10.7W.

Q5: Is this model suitable for Australian weather conditions?
Yes, with an IP66 and IK10 rating, and operating range down to -30°C, it's ideal for harsh ANZ outdoor environments.

Q6: How many users can stream live footage simultaneously?
The IT833-HVW supports up to 6 concurrent live view clients.

Q7: Is the IT833-HVW covered under a long-term warranty?
Yes, it includes a 10-Year Manufacturer’s Warranty, with local support available in Australia and New Zealand.
