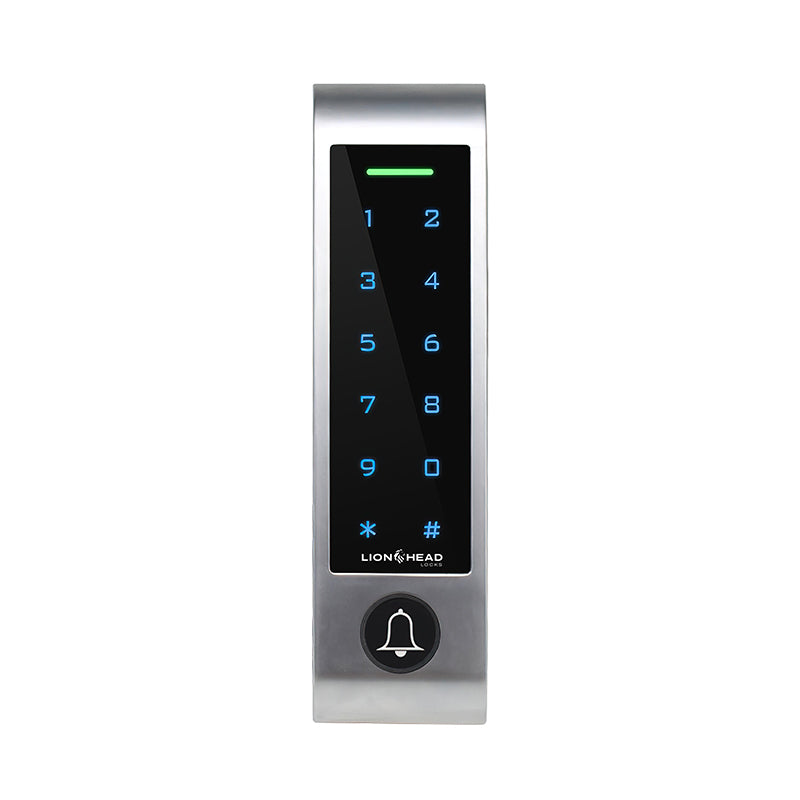

The LIONHEAD TITAN Slim Bluetooth Keypad (LHL-KP4-TITAN) is a high-performance, compact access control device built for demanding environments. Featuring a sleek vertical design and constructed from zinc alloy with an IP66 waterproof rating, the TITAN is ideal for external or internal installations in residential, commercial, or industrial properties.
With support for Bluetooth (BLE), Mifare RFID cards (13.56MHz), and PIN code access, this keypad allows for flexible, secure multi-user authentication. Combined with TTLock app integration and optional Wi-Fi connectivity via gateway, users can remotely manage access, create temporary or dynamic codes, and view detailed access logs—all from a mobile device.
The TITAN is a powerful solution for anyone seeking a low-profile, secure, and weather-resistant keypad that meets the needs of both standalone and networked access control systems.
![]()
What’s Included in the Box
-
1 × LIONHEAD TITAN Slim Bluetooth Keypad (LHL-KP4-TITAN)
-
Mounting screws and installation accessories
-
User manual and wiring guide
-
TTLock mobile app setup instructions
Main Features
| Feature |
Description |
| 3-Way Smart Access |
Unlock via PIN codes, Bluetooth (BLE), or Mifare RFID cards
|
| TTLock App Integration |
Remotely manage users, codes, access times, and unlock history |
| Weatherproof IP66 Rating |
Built for outdoor installation in harsh weather conditions |
| Wide Temperature Range |
Functions reliably from –20°C to +60°C
|
| High Capacity |
Stores up to 1,000 Mifare cards, 150 custom PINs, 150 dynamic PINs
|
| Compact & Sleek Design |
Slim vertical form factor fits in tight spaces or on narrow pillars |
| Power Efficient |
Low power draw of <80mA, powered by 12V DC
|
| Durable Build |
Constructed from high-strength zinc alloy for long-term durability |

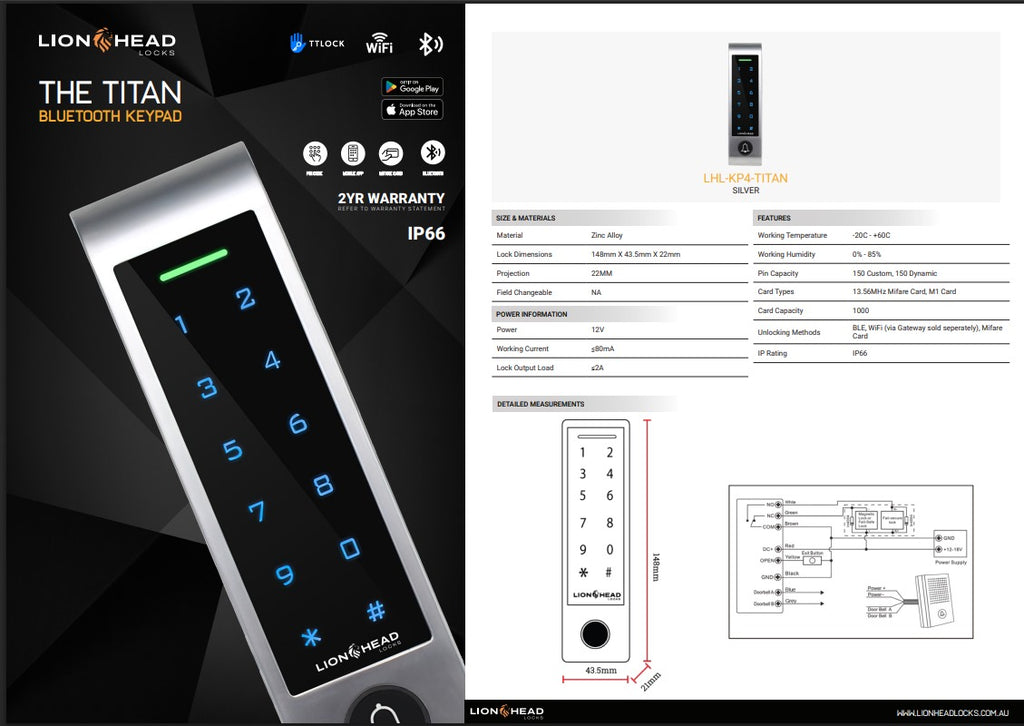

Detailed Specifications
-
Product Code: LHL-KP4-TITAN
-
Material: Zinc Alloy
-
Color: Metallic Grey/Black
-
Dimensions: 148mm (H) × 43.5mm (W) × 22mm (D)
-
Projection: 22mm
-
Working Voltage: 12V DC
-
Working Current: <80mA
-
Lock Output Load: <2A
-
Operating Temperature: –20°C to +60°C
-
Humidity Range: 0% – 85% RH
-
IP Rating: IP66 (Dustproof and Waterproof)
-
Unlocking Methods:
-
BLE (Bluetooth Low Energy via TTLock)
-
Wi-Fi (via optional gateway)
-
13.56MHz Mifare cards (M1-compatible)
-
PIN codes (custom and dynamic)
-
User Capacity:
-
1,000 cards
-
150 custom PINs
-
150 dynamic PINs
-
Mobile App: TTLock (iOS & Android)
Warranty & Support
Brand Overview
Lionhead Locks is a trusted provider of digital and mechanical security hardware built for Australian and New Zealand conditions. Their smart keypads, cabinet locks, and access solutions are designed to deliver long-term performance, intuitive use, and seamless integration with mobile platforms and automation systems.
Practical Use Scenarios
-
Residential Gates & Pedestrian Entrances – Secure external access with remote control and code scheduling
-
Commercial Entry Points – Grant flexible access to staff, contractors, or tenants
-
Multi-Tenant Properties – Issue dynamic PINs or Bluetooth access for short-term users
-
Warehouses & Utility Rooms – Robust security for industrial and storage areas
-
Retail Staff Entrances – Control and track staff access with audit logs via the app
Excellence for the Australian and New Zealand Market
The LHL-KP4-TITAN keypad is engineered with local weather extremes, access control norms, and installation preferences in mind. Its IP66-rated housing, 12V power compatibility, and compact dimensions make it suitable for external walls, gates, and commercial entries common in ANZ architecture. Distributed by authorized local partners, this keypad comes with regional warranty support, spare parts availability, and full integration with the TTLock ecosystem, ensuring seamless adoption across projects in Australia and New Zealand.
Frequently Asked Questions (FAQs) — LHL-KP4-TITAN
Q: What are the supported unlocking methods on the LHL-KP4-TITAN?
A: The TITAN keypad supports Bluetooth (BLE), Mifare 13.56MHz cards, custom/dynamic PIN codes, and optional Wi-Fi unlocking via a separate TTLock gateway.
Q: Is the keypad suitable for outdoor use?
A: Yes, the keypad is IP66-rated, making it resistant to dust and water—ideal for outdoor installations.
Q: Can the TITAN be powered by batteries?
A: No, the TITAN is powered by a 12V DC connection only, making it suitable for wired systems.
Q: How many users can the keypad support?
A: It can store up to 1,000 Mifare cards, 150 custom PINs, and 150 dynamic PINs—suitable for large or multi-user applications.
Q: Is the LHL-KP4-TITAN compatible with Australian and New Zealand installations?
A: Absolutely. The product is designed for ANZ environments, and supported by local distributors for warranty and compliance.
