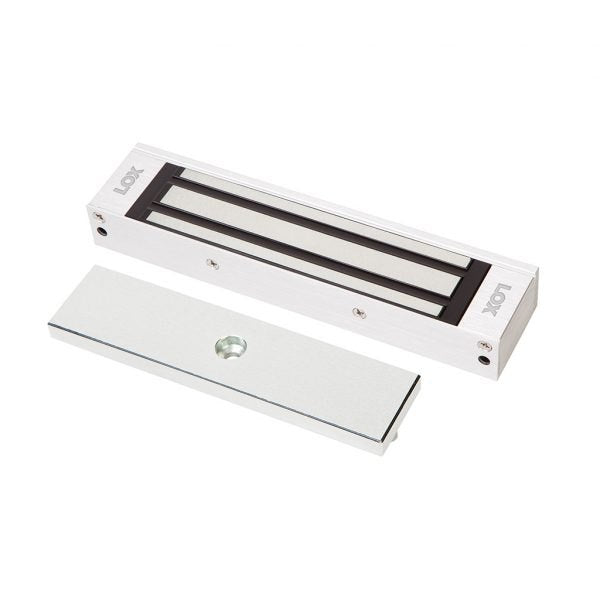

The LOX CCW30S Electro Magnetic Mini Lock is purpose-built for securing hinged doors on lockers, cabinets, and other small access points where a compact yet powerful locking solution is required. With a holding force of up to 180kg, this lock provides exceptional security while maintaining a slim, unobtrusive profile.
Engineered for reliable performance, the CCW30S operates on dual voltage (12VDC and 24VDC) and features low current consumption, making it easy to integrate into a wide range of security systems. Certified to CE & C-Tick standards, it is a robust choice for both residential and commercial installations.
What's Included in the Box
-
1 × LOX CCW30S Single Electro Magnetic Mini Lock (Non Monitored)
-
Mounting hardware (screws and fixings)
-
Installation instructions
Main Features
-
Compact size suitable for cabinets, lockers, and small doors
-
Strong holding force up to 180kg
-
Dual voltage operation (12VDC / 24VDC)
-
Low current consumption for energy efficiency
-
CE & C-Tick certified
-
Reliable performance in a range of environments
Detailed Specifications
| Specification |
Details |
| Model Number |
CCW30S |
| Lock Type |
Single Electro Magnetic Mini Lock – Non Monitored |
| Holding Force |
Up to 180kg |
| Voltage / Current |
12VDC = 360mA, 24VDC = 180mA |
| Voltage Range |
Dual voltage 12VDC / 24VDC |
| Monitoring |
None |
| Environmental |
Operational temperature -20°C to +60°C |
| Warranty |
Manufacturer’s Warranty Applied |
| Approvals |
CE & C-Tick |
Warranty Information
Manufacturer’s Warranty Applied
Brand Description
LOX Locking Pty Ltd delivers premium-quality electromagnetic locking solutions designed for performance, security, and durability in diverse applications.
SKU
CCW30S
Practical Use Scenarios
-
Cabinet security in retail, office, or industrial settings
-
Locker locking in gyms, schools, or staff rooms
-
Small door security in medical and commercial facilities
-
Tool and equipment storage solutions
Datasheets / Downloadable Resources
FAQs
Q: How strong is the LOX CCW30S?
A: It provides up to 180kg of holding force for small to medium access points. (SKU: CCW30S)
Q: Does the CCW30S include monitoring?
A: No, this is a non-monitored model. (SKU: CCW30S)
Q: Can the CCW30S run on both 12V and 24V?
A: Yes, it supports dual voltage operation. (SKU: CCW30S)
Q: Where can the CCW30S be used?
A: It’s suitable for lockers, cabinets, and small hinged doors. (SKU: CCW30S)
