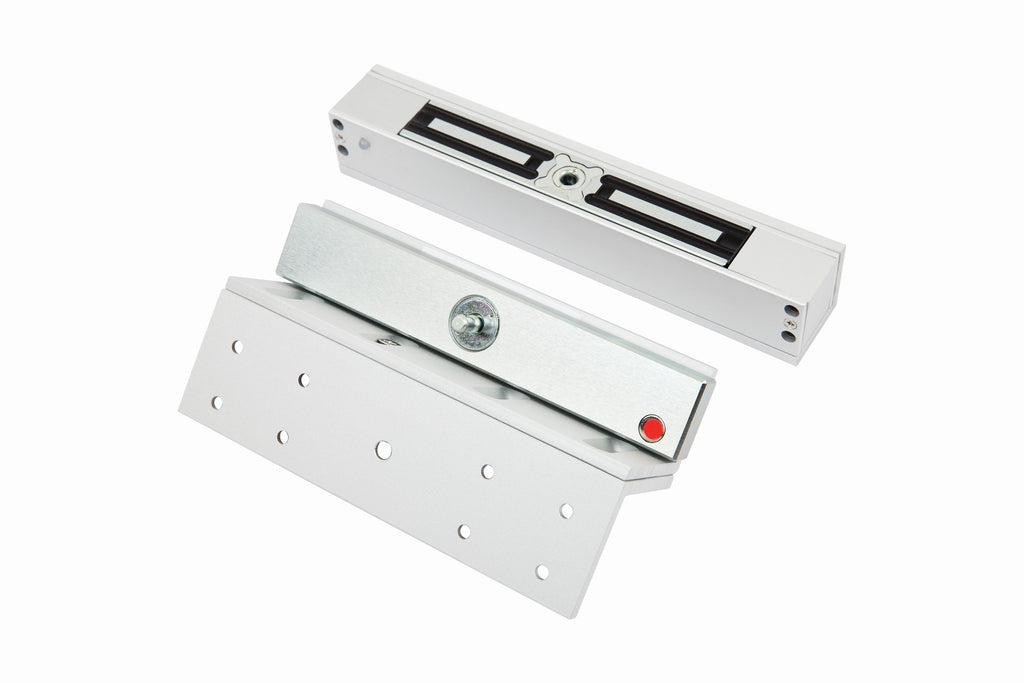

The LOX MML2400LZ is a fully monitored Mechanical Magnetic Lock engineered for inward opening doors. Combining magnetic and mechanical locking components, it delivers exceptional holding strength of up to 1000kg—significantly stronger and more compact than traditional 600kg electro magnetic locks, while being 50% smaller.
Designed for high-security environments, the MML2400LZ can withstand 70kg of side pressure (pre-load) and features an Early Warning Alarm (EW) for enhanced intrusion detection. It is fully monitored with Lock Status Sensor (LSS) and Door Status Sensor (DSS), and includes a discreet LED status indicator for clear locked/unlocked visibility.
The MML2400LZ is recommended for doors up to 2400mm in height and is ideal for installations demanding maximum security, durability, and reliability.
What's Included in the Box
Main Features
-
Designed for inward opening single doors
-
Superior 1000kg holding force (tested to 750,000 cycles)
-
50% smaller than standard 600kg electro magnetic locks
-
Handles 70kg side pressure (pre-load) with ease
-
Early Warning Security Alarm (EW)
-
Dual voltage 12/24VDC operation
-
Full monitoring – LSS (Hall Effect) & DSS (Reed Switch)
-
LED light status indicator
-
Up to 4 hour fire rating to A.S Standard
-
CE and C-Tick approvals
-
Operational temperature range: -20°C to +60°C
Specifications
| Specification |
Details |
| Model Number |
MML2400LZ |
| Product Type |
Mechanical Magnetic Lock – Inward Opening |
| Holding Strength |
Up to 1000kg |
| Voltage/Current |
12VDC = 350mA, 24VDC = 175mA |
| Monitoring |
LSS (Hall Effect), DSS (Reed Switch) |
| LED Indicator |
Yes |
| Environmental |
-20°C to +60°C |
| Certifications |
CE, C-Tick, 4 Hour Fire Rated |
| Warranty |
5 years (1 year for electrical components) |
Practical Use Scenarios
-
High-security inward opening office entry doors
-
Government and military facilities
-
Data centres and critical infrastructure rooms
-
Commercial retail security entrances
Datasheet / Downloadable Resources
📄 Datasheet: Download MML2400LZ Technical Datasheet (PDF)
Excellence for the Australian and New Zealand Market
The MML2400LZ is engineered to meet strict Australian quality and safety standards. It is sourced exclusively from authorised LOX distributors and designed to handle the harsh environmental conditions common in Australia and New Zealand. All warranty claims are processed directly with LOX for streamlined service and support.
FAQs
Q1: What is the holding strength of the LOX MML2400LZ? (SKU: MML2400LZ)
A1: The MML2400LZ offers a holding strength of up to 1000kg, tested to 750,000 cycles.
Q2: Is the LOX MML2400LZ suitable for all door types? (SKU: MML2400LZ)
A2: This model is designed specifically for inward opening single doors and is not recommended for doors over 2400mm in height.
Q3: Does the LOX MML2400LZ have monitoring capabilities? (SKU: MML2400LZ)
A3: Yes, it features both Lock Status Sensor (LSS) and Door Status Sensor (DSS) for full monitoring.
Q4: What voltage does the LOX MML2400LZ operate on? (SKU: MML2400LZ)
A4: It supports dual voltage—12VDC at 350mA and 24VDC at 175mA.
