The MERCUSYS MB130-4G delivers high-performance wireless connectivity wherever you go, with 4G LTE download speeds up to 150 Mbps. Designed for flexible internet access in homes, small offices, caravans, or rural setups, this plug-and-play LTE router supports Nano SIM cards with no configuration required.
Enjoy smooth online experiences with dual-band AC1200 Wi-Fi, offering up to 867 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, while supporting up to 32 simultaneous Wi-Fi connections. Two external 4G/3G antenna ports allow for signal enhancement in weak coverage areas, and the built-in WiFi router mode lets you switch to Ethernet WAN when needed.
Compact, efficient, and reliable, the MB130-4G is your go-to 4G internet gateway.
What's Included in the Box
Main Features
-
✅ 4G LTE Speeds up to 150 Mbps – Seamless streaming, downloads, and browsing
-
✅ Dual Band AC1200 Wi-Fi – 867 Mbps on 5 GHz + 300 Mbps on 2.4 GHz
-
✅ Connects up to 32 Devices – Ideal for home and small business setups
-

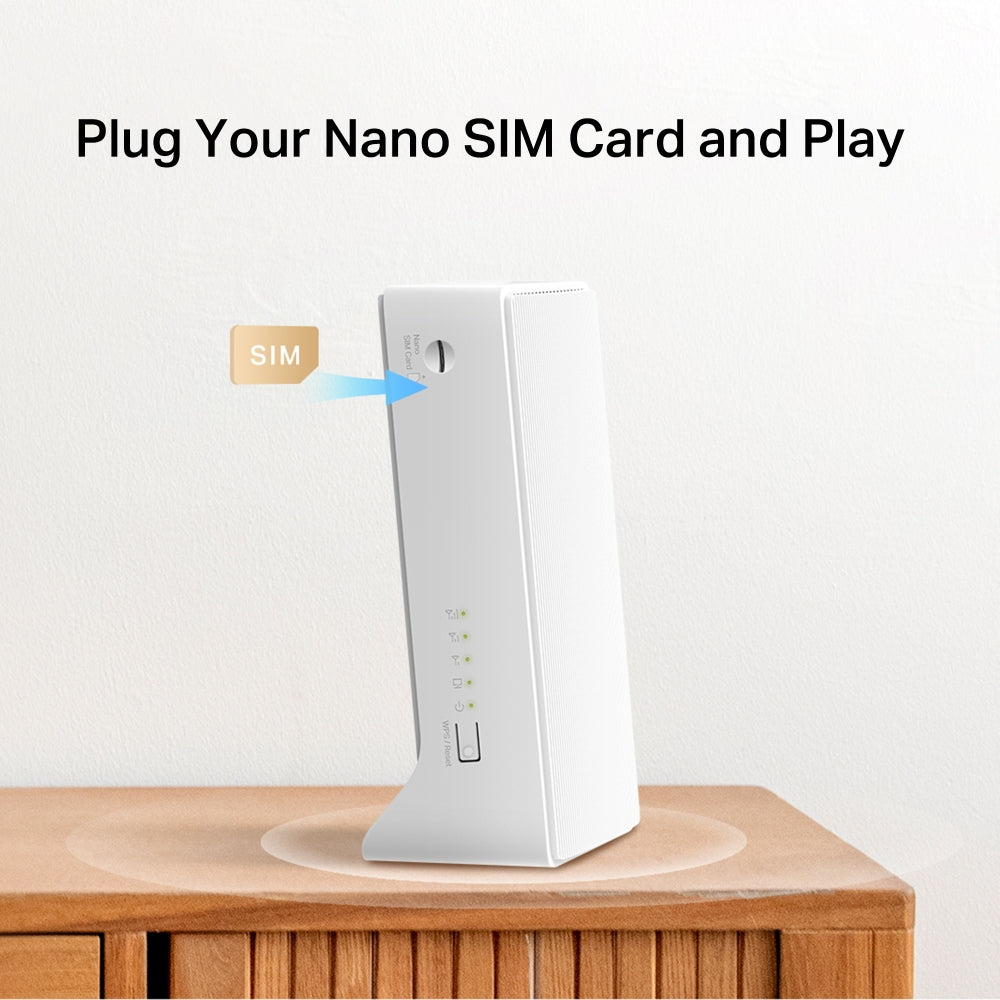

✅ Plug & Play Nano SIM Support – No configuration needed
-
✅ External Antenna Ports – Strengthen 4G/3G reception with add-on antennas
-
✅ Router Mode Support – Use WAN port for wired broadband fallback
-
✅ Advanced Wireless Security – WPA-PSK / WPA2-PSK protection
Detailed Specifications
Wireless Standards
WiFi Speeds
-
5 GHz: Up to 867 Mbps
-
2.4 GHz: Up to 300 Mbps
Reception Sensitivity
-
11g 54M: -74 dBm
-
11n HT20: -71 dBm
-
11n HT40: -68 dBm
Transmission Power
Wireless Security
-
WPA-PSK / WPA2-PSK
-
Wireless Scheduling, Enable/Disable, WMM
-
Wireless Statistics Monitoring
Hardware Overview
Mobile Network Compatibility (EU Version)
-
FDD-LTE: B1, B3, B5, B7, B8, B20, B28 (2100/1800/850/2600/900/800/700 MHz)
-
TDD-LTE: B38, B40 (2600/2300 MHz)
-
HSPA+/UMTS: B1, B5, B8 (2100/850/900 MHz)
Software Features
Warranty Information
Manufactures warrenty applied .
Brand Description
MERCUSYS is dedicated to delivering high-quality and cost-effective networking solutions. From compact LTE routers to powerful mesh Wi-Fi systems, MERCUSYS ensures that you stay connected in any environment.
SKU
MB130-4G
Practical Use Scenarios
-
🏡 Remote Homes – Stable 4G internet where NBN isn't available
-
🧳 Travel and Caravans – Stay online on the move with Nano SIM support
-
🏢 Backup for Office Internet – Ensure business continuity during outages
-
🚧 Construction Sites – Instant connectivity with 4G LTE
-
📡 Signal Enhancement – Add external antennas for better coverage in weak areas
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
The MB130-4G is tailored for Australian and New Zealand LTE networks, fully compatible with carriers like Telstra, Vodafone, Optus, Spark, 2degrees, and One NZ. It is certified for regional bands, sourced through authorized local distribution channels, and supported by in-region warranty service. Quality assurance meets the standards of both the Australian Communications and Media Authority (ACMA) and New Zealand’s Radio Spectrum Management (RSM).
FAQs
Q1: Does the MB130-4G router work with Australian SIM cards like Telstra or Optus? (MB130-4G)
Yes, the MB130-4G is compatible with major carriers in Australia, including Telstra, Optus, and Vodafone, using common LTE bands such as B3, B7, and B28.
Q2: How many Wi-Fi devices can the MB130-4G support at once? (MB130-4G)
The router supports up to 32 devices simultaneously, making it ideal for small households, retail stores, or mobile businesses.
Q3: Can I use external antennas with the MB130-4G to boost 4G signal? (MB130-4G)
Yes. The MB130-4G has two external 4G/3G antenna ports for enhanced reception in areas with weak LTE signals.
Q4: Can the MB130-4G function as a standard wireless router with Ethernet? (MB130-4G)
Yes, it features a LAN/WAN port allowing it to operate in Wi-Fi router mode when 4G is not in use.
Q5: Is this router suitable for use in New Zealand with Spark or 2degrees? (MB130-4G)
Absolutely. The MB130-4G supports New Zealand LTE bands including B3 and B28, ensuring full compatibility with Spark, One NZ (Vodafone NZ), and 2degrees.
