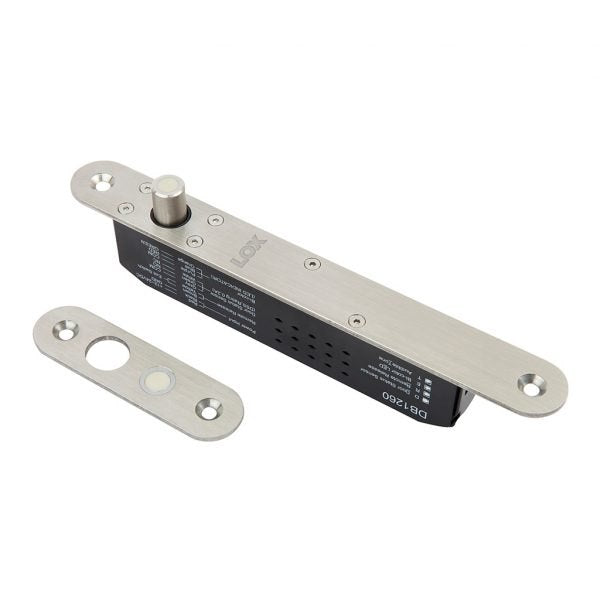

The LOX DB1260PTO Electric Drop Bolt is designed for high-security applications on double-action (swing-through) doors or as a secondary locking device when paired with an electric strike on single-door setups. With its 25mm narrow faceplate, it is perfect for narrow-style frame installations, including glass doors with the appropriate mounting accessories.
Operating in Power to Open configuration (Fail Secure), the lock remains secure when unpowered, ensuring maximum protection in the event of power loss. It delivers up to 300 kg holding strength, tested to 400,000 cycles, and comes equipped with a Door Status Sensor (DSS) for real-time monitoring. Fully certified, it offers up to 4-hour fire rating to Australian Standards and holds CE & C-Tick approvals.
Not recommended for use on emergency egress doors.
What’s Included in the Box
-
LOX DB1260PTO Mortise Mount Electric Drop Bolt (Fail Secure)
-
Faceplate and mounting accessories
-
Door Status Sensor (Reed Switch)
-
Manufacturer’s Warranty Applied
Main Features
-
Mortise mount electric drop bolt for narrow-style frames
-
Suitable for double-action doors or as additional security for single doors
-
Power to Open (Fail Secure) configuration
-
Dual voltage: 12 VDC or 24 VDC
-
Strong holding force: up to 300 kg, tested to 400,000 cycles
-
Door Status Sensor (DSS) for monitoring
-
Fire-rated: up to 4 hours to Australian Standards
-
Certified to CE & C-Tick standards
-
Operational temperature range: -20°C to 60°C
Detailed Specifications
| Specification |
Details |
| Product Code (SKU) |
DB1260PTO |
| Mounting Type |
Mortise mount |
| Faceplate Width |
25 mm |
| Holding Strength |
Up to 300 kg |
| Voltage / Current |
12VDC = 530 mA / 24VDC = 260 mA |
| Configuration |
Power to Open (Fail Secure) |
| Monitoring |
Door Status Sensor (Reed Switch) |
| Fire Rating |
Up to 4 hours to Australian Standards |
| Certifications |
CE, C-Tick |
| Tested Lifespan |
400,000 cycles |
| Operating Temperature |
-20°C to 60°C |
| Warranty |
Manufacturer’s Warranty Applied |
Warranty Information
Manufacturer’s Warranty Applied – covers manufacturing defects and operational reliability, backed by authorized LOX representatives.
Brand Description
LOX Locking provides advanced electromechanical locking solutions that meet stringent Australian and New Zealand standards for safety, durability, and performance.
Practical Use Scenarios
-
Financial Institutions: Maximum security for restricted-access doors.
-
Corporate Offices: Secondary lock for sensitive meeting rooms or server areas.
-
Retail Security: Enhanced locking for storerooms and high-value stock areas.
-
Institutional Facilities: Secure internal areas while maintaining monitoring capabilities.
Datasheets / Downloads
LOX DB1260PTO
Excellence for the Australian and New Zealand Market
The LOX DB1260PTO is fire-rated and fully certified, ensuring compliance with Australian building and safety codes. Exclusively sourced from authorized representatives, it guarantees authentic performance with warranty claims processed directly through LOX.
FAQs (Product Code: DB1260PTO)
-
What is the holding strength of the DB1260PTO?
It provides up to 300 kg of holding force and is tested to 400,000 cycles.
-
Is the DB1260PTO Fail Safe or Fail Secure?
This model is Power to Open – Fail Secure.
-
What type of doors is the DB1260PTO suitable for?
It’s designed for double-action doors or as a secondary lock for single doors.
-
Does the DB1260PTO have monitoring features?
Yes, it includes a Door Status Sensor (DSS).
-
Is the DB1260PTO fire rated?
Yes, it is up to 4-hour fire rated to Australian Standards and certified to CE & C-Tick.
