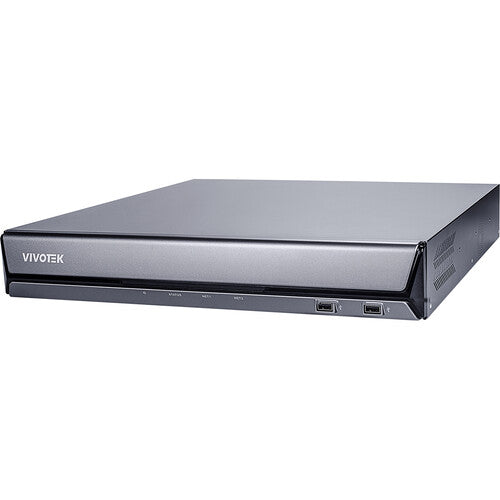

The VIVOTEK ND9542P Core+ AI 32-Channel NVR is a high-performance network video recorder designed for scalable, intelligent surveillance systems. Equipped with 16 embedded PoE ports, support for up to 32 channels, and powerful AI deep search capabilities, this NVR delivers unmatched efficiency in video recording, event management, and data retrieval. Its RAID 0/1/5 support, large HDD capacity, and advanced cybersecurity protection make it an ideal choice for enterprise environments, industrial sites, and large-scale deployments where reliability and data integrity are critical.
What’s in the Box
Main Features
-
32-channel 4K-ready NVR with live and playback viewing
-
Integrated 16-Port PoE (802.3af/at) with 200W total budget
-
Deep Search AI Engine: Detect people, vehicles, clothing, age, colors, accessories, and more
-
Support for RAID 0, 1, and 5 configurations for data redundancy
-
Recording throughput of 192 Mbps with activity-adaptive streaming
-
Dual video streaming and hardware decoding up to 7680x2560
-
4 x 3.5” HDD bays (HDDs sold separately) with advanced disk management and S.M.A.R.T. monitoring
-
Event-triggered recording: motion, tampering, PIR, cyber attacks, and more
-
HDMI and VGA output up to 3840x2160 (HDMI)
-
Powerful event search with timeline, thumbnails, storyboard, and filters
-
Remote access via VSS, VIVOCloud, iViewer, VORTEX (Android & iOS)
-
Hardened with Trend Micro IoT Security and cybersecurity management
Detailed Specifications
Model: ND9542P
Operating System: Embedded Linux
Video Outputs: HDMI x1 (3840x2160), VGA x1 (1920x1080)
PoE Ports: 16x (802.3af/at), Max 200W Total
Supported Channels: Up to 32 IP Channels
Display Layouts: 1x1, 2x2, 3x3, 4x4, 1M+5, 1M+31, and more
Decoding Capability: 4K @ 90fps, 1080p @ 360fps
Video Compression: H.265, H.264, MJPEG
HDD Capacity: Up to 4x 3.5” SATA drives
RAID Support: RAID 0, 1, 5
USB Ports: 2x USB 2.0 (front), 1x USB 3.0 (rear)
Audio I/O: 1x Audio Out, 1x Audio In (Reserved)
Alarm I/O: 16 In / 8 Out
RS485 Port: 1 (Reserved)
Network: 2x RJ-45 (10/100/1000 Mbps), 224 Mbps throughput
Operating Temperature: -10°C ~ 55°C
Power Input: 100-240V AC, 50/60Hz
Power Consumption: Max 300W
Dimensions: 432 (W) x 421 (D) x 66 (H) mm
Weight: 4.6 kg (without HDDs)
Certifications: CE, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
Browser Support: Chrome
Language Support: English, French, Spanish, Arabic, Simplified/Traditional Chinese, and more
Warranty Information
Brand Information
VIVOTEK Inc. is a globally trusted surveillance solutions provider, offering cutting-edge IP cameras, network video recorders, and AI-driven analytics. Their solutions are renowned for reliability, intelligence, and strong cybersecurity integration, used in governments, smart cities, enterprises, and critical infrastructure worldwide.
SKU: ND9542P
Practical Use Scenarios
-
Corporate Headquarters & Business Parks: Cover wide areas and entry points across multiple buildings with centralized storage and event analytics.
-
Transport Hubs & Public Infrastructure: Monitor movement across train stations, airports, or highways with intelligent people and vehicle detection.
-
Warehouses & Logistics Facilities: Prevent losses by tracking assets, personnel, and vehicle movement with deep AI search and playback filters.
-
Universities & Schools: Secure campuses with comprehensive multi-channel monitoring and AI-based threat detection.
-
Government Buildings & Councils: Enhance public safety with real-time alerts, automated incident capture, and redundant storage.
Datasheets / Downloadable Resources
Excellence for the Australian and New Zealand Market
-
Certified with C-Tick, UL, CB, and other global standards for safe operation within Australia and New Zealand
-
Specifically optimized for ANZ climate conditions and electrical systems
-
Distributed exclusively through authorized ANZ representatives
-
Manufacturer’s warranty support managed locally for rapid issue resolution
-
Compatible with NDSS-compliant systems, ensuring seamless integration into ANZ commercial and public infrastructure
FAQs – ND9542P
Q1: How many cameras can the ND9542P support simultaneously?
The ND9542P supports up to 32 IP camera channels with live view, recording, and playback.
Q2: Does the ND9542P have RAID support?
Yes, it supports RAID 0, RAID 1, and RAID 5 across four internal SATA HDDs for data protection and redundancy.
Q3: What is the total PoE budget for the ND9542P?
The ND9542P offers 16 PoE ports with a combined maximum power output of 200W.
Q4: Is the ND9542P compatible with third-party cameras?
Yes, the ND9542P complies with ONVIF Profile S, allowing integration with various third-party IP cameras.
Q5: Can I perform AI-based deep search on this device?
Absolutely. The ND9542P supports Deep Search for identifying people, vehicles, clothing, and behavior-based scene activity.
Q6: Can video be exported via USB from the ND9542P?
Yes, video clips and snapshots can be exported using the USB 3.0 port (rear) to FAT-formatted USB drives.
Q7: Is the ND9542P certified for the Australian and New Zealand market?
Yes, it holds C-Tick, UL, BSMI, and other international certifications and is approved for ANZ market standards.
