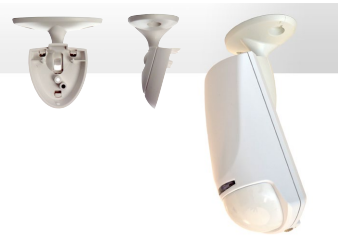

The NESS Universal PIR Mounting Bracket (SKU: NESS-100-243) offers a secure and flexible mounting solution for a wide range of Ness passive infrared (PIR) motion detectors. Designed for both wall and ceiling installation, this bracket features a swivel ball joint for comprehensive horizontal and vertical angle adjustment, ideal for precise sensor positioning.
Its integrated cable management design allows for a clean and concealed cable path, while compatibility with multiple Ness Quantum and X Series models ensures maximum installation flexibility across residential and commercial applications.
What's Included in the Box
-
1 × NESS Universal PIR Mounting Bracket
-
1 × Retaining Clamp
-
1 × Short Self-Tapping Screw
-
2 × Screw Caps for Bracket Concealment
-
1 × Installation Guide
(Note: Mounting screws not included)
Main Features
-
Fully Adjustable Ball Joint – Allows for precision aiming with 360° rotation and vertical tilt.
-
Wall or Ceiling Mountable – Supports various positioning needs for optimal detection coverage.
-
Concealed Cable Entry – Through-bracket design hides cabling for a cleaner installation.
-
Broad Detector Compatibility – Works with most Ness Quantum Series, Lux Hardwired PIRs, and modifiable for Ness X Series sensors.
-
Robust Design – Strong plastic bracket with secure clamp for long-lasting, stable mounting.
-
Easy Installation – Drill template and alignment pins simplify the mounting process.
Detailed Specifications
| Specification |
Detail |
| Product Type |
Universal Mounting Bracket |
| Material |
High-durability plastic |
| Mounting Options |
Wall or ceiling |
| Cable Entry |
Through-bracket (concealed) |
| Adjustment Type |
Ball joint with locking clamp |
| Dimensions |
Template and bracket dimensions available in included documentation |
| Compatible Detectors |
Ness Quantum Series, Lux Hardwired PIRs, and select X Series sensors |
| Part Number |
NESS-100-243 |
Compatibility
-
Direct Compatibility:
-
Ness Quantum-Q (106-079)
-
Ness Quantum-Q QUAD PET (106-259)
-
Ness Lux HW QUAD PIR with Nightlight (106-173)
-
Previous models: Quantum, Quantum+, Quantum Sonic, Quantum Dual
-
With Modification:
-
Ness X Series: XIR100H, QIR100H (Standard), XIR200H, QIR200H (Deluxe), XDT200H, QDT200H-A (Dual Microwave/PIR)
-
Not Compatible:
Warranty Information
The NESS 100-243 Mounting Bracket is backed by a 12-month manufacturer's warranty. It covers material and workmanship defects under normal installation and use conditions. Warranty service is available through authorized Ness Corporation channels.
Brand Description – Ness Corporation
Founded in 1972, Ness Corporation is a leading Australian manufacturer and supplier of security and automation systems. With decades of innovation and local manufacturing experience, Ness delivers reliable, high-performance solutions tailored to the unique demands of the Australian and New Zealand markets.
SKU
NESS-100-243
Practical Use Scenarios
-
Home Security: Angle detectors to optimize motion coverage in hallways or large rooms.
-
Retail/Commercial Sites: Ceiling mount for unobtrusive yet effective surveillance.
-
Retrofit Projects: Easily upgrade older detector installations with adjustable mounting.
-
Pet-Friendly Setup: Fine-tune detector orientation for accurate pet immunity.
-
Warehouses and Garages: Maximize coverage in open or irregularly shaped spaces.
Datasheets & Downloadable Resources
Excellence for the Australian and New Zealand Market
The NESS Universal PIR Mounting Bracket (SKU: NESS-100-243) is specifically engineered for the Australian and New Zealand security industry. Developed by Ness Corporation, this bracket aligns with local installation practices and supports compliance with regional wiring standards. Available exclusively through authorized distributors, it ensures product authenticity and warranty support backed by a trusted Australian manufacturer.
FAQs – NESS Universal PIR Mounting Bracket (SKU: NESS-100-243)
Q1: Which detectors are compatible with the NESS 100-243 bracket (SKU: NESS-100-243)?
A1: It is compatible with Ness Quantum, Lux Hardwired PIRs, and most X Series models with minor modifications.
Q2: Can the NESS 100-243 (SKU: NESS-100-243) be mounted on ceilings?
A2: Yes, it supports both ceiling and wall mounting options with full angle adjustment.
Q3: Does the NESS 100-243 (SKU: NESS-100-243) come with mounting screws?
A3: No, standard wall/ceiling screws must be supplied separately. A self-tapping screw for the retaining clamp is included.
Q4: Is cable entry visible on the NESS 100-243 (SKU: NESS-100-243)?
A4: No, it features concealed through-bracket cable routing for a clean installation.
Q5: Is the NESS 100-243 (SKU: NESS-100-243) compliant with Australian electrical standards?
A5: Yes, it is designed for use in compliance with Australian wiring and installation practices, ensuring safe integration into ANZ security systems.
