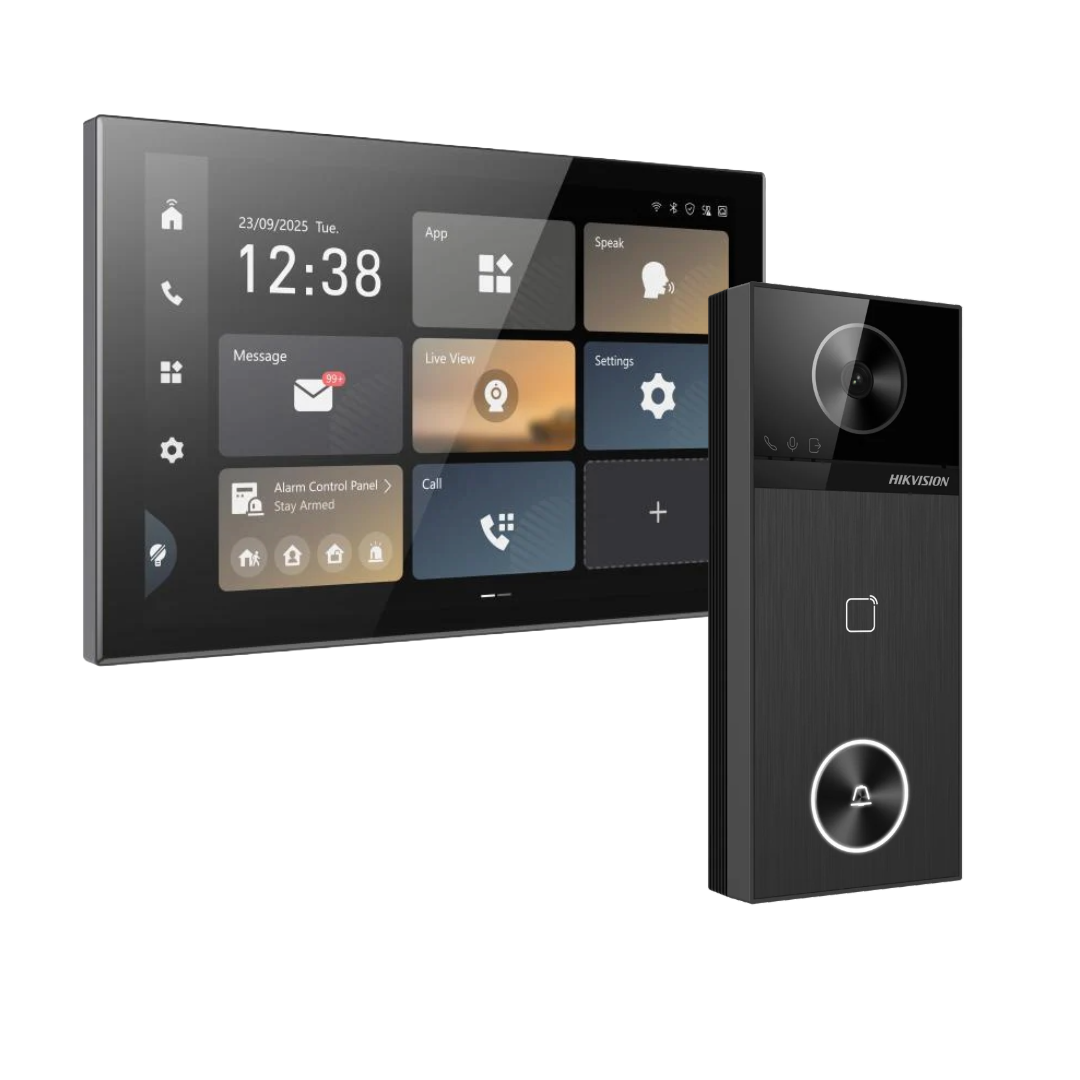

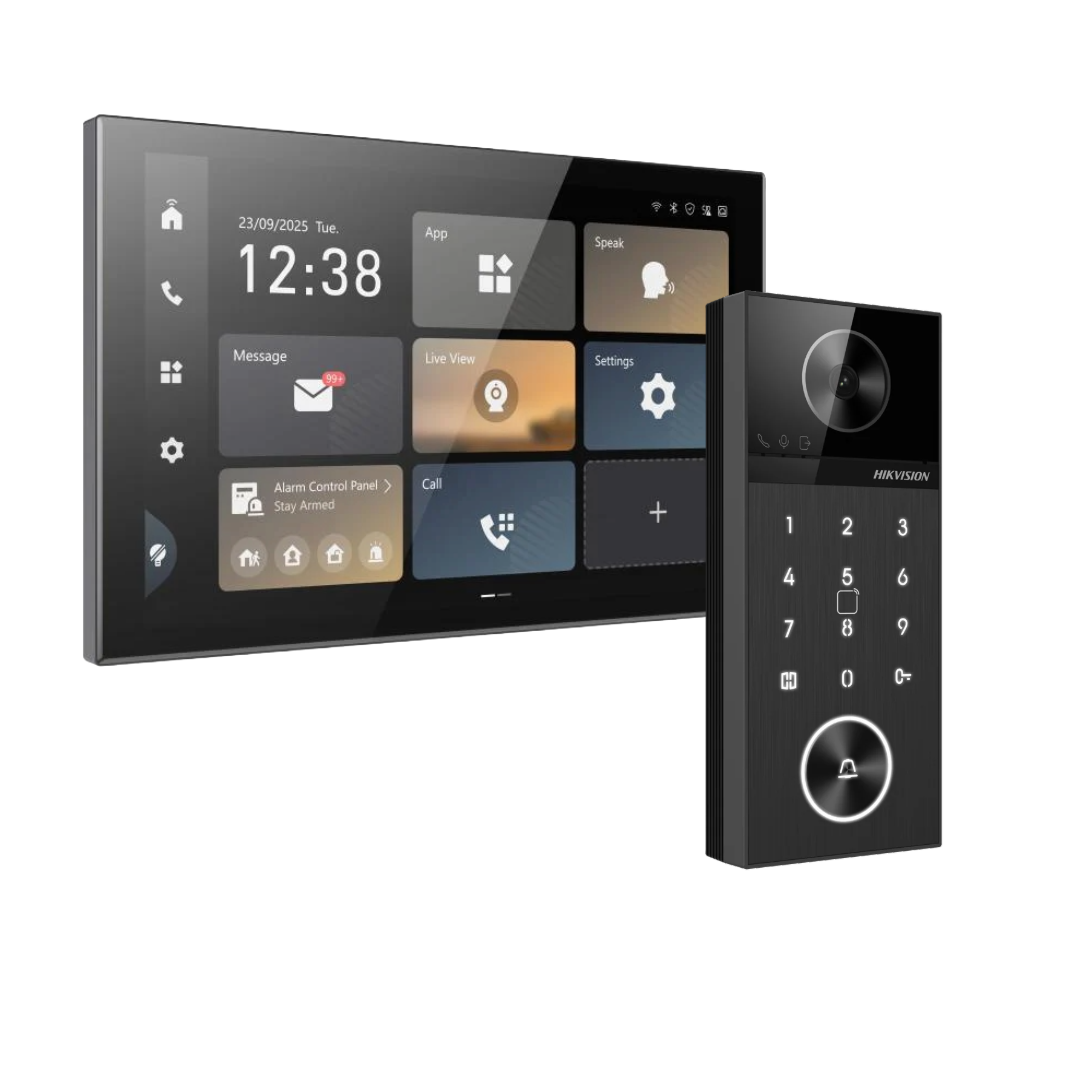

Upgrade residential or light-commercial security with the **Hikvision DS-KH9570-WTE1/S 10.1-inch Android Indoor Intercom Station bundled with a high-performance 4MP Villa Door Station (choose DS-KV6114-WBE1 or DS-KV6124-WBE1). Designed for modern smart access control, this premium IP video intercom kit delivers crystal-clear video, dual-lock control, flexible unlocking methods, and seamless integration with the Hik-Connect ecosystem. Featuring Wi-Fi 6, PoE connectivity, and a wide-angle 150° door camera, it provides convenient remote access, secure visitor verification, and advanced monitoring for homes, villas, and boutique commercial properties across Australia and New Zealand.

This powerful intercom solution combines a large Android-based touch display with intelligent outdoor video access, enabling users to view, communicate, and unlock doors instantly from the indoor station or the Hik-Connect mobile app.

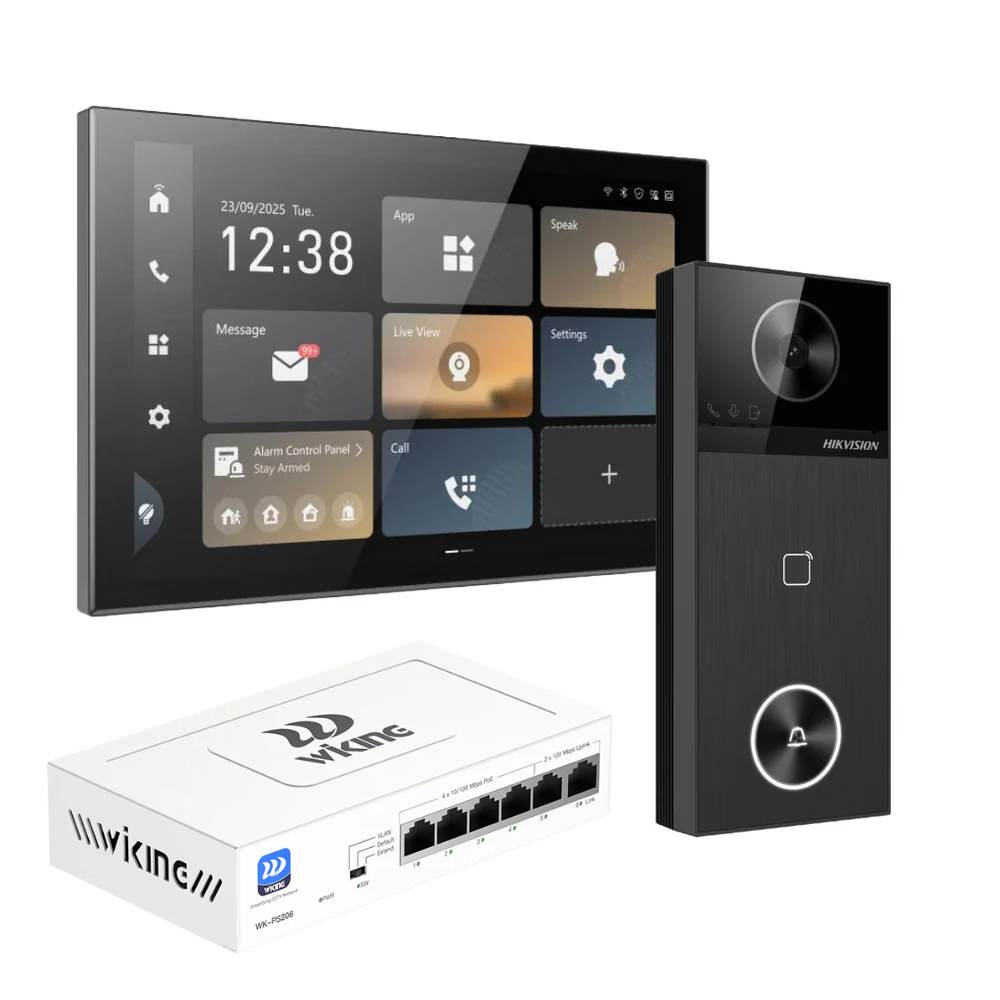

What’s Included in the Box

Indoor Station

• 1 × Hikvision DS-KH9570-WTE1/S 10.1" Android Indoor Video Intercom Station

• 1 × Wall mounting bracket

• Installation screws & hardware

• Wi-TEK PoE Switch with 4 PoE Ports (Optional)

• Quick start guide

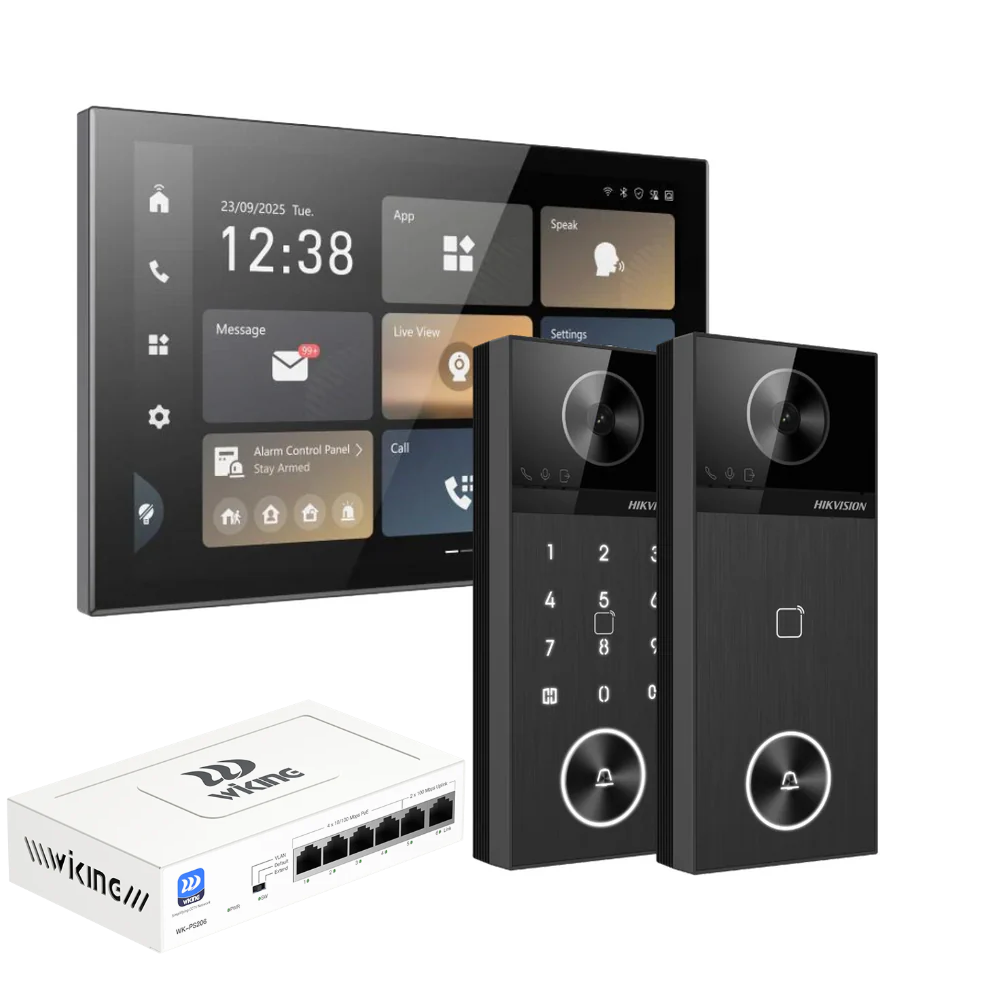

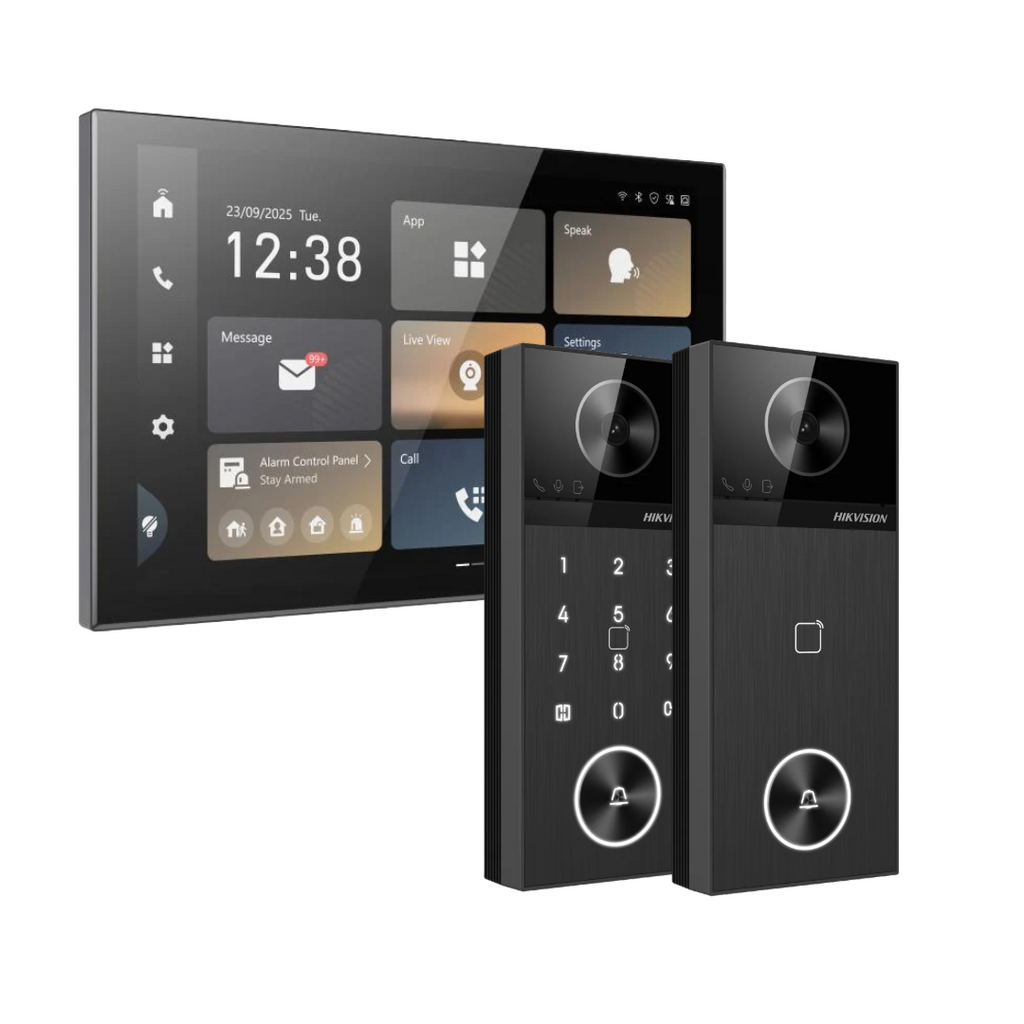

Door Station (Choose One)

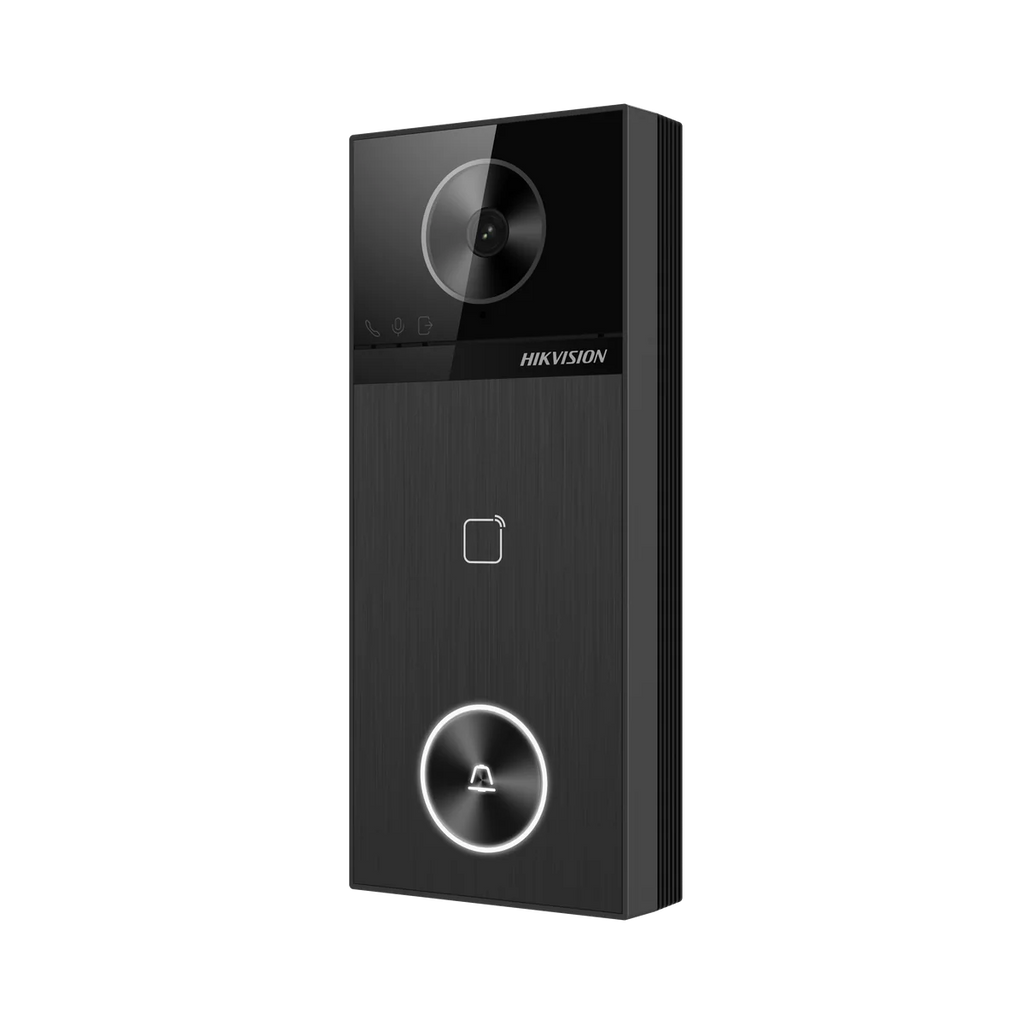

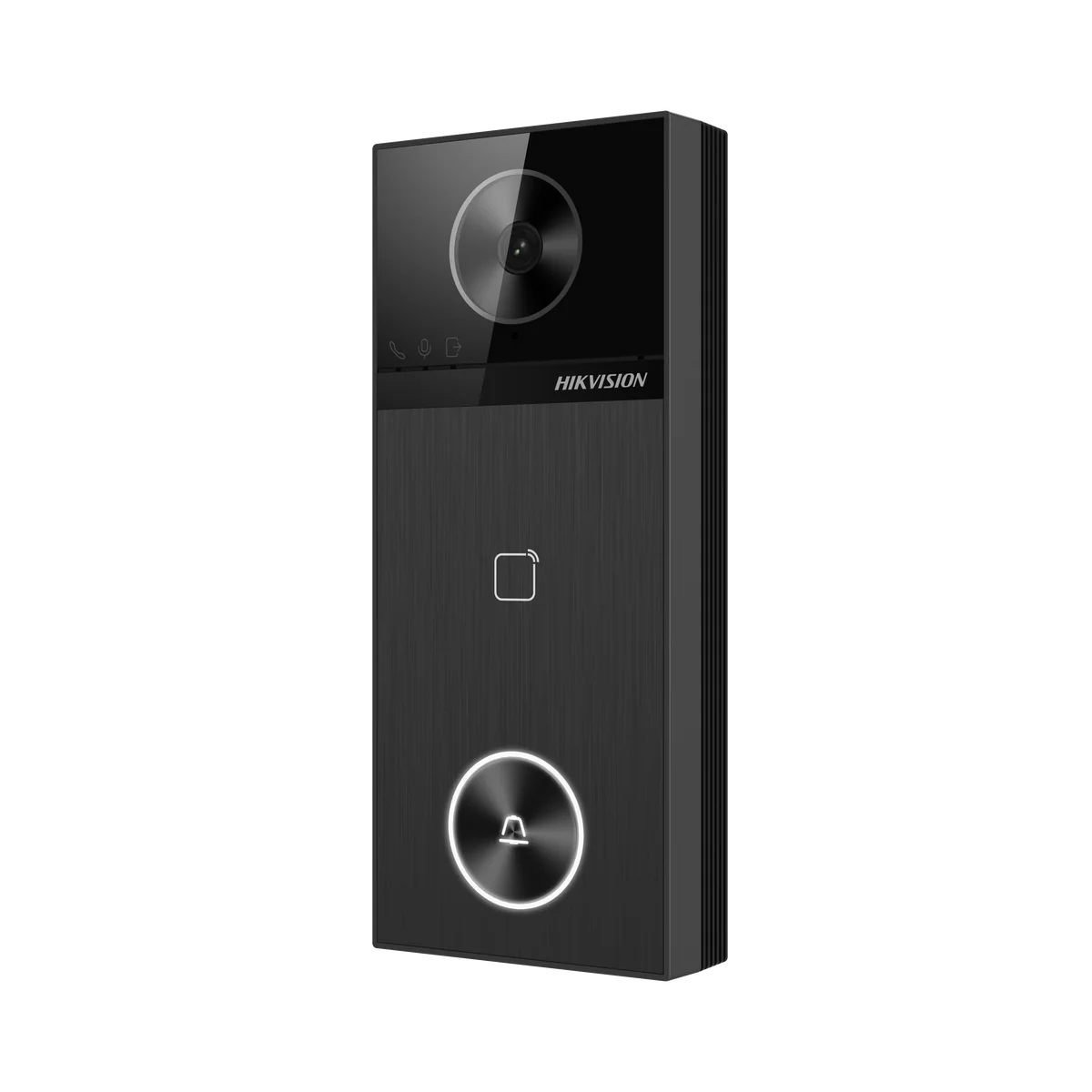

• 1 × DS-KV6114-WBE1 Villa Door Station or

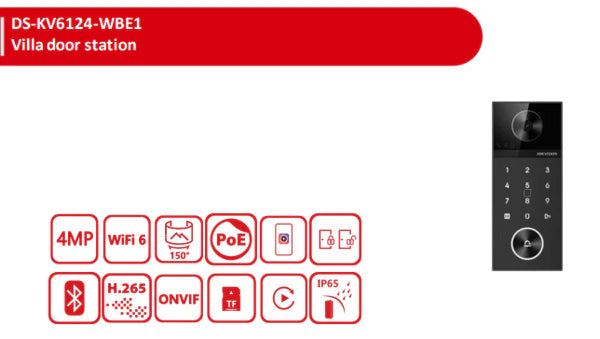

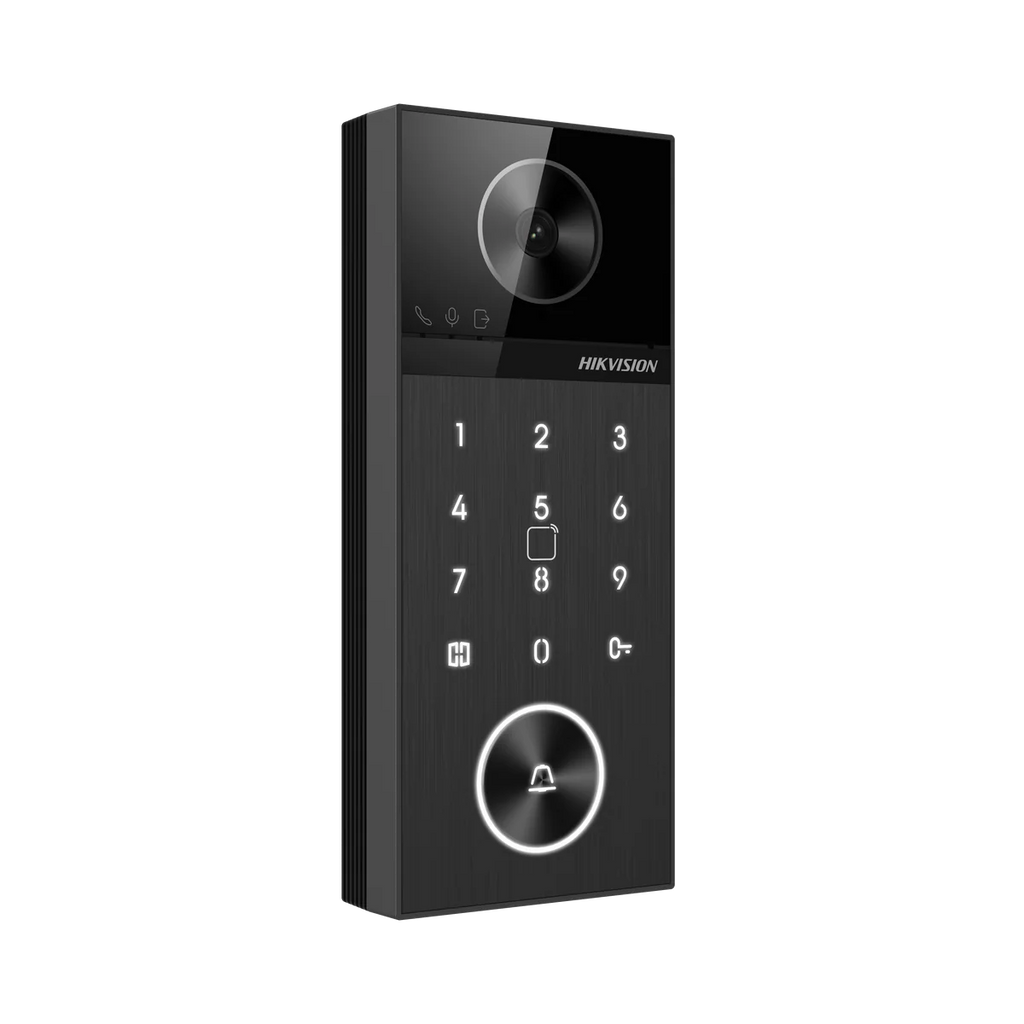

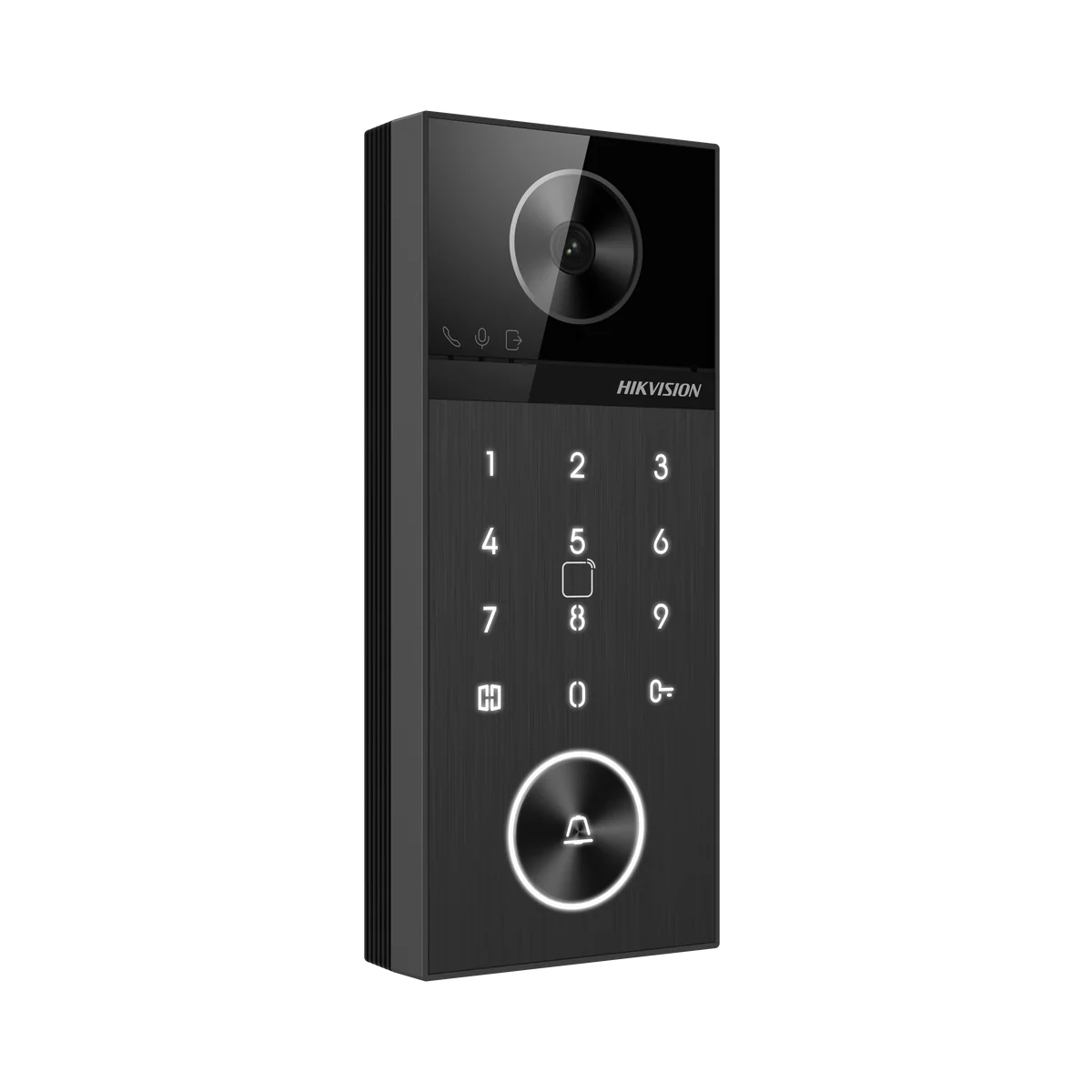

• 1 × DS-KV6124-WBE1 Villa Door Station (with PIN keypad)

Additional Items

• Mounting backplate / bracket for door station

• Installation screws and wall anchors

• Warranty card and installation guide

(Optional accessories such as DS-KABV6114-RS rain shield or DS-KABV24-A mounting bracket may be supplied if ordered.)

Main Features

Premium 10.1" Android Indoor Monitor

• Large 10.1-inch IPS touchscreen with intuitive Android interface

• Wi-Fi 6 and PoE support for flexible networking

• Supports remote control via Hik-Connect mobile app

• Live view, intercom communication, and door unlock functionality

• Integration with Hikvision security ecosystem

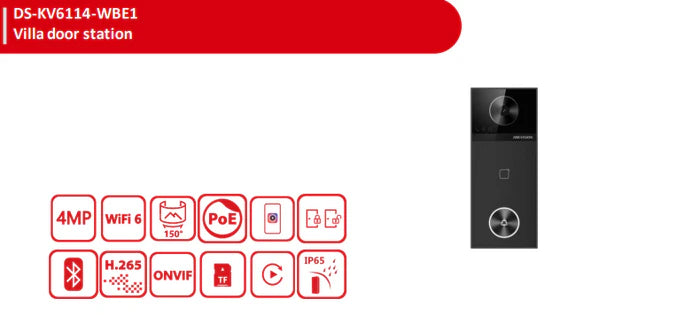

High-Resolution 4MP Villa Door Station

• 4MP camera (2688×1520) providing detailed visitor identification

• 150° wide viewing angle for maximum coverage

• IR illumination for night visibility

• Two-way audio communication

Dual Lock Control

• Supports two separate door locks (max. 30 V DC, 2 A)

• Ideal for gate + door control or multi-entry systems

Flexible Access Methods

• Card authentication (MIFARE)

• Bluetooth unlock via smartphone

• Hik-Connect mobile app unlocking

• Indoor monitor unlock

• DS-KV6124-WBE1 also supports PIN code access

Smart Detection Capabilities

• Sound detection for scream, glass break, or crying alerts

• Recording and playback via Hik-Connect or web interface

Durable Outdoor Construction

• IP65 weatherproof rating

• Operating temperature −40 °C to 60 °C

• Designed for harsh outdoor environments

Door Station Options Comparison

Detailed Specifications

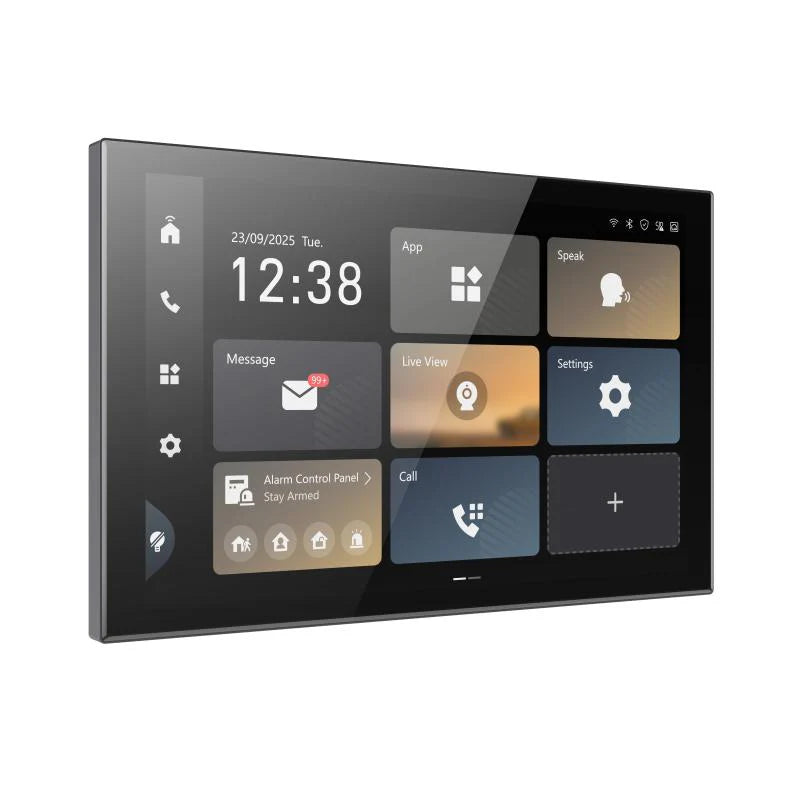

Indoor Station – DS-KH9570-WTE1/S

• Display: 10.1" IPS Touchscreen

• Operating System: Android

• Connectivity: Wi-Fi 6, Ethernet, PoE

• Video: Live view from door station and IP cameras

• Audio: Two-way communication with echo cancellation

• Remote Access: Hik-Connect app

• Installation: Wall mount

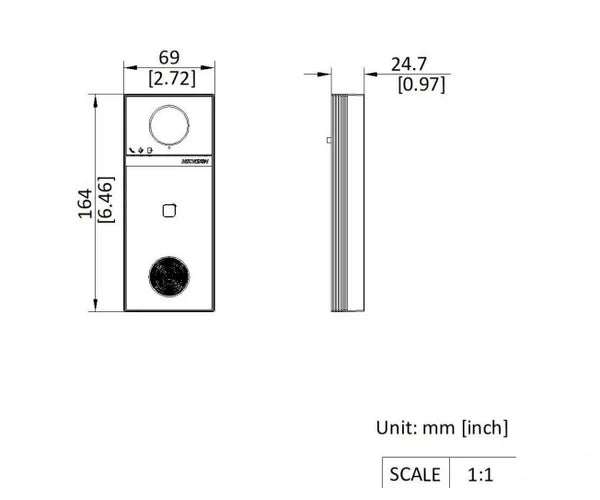

Door Station – DS-KV6114-WBE1 / DS-KV6124-WBE1

• Camera Resolution: 4MP (2688×1520)

• Viewing Angle: 150° horizontal / 75° vertical

• Power Supply: IEEE 802.3at PoE or 12 V DC 1.2 A

• Lock Control: 2 relay outputs (30 V DC, 2 A)

• Card Type: MIFARE

• Audio: Built-in microphone & speaker

• Protection Rating: IP65

• Operating Temperature: −40 °C to 60 °C

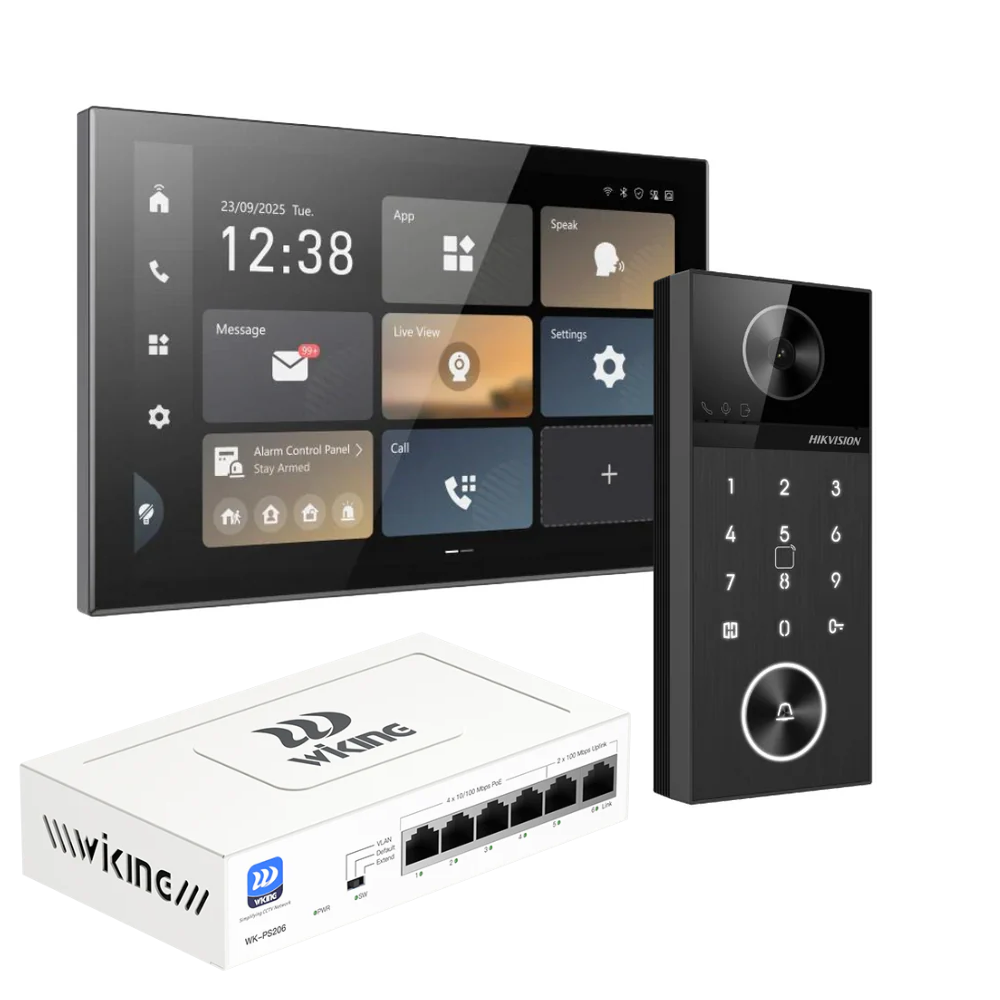

WI-TEK WIKING 4 PORTS POE SWITCH

> 4 x 10/100Mbps PoE Ports, 2 x 10/100Mbps RJ45 Uplink Ports
> Support 250m Extend, Port VLAN, and PD Alive function on DIP Switch
> PD Alive mode detects and reboots unresponsive PoE-powered devices automatically
> Metal housing, fanless design, create a quiet environment
> Plug and play with no configuration required

(36 month Warranty)

Practical Use Scenarios

• Residential homes and villas requiring modern video intercom access

• Gated properties with separate gate and door control

• Small offices or boutique commercial premises needing visitor verification

• Smart home integration with mobile app access

• Remote property monitoring via Hik-Connect

Warranty Information

This product includes a 3 year manufacturer warranty supported through authorized Hikvision distribution channels. Warranty claims and technical support are handled directly with the brand or authorized representatives.

About the Brand

Hikvision is a global leader in intelligent video surveillance, security systems, and AI-powered monitoring technologies. Known for innovation, reliability, and enterprise-grade engineering, Hikvision solutions are widely deployed across residential, commercial, and industrial environments worldwide.

SKU

GL-HK-INT-KH9570-KV61KIT

Datasheets & Resources

• Datasheet  - KV6124

• Datasheet - KV6114

• Display -

• Product Datasheet

• Installation Guide

Excellence for the Australian and New Zealand Market

This Hikvision intercom kit is carefully sourced for the Australian and New Zealand market, ensuring compatibility with local networking standards and security requirements. Products are supplied exclusively through authorized brand representatives, guaranteeing authenticity and manufacturer warranty coverage. The system is optimized for reliable operation in Australian climates and supports modern smart-security expectations for residential and commercial installations. Warranty assistance and technical support are handled through direct communication with authorized distribution channels.

FAQs

What is included in the Hikvision DS-KH9570-WTE1/S intercom kit (GL-HK-INT-KH9570-KV61KIT)?

The kit includes the DS-KH9570-WTE1/S indoor station plus either the DS-KV6114-WBE1 or DS-KV6124-WBE1 villa door station, mounting accessories, installation hardware, and documentation.

Does the GL-HK-INT-KH9570-KV61KIT support remote unlocking?

Yes. The Hikvision intercom kit GL-HK-INT-KH9570-KV61KIT supports remote unlocking through the Hik-Connect mobile app, indoor monitor controls, and other supported authentication methods.

What is the difference between DS-KV6114-WBE1 and DS-KV6124-WBE1 in the GL-HK-INT-KH9570-KV61KIT?

Both door stations provide 4MP video and dual lock control, but the DS-KV6124-WBE1 in the GL-HK-INT-KH9570-KV61KIT adds PIN code keypad access for additional unlocking flexibility.

Can the GL-HK-INT-KH9570-KV61KIT control two doors or locks?

Yes. The Hikvision GL-HK-INT-KH9570-KV61KIT supports dual relay outputs, allowing control of two separate locks such as a front gate and main door.

Is the GL-HK-INT-KH9570-KV61KIT suitable for outdoor environments?

Yes. The door stations in the GL-HK-INT-KH9570-KV61KIT feature an IP65 weatherproof rating and operate in temperatures from −40 °C to 60 °C.
