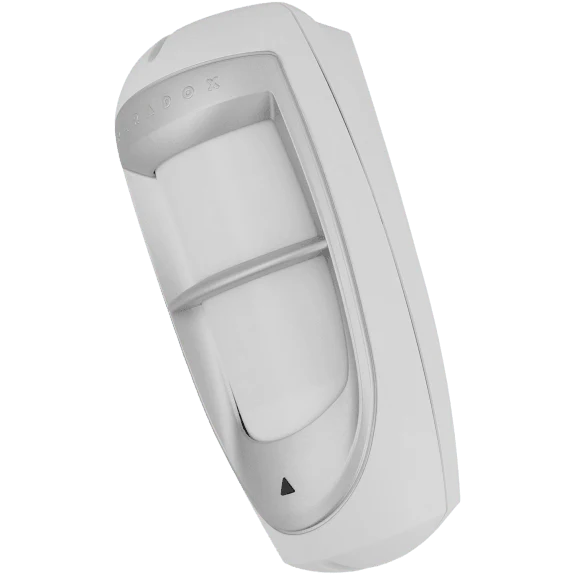

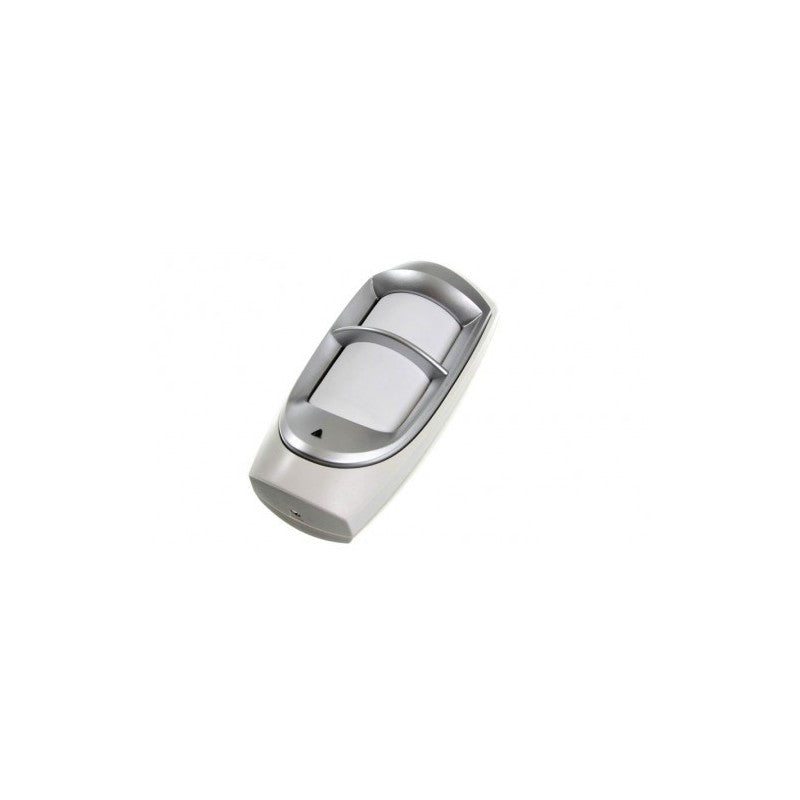

The Paradox PDX-DG85 Outdoor Quad Element PIR motion detector is a high-performance digital security solution, designed for robust outdoor use. With advanced features including pet immunity and dual optics, it delivers superior reliability, even in challenging environments. This model integrates seamlessly into security systems via EVO Bus or Relay operation and is ideal for both residential and commercial installations.

Key Features

• Impact, UV, and Weather Resistant

  • Built for outdoor use with a durable casing that withstands extreme temperatures from -35°C to 50°C.
  • UV-protected lens ensures long-lasting performance under sunlight exposure.

• Patented Digital Motion Detection Technology

  • Offers unparalleled accuracy, minimizing false alarms.
  • Dual optical filtering system enhances reliability and detection precision.

• Dual Optics and Detection Modes

  • Equipped with two dual-opposed element sensors for comprehensive coverage.

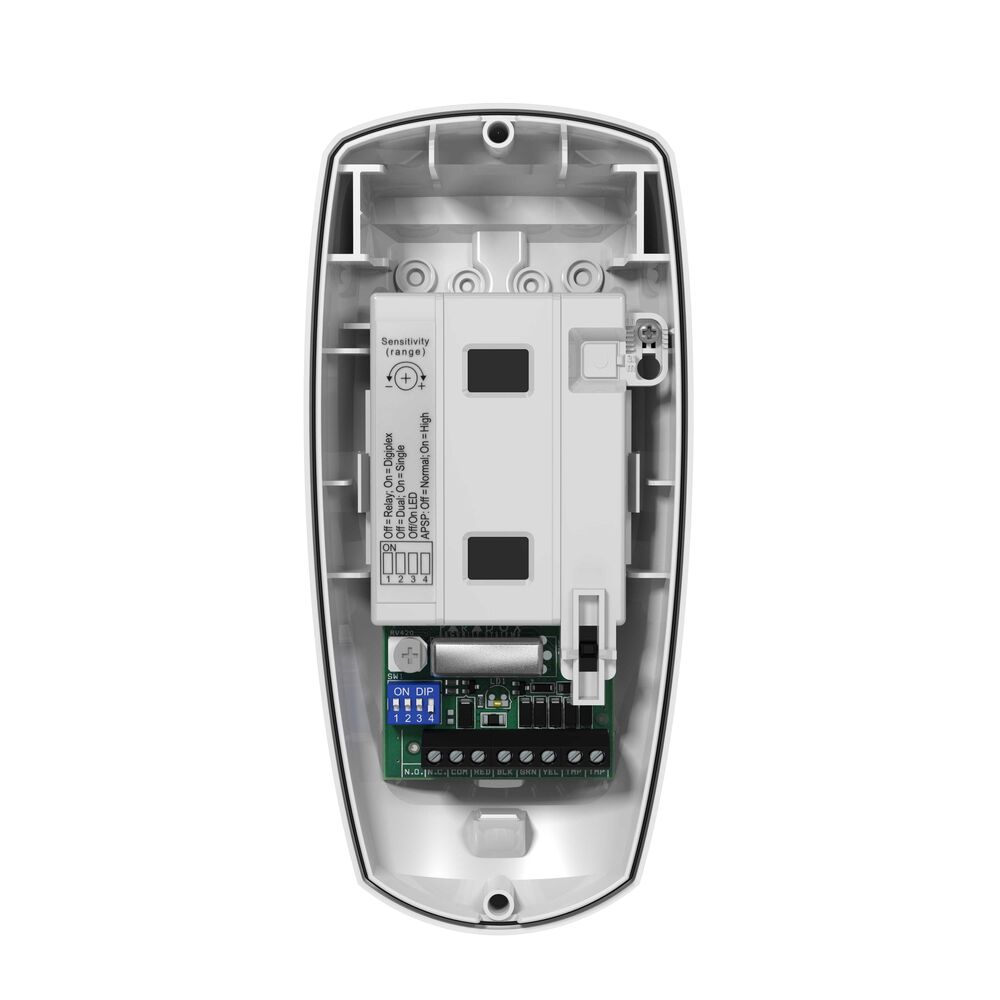

  • Supports Bus operation for advanced integration or Relay operation for simpler setups.

• Multi-Level Sensitivity Adjustment

  • Customizable settings to tailor sensitivity to specific environmental needs.

• Animal Immunity

  • Patented design accommodates pets up to 40kg (90lbs), allowing them to roam freely beneath the detection level (up to 1.1m / 3.6ft).

• Wide and Versatile Coverage

  • 11m x 11m (35ft x 35ft) 90° Viewing Angle: General coverage for wide open areas.
  • 11m x 11m (35ft x 35ft) 85° Viewing Angle: Ideal for corridors, vertical surfaces, or doors.
  • 13m x 2 beams (43ft x 2 beams) 5.64° Viewing Angle: Perfect for narrow or precise detection zones.

Lens Patterns

• Pet Array: Reduces false alarms caused by animals within the detection zone.
• Horizontal Curtain Beam: Effective for balconies or areas requiring low-profile coverage.
• Vertical Curtain Beam: Protects walls, corridors, or narrow pathways.

Specifications

• Operating Temperature: -35°C to 50°C
• Dimensions: Compact design with a bracket included for easy installation.
• Ingress Protection: IP54 rating ensures resistance to dust and splashing water.

In the Box

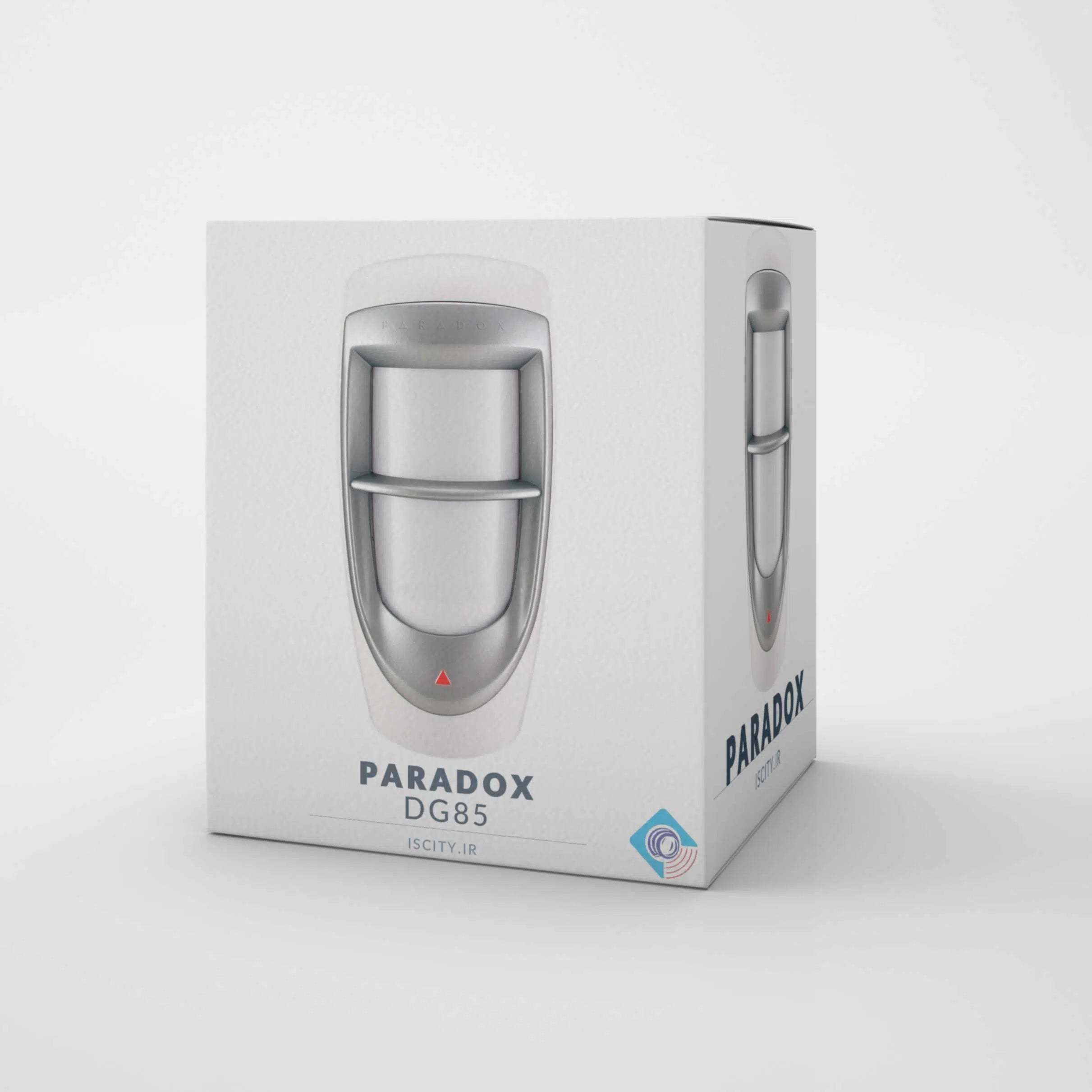

• Paradox PDX-DG85 Outdoor Motion Detector
• Adjustable Mounting Bracket
• Installation Manual

Applications

• Outdoor property surveillance
• Driveways, gardens, and entryways
• Balcony or wall protection
• Pet-friendly motion detection zones

Warranty

Includes a 2-year manufacturer’s warranty for peace of mind.

The Paradox PDX-DG85 combines advanced technology with rugged durability, making it the ideal choice for reliable outdoor motion detection in all climates.
