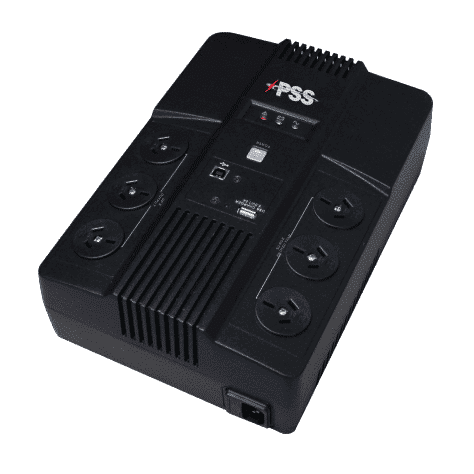

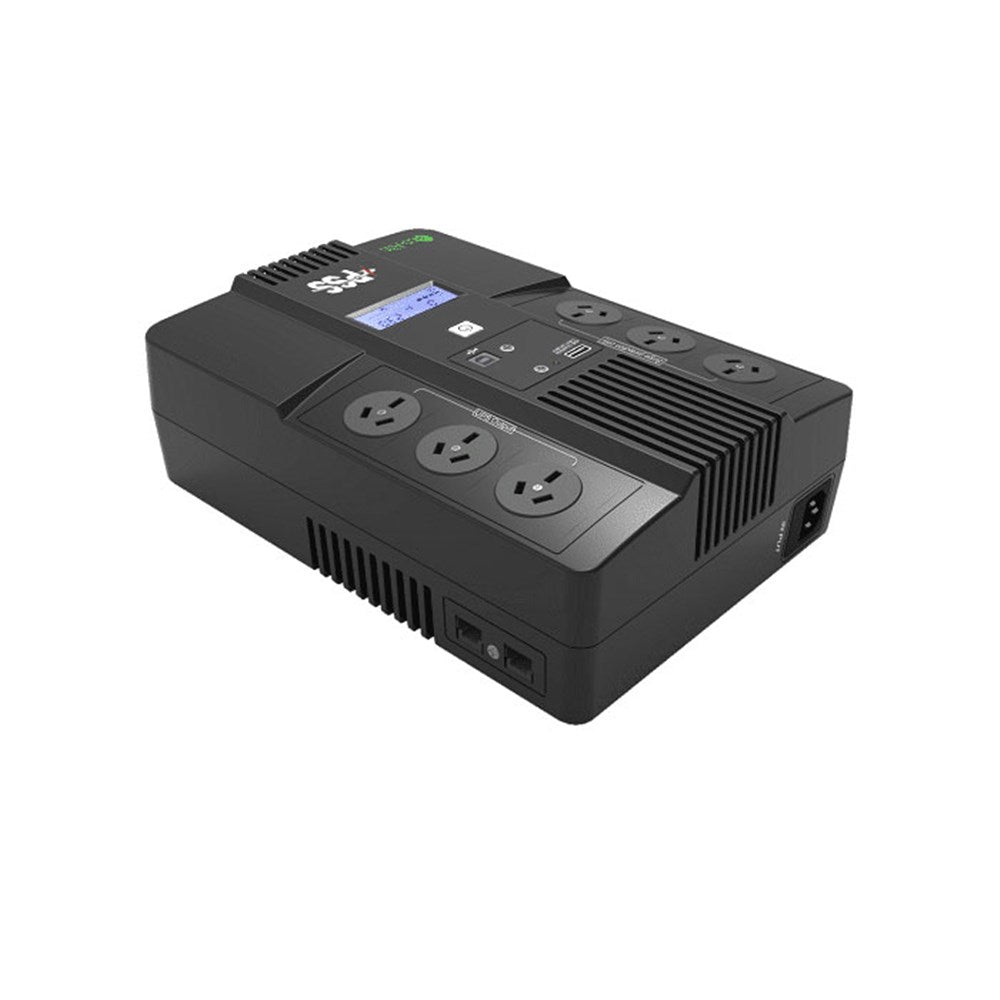

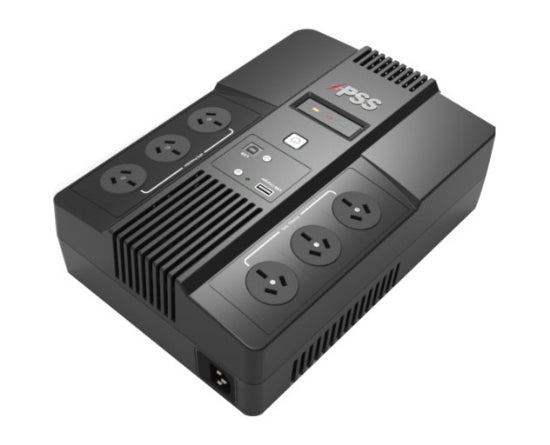

Safeguard your critical electronics with the PSS Eco-Alto 800VA UPS, a versatile and compact uninterruptible power supply designed for both home and office environments. Featuring advanced microprocessor control and a user-friendly interface, the Eco-Alto 800 provides seamless protection against power outages, surges, and voltage fluctuations.
With an internal 12V/9Ah sealed lead-acid battery, this UPS offers reliable backup power, keeping essential devices running during unexpected interruptions. The built-in USB charging port allows you to conveniently charge mobile devices, while the smart USB communication port enables real-time power monitoring and management via compatible software.
Equipped with boost and buck AVR technology, the Eco-Alto 800 stabilizes voltage to safeguard sensitive electronics from harmful fluctuations. Additional features like cold start capability, auto-restart, and wall-mountable design ensure flexibility and ease of use. With three UPS outlets plus three surge-protected outlets, the Eco-Alto 800 is the perfect solution for powering your PCs, networking gear, and home entertainment systems.
What’s Included in the Box
Main Features
✅ Smart Microprocessor Control – Ensures precise management of power delivery and efficient UPS operation.
✅ Built-in USB Charger – Conveniently charge smartphones, tablets, and other devices directly from the UPS unit.
✅ User-Replaceable Battery – Simplifies maintenance and extends the lifespan of your UPS investment.
✅ Boost and Buck AVR – Automatically regulates voltage to protect devices from under-voltage and over-voltage conditions.
✅ Cold Start Function – Powers your devices directly from battery even when AC mains power is unavailable.
✅ Auto-Restart Function – Automatically resumes normal operation after AC power returns.
✅ Compact Design with Wall Mount Option – Ideal for space-saving installations in home or office environments.
✅ Comprehensive Protection – Includes surge protection (720 Joules) and short circuit protection for ultimate safety.
✅ Quiet Operation – Generates less than 40 dB of noise for a peaceful working environment.
✅ C-Tick Certified (EN50091-2) – Meets Australian regulatory requirements for safety and electromagnetic compatibility.
Detailed Specifications
-
Model: Eco-Alto 800
-
Capacity: 800VA / 480W
-
Battery Type: Sealed lead acid, maintenance-free, user-replaceable
-
Battery Configuration: 1 x 12V/9Ah
-
Recharge Time: 6-8 hours to 90% capacity after full discharge
-
Maximum Charge Current: 1.2A
-
Input Voltage: 230/240V
-
Input Voltage Range (AVR): 162V – 290V
-
Input Frequency Range: 40Hz – 70Hz
-
Output Voltage (Battery Mode): 230V ± 10%
-
Output Frequency (Battery Mode): 50Hz ± 1Hz
-
Waveform: AC mode: Pure sinewave; Battery mode: Simulated sinewave
-
Transfer Time: Typical 2–6ms
-
Surge Protection Rating: 720 Joules / 30,000A
-
Communication Interface: USB port for monitoring, RJ45 port for network protection
-
LED Indicators:
-
Noise Level: < 40 dB
-
Operating Temperature: 0 – 40°C (non-condensing)
-
Humidity: 0 – 90% (non-condensing)
-
Australian Outlets: 3 x UPS + 3 x surge protection outlets
-
Physical Dimensions: 270 x 190 x 90 mm (W x D x H)
-
Net Weight: 4.9 kg
-
Certifications: EN50091-2 (C-Tick)
Warranty Information
manufactures warranty applied
About PSS
PSS (Power System Solutions) specializes in dependable power protection products designed for modern environments. With a focus on quality, safety, and advanced engineering, PSS solutions deliver reliable performance for homes, offices, and commercial facilities.
SKU
TES-UPS800
Practical Use Scenarios
-
Providing uninterrupted power to PCs, modems, routers, and VOIP systems in small office setups
-
Protecting home entertainment systems against voltage fluctuations and blackouts
-
Ensuring safe shutdown of desktop computers and workstations during power failures
-
Securing small business point-of-sale systems from unexpected outages
-
Charging mobile devices even during power loss with the built-in USB charger
Datasheets & Resources
Excellence for the Australian and New Zealand Market
The PSS Eco-Alto 800VA UPS is designed and certified to meet the rigorous safety and performance requirements of the Australian and New Zealand markets. With C-Tick certification (EN50091-2) and locally compliant outlets, this UPS ensures seamless integration into regional electrical systems. All units are sourced through authorized distributors to guarantee genuine quality and reliable after-sales support. Local service ensures fast assistance with warranty claims, technical inquiries, and installation advice, providing total peace of mind for installers and end-users across Australasia.
FAQs – PSS Eco-Alto 800VA (TES-UPS800)
Q1: What type of battery does the PSS Eco-Alto 800VA (TES-UPS800) use?
A1: The PSS Eco-Alto 800VA (TES-UPS800) uses a sealed lead-acid, maintenance-free, user-replaceable battery rated at 12V/9Ah.
Q2: How many outlets are available on the PSS Eco-Alto 800VA (TES-UPS800)?
A2: The PSS Eco-Alto 800VA (TES-UPS800) provides a total of six Australian outlets: three with UPS protection and three with surge protection only.
Q3: Does the PSS Eco-Alto 800VA (TES-UPS800) support USB communication for power management?
A3: Yes, the PSS Eco-Alto 800VA (TES-UPS800) includes a smart USB interface for monitoring and managing power events via compatible software.
Q4: How long does it take to recharge the battery of the PSS Eco-Alto 800VA (TES-UPS800) after a complete discharge?
A4: The battery in the PSS Eco-Alto 800VA (TES-UPS800) recharges to 90% capacity within 6-8 hours after a complete discharge.
Q5: Is the PSS Eco-Alto 800VA (TES-UPS800) suitable for wall mounting?
A5: Yes, the compact design of the PSS Eco-Alto 800VA (TES-UPS800) includes options for wall mounting, making it ideal for space-constrained installations.
