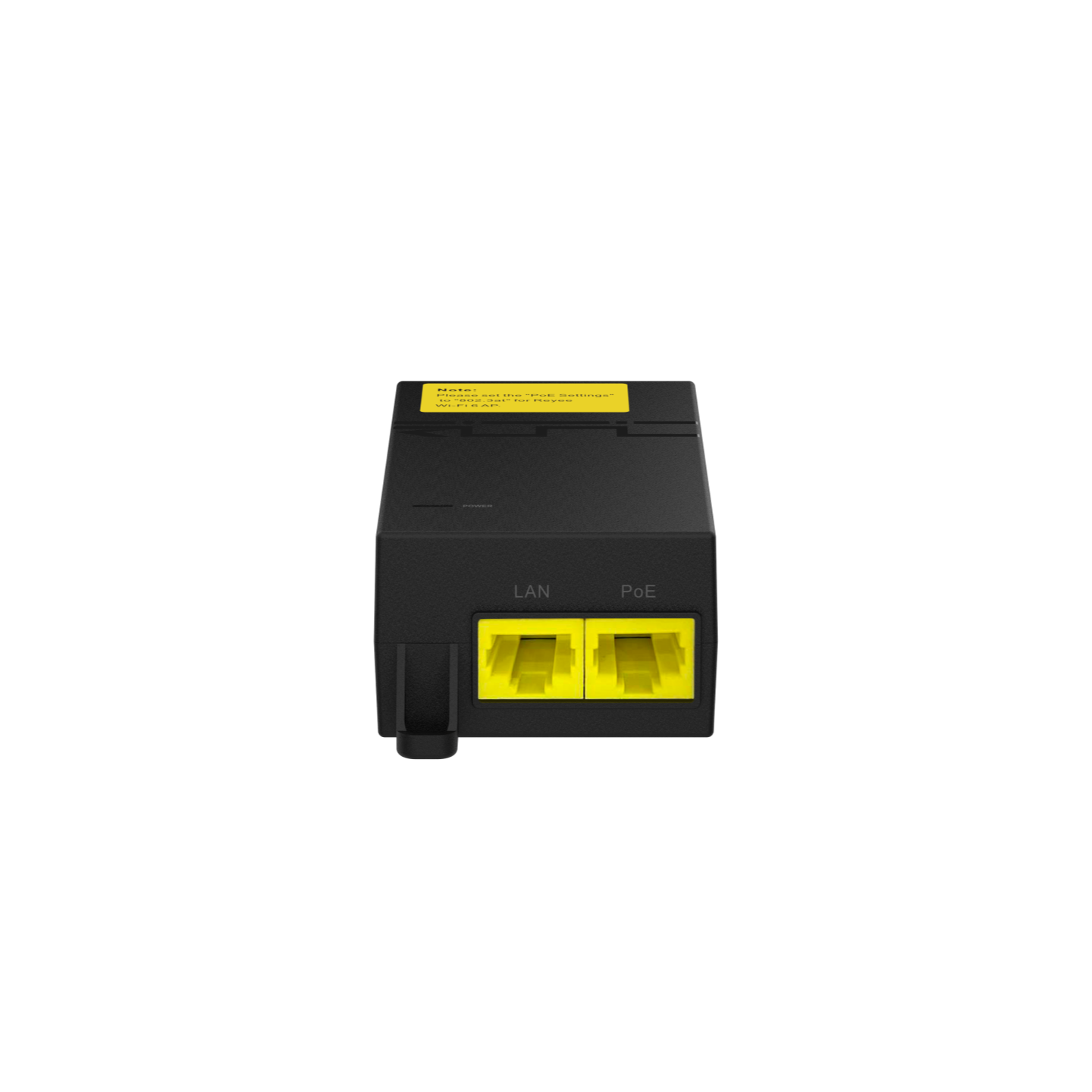

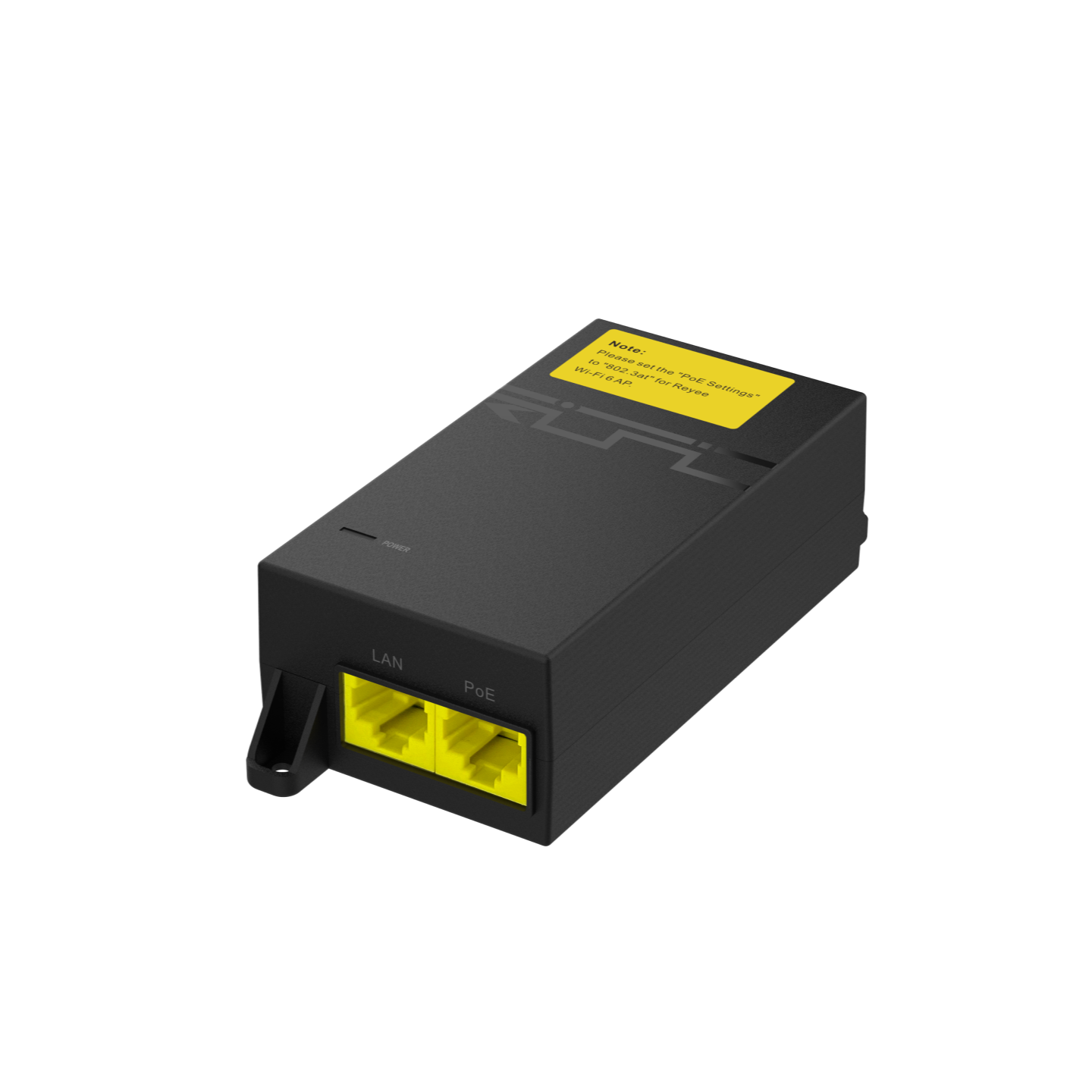

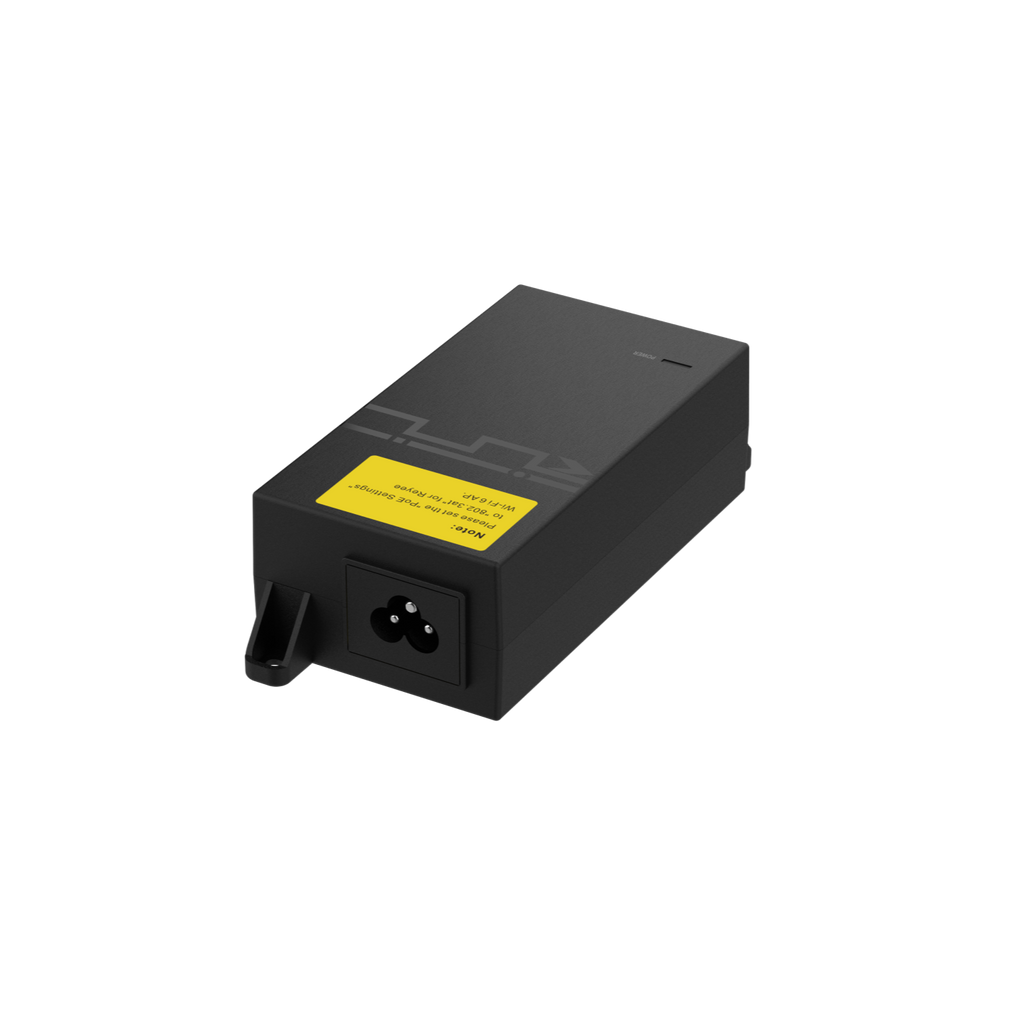

The Ruijie Reyee RG-POE-AT30 is a professional-grade Gigabit PoE injector designed to provide reliable power and data transmission to compatible wireless access points and PoE-powered network devices. Delivering 52V DC at 0.6A with a maximum power output of 31.2W, the RG-POE-AT30 offers a stable and efficient power solution for Ruijie Reyee access points and other compatible networking equipment.

Featuring a 1000Base-T Gigabit Ethernet port, the injector enables simultaneous high-speed data transmission and power delivery over a single Ethernet cable, simplifying installations while reducing cabling requirements. Its compact design, wide operating temperature range, and robust power supply characteristics make it suitable for hotels, offices, homes, educational facilities, retail environments, and commercial wireless deployments.

Designed to support a broad range of Ruijie Reyee wall-mounted, ceiling-mounted, and outdoor access points, the RG-POE-AT30 provides a dependable alternative where PoE-enabled switches are not available or where dedicated power injection is required.

What's Included in the Box

• 1 × Ruijie Reyee RG-POE-AT30 PoE Injector

• Power Cable

• Quick Installation Guide

• Warranty Information

Main Features

• Gigabit PoE Injector

• 52V DC Power Output

• Maximum Output Power: 31.2W

• 1000Base-T Gigabit Ethernet Support

• Passive PoE Technology

• Stable Power Supply for Wireless Access Points

• Supports Data and Power Over a Single Ethernet Cable

• Compact and Lightweight Design

• Wide Operating Temperature Range

• Suitable for Indoor Commercial and Residential Deployments

• Designed for Compatible Ruijie Reyee Access Points

• Reliable Power Delivery for Network Infrastructure

• Easy Plug-and-Play Installation

• 3-Year Manufacturer Warranty

Detailed Specifications

General

• Model: RG-POE-AT30

• Product Type: PoE Injector

• Deployment Type: Desktop Installation

Power Specifications

• Output Voltage:

  • 52V DC ±5%

• Output Current:

  • 0.6A

• Maximum Output Power:

  • 31.2W

• PoE Standard:

  • Passive PoE

• Power Delivery:

  • 2-Pair Powering

  • Pins 4,5 (+)

  • Pins 7,8 (-)

Input Specifications

• Rated Input Voltage:

  • 100–240V AC

  • 50/60Hz

• Maximum Input Current:

  • 0.7A

• Inrush Current:

  • Less than 100A @ 230V AC

Network Interface

• 1 × 1000Base-T Gigabit Ethernet Port

• Supports Simultaneous Data and Power Transmission

Environmental

• Operating Temperature:

  • -10°C to 45°C

  • 14°F to 113°F

• Storage Temperature:

  • -40°C to 70°C

  • -40°F to 158°F

Physical Specifications

• Dimensions:

  • 95.2 × 52.2 × 33.2 mm

• Weight:

  • 145g ± 5g

Electrical Protection

• Maximum Discharge Current:

  • 2000A (8/20µs)

Warranty

• 3-Year Manufacturer Warranty

About Ruijie Reyee

Ruijie Reyee is a leading provider of enterprise-grade networking products including switches, routers, wireless access points, cloud-managed networking solutions, and network accessories. Designed for reliability, simplicity, and performance, Reyee products are trusted by businesses, hospitality operators, educational institutions, and IT professionals worldwide.

SKU

RG-POE-AT30

Compatible Devices

The RG-POE-AT30 is designed to support a wide range of Ruijie Reyee wireless access points, including:

Wall Access Points

• RG-RAP1200(F)

• RG-RAP1201

• RG-RAP1200(P)

• RG-RAP1261

• RG-RAP1260

Ceiling Access Points

• RG-RAP2200(F)

• RG-RAP2200(E)

• RG-RAP2260(G)

• RG-RAP2260

• RG-RAP2266

• RG-RAP2260(E)

Outdoor Access Points

• RG-RAP6202(G)

• RG-RAP6262(G)

• RG-RAP6262

• RG-RAP6260(G)

Practical Use Scenarios

Hotels and Hospitality

Provide reliable power and network connectivity to wireless access points without requiring PoE switches.

Offices

Deploy access points quickly and efficiently using existing Ethernet infrastructure.

Residential Properties

Support home Wi-Fi access points where dedicated PoE switching is not available.

Retail Stores

Power wireless networking equipment while reducing cabling complexity.

Educational Facilities

Provide flexible deployment options for classroom and campus wireless networks.

Small Business Networks

Enable cost-effective PoE deployment without investing in dedicated PoE switches.

Datasheets & Downloadable Resources

Available resources include:

• Product Datasheet

• Installation Documentation

• Technical Specifications

• Compatibility Guides

• Technical Support Resources

Excellence for the Australian and New Zealand Market

The Ruijie Reyee RG-POE-AT30 has been selected to support professional wireless networking deployments across Australia and New Zealand. Supplied through authorised distribution channels, it provides genuine manufacturer-backed support, official warranty coverage, and compatibility with a broad range of Ruijie wireless access points. Its stable 52V output, Gigabit data support, compact design, and dependable operation make it an ideal accessory for hospitality, office, education, retail, and residential wireless networking projects throughout the ANZ region.

FAQs

Q1. What is the RG-POE-AT30 used for?

The RG-POE-AT30 is used to deliver both power and Gigabit Ethernet data to compatible wireless access points and PoE-powered devices over a single Ethernet cable.

Q2. What is the power output of the RG-POE-AT30?

The RG-POE-AT30 provides 52V DC output at 0.6A, delivering up to 31.2W of power.

Q3. Is the RG-POE-AT30 a Gigabit PoE injector?

Yes. The RG-POE-AT30 includes a 1000Base-T Gigabit Ethernet port for high-speed data transmission.

Q4. What PoE standard does the RG-POE-AT30 use?

The RG-POE-AT30 operates as a passive PoE injector delivering 52V power over Ethernet.

Q5. Which access points are compatible with the RG-POE-AT30?

The RG-POE-AT30 supports numerous Ruijie Reyee wall-mounted, ceiling-mounted, and outdoor access points including the RG-RAP1200, RG-RAP2200, and RG-RAP6200 series.

Q6. Can the RG-POE-AT30 be used instead of a PoE switch?

Yes. The RG-POE-AT30 provides a cost-effective alternative for powering individual PoE devices when a PoE switch is not available.

Q7. What operating temperatures does the RG-POE-AT30 support?

The RG-POE-AT30 operates in temperatures ranging from -10°C to 45°C.

Q8. Is the RG-POE-AT30 suitable for hotel Wi-Fi deployments?

Yes. The RG-POE-AT30 is commonly used in hotels to power wireless access points while simplifying installation.

Q9. Can the RG-POE-AT30 be used in office networks?

Absolutely. The RG-POE-AT30 is ideal for powering wireless access points and other compatible devices in office environments.

Q10. What warranty comes with the RG-POE-AT30?

The RG-POE-AT30 includes a 3-year manufacturer warranty.

Q11. Is the RG-POE-AT30 suitable for Australian and New Zealand deployments?

Yes. The RG-POE-AT30 is well suited for hospitality, retail, education, office, and residential wireless networking deployments throughout Australia and New Zealand.

Q12. Does the RG-POE-AT30 simplify access point installation?

Yes. The RG-POE-AT30 allows both power and data to be delivered through a single Ethernet cable, reducing installation complexity and cabling requirements.
