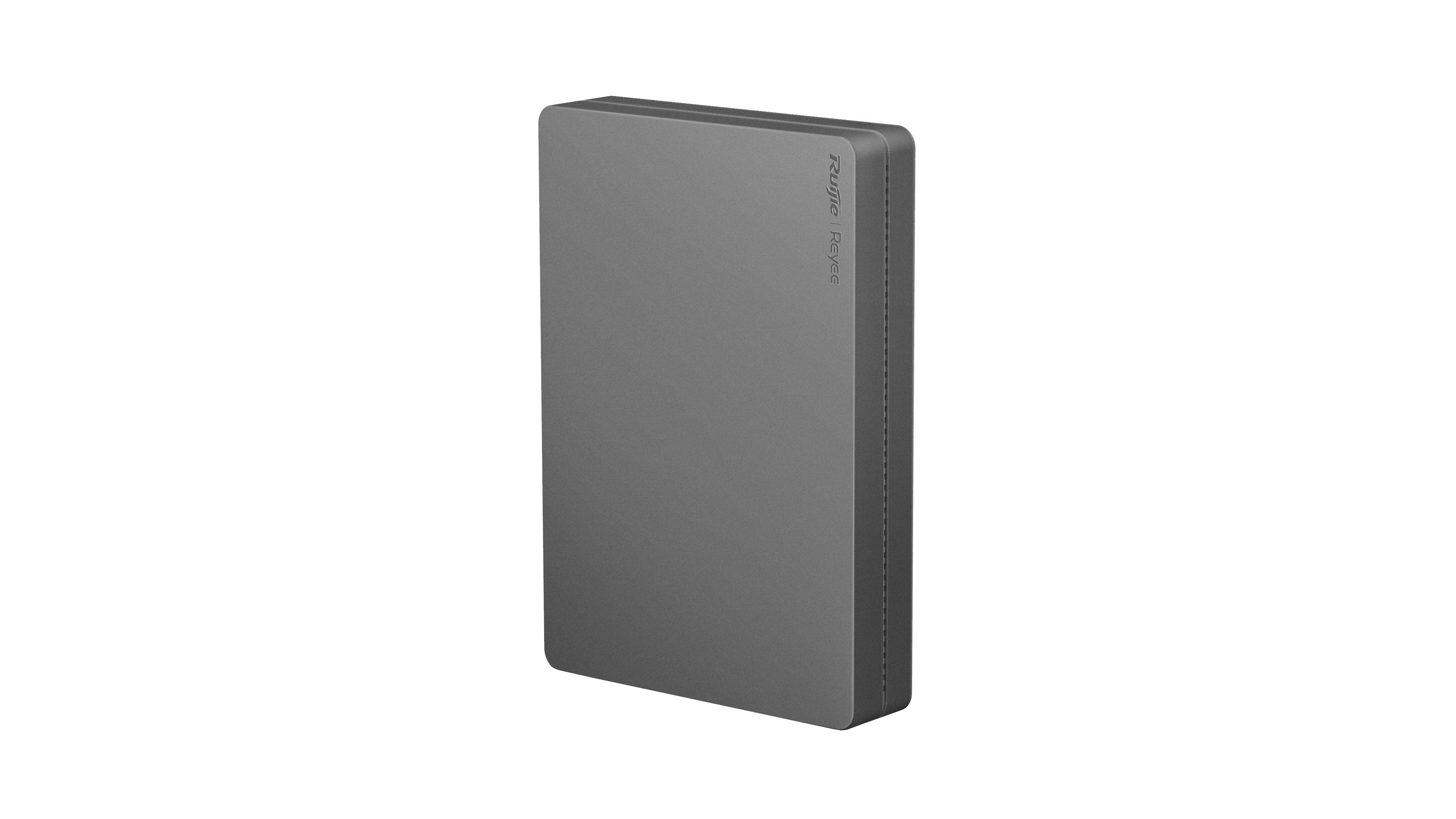

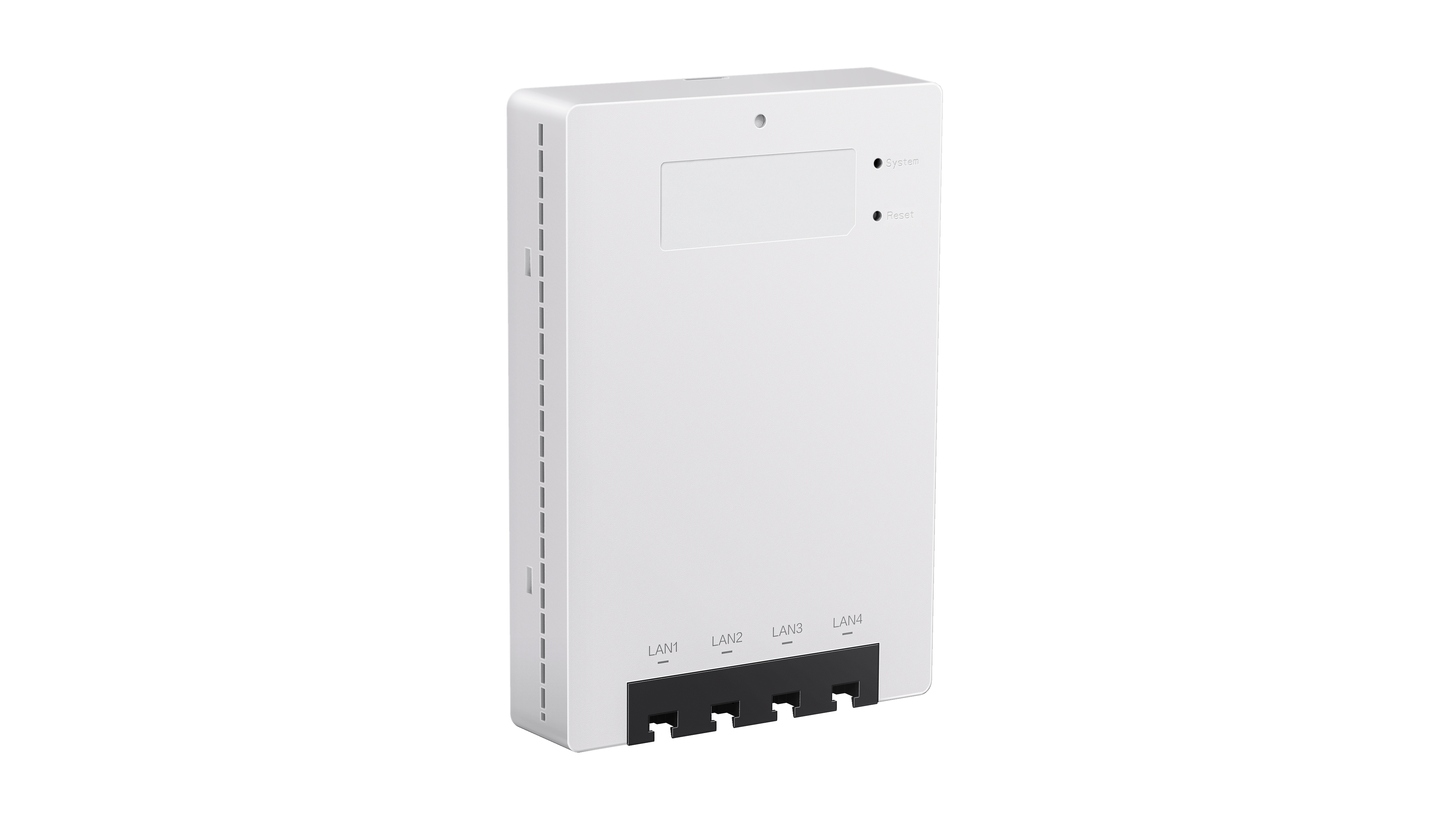

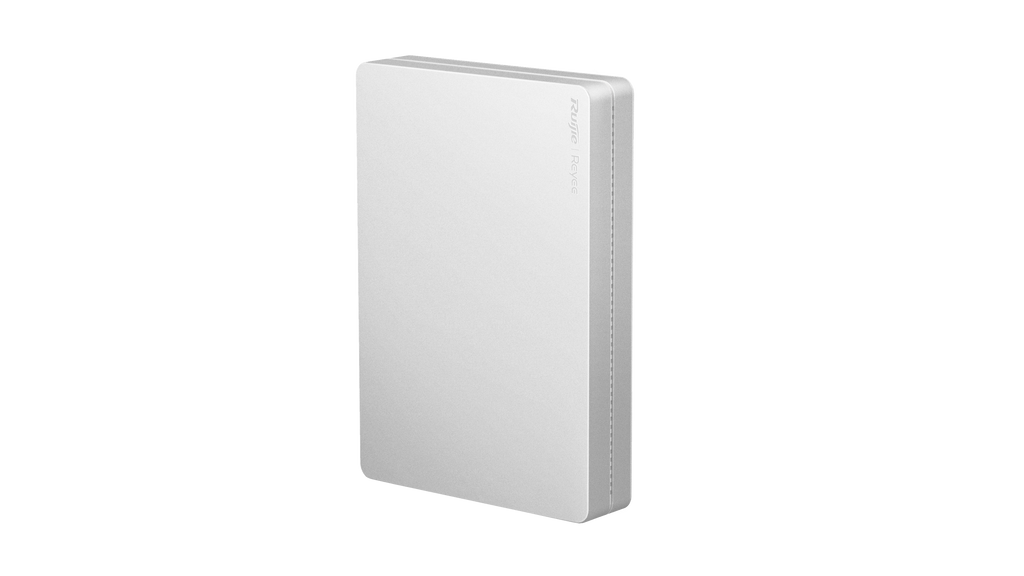

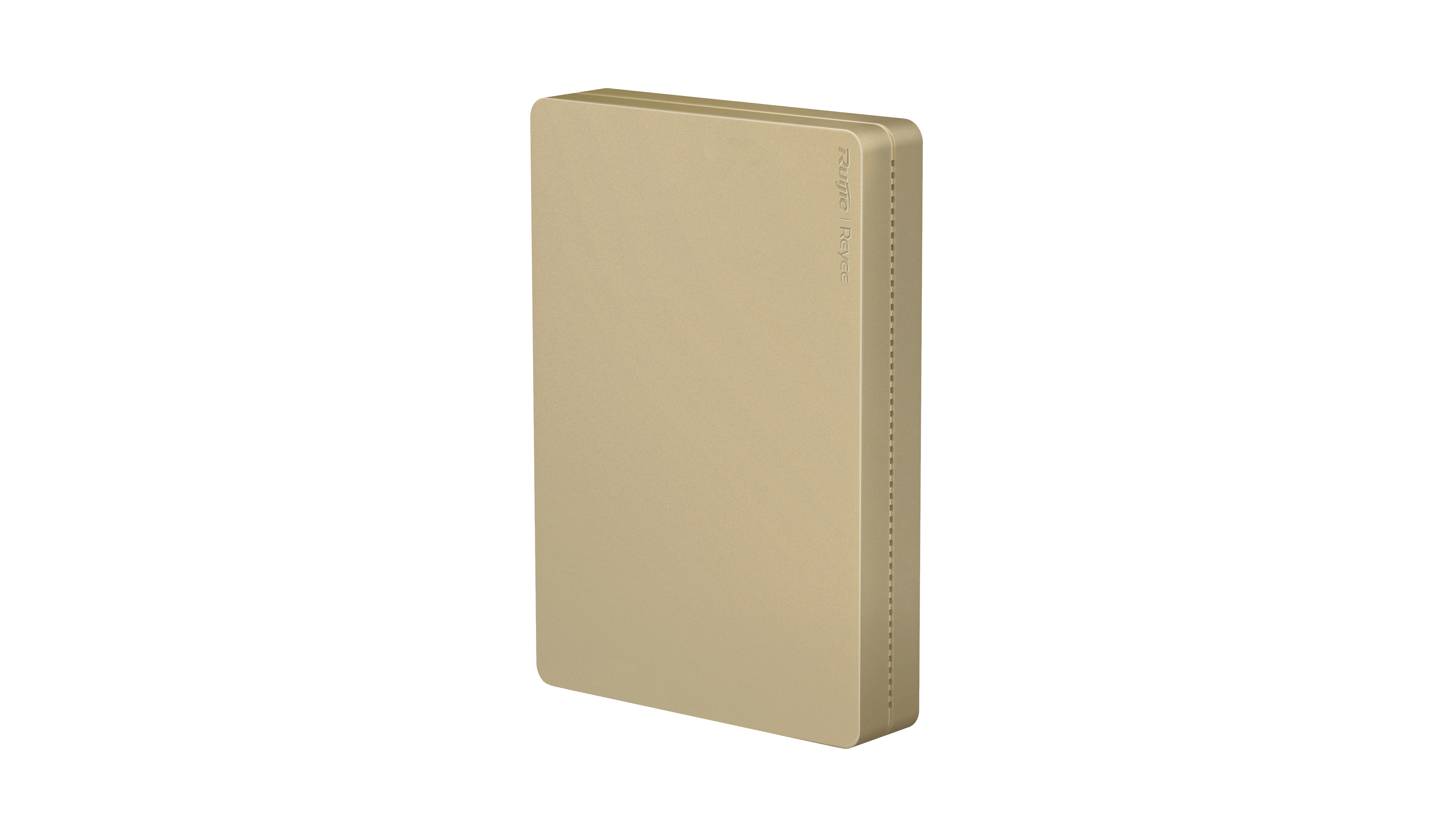

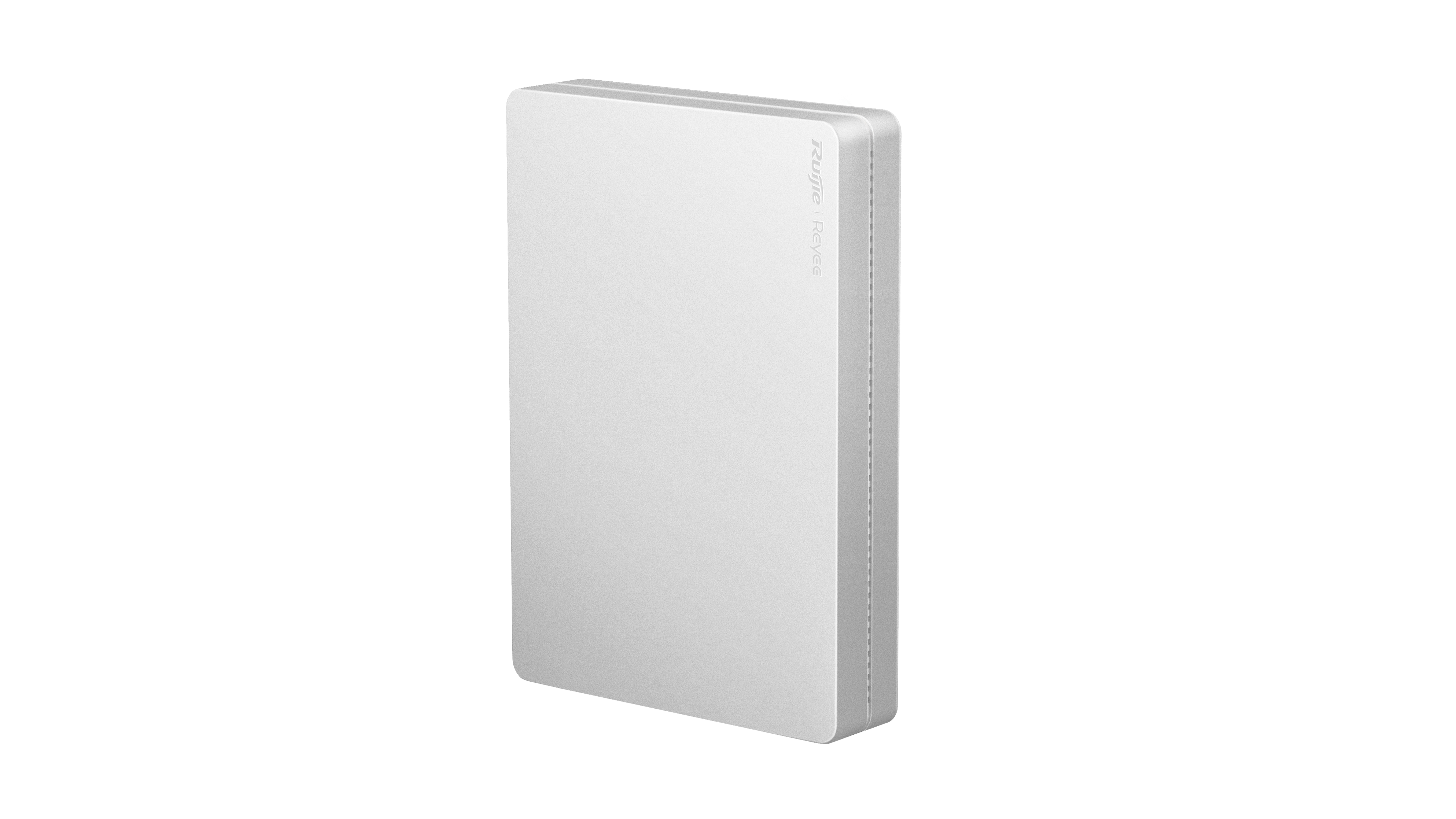

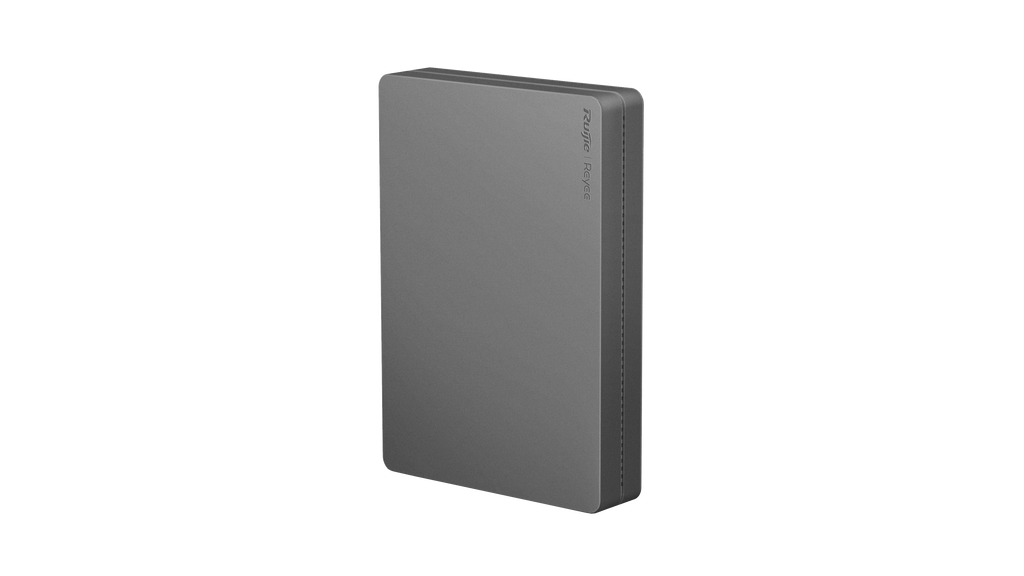

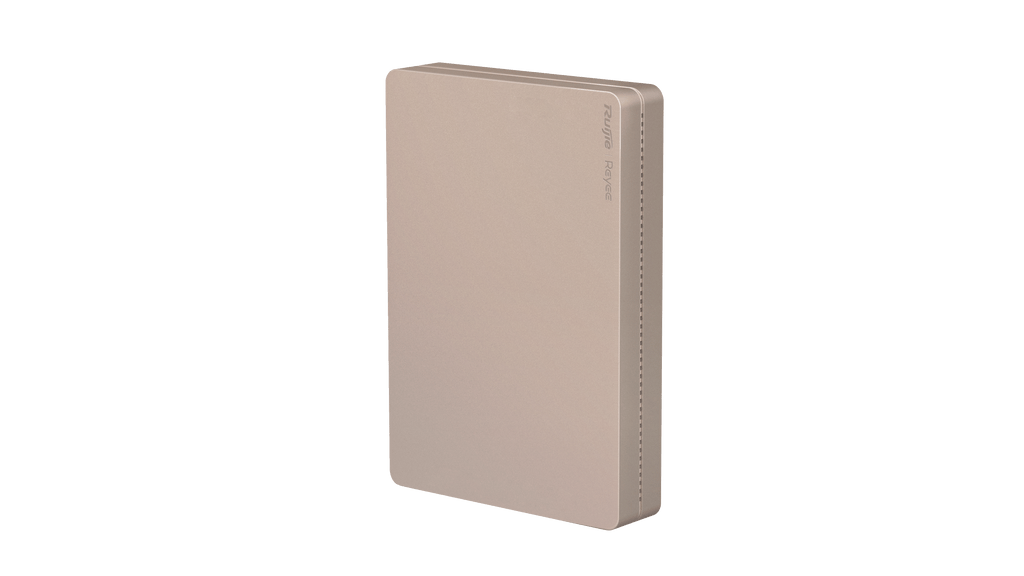

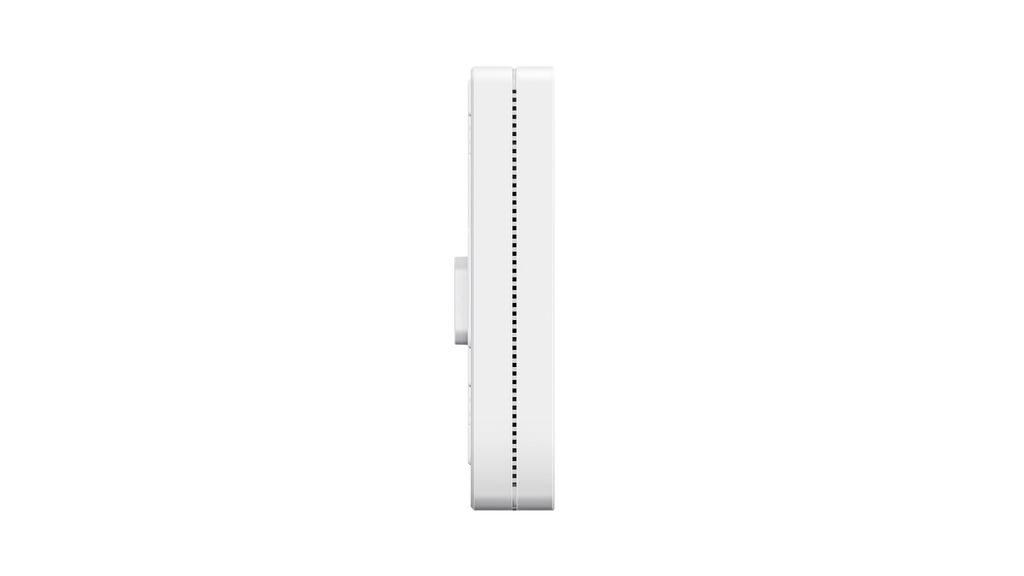

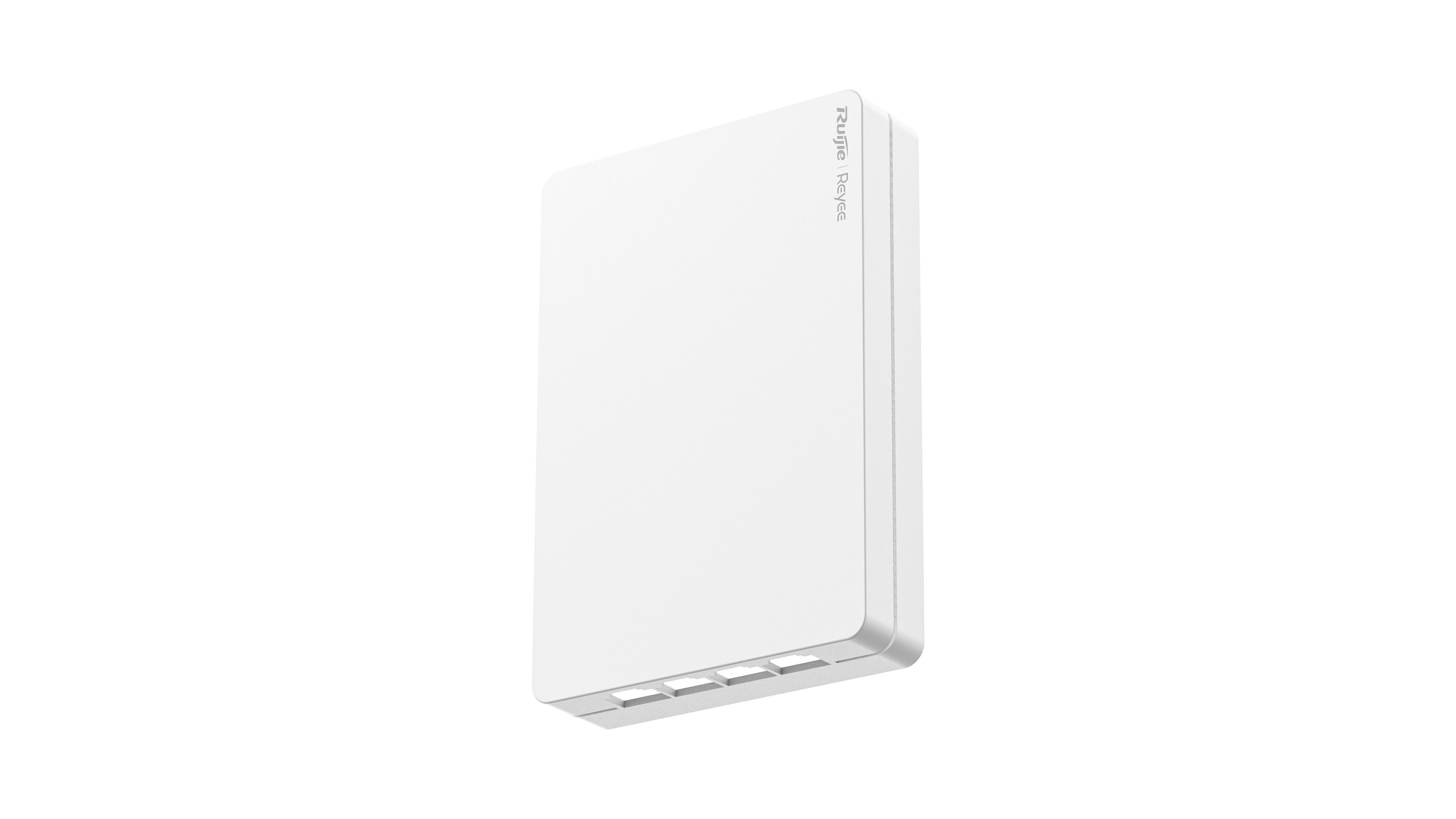

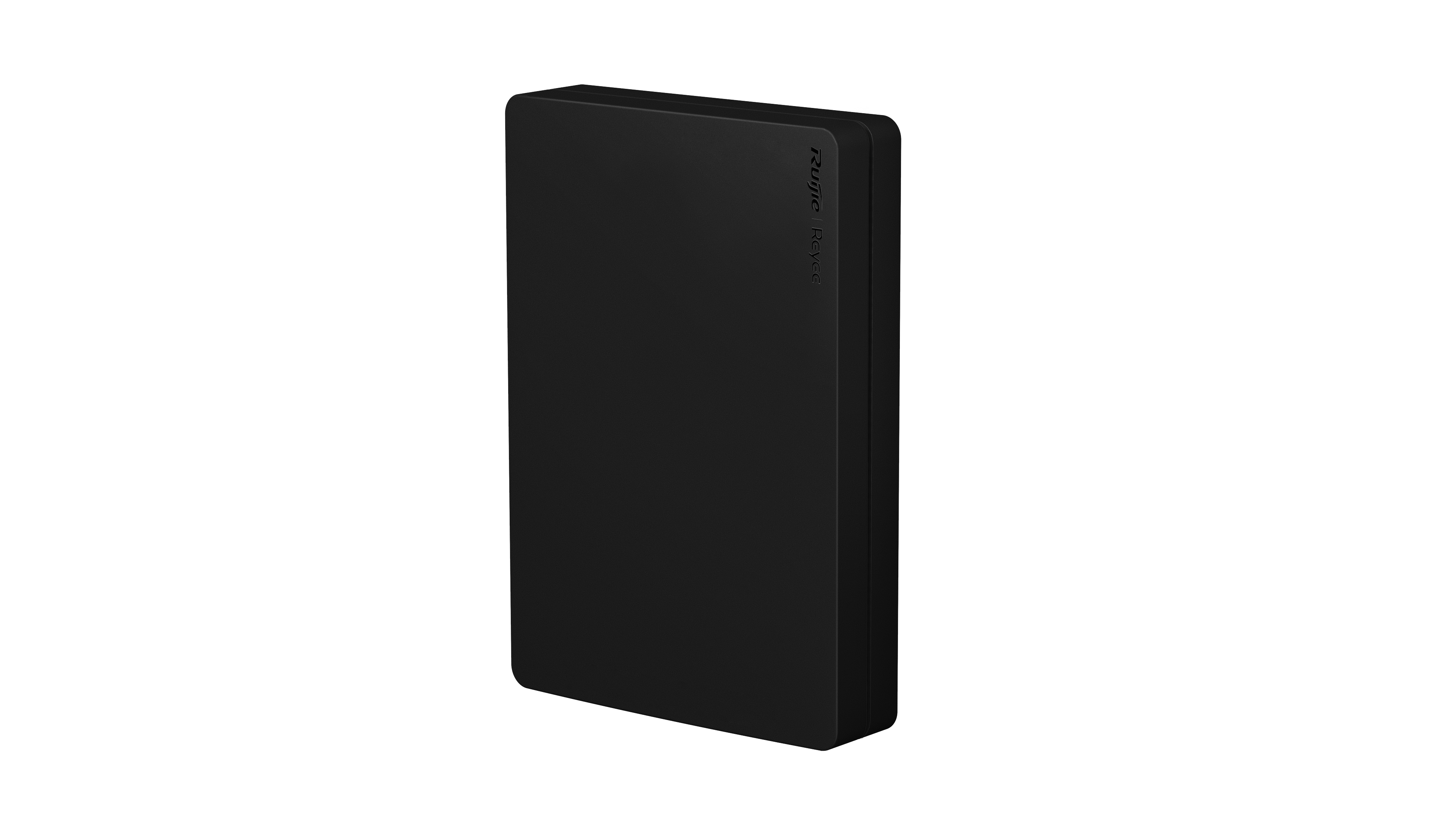

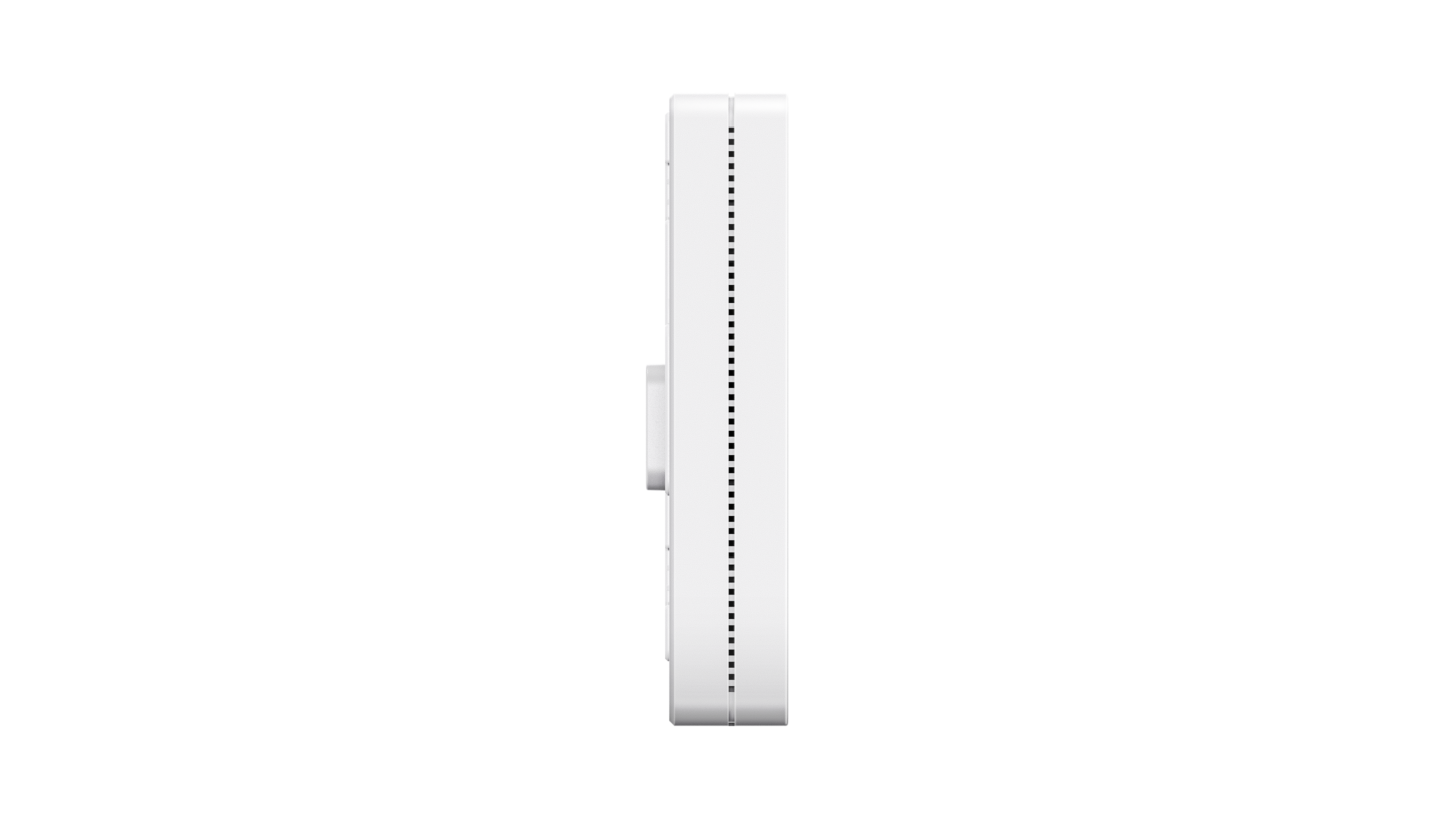

The Ruijie RG-RAP1260 is a sleek and powerful Wi-Fi 6 AX3000 wall-mounted access point, designed for in-room deployments across hotels, offices, apartments, and smart homes. Offering dual-band performance, 4 x Gigabit Ethernet ports, and support for MU-MIMO and 802.11ax, it ensures reliable, high-speed wireless access and wired device connectivity—all from a compact wall plate design.
Integrated with Reyee Mesh, AI Roaming, and 802.11k/v/r fast roaming, this access point supports up to 512 users (recommended 110) with an easy setup via Ruijie Cloud or Reyee App.
Key Features & Benefits
-
⚡ Wi-Fi 6 AX3000 Dual-Radio Performance
Enjoy blazing-fast wireless with up to 2976 Mbps combined throughput on 2.4 GHz and 5 GHz bands.
-
🧠 Supports MU-MIMO + OFDMA
Enhances multi-user performance for guests and staff in high-density environments.
-

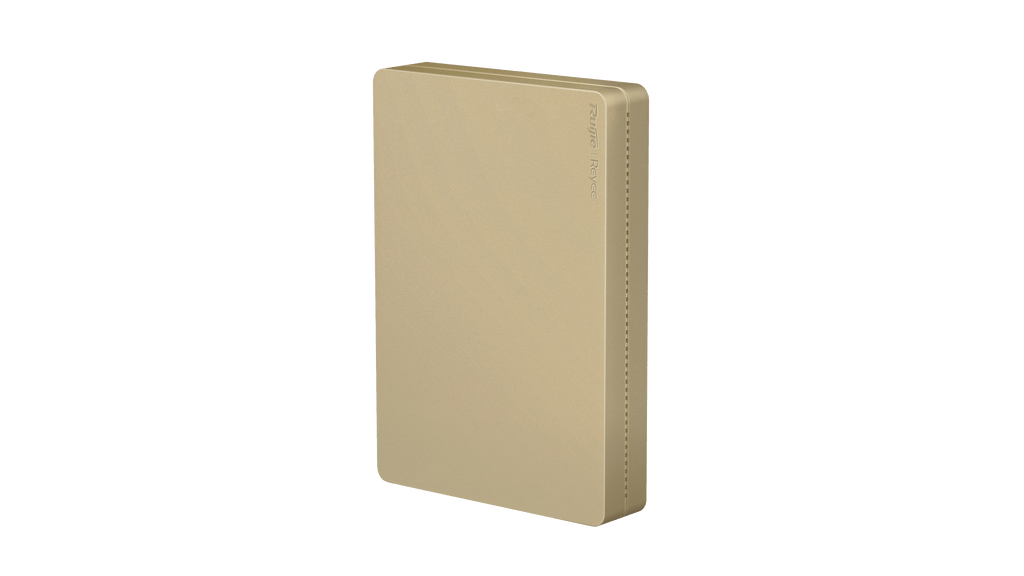

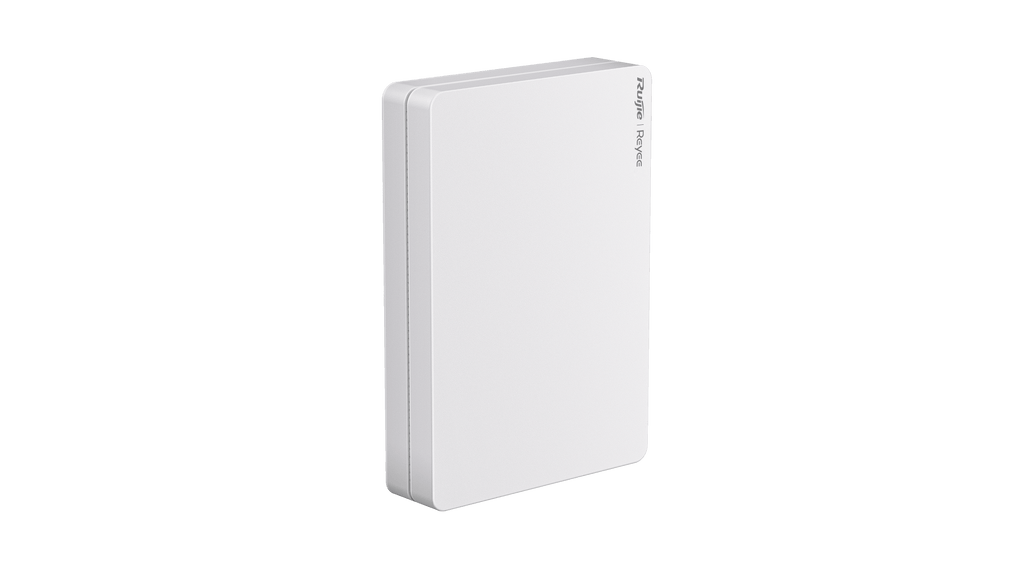

🧱 Wall Plate Form Factor

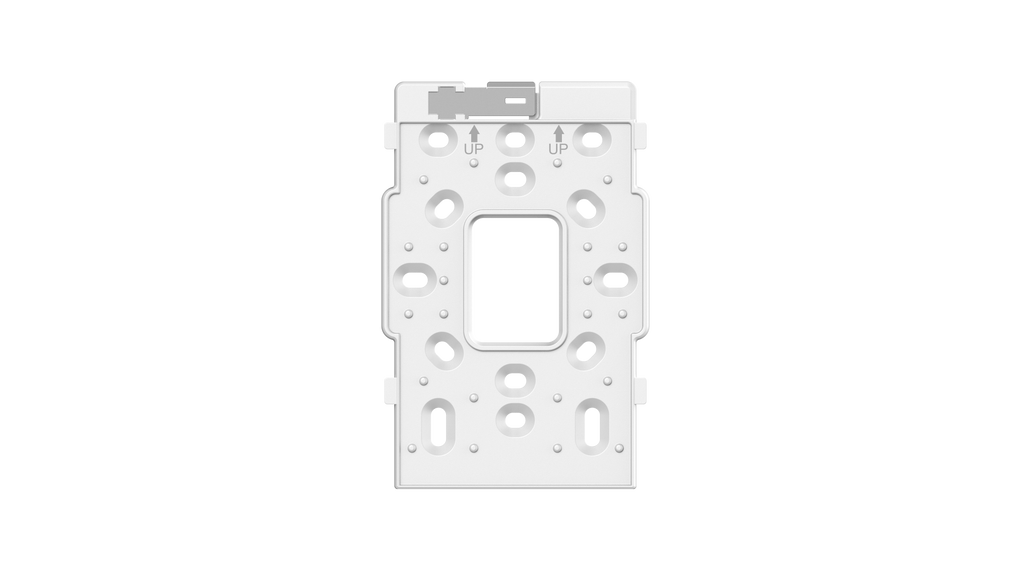

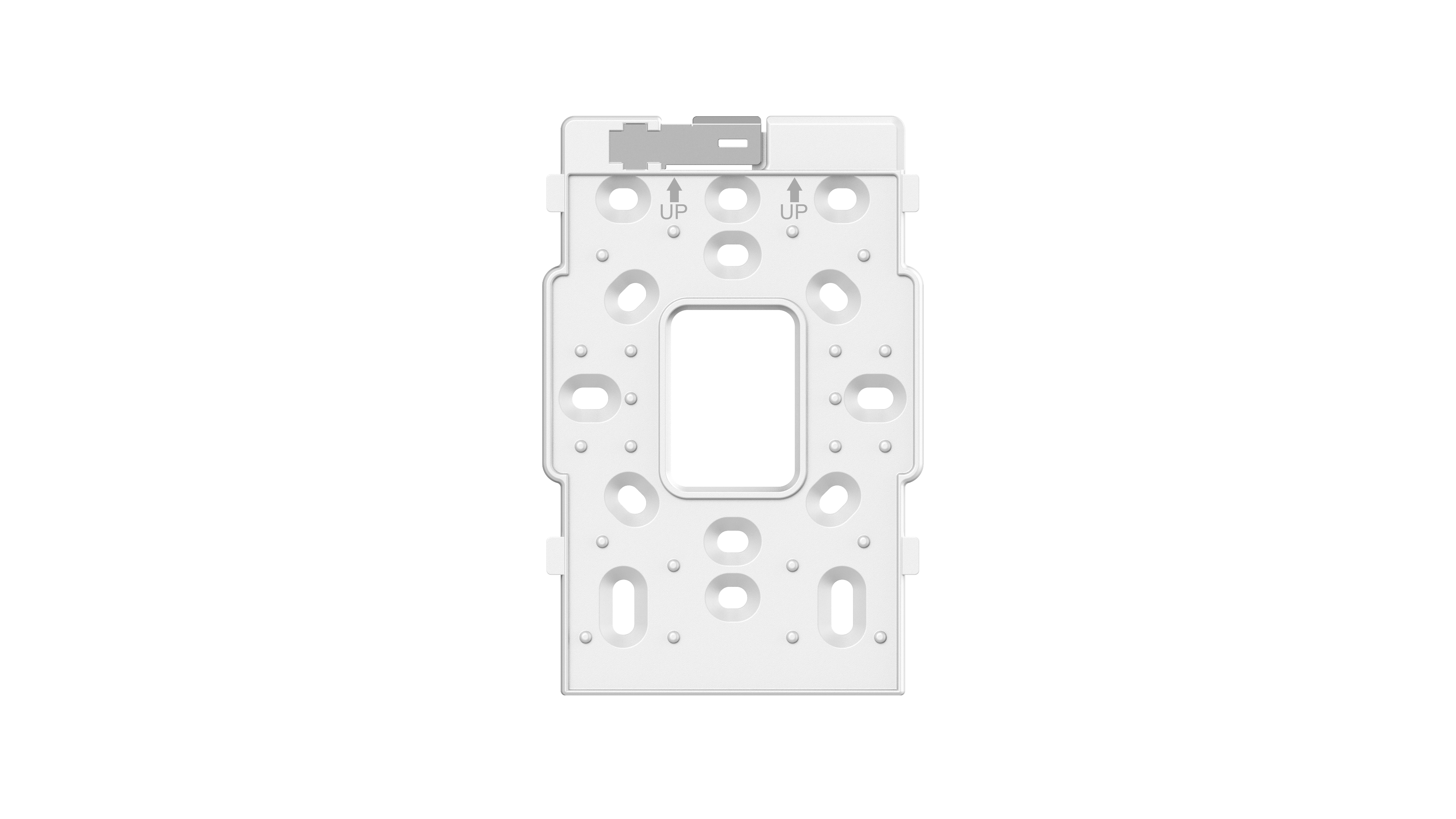

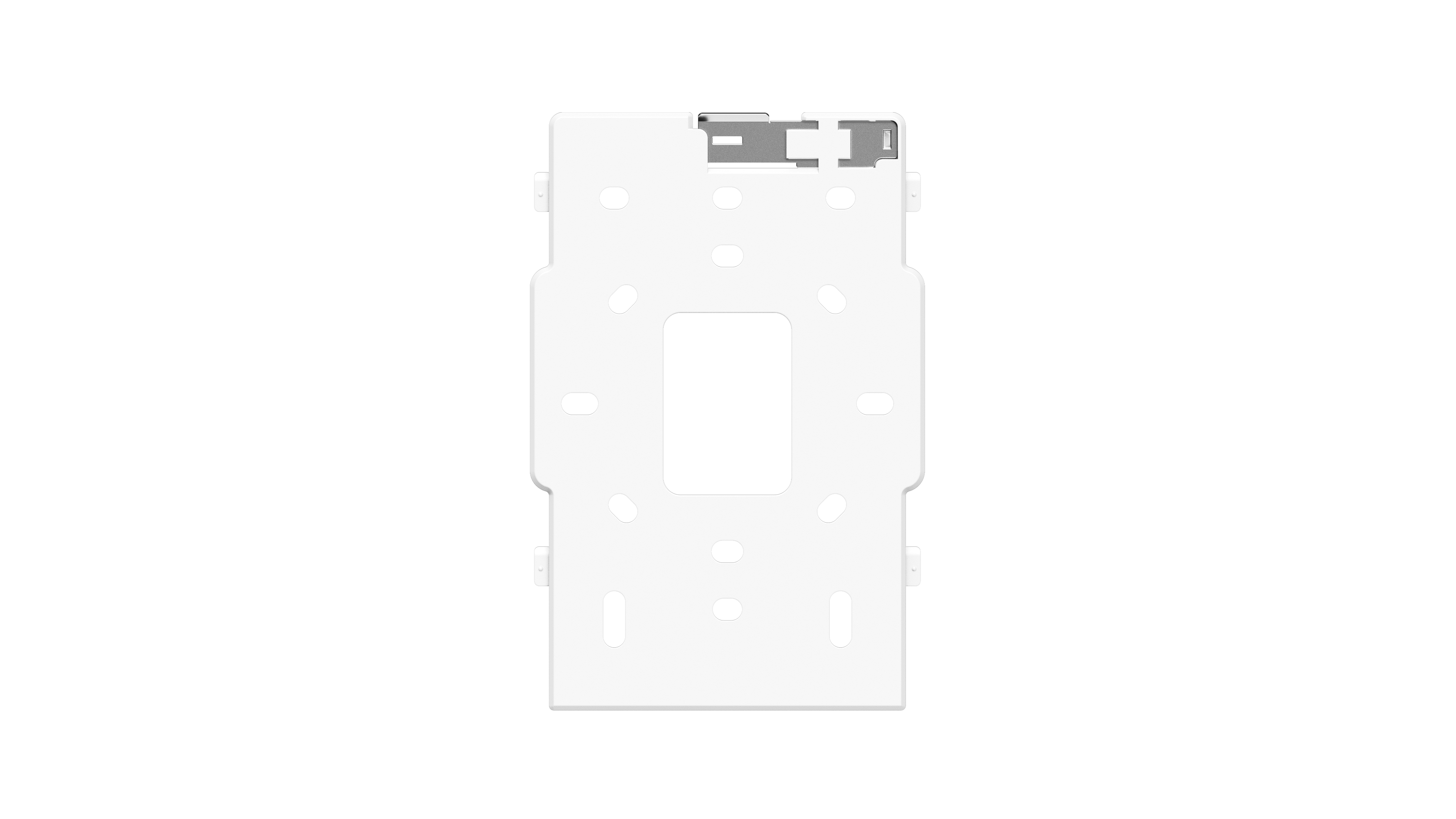

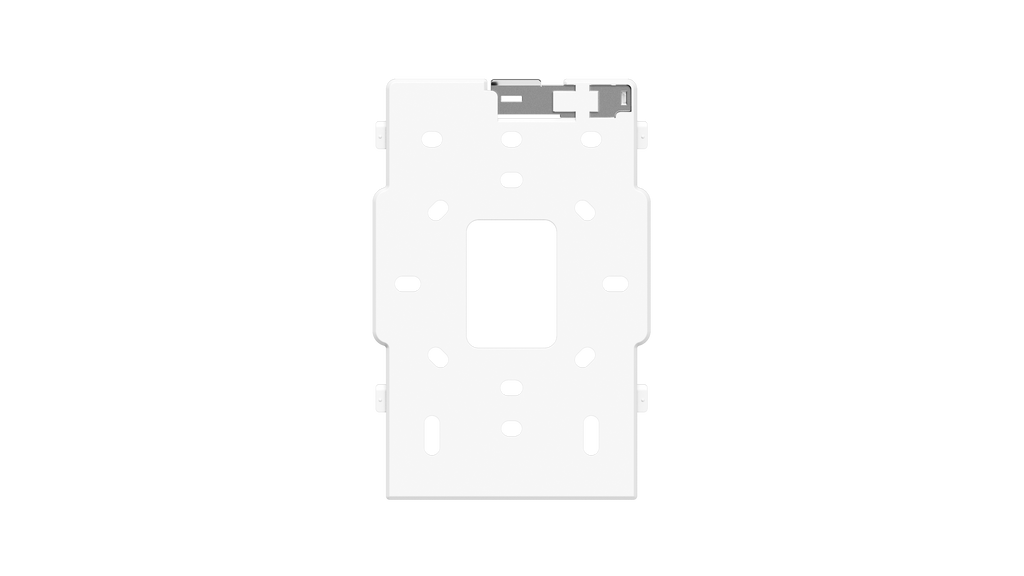

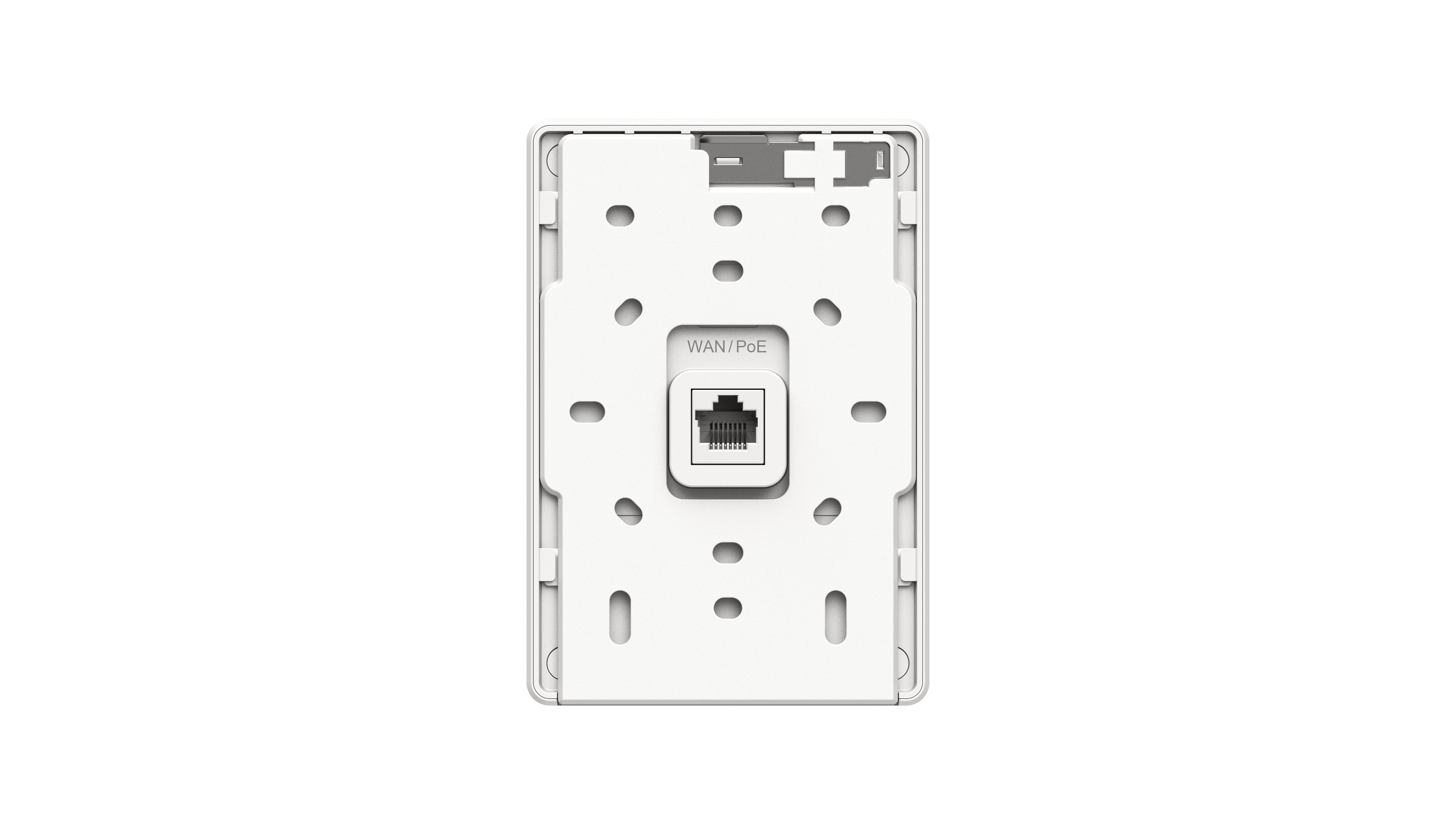

Designed for in-wall installation in 86 mm electrical boxes; blends seamlessly into modern interiors.
-

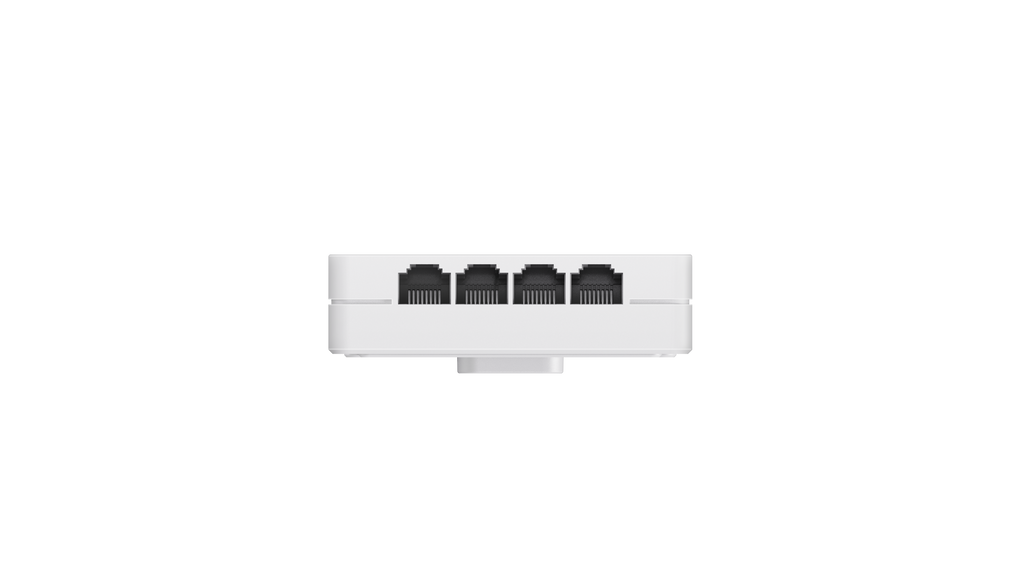

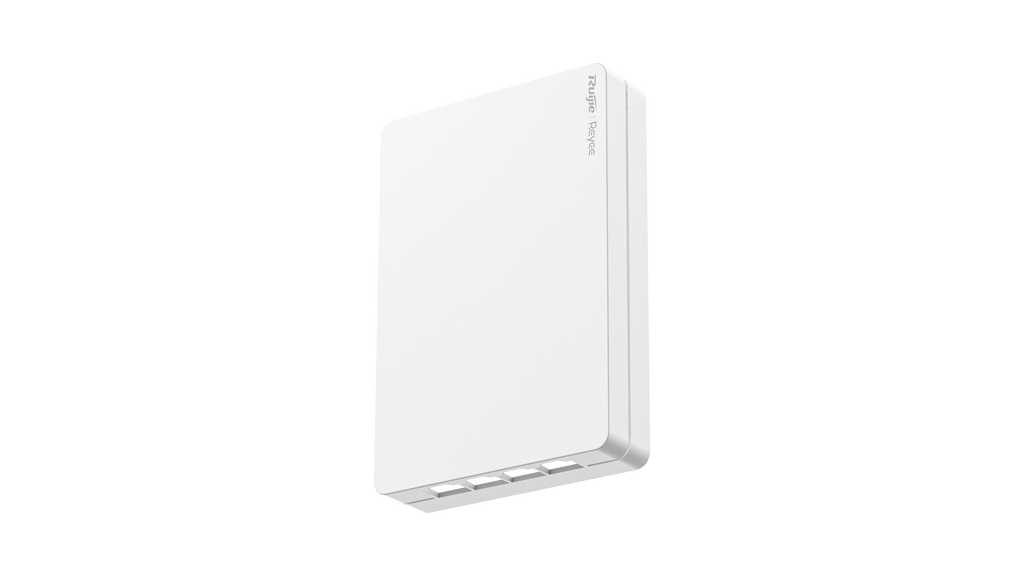

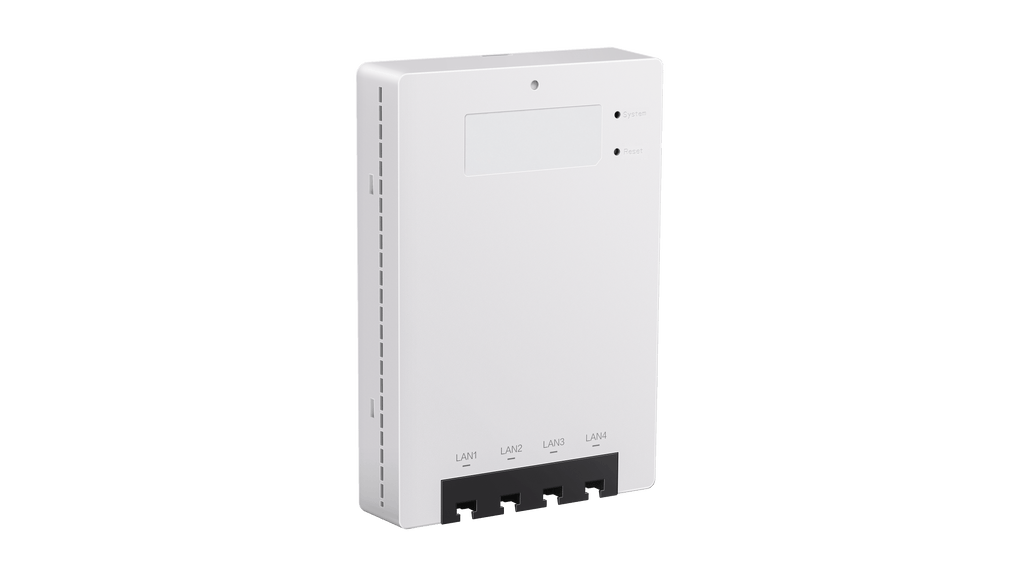

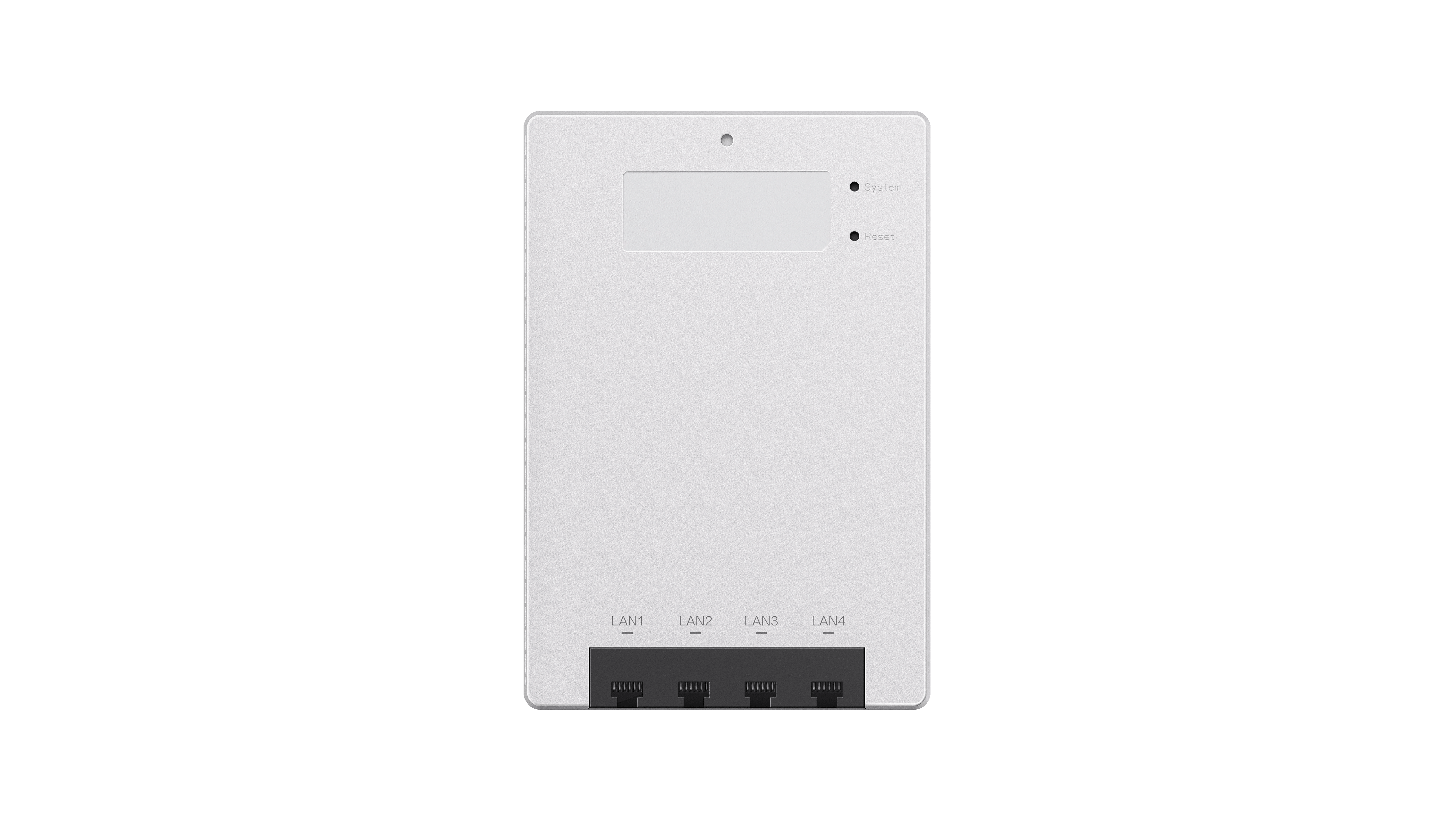

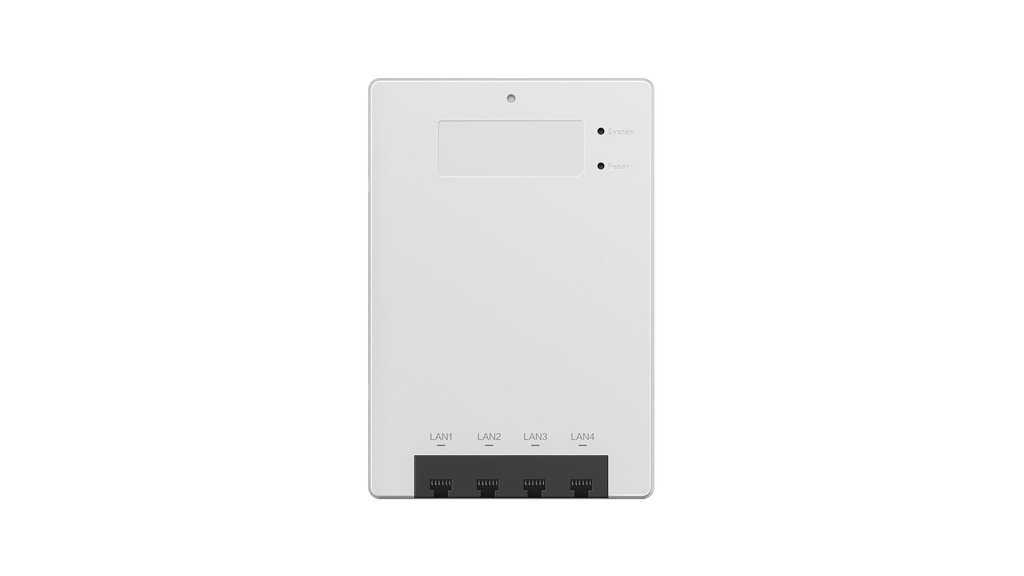

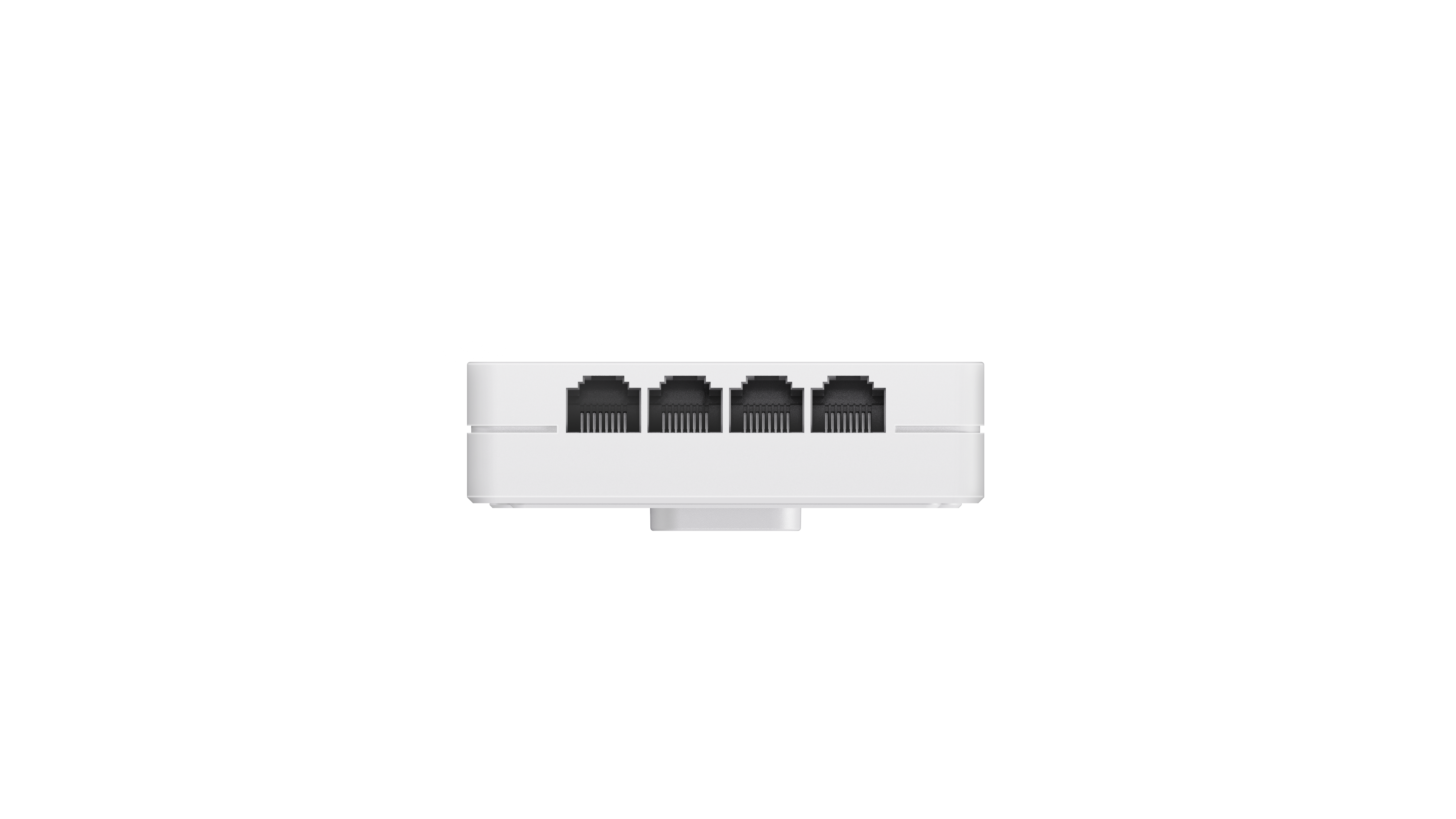

🔗 4 × Gigabit Ethernet Ports
Perfect for connecting in-room TVs, VoIP phones, laptops, or POS terminals.
-
🌐 Reyee Mesh & AI Roaming Ready
Extend coverage and reduce dead zones with smart mesh networking and fast roaming support.
-
📱 Standalone Portal & Cloud Management
Manage, monitor, and troubleshoot easily with the Reyee App or Ruijie Cloud.
Technical Specifications
| Category |
Details |
| Model |
RG-RAP1260 |
| Wireless Standard |
Wi-Fi 6 (802.11ax) |
| Max Throughput |
AX3000 – Up to 2976 Mbps
|
| MIMO |
2×2 @ 2.4 GHz + 2×2 @ 5 GHz |
| Ethernet Ports |

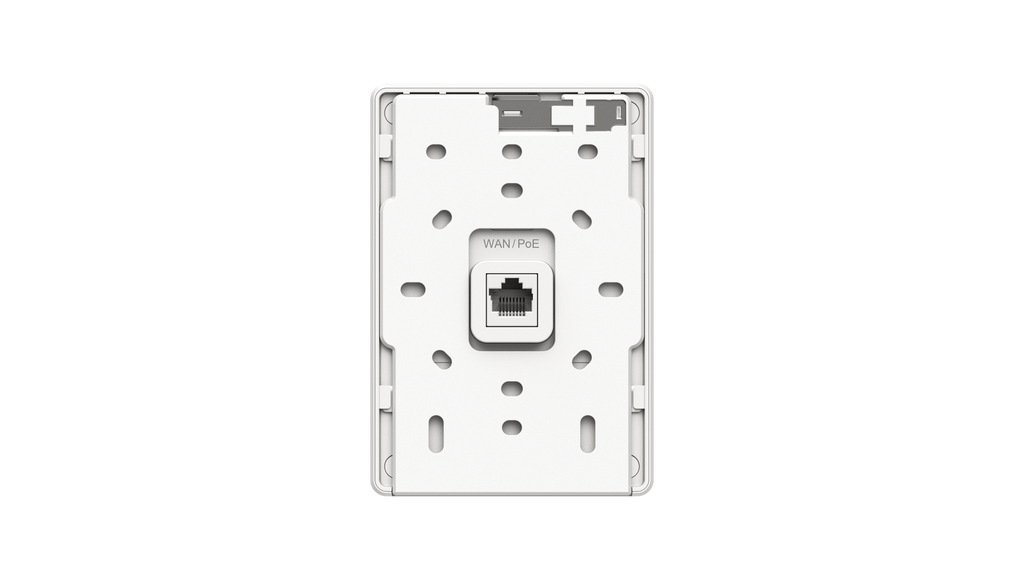

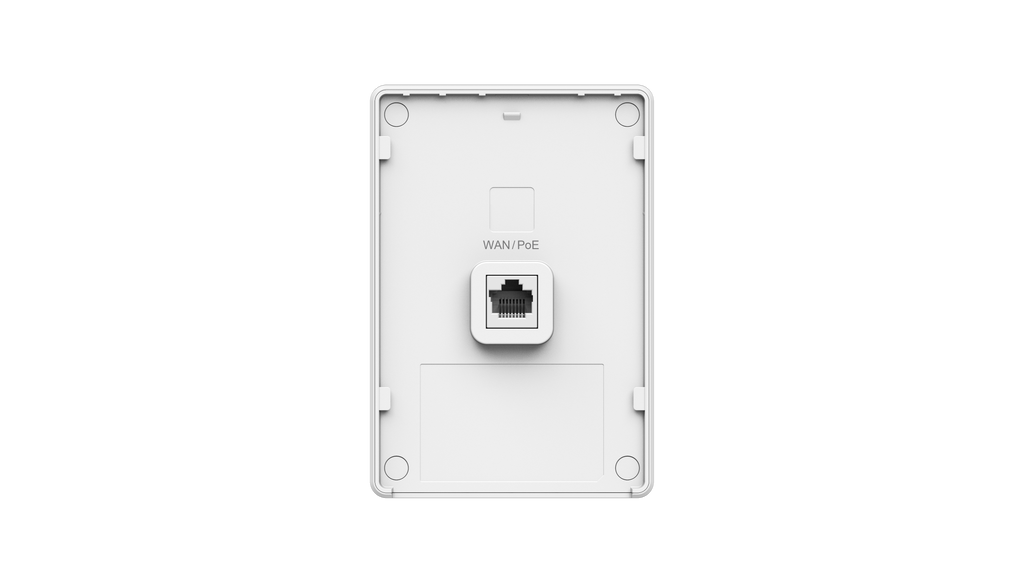

4 x Gigabit LAN ports + 1 uplink (5 total) |
| PoE Support |
IEEE 802.3af / 802.3at |
| PoE Output |
Not Supported |
| Power Consumption |
≤ 12W |
| Client Capacity |
Up to 512 devices (110 recommended) |
| Operating Temp |
0°C to 40°C (32°F to 104°F) |
| Form Factor |
Wall-Mount (Standard 86 mm electrical box) |
| Dimensions |
124 mm × 86 mm × 24 mm (4.88" × 3.39" × 0.94") |
| Weight |
< 0.5 kg (1.1 lbs) |
| Certifications |
CE, RoHS |
| Warranty |
3-Year Manufacturer Warranty |
What’s Included
Ideal Applications
| Environment |
Benefits |
| Hotel Guest Rooms |
In-room connectivity for guests via Wi-Fi and direct-wired Ethernet ports. |
| Modern Offices |
Clean, aesthetic installation for desk-level wireless + LAN access. |
| Apartment Complexes |
Cost-effective Wi-Fi 6 rollout with centralised cable routing. |
| Home Networks |
Wall-mountable for mesh Wi-Fi coverage with clean cable management. |
Management Features
-
🌐 Ruijie Cloud Management
Monitor performance, clients, traffic, and alerts via browser-based dashboard.
-
📲 Reyee Mobile App
Easy plug-and-play setup, mesh configuration, and firmware updates.
-
🧠 AI Wireless Optimization (WIO)
Automatically adjust signal parameters for optimal wireless experience.
AU/NZ Market Ready
✅ CE & RoHS Certified for Compliance
✅ Globally Compatible Wall-Mount Size (86 mm)
✅ Local Distributor Support Across AU/NZ
✅ 3-Year Manufacturer Warranty for Peace of Mind
Datasheets & Downloads
📄 Download RG-RAP1260 Datasheet – PDF
FAQ – RG-RAP1260 Wall-Mount Wi-Fi 6 Access Point
Q1: Can RG-RAP1260 support smart TVs and phones simultaneously?
Yes, with AX3000 throughput and multi-user MU-MIMO, it can handle multiple devices without lag.
Q2: Does it include PoE injector or adapter?
No, it supports 802.3af/at PoE, but power must be supplied via a compatible PoE switch or injector (sold separately).
Q3: Can I use this in a standard Australian power wall plate?
Yes. It's compatible with 86 mm standard electrical boxes used in Australia and New Zealand.
Q4: Is it suitable for mesh deployments?
Absolutely. It fully supports Reyee Mesh with other Reyee APs.
Q5: Does it require a controller?
No controller is required. Use Ruijie Cloud, Reyee App, or configure via local web GUI.
