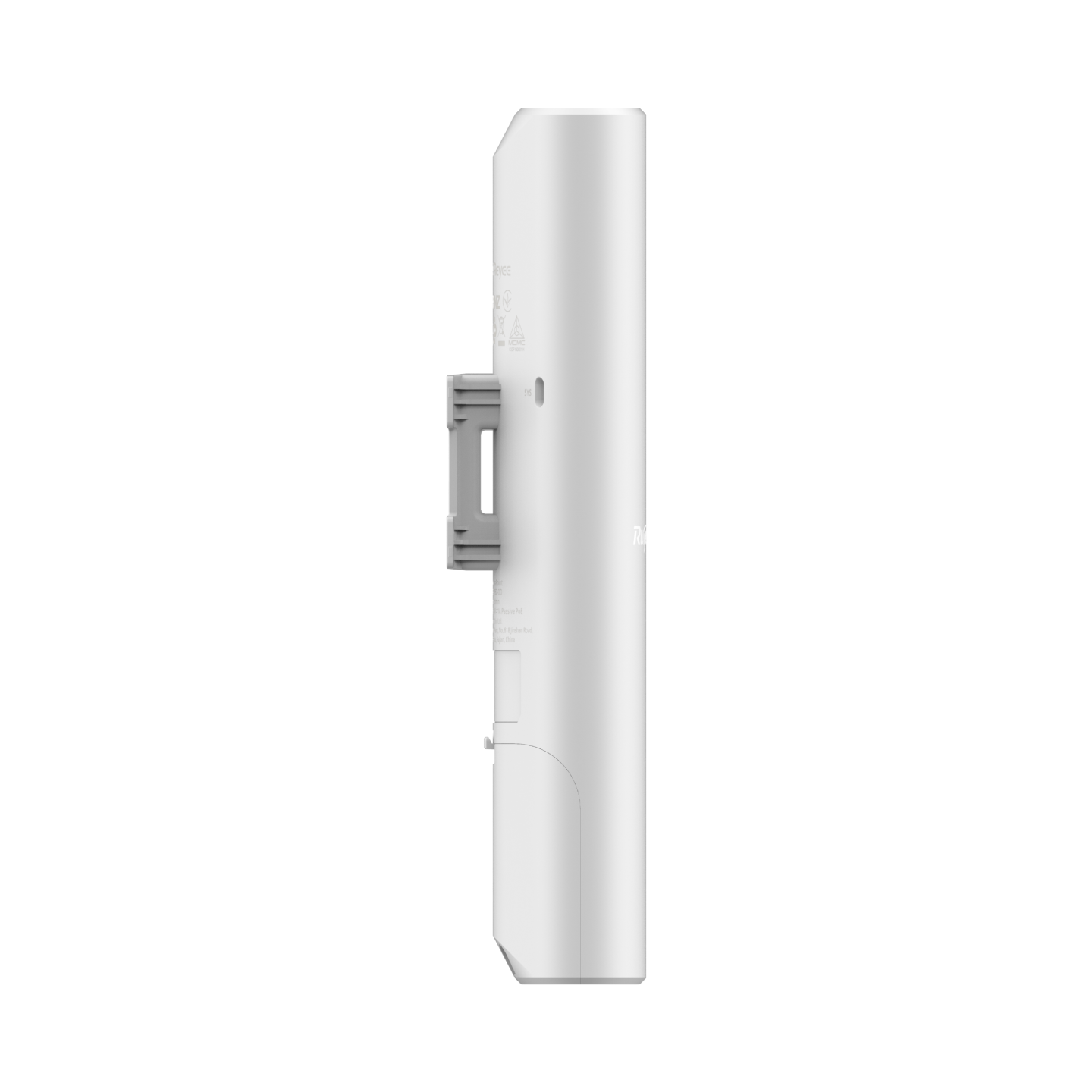

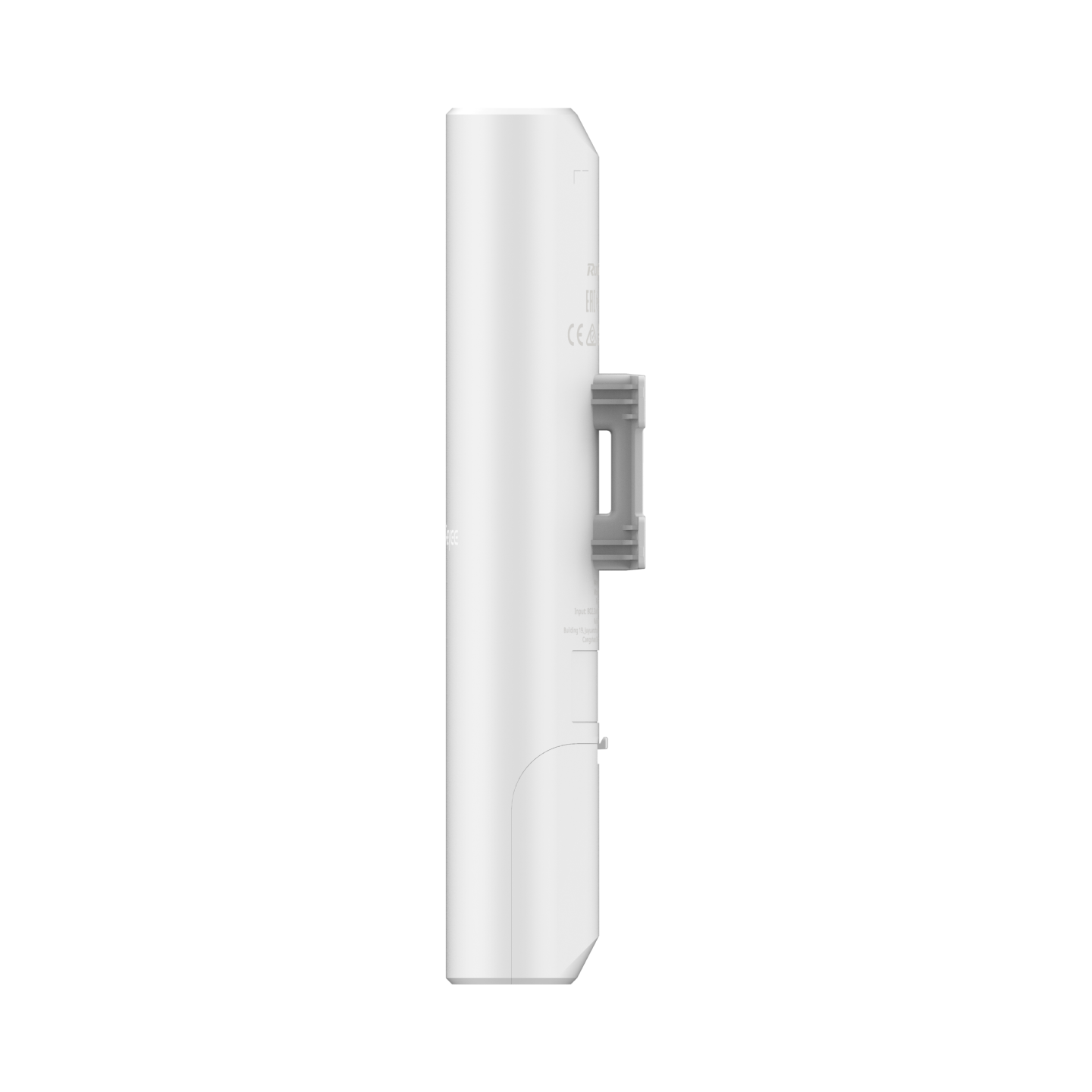

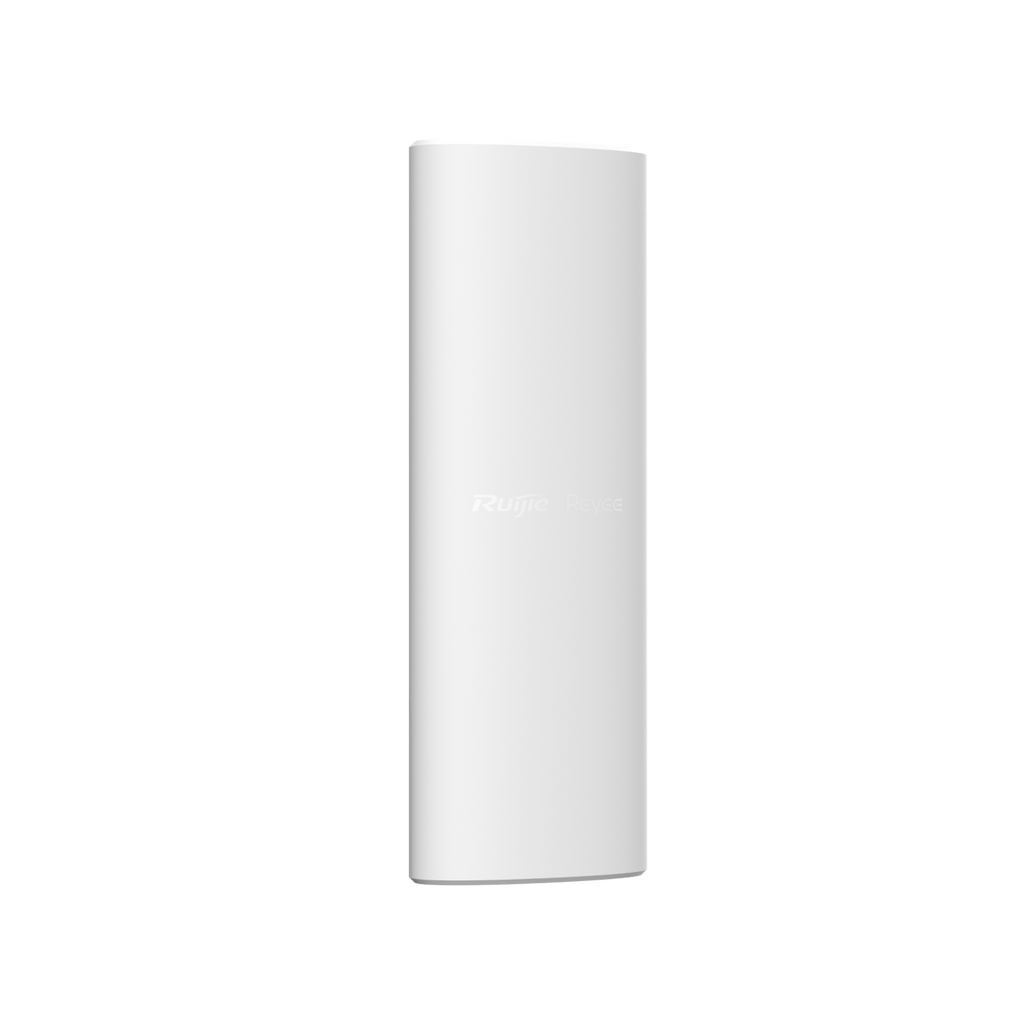

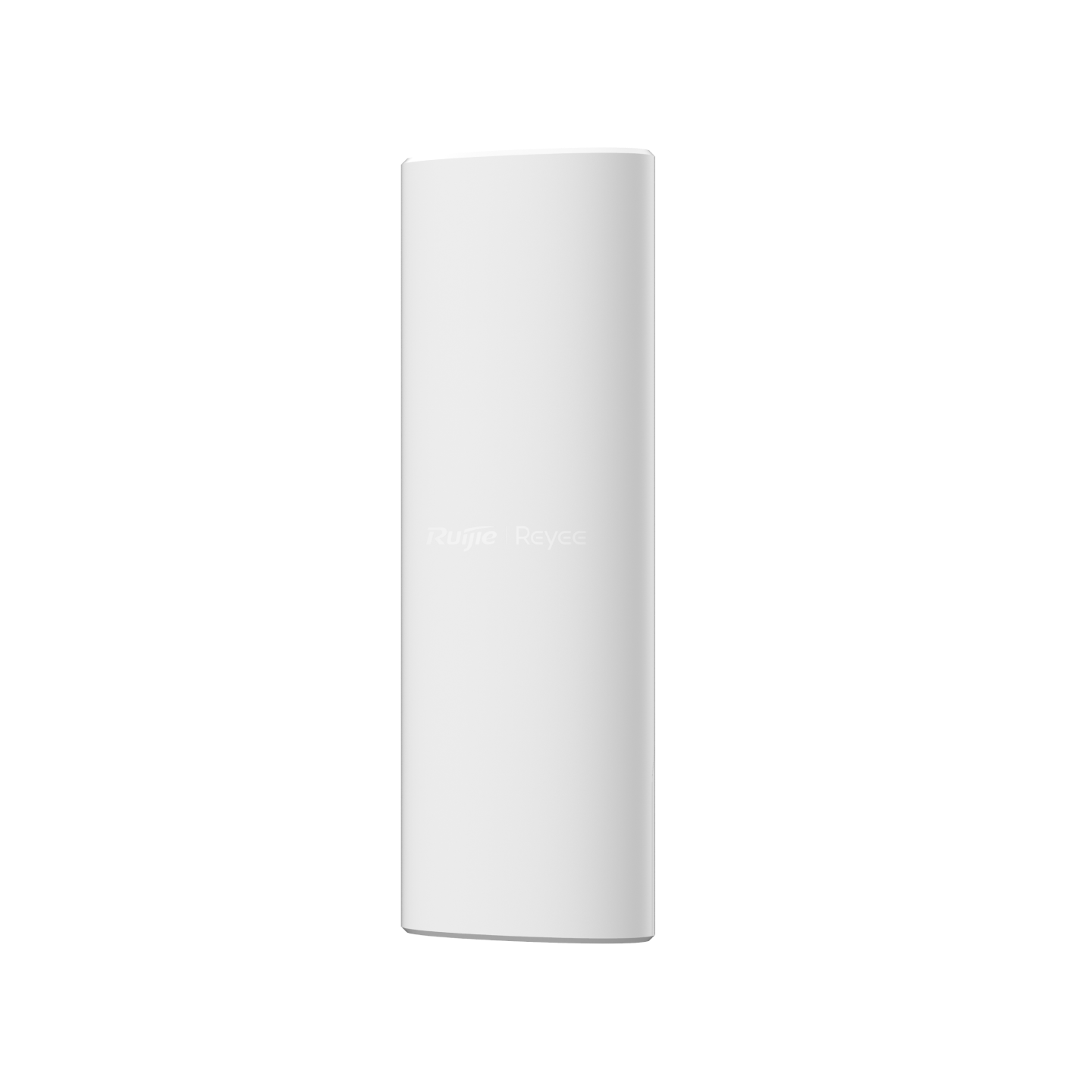

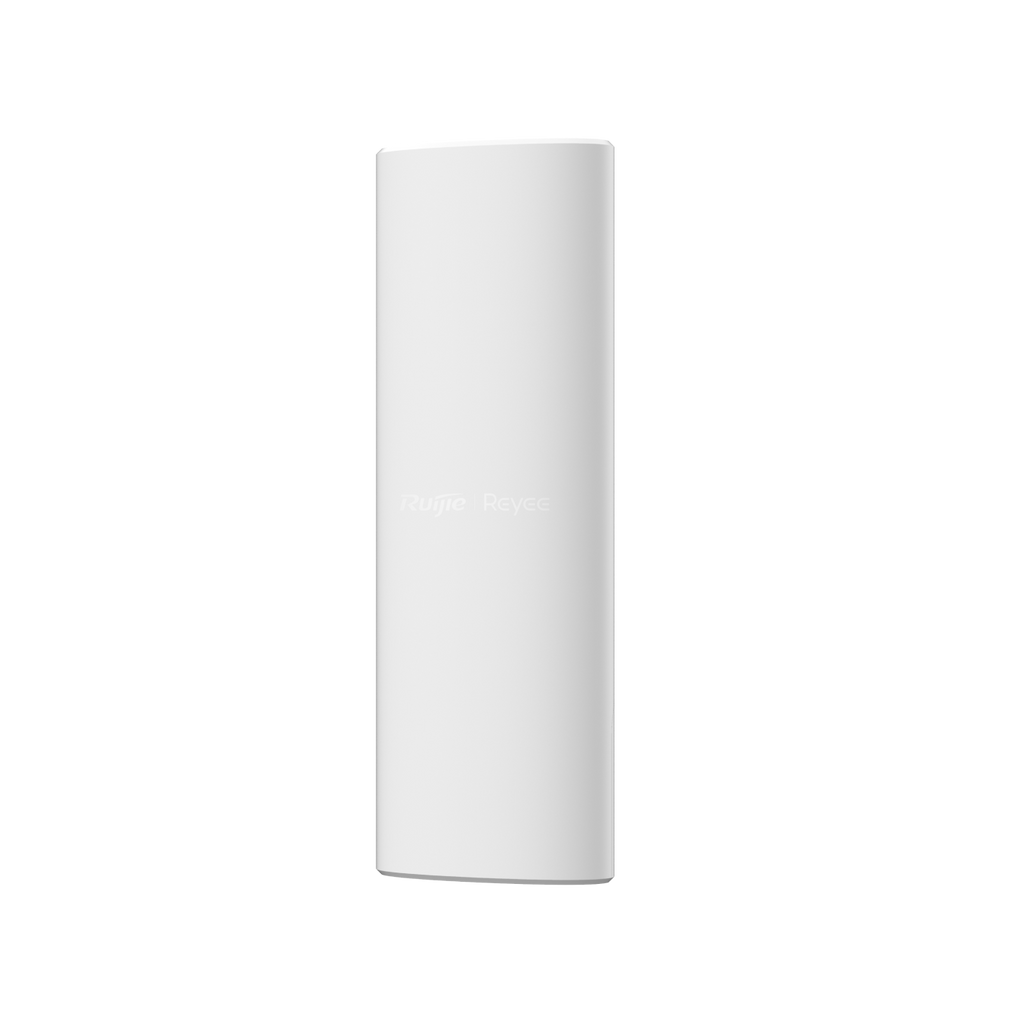

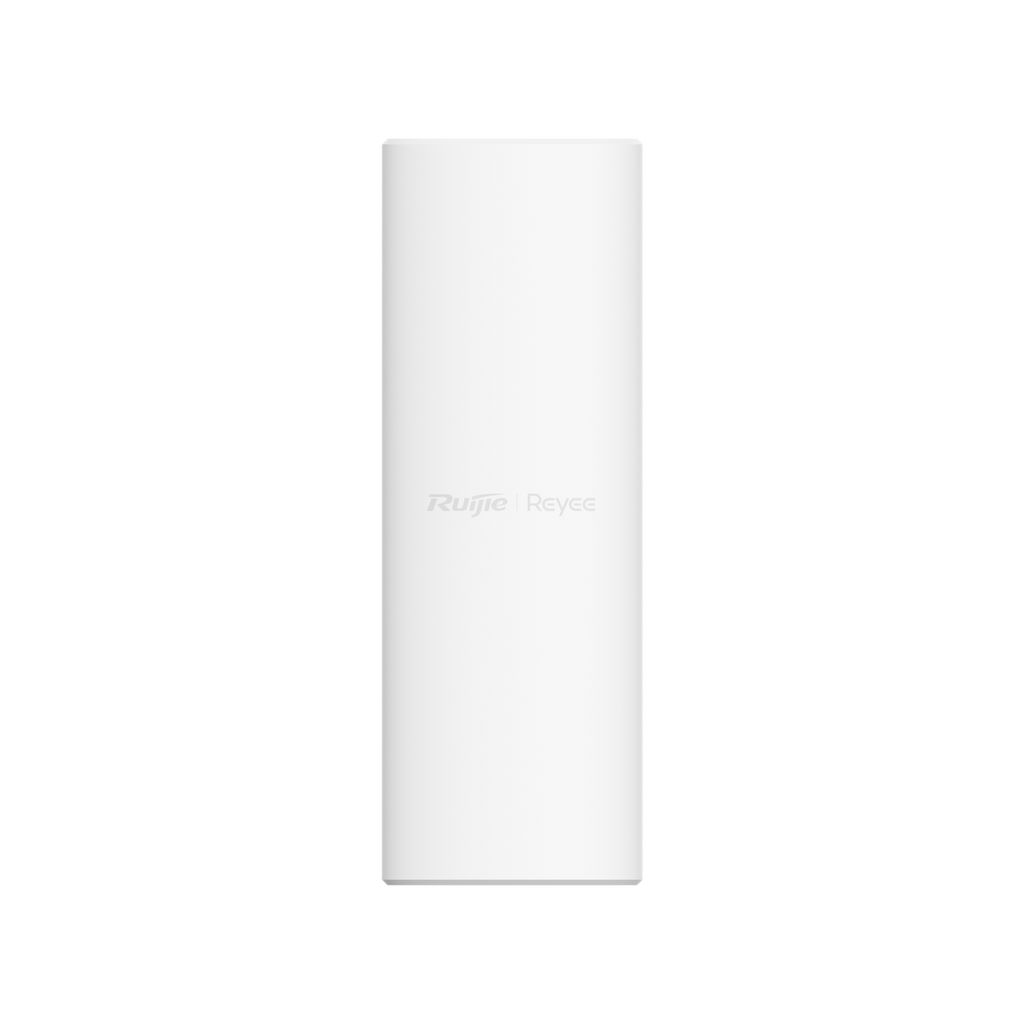

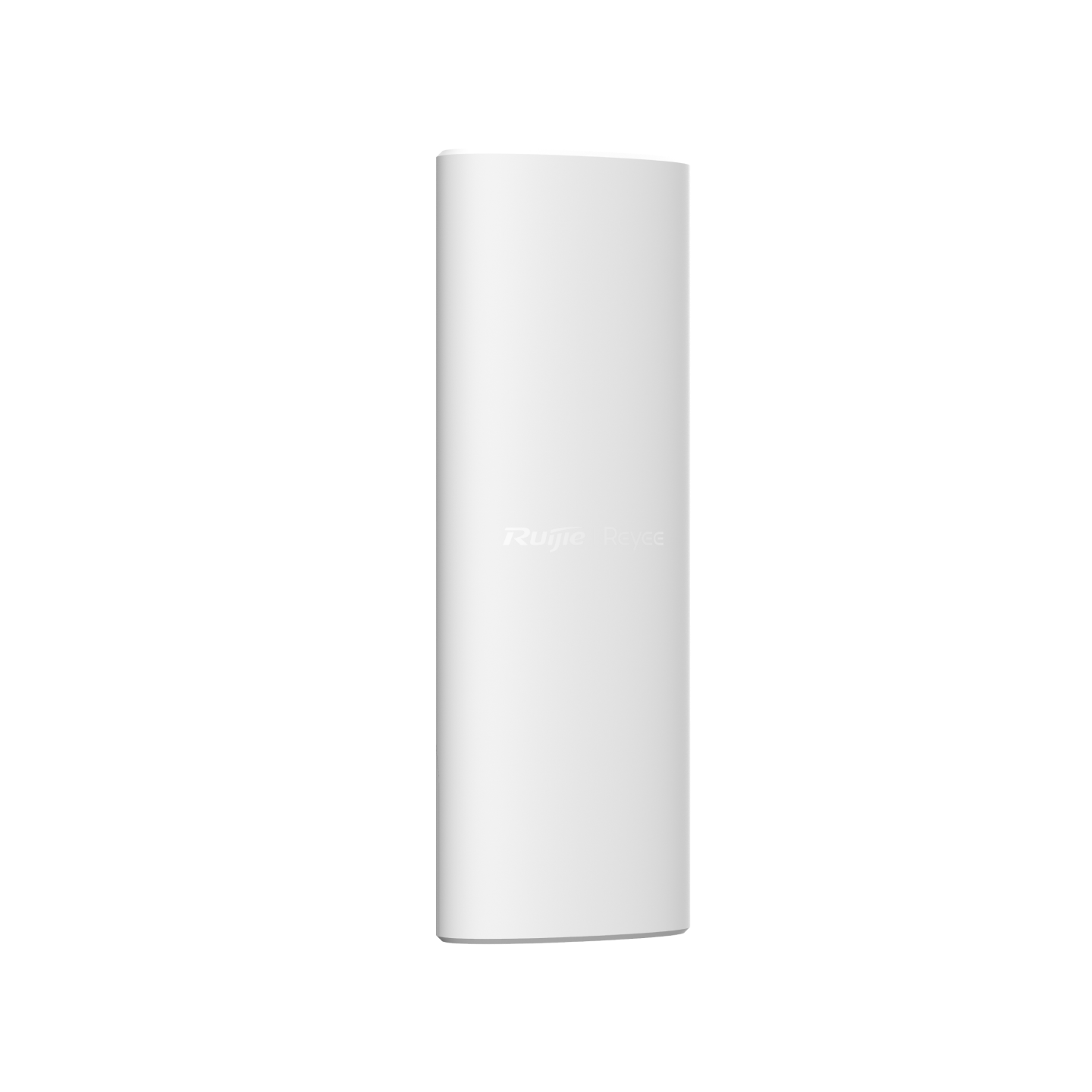

The Ruijie RG-RAP62-OD is a compact, durable, and high-performance AX3000 Wi-Fi 6 dual-band access point designed for both indoor and outdoor environments. Ideal for open dining areas, corridors, backyards, poolside Wi-Fi, and retail hotspots, this versatile AP ensures seamless high-speed connectivity in harsh or decorative spaces.
With a peak wireless speed of 2974 Mbps, 2×2 MIMO, support for Reyee Mesh, AI Roaming, and IP65-rated protection, the RG-RAP62-OD offers a blend of enterprise-class performance and retail-ready design, delivering stable and secure wireless for up to 110 devices.
Highlights & Benefits
-
⚡ AX3000 Wi-Fi 6 Performance
-
🧠 AI Roaming + Mesh Support
-
🌦️ IP65 All-Weather Protection
-
🛠️ Flexible Mounting Options
-
📶 2x2 MIMO on Both Bands
Technical Specifications
| Category |
Details |
| Model |
RG-RAP62-OD |
| Wi-Fi Protocols |
802.11ax (Wi-Fi 6), 802.11ac/n/a/g/b |
| Wireless Speed |
AX3000 – Up to 2974 Mbps |
| MIMO Configuration |
2×2 @ 2.4 GHz, 2×2 @ 5 GHz |

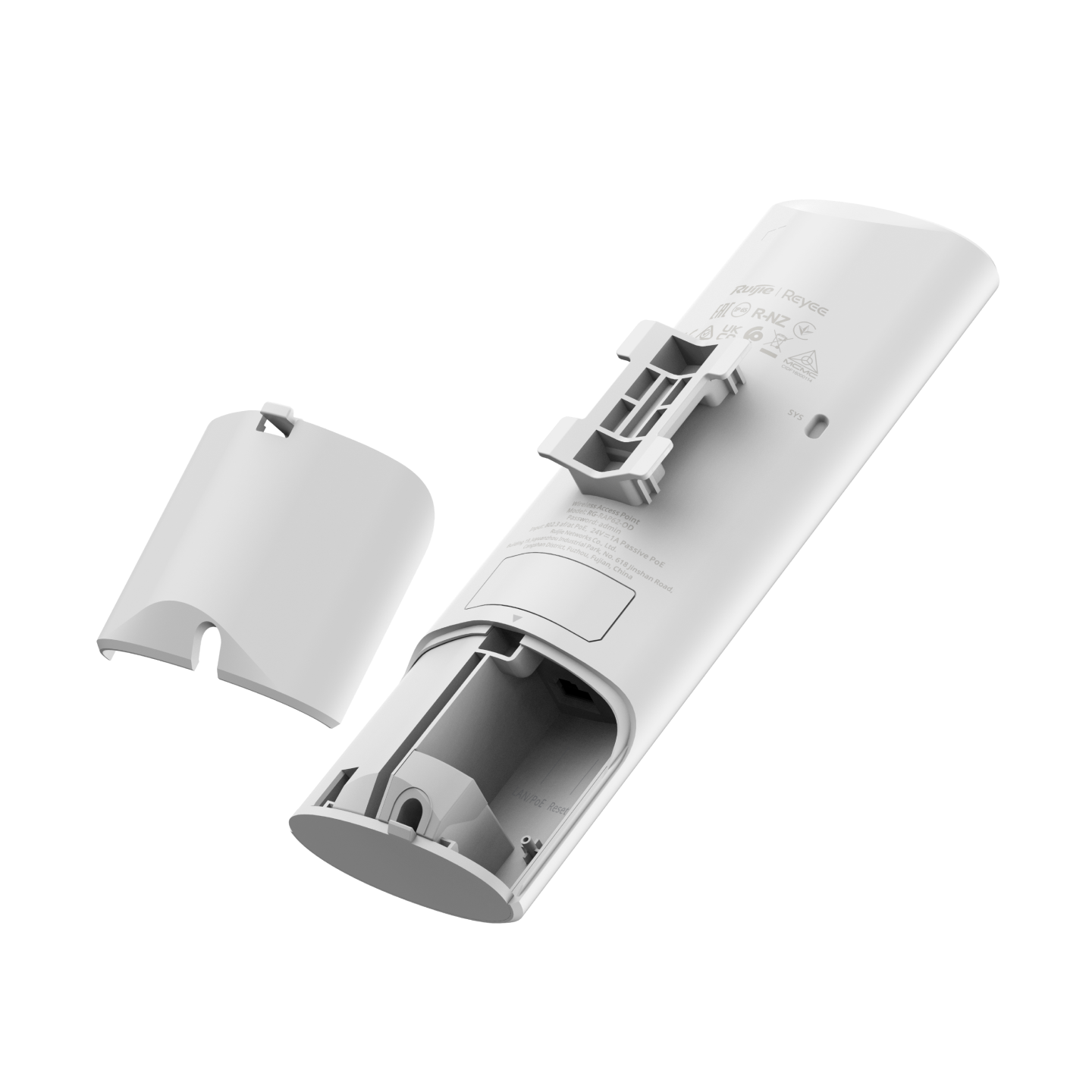

| Ethernet Port |
1 × 10/100/1000BASE-T (Gigabit Ethernet) |
| PoE Support |
IEEE 802.3af / 802.3at / 24V & 48V Passive PoE |

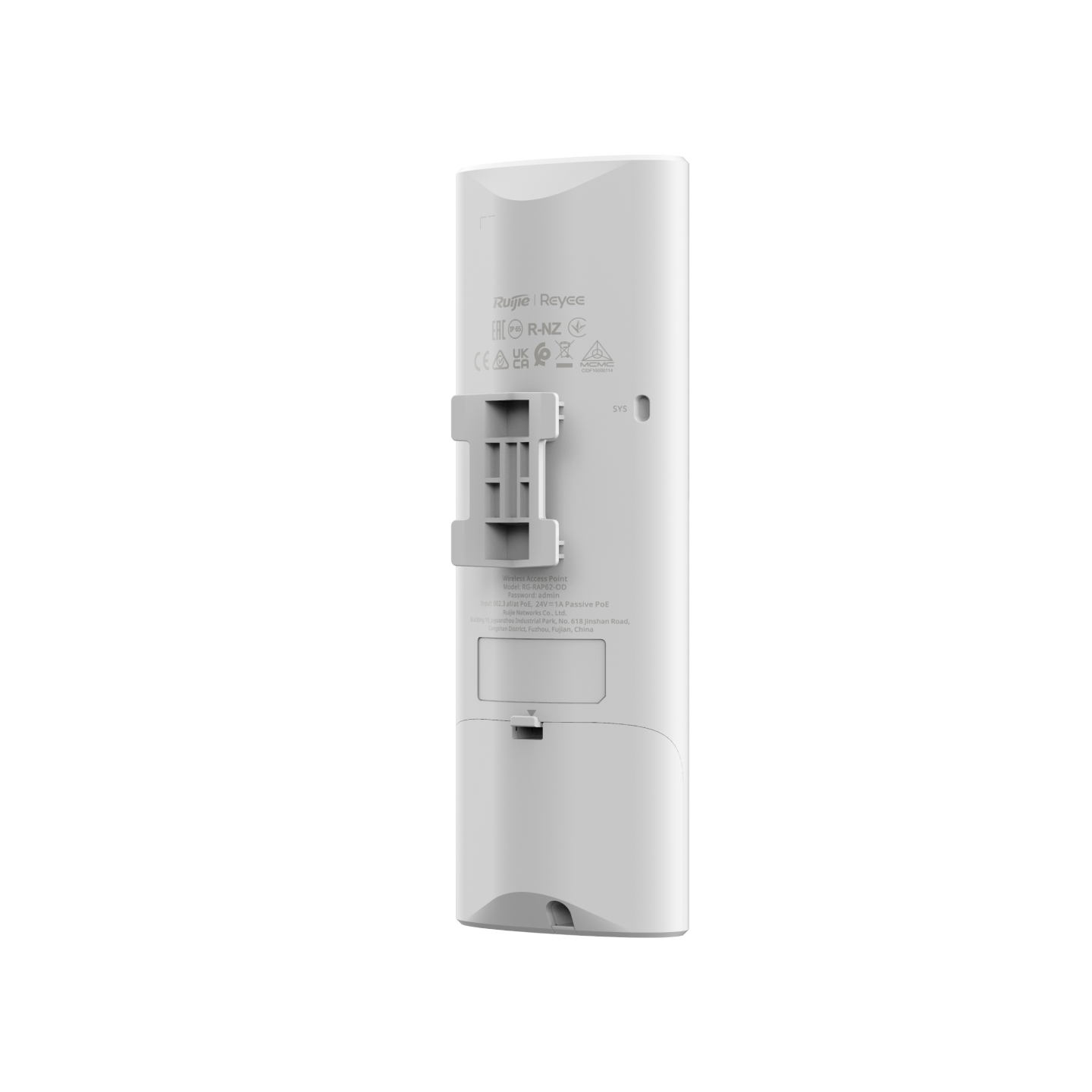

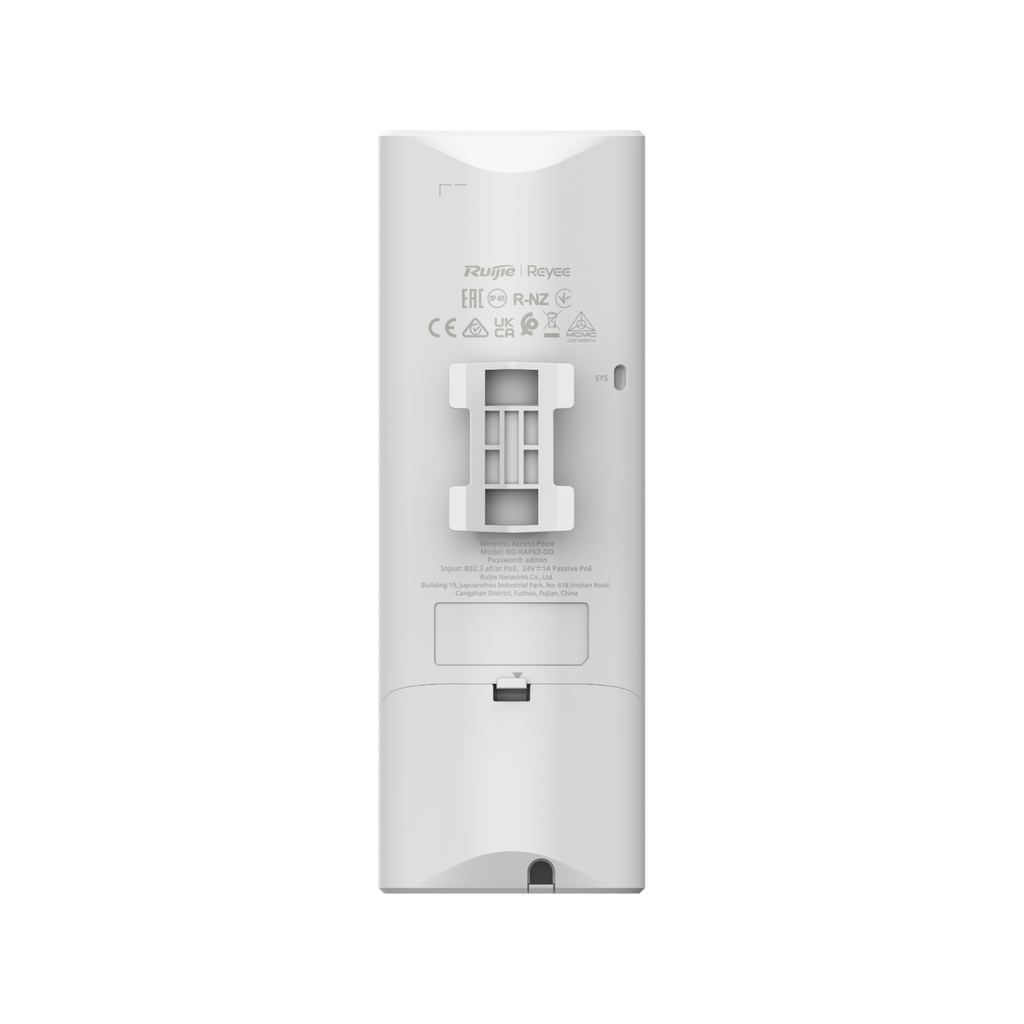

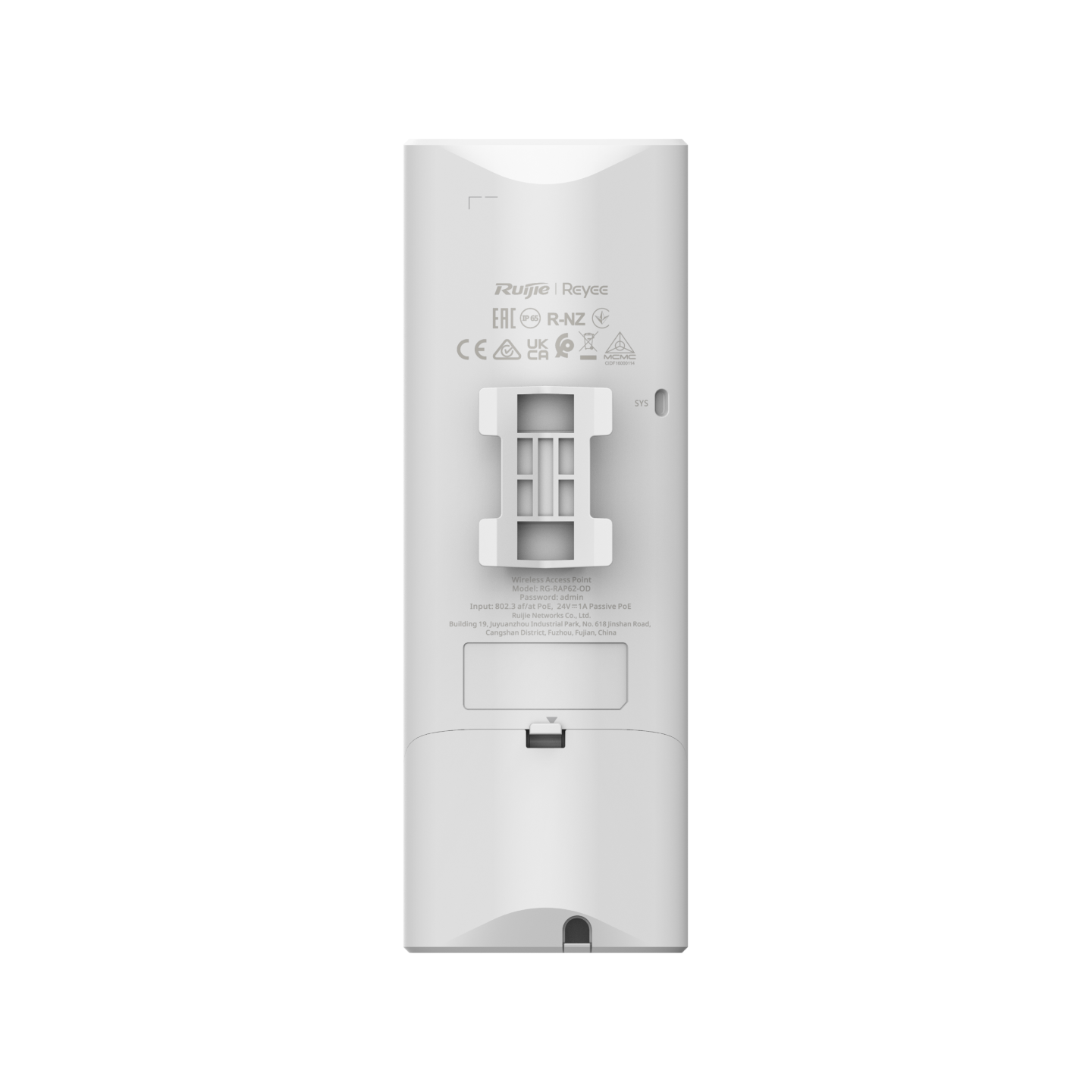

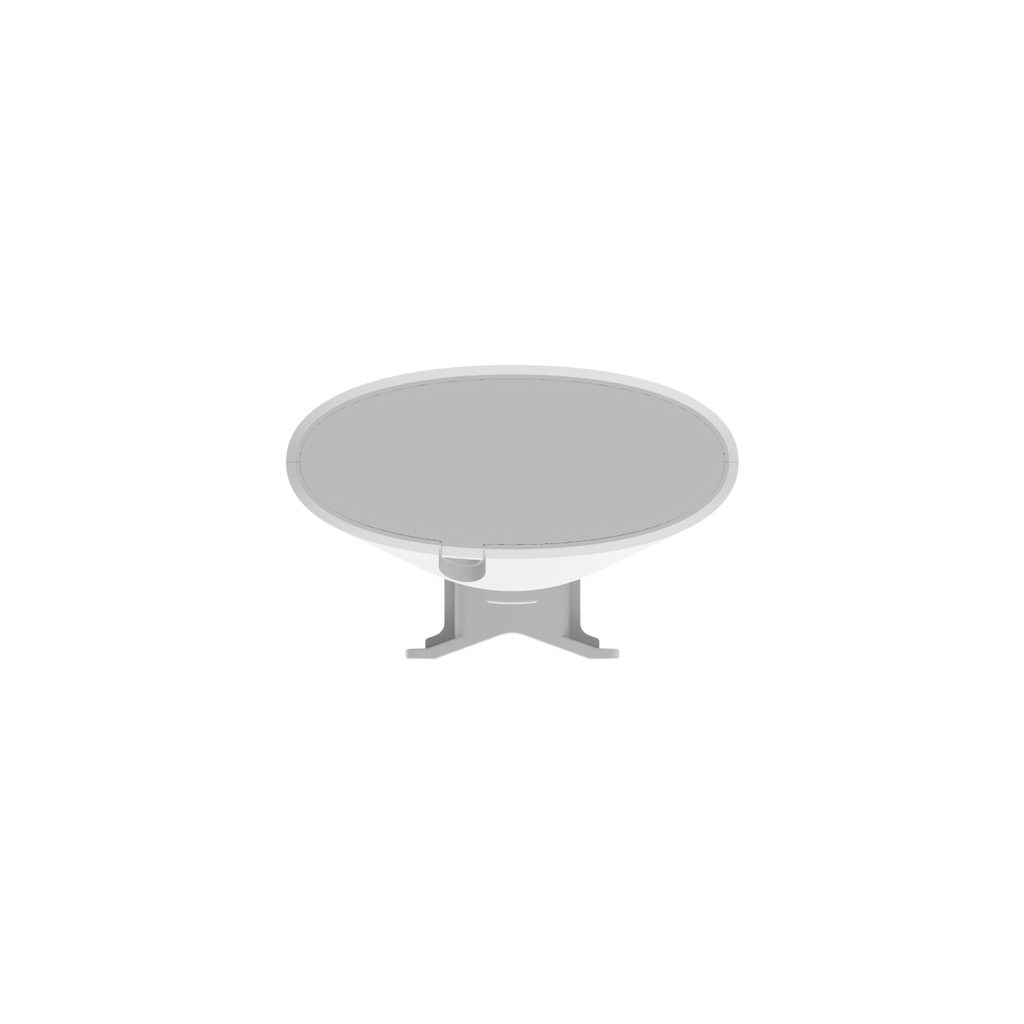

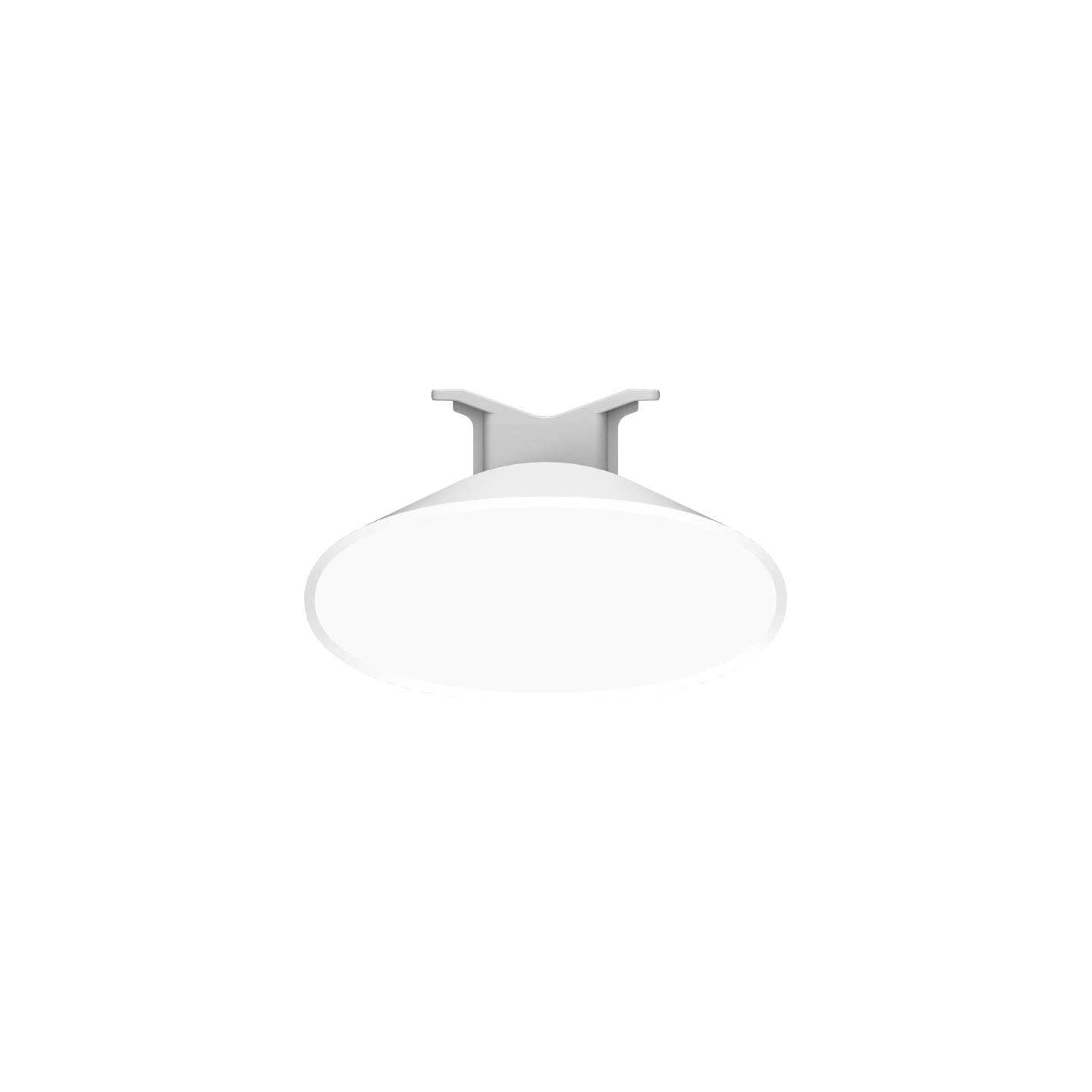

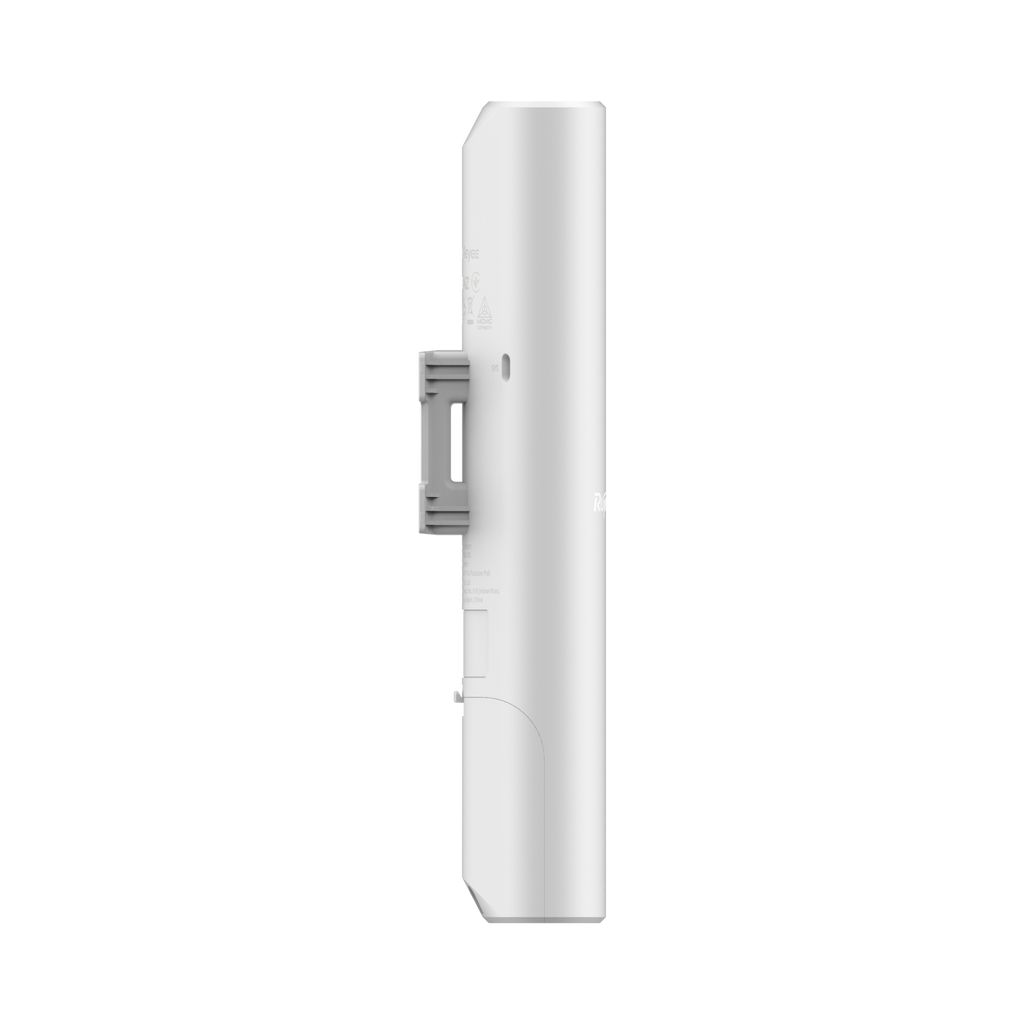

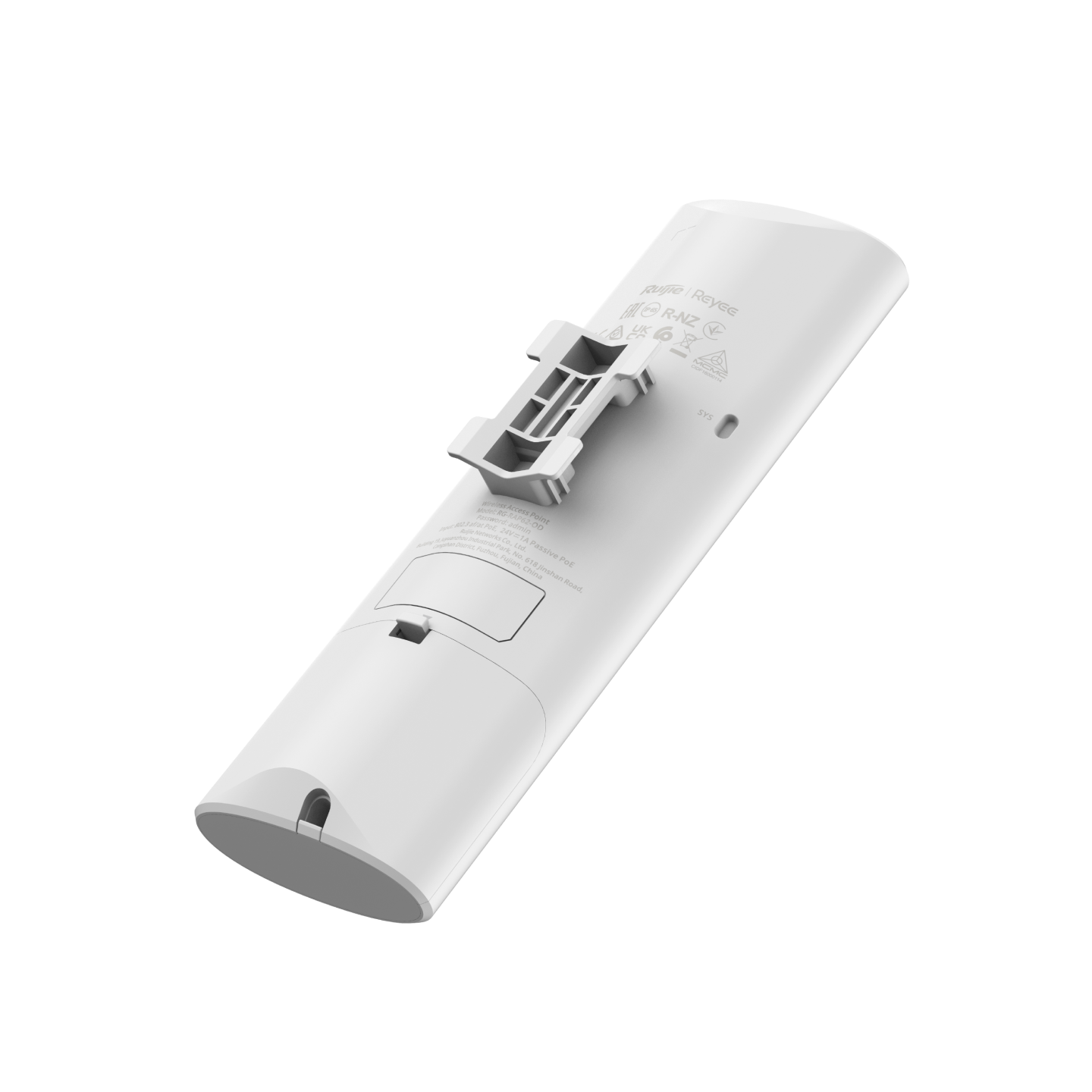

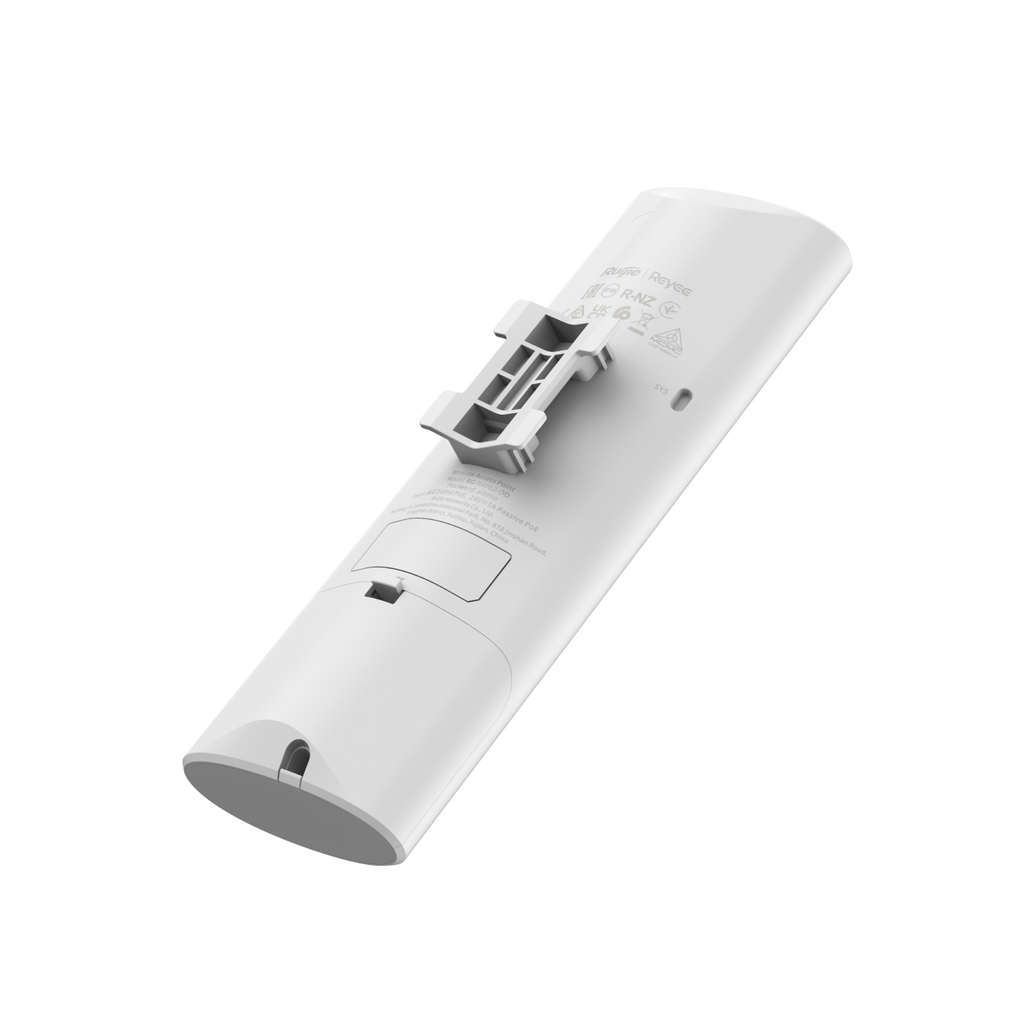

| Mounting |
Wall-mount or pole-mount |
| Antenna Type |
Built-in high-gain antennas |
| IP Rating |
IP65 (weatherproof enclosure) |
| Power Consumption |
≤ 14W |
| Client Capacity |
Max: 110 devices (recommended 80–100) |
| Dimensions |
200 × 70 × 35 mm (7.87 × 2.76 × 1.38 in.) |
| Weight |
≤ 0.4 kg (0.88 lbs) |
| Operating Temperature |
–30°C to +70°C (–22°F to +158°F) |
| Certifications |
CE, RoHS |
| Warranty |
3 Years Manufacturer Warranty |
What’s in the Box
Use Case Scenarios
| Location |
Description |
| Open-Air Dining Areas |
Provide guests with high-speed access while enjoying outdoor meals. |
| Backyards / Poolsides |
Stream music, control smart devices, or host guests with smooth Wi-Fi coverage. |
| Retail Storefronts |
Maintain reliable connectivity at entry points and outdoor POS systems. |
| Hotel Corridors |
Ensure coverage in transitional indoor-outdoor spaces without signal loss. |
Management & Integration
-
Reyee App for easy mobile deployment and mesh configuration
-
Ruijie Cloud for centralized cloud-based monitoring and alerting
-
Standalone Portal for local captive portal configuration
-
Smart AI Roaming ensures clients stay connected to the best signal source
Excellence for the Australian and New Zealand Market
✅ CE & RoHS Certified for AU/NZ
✅ Weather-Optimized IP65 Design for Local Climates
✅ Perfect for Hospitality, Retail & Residential Markets Across AU/NZ
✅ Sourced from Authorized ANZ Distributors
✅ Manufacturer Warranty Handled Locally for Peace of Mind
Downloadable Resources
📄 Download RG-RAP62-OD Datasheet – PDF
FAQs – RG-RAP62-OD (Product Code: RG-RAP62-OD)
Q1: What’s the maximum wireless speed for RG-RAP62-OD (Product Code: RG-RAP62-OD)?
It delivers up to 2974 Mbps, combining 2.4 GHz and 5 GHz performance with Wi-Fi 6 technology.
Q2: Is RG-RAP62-OD (Product Code: RG-RAP62-OD) suitable for outdoor installation?
Yes, it features an IP65-rated enclosure, ensuring protection against dust, rain, and moisture.
Q3: Does RG-RAP62-OD (Product Code: RG-RAP62-OD) support mesh networking?
Absolutely. It supports Reyee Mesh, allowing easy connection to other Reyee APs for seamless Wi-Fi coverage.
Q4: Can I use 24V or 48V passive PoE with RG-RAP62-OD (Product Code: RG-RAP62-OD)?
Yes, the unit is compatible with 802.3af, 802.3at, and both 24V and 48V passive PoE inputs.
Q5: How many devices can connect to RG-RAP62-OD (Product Code: RG-RAP62-OD)?
It supports up to 110 simultaneous clients, with optimal performance for around 80–100 users.
