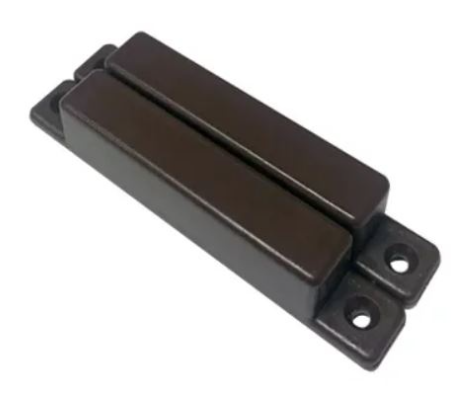

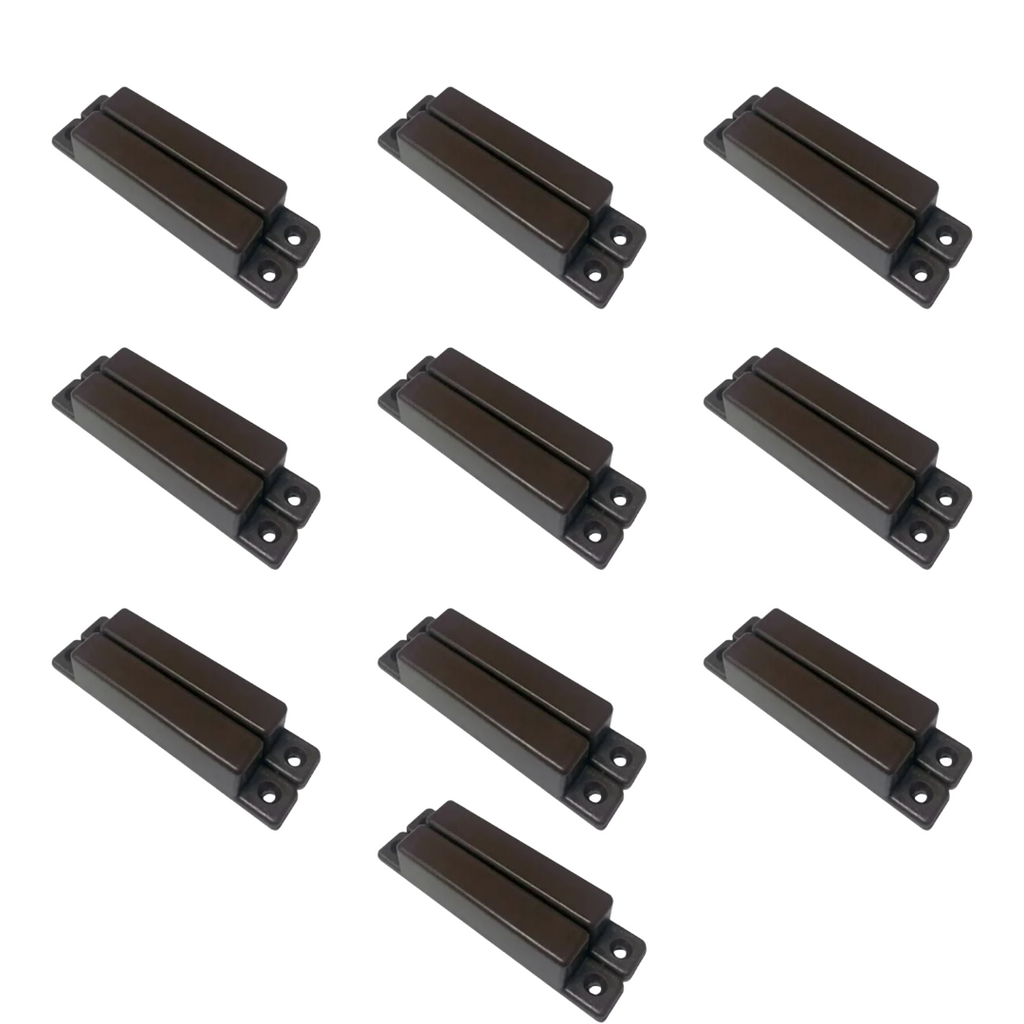

The SECOR WSS60BN Surface Mount Reed Switch is a reliable, wide-gap magnetic door contact designed for security alarm systems, access control and door monitoring applications. Featuring a 50mm operating gap, normally closed (NC) SPST contact, epoxy-sealed reed switch and brown housing, this surface mount magnetic contact provides dependable open/close detection for compatible residential and commercial security installations.
Designed for convenient surface mounting, the SECOR WSS60BN is ideal for timber doors, wooden frames, cabinets and monitored openings where recessed installation is impractical. Its wide-gap configuration provides additional installation flexibility, particularly where greater separation between the switch and magnet is required.
The epoxy-sealed reed switch helps protect the internal contact mechanism, while its compact 90 x 13 x 18mm housing supports neat and professional installations. The brown finish complements timber surfaces, brown door frames, wooden cabinetry and traditional interior finishes.
With an 8W maximum switching power, 100VDC maximum voltage and 500mA maximum current, the WSS60BN is designed for compatible low-voltage security monitoring circuits.
Main Features
-
50mm Wide Operating Gap: Provides increased spacing tolerance between the reed switch and magnet for flexible installation.
-
Normally Closed (NC) SPST Contact: Suitable for compatible security alarm and access control monitoring circuits.
-
Epoxy-Sealed Reed Switch: Helps protect the internal switching mechanism for dependable operation.
-
Surface Mount Installation: Ideal for doors, frames and monitored openings where recessed installation is unsuitable.
-
Brown Housing: Offers a discreet appearance on timber doors, brown frames and wooden cabinetry.
-
Compact Design: 90 x 13 x 18mm dimensions support practical installation.
-
8W Maximum Switching Power: Designed for compatible low-power security monitoring applications.
-
Low Contact Resistance: Maximum contact resistance of 0.2Ω.
-
Versatile Security Applications: Suitable for residential and commercial door monitoring systems.
-
1-Year Warranty: Supplied with a 12-month warranty.
Technical Specifications
| Specification |
Details |
| Brand |
SECOR |
| Product Code / SKU |
WSS60BN |
| Product Type |
Surface Mount Magnetic Reed Switch |
| Mounting Type |
Surface Mount |
| Contact Configuration |
Normally Closed (NC), SPST |
| Operating Gap |
50mm |
| Reed Switch Construction |
Epoxy Sealed |
| Maximum Switching Power |
8W |
| Maximum Switching Voltage |
100VDC |
| Maximum Switching Current |
500mA |
| Maximum Contact Resistance |
0.2Ω |
| Dimensions |
90 x 13 x 18mm |
| Colour |
Brown |
| Warranty |
1 Year |
What's Included in the Box?
Practical Applications
1. Residential Security Alarm Systems
The SECOR WSS60BN can be integrated into compatible home security systems to monitor entrance doors, internal doors and other protected openings.
2. Timber Door and Wooden Frame Monitoring
The brown housing complements timber doors, wooden frames and traditional joinery, providing a discreet magnetic contact installation.
3. Commercial Door Monitoring
Suitable for offices, retail premises, warehouses and commercial buildings requiring magnetic door position monitoring through compatible security systems.
4. Wide-Gap Door Installations
The 50mm operating gap provides increased flexibility in applications where standard narrow-gap reed switches may not accommodate the required spacing.
5. Access Control Systems
Can provide door position monitoring to compatible access control controllers supporting normally closed magnetic contact inputs.
6. Retrofit Security Installations
Its surface mount construction is useful for upgrading existing alarm installations without requiring recessed mounting cavities.
7. Wooden Cabinets and Storage Enclosures
Suitable for monitoring compatible cupboards, wooden cabinets, storage compartments and protected enclosures requiring open/close detection.
Warranty Information
The SECOR WSS60BN Surface Mount Reed Switch is supplied with a 1-year warranty.
Warranty coverage is subject to applicable manufacturer and supplier terms and conditions. Correct installation and operation within the specified electrical ratings are important for maintaining reliable performance.
Warranty enquiries can be coordinated through the supplying retailer and relevant brand representatives.
About SECOR
SECOR offers security system components and accessories, including magnetic reed switches designed for door monitoring and alarm applications. Its surface mount reed switches provide practical solutions for residential and commercial security installations, with different housing colours and wide-gap configurations to suit installation requirements.
Excellence for the Australian and New Zealand Market
The SECOR WSS60BN Brown Surface Mount Reed Switch is a practical security accessory for installers, electricians and security system integrators throughout Australia and New Zealand.
-
Australian and New Zealand Security Applications: Suitable for compatible residential and commercial security alarm installations.
-
Professional Security Integration: Designed for compatible intrusion detection and access control systems requiring normally closed magnetic contacts.
-
Wide-Gap Installation Flexibility: The 50mm operating gap supports applications requiring increased spacing between the reed switch and magnet.
-
Timber Door Compatibility: The brown housing complements wooden doors, timber frames and traditional architectural finishes commonly used in residential and commercial premises.
-
Quality and Compliance: Installations should follow relevant Australian and New Zealand electrical and security requirements. Product-specific compliance certifications have not been independently verified.
-
Authorised Product Sourcing: Purchasing through authorised SECOR distribution channels is recommended to support product authenticity and traceability.
-
Brand Warranty Support: Warranty enquiries can be coordinated with relevant SECOR representatives through the supplying retailer, subject to warranty conditions.
Frequently Asked Questions (FAQs)
1. What is the SECOR WSS60BN Surface Mount Reed Switch used for?
The SECOR WSS60BN is a magnetic door contact designed for monitoring doors, frames and protected openings in compatible residential and commercial security alarm and access control systems.
2. What is the operating gap of the SECOR WSS60BN reed switch?
The SECOR WSS60BN features a 50mm operating gap, providing increased spacing tolerance between the reed switch and magnet. Actual operation depends on correct alignment and mounting conditions.
3. Is the SECOR WSS60BN a normally closed reed switch?
Yes. The SECOR WSS60BN uses a normally closed (NC), single-pole single-throw (SPST) contact configuration suitable for compatible security monitoring circuits.
4. Is the SECOR WSS60BN suitable for timber doors and wooden frames?
Yes. The SECOR WSS60BN features a brown housing that complements timber doors, wooden frames and cabinetry. The surface mount design makes it a practical option for these applications.
5. What are the electrical ratings of the SECOR WSS60BN?
The SECOR WSS60BN has a maximum switching power of 8W, maximum voltage of 100VDC, maximum current of 500mA and maximum contact resistance of 0.2Ω. All applicable electrical limits must be observed together.
6. Is the SECOR WSS60BN suitable for residential security alarm systems?
Yes. The SECOR WSS60BN is suitable for compatible residential security systems that support normally closed magnetic door contacts.
7. Is the SECOR WSS60BN waterproof?
The SECOR WSS60BN features an epoxy-sealed reed switch, but a waterproof or IP protection rating has not been verified. Suitability for outdoor or moisture-exposed environments should be confirmed before installation.
8. Can the SECOR WSS60BN be connected to an access control system?
Yes. The SECOR WSS60BN can be used with compatible access control systems requiring normally closed SPST magnetic contact inputs, provided the electrical and installation requirements are met.
9. What are the dimensions of the SECOR WSS60BN magnetic reed switch?
The SECOR WSS60BN measures 90 x 13 x 18mm, providing a compact surface mount design for doors, frames and other compatible mounting surfaces.
10. What colour is the SECOR WSS60BN reed switch?
The SECOR WSS60BN features a brown housing, making it suitable for timber doors, brown frames, wooden cabinetry and other surfaces where a discreet matching finish is preferred.
11. Does the SECOR WSS60BN come with a warranty?
Yes. The SECOR WSS60BN is supplied with a 1-year warranty, subject to applicable manufacturer and supplier warranty conditions.
12. Can the SECOR WSS60BN be installed without drilling recessed holes?
Yes. The SECOR WSS60BN is designed for surface mounting and does not require the recessed mounting cavities used by flush-mounted contacts. Fixing and cable routing may still require drilling.
13. Is the SECOR WSS60BN suitable for commercial security installations?
Yes. The SECOR WSS60BN can be used in compatible commercial alarm and access control applications, including offices, retail premises, warehouses and protected storage areas.
14. Can the SECOR WSS60BN be used for wide-gap door installations?
Yes. The SECOR WSS60BN features a 50mm operating gap, making it a practical choice where increased separation between the magnetic contact components is required.
15. Why choose the SECOR WSS60BN brown surface mount reed switch?
The SECOR WSS60BN combines a 50mm wide operating gap, normally closed SPST contact, epoxy-sealed reed switch and discreet brown housing, offering a practical magnetic door contact solution for compatible security alarm and access control installations.
