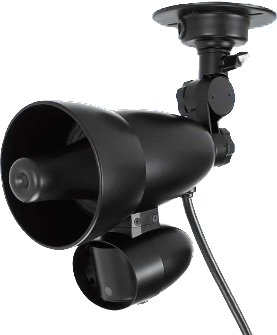

The TAKEX AV-100E is a programmable voice speaker designed to deliver a customised audio message upon receiving an alarm signal from a PIR sensor or similar device. Featuring a built-in condenser microphone, it allows quick and easy on-site recording of up to 12 seconds—ideal for security warnings, safety messages, or announcements.
Once triggered via a dry contact input (N.O.), the AV-100E plays back the recorded message once per activation, with a loud and clear 100dB output (adjustable). The unit supports easy message overwriting, enabling flexible updates for changing site requirements.
Its rainproof housing makes it suitable for both indoor and outdoor installation, and the compact design supports wall or ceiling mounting.
What’s Included in the Box
-
TAKEX AV-100E Voice Speaker Unit
-
Built-in condenser microphone
-
4-core connection cable (0.5m)
-
Integrated volume control and status LED
-
Installation manual
-
Manufacturer’s Warranty Applied
Main Features
-
Programmable voice speaker for security and safety applications
-
Up to 12 seconds of easily re-recordable audio
-
100dB max sound output with adjustable volume control
-
Plays message once per alarm input (no retrigger during playback)
-
Dry contact (N.O.) alarm input for easy integration
-
Built-in condenser microphone with recording level LED feedback
-
Wall or ceiling mount installation options
-
Rainproof for outdoor use
Detailed Specifications
| Specification |
Details |
| Brand |
TAKEX |
| Model |
AV-100E |
| Product Type |
Voice Speaker |
| Power Supply |
10–14V DC (non-polarity) |
| Current Consumption (Standby) |
≤20mA |
| Current Consumption (Max) |
≤500mA |
| Alarm Input |
Dry contact relay, N.O. (≥10mA contact capacity) |
| Recording Method |
PCM, built-in condenser microphone |
| Max Recording Time |
12 seconds (message overwrite capable) |
| Sound Output |
Max 100dB/2W (1m ahead) |
| Output Control |
One-shot playback per trigger |
| Volume Control |
Adjustable 0–Max |
| Ambient Operating Temp |
-20°C to +50°C (no condensation/freeze) |
| Mounting Type |
Wall or ceiling |
| Protection Rating |
Rainproof (indoor/outdoor) |
| Material |
Resin (black) |
| Dimensions |
115mm dia × 89mm depth |
| Weight |
Approx. 1kg |
| Warranty |
Manufacturer’s Warranty Applied – 60 Months |
Warranty Information
Manufacturer’s Warranty Applied – 60 Months
Covers manufacturing defects and workmanship, supported by authorised TAKEX distributors.
Brand Description
TAKEX is a globally recognised manufacturer of high-quality security and detection devices. Their innovative solutions are trusted in professional security installations worldwide for reliability, performance, and ease of use.
Practical Use Scenarios
-
Perimeter Security Warnings: Broadcast “Warning – Restricted Area” on intrusion.
-
Safety Alerts: Play “Caution – Forklift in Operation” in warehouses.
-
Visitor Guidance: Announce entry instructions at gates or lobbies.
-
Event Management: Trigger announcements for crowd control or safety compliance.
Datasheets / Downloads
TAKEX AV-100E datasheet
Excellence for the Australian and New Zealand Market
The TAKEX AV-100E is designed to meet Australian and New Zealand installation standards for security accessories, with rainproof construction for all-weather performance. Sourced through authorised suppliers, it ensures full compliance and manufacturer-backed warranty support.
FAQs (Product Code: AV-100E)
-
How long can the AV-100E record messages?
Up to 12 seconds.
-
Can the message be changed?
Yes, messages can be overwritten as needed.
-
What triggers playback?
A dry contact (N.O.) alarm input from a PIR sensor or other device.
-
How loud is the speaker?
Up to 100dB at 1 metre, with adjustable volume.
-
Is it suitable for outdoor use?
Yes, it is rainproof and designed for indoor or outdoor installation.
