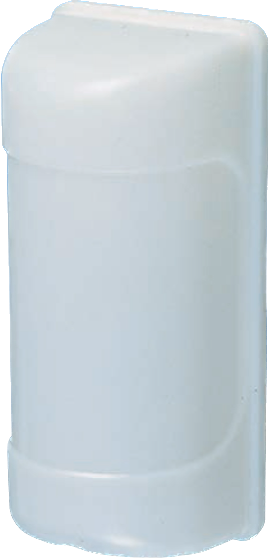

The TAKEX MS-100E is a high-performance outdoor passive infrared sensor offering three selectable detection patterns (Wide Angle, Curtain, or Long Range) to suit a variety of security and automation applications. Designed for weatherproof outdoor and semi-outdoor environments, this sensor is ideal for switching on surveillance cameras, outdoor lighting, or integrated automation systems.
With a robust build, adjustable sensitivity, and dry contact configurable output, the MS-100E delivers flexible and dependable detection performance for both residential and commercial sites. Engineered by TAKEX, a global leader in infrared detection, this unit ensures reliability in challenging Australian and New Zealand conditions.
What’s Included in the Box
Main Features
-
Multi-Mode Detection: Switch between Wide Angle (10 m), Curtain (10 m), and Long Range (20 m) coverage to suit your site layout.
-
Weatherproof Design: Built to withstand outdoor conditions including rain, dust, and temperature changes.
-
Dry Contact Output (N.O./N.C. selectable): Enables flexible integration with cameras, lights, alarms, or automation systems.
-
Adjustable Sensitivity: Ranges from approximately 30% to 170%, with 100% as the factory default.
-
Tamper Protection: Tamper switch triggers alarm if the unit is removed or interfered with.
-
LED Alarm Indicator: Visual confirmation of detection during setup and testing.
-
Horizontal & Vertical Installation Options: Ideal for both low wall mounting (0.8–1.5 m) and higher ceilings/walls (up to 3 m with horizontal curtain mode).
-
Compact Form Factor: Modern, low-profile white housing blends into any exterior or interior setting.
-
Mounting Accessories Available: Optional brackets available for wall, pole, or ceiling mounting.
Detailed Specifications
| Specification |
Details |
| Model |
MS-100E |
| Detection System |
Passive Infrared |
| Detection Patterns |
Wide Angle (10 m), Curtain (10 m), Long Range (20 m) |
| Supply Voltage |
10.5 V to 28 V DC (Non-polarity) |
| Current Consumption |
30 mA or less |
| Output Type |
Dry contact relay, N.C. / N.O. selectable |
| Contact Rating |
30 V AC/DC, 0.5 A max (resistive load) |
| Tamper Switch |
Dry contact, N.C. (30 V AC/DC, 2 A max) |
| Sensitivity Adjustment |
~30% (Low) to ~170% (High), default 100% |
| Operation LED |
Lights at alarm |
| Installation Position |
Vertical: 0.8–1.5 m; Horizontal: up to 3 m |
| Operating Temperature |
–20 °C to +50 °C (–4 °F to 122 °F) |
| Weight |
Approx. 220 g (7.7 oz) |
| Body Material |
Body: AES resin, Cover: PE resin |
| Optional Accessories |
BCW-401 (ceiling/wall mount), BW-14 (wall mount fittings) |
Warranty Information
1-Year Limited Warranty – Covers defects in materials and workmanship under normal use and conditions. Warranty excludes damage due to lightning, misuse, or improper installation.
Brand Description
TAKEX is a globally recognized manufacturer of precision security sensors. With a heritage rooted in Japanese engineering excellence, TAKEX is known for producing high-reliability sensors trusted across the security, automation, and building management industries. Their sensors combine advanced optics, durable builds, and flexible functionality, tailored to professional-grade systems.
SKU Field
SKU: MS-100E‑TAKEX
Practical Use Scenarios
-
Outdoor Perimeter Security: Use the long-range mode (20 m) to monitor driveways, fences, or gates.
-
Entrance Monitoring: Detect approach to front or side entrances in Wide Angle or Curtain mode.
-
Lighting Control: Automatically trigger exterior or garden lighting after dark.
-
Surveillance Activation: Connect to CCTV cameras to initiate recording on movement.
-
Smart Home Integration: Works with automation systems for custom scenes or alerts.
Datasheets / Downloads
Datasheet
Excellence for the Australian and New Zealand Market
-
Fully suited for outdoor installation across diverse ANZ climate zones.
-
Meets local electrical safety and durability standards.
-
Officially sourced from authorized TAKEX representatives in Australia.
-
Warranty honored locally for stress-free servicing or replacement.
-
Trusted by professional installers across residential, commercial, and industrial sectors.
Frequently Asked Questions (FAQs)
Q1: What is the maximum detection range of the MS-100E?
A1: The MS-100E can detect up to 20 m (66 ft) in Long Range mode, 10 m in Wide Angle or Curtain modes.
Q2: Is the MS-100E suitable for outdoor installations in Australia?
A2: Yes, it is weatherproof and designed to withstand outdoor conditions typical across Australia and New Zealand.
Q3: Can I connect the MS-100E to a light or camera?
A3: Absolutely. It features a dry contact relay (N.O./N.C. selectable) for triggering lights, alarms, or surveillance systems.
Q4: What mounting height is recommended for the MS-100E?
A4: For vertical installations, mount at 0.8 m to 1.5 m; for horizontal curtain mode, you can mount up to 3 m.
Q5: Does the MS-100E include tamper protection?
A5: Yes, it has a tamper output that triggers if the sensor is removed or opened.
Q6: What is the power requirement for the MS-100E?
A6: It operates on a 10.5–28 V DC non-polarity supply and consumes 30 mA or less.
