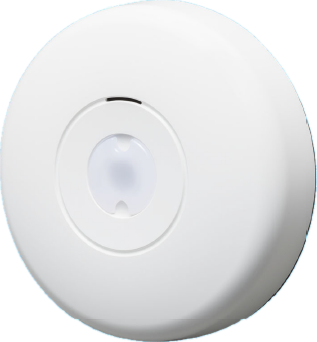

The TAKEX VS-1000E Vape & Smoking Detection Sensor is a professional indoor vape detector designed to detect airborne particles associated with vaping and smoking in schools, restrooms, public facilities and similar indoor environments. Featuring adjustable sensitivity, selectable N/O or N/C alarm output, a built-in buzzer, LED indication, tamper protection and screwless terminals, the VS-1000E provides a practical standalone solution that can integrate with existing security and building systems.
Using a high-sensitivity particle sensor and advanced detection algorithms, the VS-1000E monitors airborne particles while adapting to environmental changes to improve reliable vape and smoke detection. TAKEX specifically designed the sensor to address vaping and smoking in areas such as school grounds and restrooms.
The detector provides Standard and Low sensitivity settings, allowing installers to select an appropriate detection level for the application. When detection occurs, the unit can provide a local audible warning through its integrated buzzer and visual notification through its red alarm LED. The detection LED can also be enabled or disabled to suit installation requirements.
For integration, the VS-1000E provides a solid-state relay alarm output selectable between Normally Closed (N.C.) and Normally Open (N.O.). Its dedicated interconnection capability also supports installations involving multiple units, while tool-less screwless terminals simplify wiring.
The tamper-resistant cover locking mechanism helps discourage unauthorised access, while the detector can be installed on either a ceiling or wall. TAKEX also specifies self-diagnosis functionality that monitors the detector for conditions such as abnormal supply voltage or module failure.
Importantly, the VS-1000E operates without mandatory app-based management or ongoing software licensing, making it particularly suitable for conventional security-system and building-system installations.
Note: The VS-1000E is a vape and smoking particle sensor. TAKEX states that it is not fire-alarm equipment or a replacement for a certified fire/smoke detector.
Main Features
-
Detects airborne particles associated with vaping and smoking
-
Designed for restrooms, schools and similar indoor areas
-
High-sensitivity particle detection system
-
Advanced algorithms adapt to environmental changes
-
Standard / Low adjustable detection sensitivity
-
N.C. / N.O. selectable solid-state relay alarm output
-
Configurable alarm operation
-
Built-in audible buzzer
-
Red alarm/status LED with detection indication ON/OFF selection
-
Dedicated connection capability for multiple-unit installations
-
Tamper-resistant cover locking mechanism
-
Tamper output when the cover is removed
-
Screwless terminals for simplified installation
-
Indoor ceiling or wall mounting
-
Self-diagnosis functionality
-
No mandatory app or recurring licence required
-
10.5–28V DC non-polarity power input
Detailed Specifications
| Specification |
Details |
| Brand |
TAKEX |
| Product Type |
Vape & Smoking Detection Sensor |
| Part Number / Model |
VS-1000E |
| Installation |
Indoor |
| Detection Method |
High-sensitivity airborne particle detection |
| Sensitivity |
Standard / Low selectable |
| Supply Voltage |
10.5–28V DC, non-polarity |
| Current Consumption |
85mA max. |
| Alarm Output |
Solid-state relay, N.C. / N.O. selectable |
| Alarm Contact Capacity |
30V AC/DC, 0.2A resistive load |
| Alarm Operation |
One-shot approx. 2 sec. / detecting-time mode |
| Tamper Output |
Dry contact relay, N.C. |
| Tamper Operation |
Activated continuously when cover is detached |
| Tamper Contact Capacity |
30V AC/DC, 0.1A resistive load |
| Alarm LED |
Red |
| LED Functions |
Warm-up: blinking; detection: illuminated; error: fast blinking |
| Detection LED |
ON/OFF selectable |
| Buzzer |
Built-in; disable / 10 sec. / 30 sec. / continuous |
| Wiring |
Screwless terminals |
| Operating Temperature |
0°C to +50°C, without condensation/freezing |
| Mounting |
Indoor ceiling or wall |
| Weight |
Approx. 210g |
| Dimensions |
Approx. Ø137 × 41mm |
| Housing |
Resin |
| Colour |
White body / black base |
Technical specifications above are based on TAKEX's published VS-1000E documentation.
Mounting Height
Up to 2.5m mounting height is specified in the supplied product information. Note that TAKEX's 2026 Australian catalogue currently describes the VS-1000E as supporting up to 2.4m mounting height. For installation design, the latest TAKEX installation documentation should therefore be consulted before mounting.
What's Included in the Box
Exact packaged accessories should be confirmed against the supplied unit or current TAKEX documentation before publication where individual accessory quantities are required.
Practical Use Scenarios
The TAKEX VS-1000E is suitable for indoor environments where facility managers need vape or smoking detection without deploying cameras or microphones. Typical applications include school and university restrooms, educational facilities, public restrooms, commercial amenities, workplace facilities and other indoor areas where vaping or smoking needs to be detected.
Its relay output makes the VS-1000E particularly useful where detection events need to interface with an existing security, CCTV or building-management system. Multiple detectors can also be incorporated into larger installations.
Warranty Information
TAKEX's VS-1000E instruction manual states a 12-month limited warranty from the original date of shipment, subject to the manufacturer's warranty terms, exclusions and return requirements.
Customers should refer to the applicable supplier and TAKEX warranty terms at the time of purchase, as regional commercial warranty arrangements may differ.
About TAKEX
TAKEX specialises in professional sensing technologies for security and detection applications. The company states that its detection sensors have been protecting domestic, commercial, industrial, government and other high-security premises for more than 65 years.
SKU
VS-1000E
Part Number
VS-1000E
Price
$358.20 ex GST
Datasheets & Downloadable Resources
Official TAKEX technical resources are available from the manufacturer:
Excellence for the Australian and New Zealand Market
The TAKEX VS-1000E is supported by TAKEX's presence in the Australian market, with TAKEX listing an Australian operation in Notting Hill, Victoria. The product is promoted by TAKEX Australia for professional vape and smoking detection applications and is available through security-industry distribution channels in Australia and New Zealand.
For Australian and New Zealand installations, system designers and installers should confirm that the complete installation meets all applicable local electrical, building, fire, privacy and other regulatory requirements. No NDSS approval or other unrelated certification is claimed for this product unless specifically documented by the manufacturer.
Warranty enquiries should be handled in accordance with the applicable authorised supplier and TAKEX warranty process.
FAQs
What is the TAKEX VS-1000E vape detector used for?
The TAKEX VS-1000E is designed to detect airborne particles associated with vaping and smoking in indoor areas such as schools, restrooms and similar facilities.
Does the TAKEX VS-1000E detect both vaping and smoking?
Yes. The TAKEX VS-1000E is marketed by TAKEX as a vape and smoking sensor using high-sensitivity airborne particle detection.
Does the TAKEX VS-1000E have N/O and N/C outputs?
Yes. The TAKEX VS-1000E provides a solid-state relay alarm output selectable between Normally Open (N.O.) and Normally Closed (N.C.).
Does the TAKEX VS-1000E have a built-in buzzer?
Yes. The TAKEX VS-1000E includes an integrated buzzer that can provide an audible local warning when vaping or smoking particles are detected. Its documented settings include disable, 10 seconds, 30 seconds and continuous operation.
Can the TAKEX VS-1000E be ceiling mounted?
Yes. The TAKEX VS-1000E is designed for indoor ceiling or wall mounting, providing flexibility for different room layouts.
What power supply does the TAKEX VS-1000E require?
The TAKEX VS-1000E operates from 10.5V to 28V DC with non-polarity input and has a specified maximum current consumption of 85mA.
Does the TAKEX VS-1000E require a subscription or software licence?
No mandatory app-based management or recurring licence is required for the TAKEX VS-1000E. TAKEX describes it as an independent, license-free solution.
Can multiple TAKEX VS-1000E vape detectors be connected together?
The TAKEX VS-1000E includes dedicated connectivity for interconnecting units, and TAKEX also documents support for daisy-chain installations across multiple areas such as restroom stalls.
Does the TAKEX VS-1000E have tamper protection?
Yes. The TAKEX VS-1000E incorporates a tamper-resistant cover locking mechanism and an N.C. dry-contact tamper output that activates when the cover is removed.
Is the TAKEX VS-1000E a replacement for a fire smoke detector?
No. The TAKEX VS-1000E is a vape and smoking particle detection sensor, and TAKEX specifically states that it is not fire-alarm equipment such as a fire or smoke detector.
