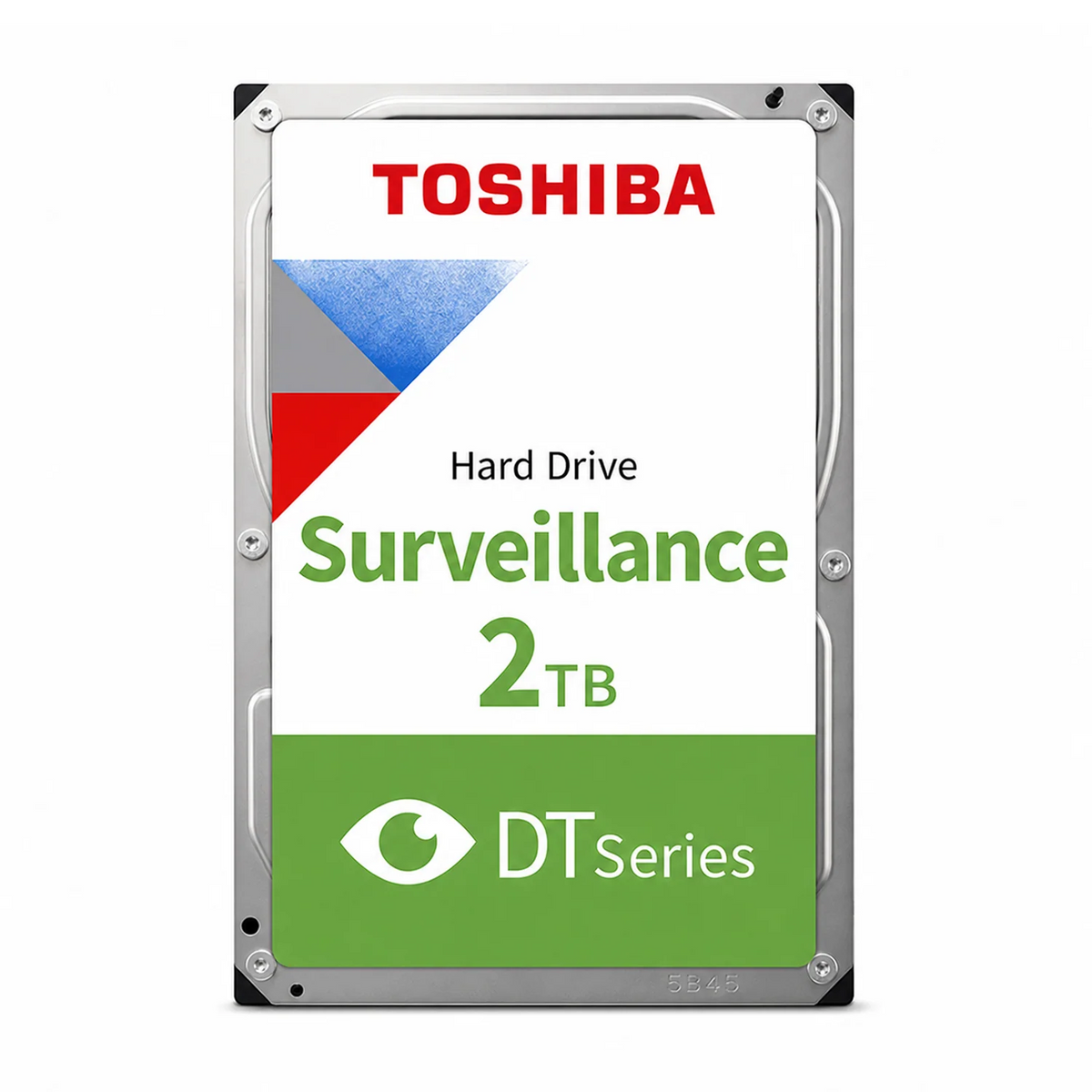

The Toshiba DT02ABA200V 2TB Surveillance HDD is a purpose-built 3.5-inch SATA hard drive for 24/7 surveillance recording, supporting surveillance systems with up to 32 high-definition camera streams. Featuring a 2TB formatted capacity, 5400 RPM design, 128MiB cache buffer, SATA 6.0 Gbit/s interface speed and up to 176.4 MiB/s typical sustained transfer speed, the DT02ABA200V is designed for consumer and commercial NVR, SNVR and SDVR video surveillance applications.
Toshiba's DT02-V Series is engineered for demanding, continuous multi-stream surveillance environments. Its 128MiB cache helps smooth video recording and guard against frame drops, while the drive carries a 180TB/year rated workload and is designed for 24-hour, 7-day operation.
The DT02ABA200V uses an industry-standard 3.5-inch form factor and SATA interface for compatibility with a wide variety of surveillance platforms from leading SVR and NVR vendors. It also incorporates Advanced Format 512e Sector Technology and Drive-Managed SMR (Shingled Magnetic Recording) technology.
What's Included in the Box
1 × Toshiba DT02ABA200V 2TB Surveillance HDD
This Toshiba product does not have additional accessories, cables, mounting hardware, or retail packaging contents; these should therefore not be represented as included unless confirmed separately.
Main Features
-
2TB formatted storage capacity for surveillance video
- Designed for 24/7 surveillance operation
- Supports systems with up to 32 HD camera streams
-
5400 RPM energy-saving design
-
128MiB cache buffer to help smooth recording and guard against frame drops
-
SATA-3.3 interface with interface speeds up to 6.0 Gbit/s
- Up to 176.4 MiB/s typical sustained transfer speed
-
180TB/year rated annual workload
-
1,000,000-hour MTTF and 0.88% AFR under Toshiba's specified surveillance operating conditions
- Industry-standard 3.5-inch form factor
-
Advanced Format 512e sector technology
-
Drive-Managed SMR technology
- Designed for NVR, SNVR and SDVR surveillance platforms.
Detailed Specifications
| Specification |
Toshiba DT02ABA200V |
| Product Code / Model |
DT02ABA200V |
| Series |
Toshiba DT02-V Series |
| Drive Type |
Surveillance HDD |
| Formatted Capacity |
2TB |
| Form Factor |
3.5-inch |
| Interface |
SATA-3.3 |
| Interface Speed |
6.0 / 3.0 / 1.5 Gbit/s |
| Rotation Speed |
5400 RPM |
| Buffer / Cache |
128MiB |
| Max. Sustained Data Transfer |
176.4 MiB/s typical |
| Logical Data Block Length |
Host: 512 B / Disk: 4096 B |
| Recording Technology |
Drive-Managed SMR |
| Sector Technology |
Advanced Format 512e |
| Camera Stream Support |
Up to 32 HD camera streams* |
| Availability |
24 hours/day, 7 days/week |
| Rated Annual Workload |
180TB/year |
| MTTF / AFR |
1,000,000 hours / 0.88%* |
| Non-Recoverable Error Rate |
1 error per 10¹⁴ bits read |
| Load / Unload Rating |
600,000 times |
| Operating Power (Typical) |
4.01 W |
| Active Idle Power (Typical) |
2.08 W |
| Standby Power (Typical) |
0.31 W |
| Low-Power Idle Acoustics (Typical) |
21 dB |
| Supply Voltage |
12 V ±10% / 5 V ±5% |
| Operating Ambient Temperature |
0°C to 60°C, no condensation |
| Non-Operating Ambient Temperature |
-40°C to 70°C, no condensation |
| Operating Relative Humidity |
5% to 90% RH, no condensation |
| Non-Operating Relative Humidity |
5% to 95% RH, no condensation |
| Width |
101.6 mm ±0.25 mm |
| Height (Max.) |
26.1 mm |
| Length (Max.) |
147.0 mm |
| Weight (Max.) |
440 g |
The detailed performance, environmental, reliability and mechanical figures above are taken from Toshiba's DT02-V Series Product Overview.
* Toshiba states that support for up to 32 surveillance cameras is based on performance simulation using HD cameras at a 4 Mbit/s rate; actual results can vary according to cameras, hardware/software, compression, resolution, frame rate and other settings. Toshiba specifies the MTTF/AFR figures under defined 24/7 surveillance usage, temperature and workload conditions.
Practical Use Scenarios
The DT02ABA200V 2TB Surveillance HDD is designed for Network Video Recorders (NVRs), entry- and mid-range SNVR and SDVR platforms, and hybrid analog/IP SDVR systems. It is particularly suited to installations requiring continuous multi-stream video storage rather than a general-purpose desktop workload.
Potential applications include residential CCTV systems, small-business surveillance installations, retail security recording, office monitoring and compatible multi-camera NVR systems, provided the host surveillance equipment supports the drive's interface and recording technology.
Warranty Information
Warranty: 2 Year Warranty
About Toshiba
Toshiba Electronic Devices & Storage Corporation is the manufacturer identified in the supplied DT02-V Series documentation. The DT02-V family is specifically positioned as a surveillance HDD range for purpose-built consumer and commercial video surveillance systems.
SKU
D-Toshiba HDD2TB
Manufacturer Product Code: DT02ABA200V
Datasheet / Downloadable Resources
Datasheet
Excellence for the Australian and New Zealand Market
The Toshiba DT02ABA200V 2TB Surveillance HDD provides purpose-built 24/7 surveillance storage for compatible security systems deployed across Australian and New Zealand homes and businesses. Its 2TB capacity, support for up to 32 HD surveillance streams under Toshiba's stated test conditions, 180TB/year workload rating and standard 3.5-inch SATA architecture make it a practical storage option for compatible NVR and surveillance recording environments.
The supplied Toshiba documentation does not state Australian-specific certifications, NDSS approval, exclusive authorised-representative sourcing, or Australian/New Zealand-specific warranty arrangements. These claims should only be added to the live listing once independently documented, avoiding unsupported certification or warranty statements.
FAQs
Q: What is the Toshiba DT02ABA200V 2TB Surveillance HDD designed for?
The Toshiba DT02ABA200V is designed for purpose-built consumer and commercial surveillance video systems, including NVR, SNVR and SDVR platforms.
Q: Does the Toshiba DT02ABA200V support 24/7 surveillance recording?
Yes. Toshiba specifies the DT02-V Series for 24/7 operation, with availability rated at 24 hours per day, 7 days per week.
Q: How many surveillance camera streams can the Toshiba DT02ABA200V support?
The DT02-V Series supports systems with up to 32 HD camera streams. Toshiba bases this figure on simulations using HD cameras at 4 Mbit/s, and actual capability varies according to the surveillance system and recording settings.
Q: What is the storage capacity of the Toshiba DT02ABA200V?
The Toshiba DT02ABA200V provides 2TB of formatted capacity, with actual usable storage varying according to formatting, operating environment and other system factors.
Q: What RPM and cache does the Toshiba DT02ABA200V use?
The DT02ABA200V operates at 5400 RPM and incorporates a 128MiB cache buffer, which Toshiba states helps smooth video recording and guard against frame drops.
Q: What interface does the Toshiba DT02ABA200V 2TB HDD use?
The DT02ABA200V uses a SATA-3.3 interface, supporting interface speeds of 6.0, 3.0 and 1.5 Gbit/s.
Q: What is the annual workload rating of the Toshiba DT02ABA200V?
The Toshiba DT02ABA200V belongs to the DT02-V Series with a rated annual workload of 180TB/year, defined as the total data written, read or verified by commands from the host system.
Q: What are the dimensions of the Toshiba DT02ABA200V?
The DT02ABA200V measures up to 147.0 mm long × 101.6 mm wide × 26.1 mm high and has a maximum weight of 440 g.
